6-zone 240W in-line 100 volt matrix amplifier with 6 zones

This Matrix Amplifier offers a complete solution for multi-zone calls and multi-source selection systems.

It operates on 230 V - 50/60 Hz or DC 24 V mains.

It has built-in sources such as MP3 / USB / SD / FM / Bluetooth Player.

Features :

It is equipped with :

• 2 XLR or balanced jack inputs (CH 1-2)
• 2 RCA inputs (AUX 1-2)
• 1 Euroblock terminal block (Remote trigger)
• 1 RCA input (EMC IN)
• RJ45 for AMX-6B wall panel control and AMX-6A micro desk zone selection control
• 1 Input DC 24 V
• LINE OUT output on RCA/zones
• 1 RCA monitor output
• Individual volume control per input and per zone

Settings :

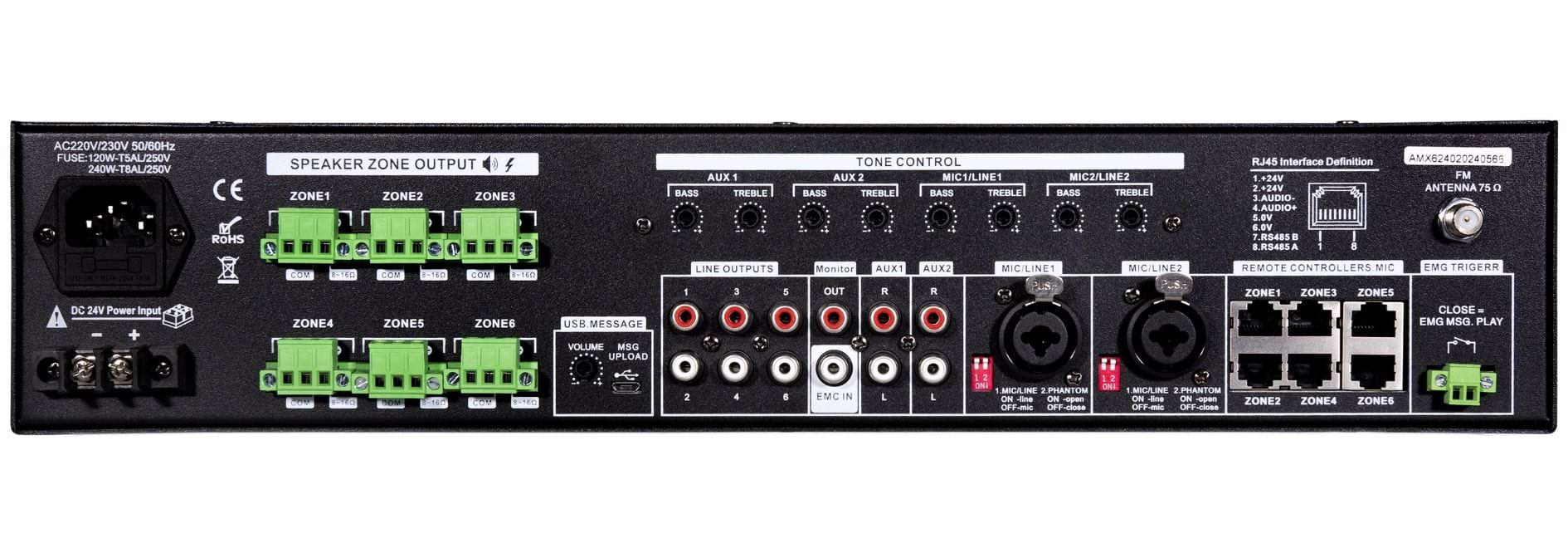

• Front panel: 2 MIC/LINE volume controls (LINE 1-2) with tone controls and zone selectors
• 2 Volume controls (AUX 1-2) with zone selectors Rear panel: 4 gain settings for each input
• 1 HP monitor output on euroblock 8-16 Ω / 2-5 W
• Dry contact
• Thermal protection, overload and short-circuit protection
