Power amplifier 4 x 480 W CLASS D

Name: Power amplifier 4 x 480 W CLASS D
Brand: RONDSON
SKU: PA-4500

Reference : PA-4500

SKU : 02581

EAN13 : 3701567903908

Power output

4 x 500 W

Impédance

100V

Zones

PA-4500

PA-4500

Description

Description :

Class D power amplifier, 4 x 480 W, 4 inputs and 4 outputs.

It offers 100 V loudspeaker outputs.

It operates on 230 V - 50/60 Hz mains.

Characteristics :

It is equipped with :

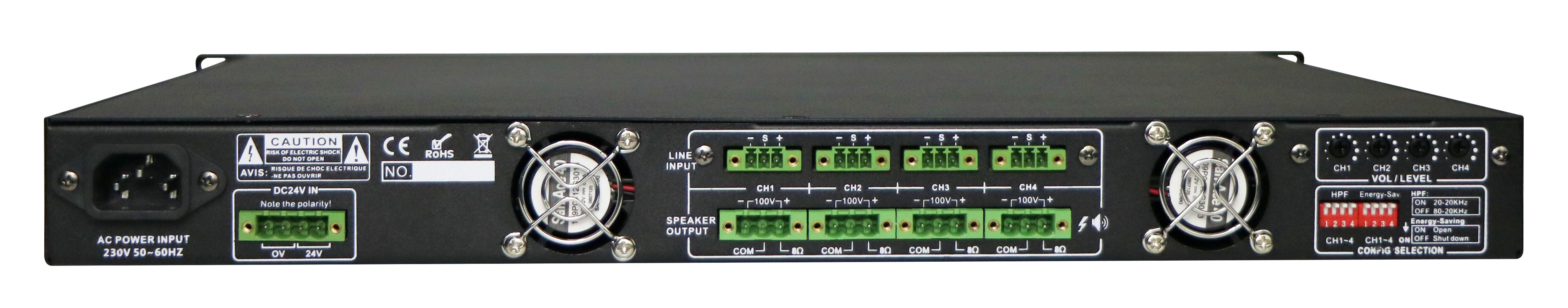

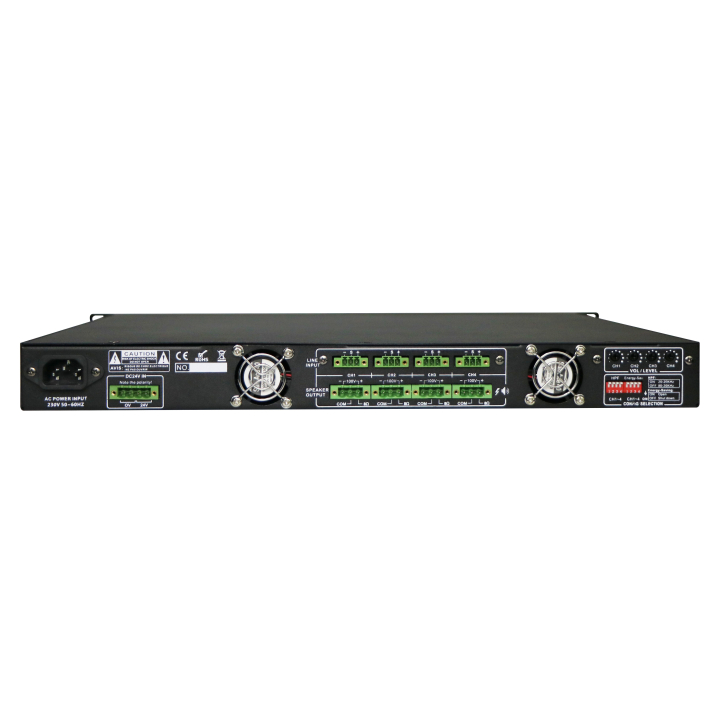

4 inputs on euroblock terminal block
4 outputs on euroblock terminal block
Individual volume control per input and per zone
HPF SWITCH: These switches toggle between the low-pass filter and 180 Hz for each input signal. They are used depending on the type of loudspeakers or the installation environment.
Thermal protection, overload and short-circuit protection
Mounting brackets 19″ 2U integrated.

SPECIFICATIONS	PA-4480
Type	4-Channel Class D Power Amplifier
Power supply	AC 230 V – 50/60 Hz
Output power	4 x 480 W
Speaker Outputs	100 V
Inputs/Sensitivity	Input : 0 dB / 20 KΩ Symmetrical LINK : 0 dB / 20 KΩ Symmetrical
Crosstalk	> 70 dB
Frequency Response	50 Hz – 15 000 Hz (± 3 dB)
Total harmonic distortion	< 0,1 %
Signal-to-noise ratio	> 90 dB
Tone Settings	Bass: ± 10 dB at 100 Hz Treble: ± 10 dB at 10 KHz
Protection	Fan, Thermal protection, overload and short-circuit
Need for power supply	AC 220 / 240 V 50/60 Hz
Dimensions W x D x H	483 x 380 x 88 mm
Weight	7,90 Kg
