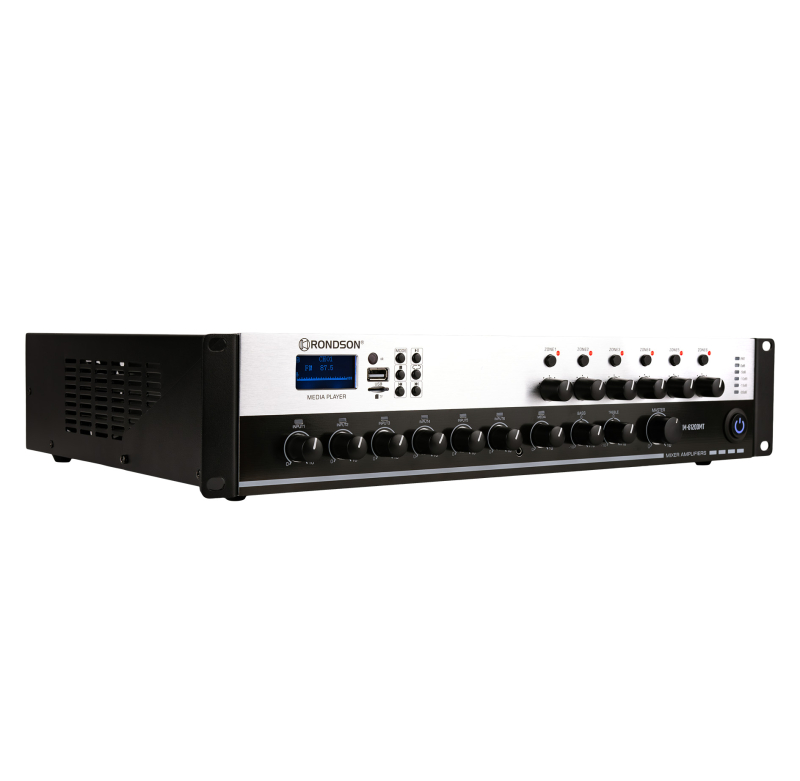

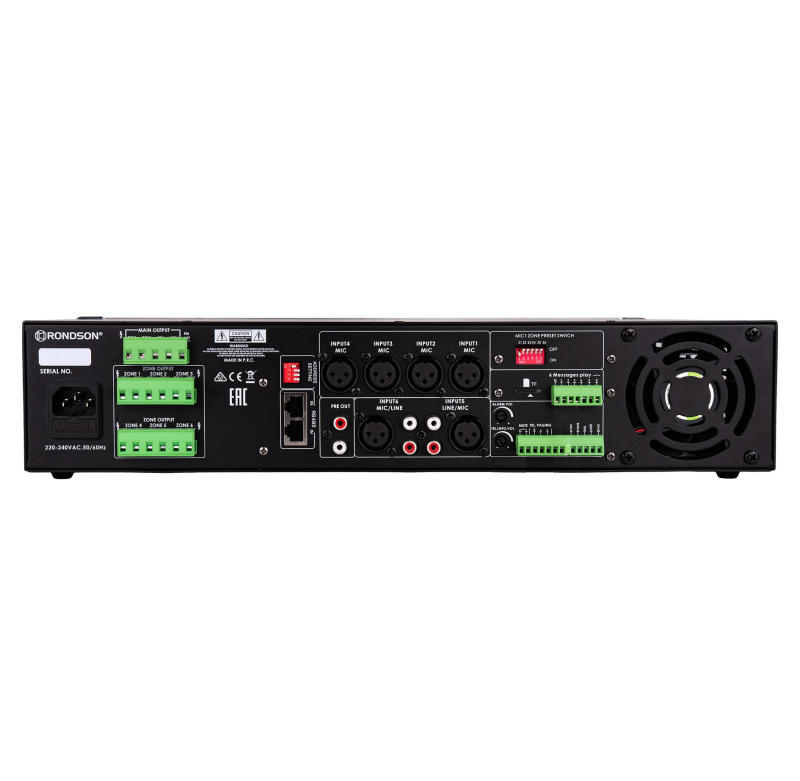

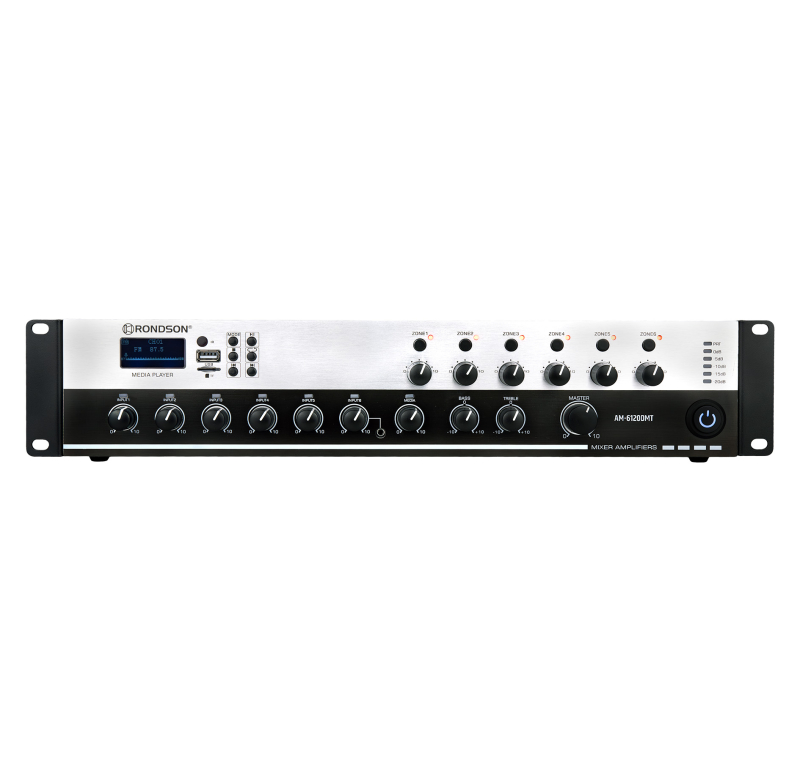

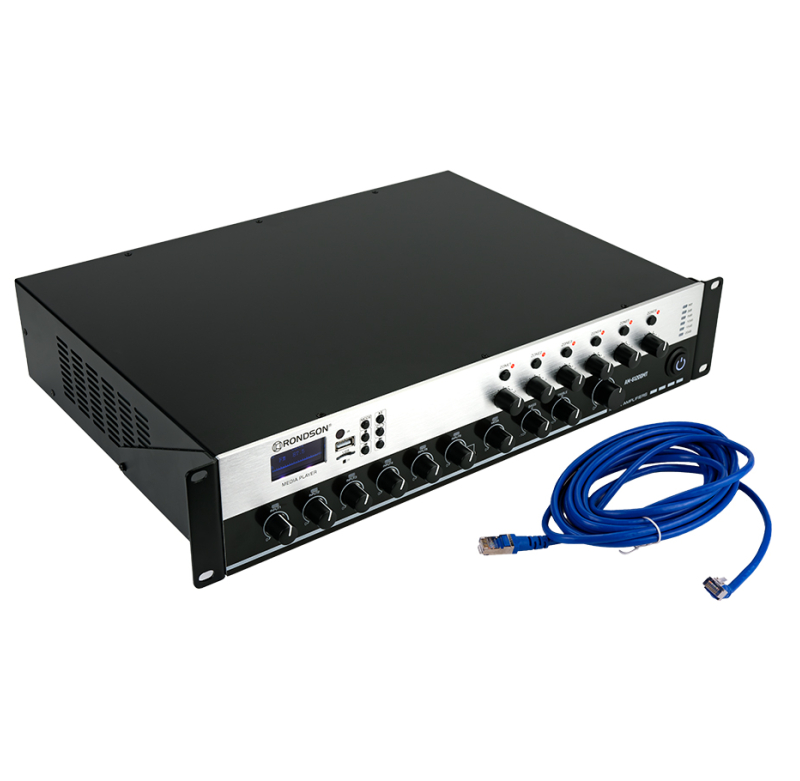

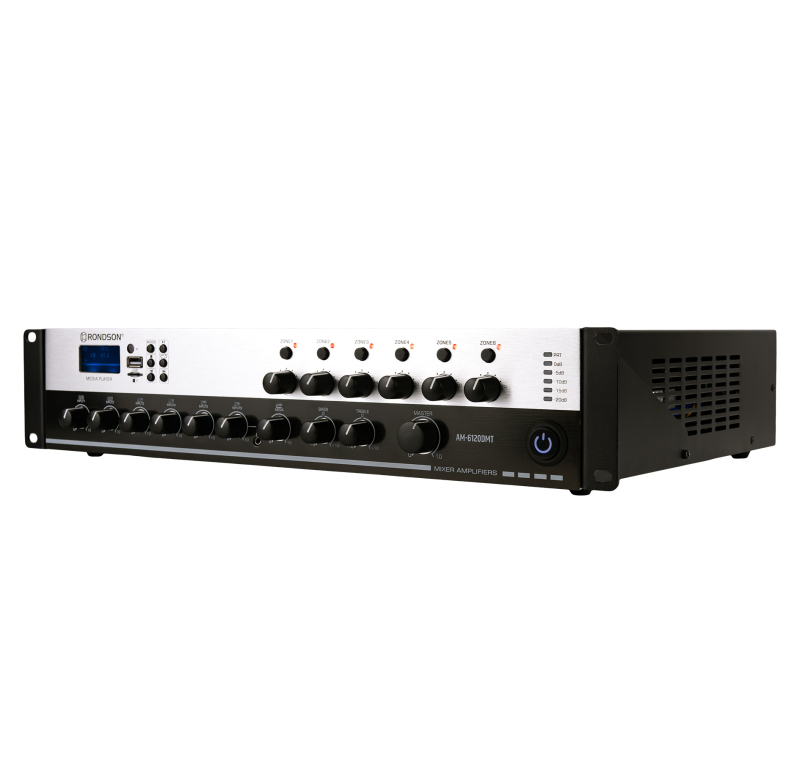

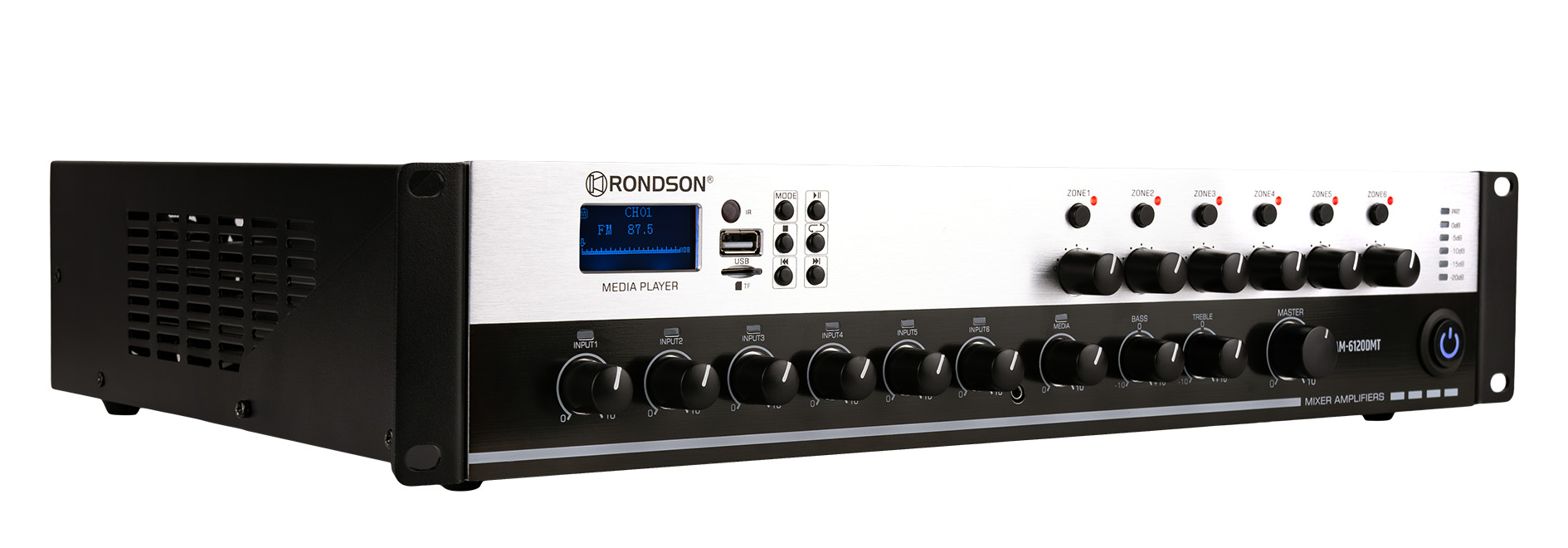

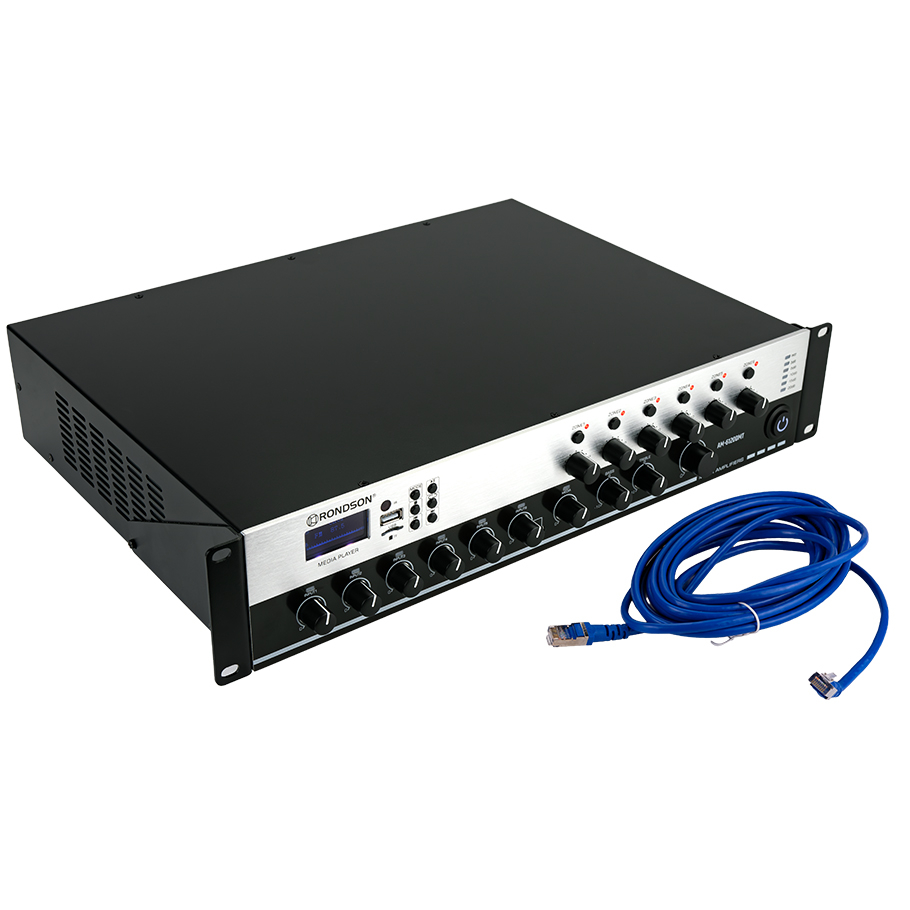

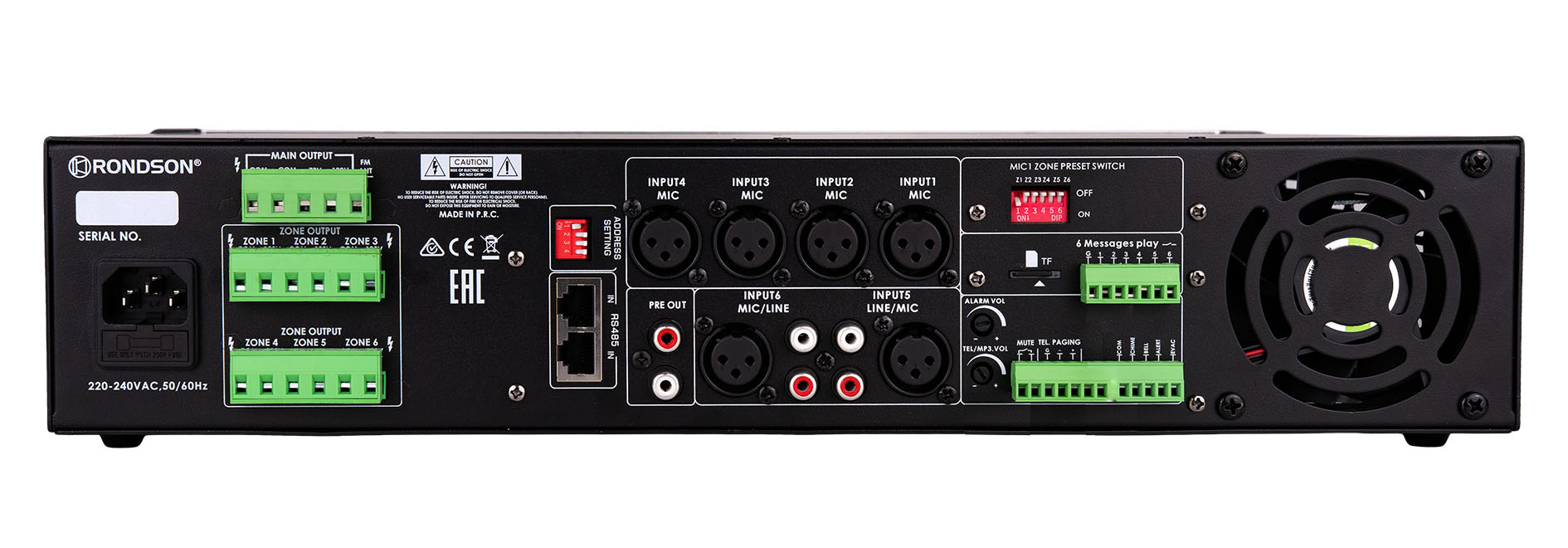

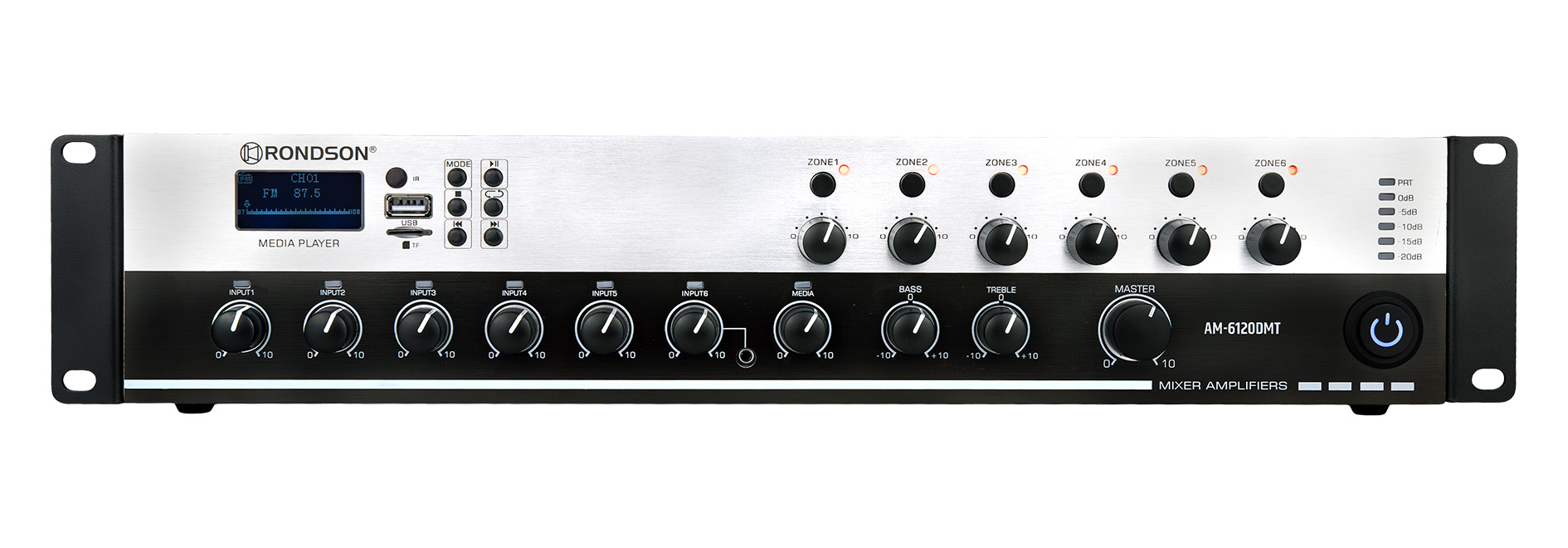

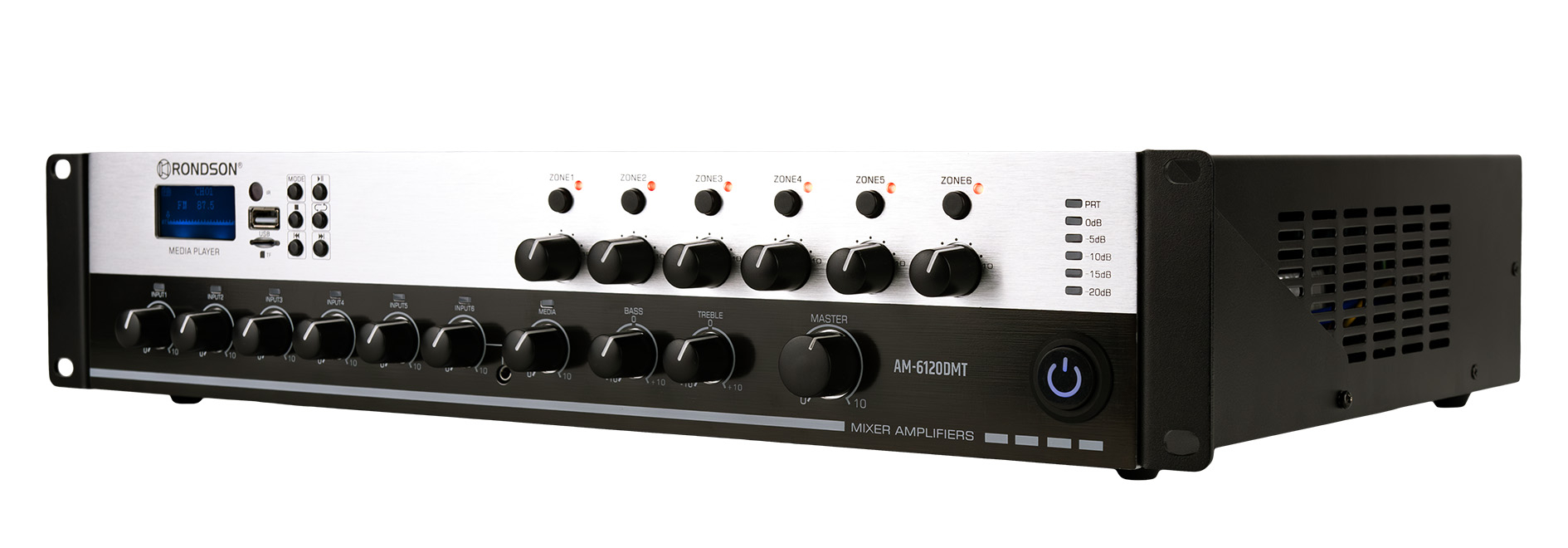

6-zone 550W mixer amplifier in 100V with message reader

Reference : AM-6550DMT
SKU : 02940
EAN13 : 3701567914102
  • 550W amplifier preamplifier
  • 6 zones
  • 100V line
  • Multimedia player
Sources Audio
Coupure sono
Zones
Share

Description

Product Sheet in PDF

Download the PDF product sheet

Description:

  • 6-zone mixer amplifier
  • 70/100V line operation
  • Power: 120 W RMS / 250 / 550

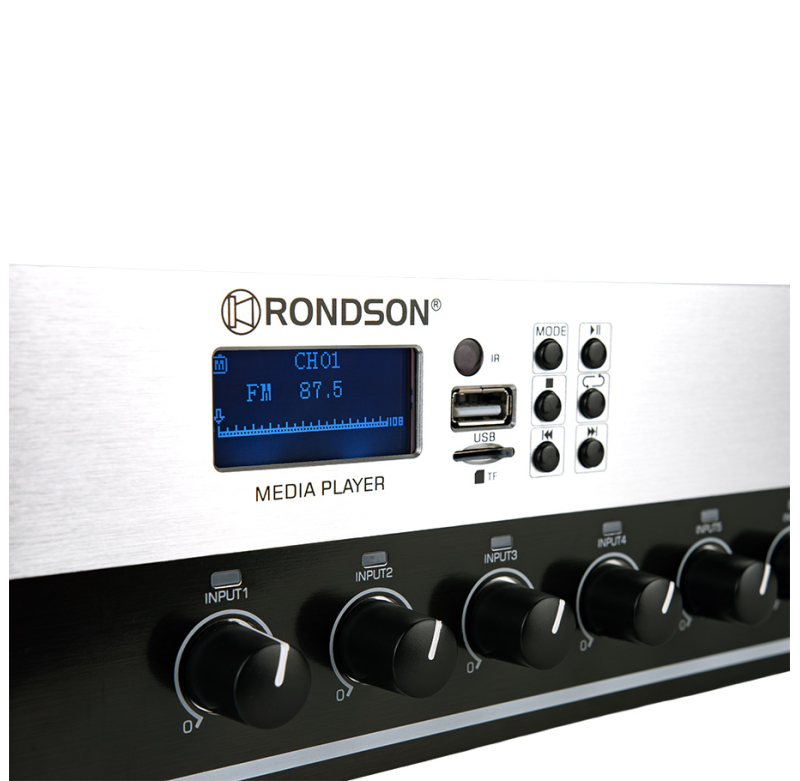

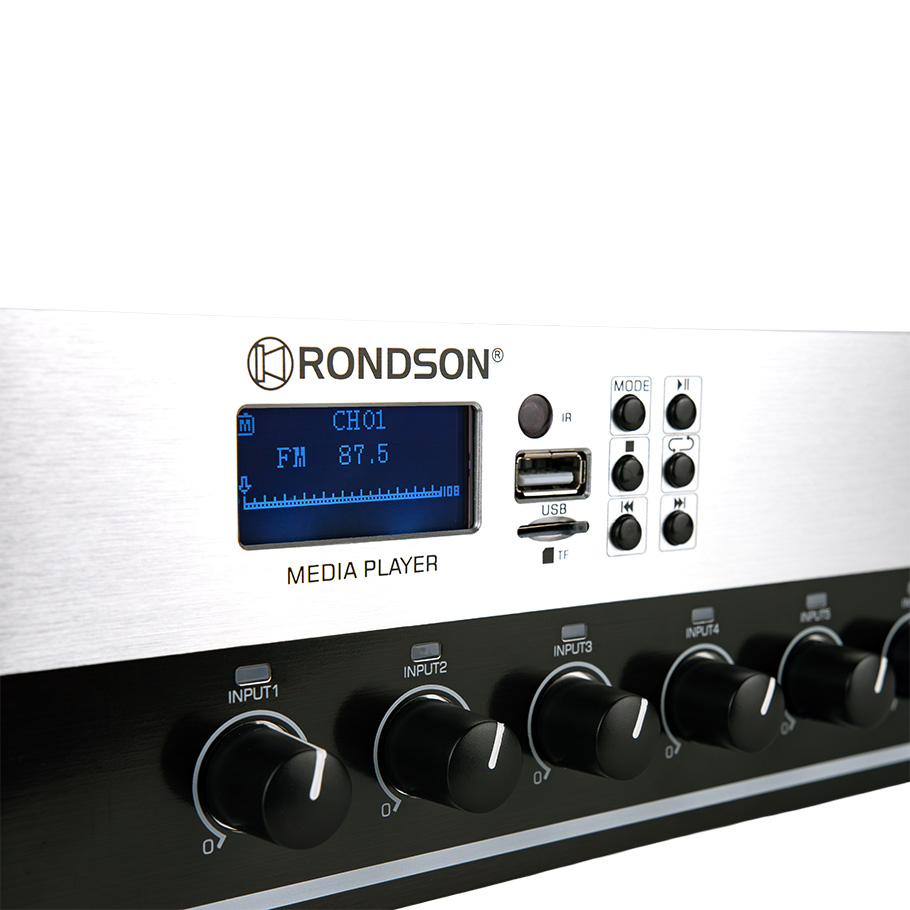

  • Built-in message player
  • Mic 1 input with zone selection output 1 to 6
SPECIFICATIONS AM-6120DMT AM-6250DMT AM-6550DMT
Rated power consumption 215W 550W 1350W
A/C Fuse 4A 5A 12A
Output power 120 W 250 W 550 W
70V Output impedance 33.5Ω 20Ω 8.5Ω
100V Output impedance 67Ω 40Ω 17Ω
Frequency response 20 Hz - 20 kHz 20 Hz - 20 kHz 20 Hz - 20 kHz
THD 100V out <-3dB> 0.5% 100V out <-3dB> 0.5% 100V out <-3dB> 0.5%
Auxiliary input 300mV 300mV 300mV
Microphone input 4mV 4mV 4mV
Signal-to-noise ratio >80dB >80dB >80dB
Pec out 650mV - 750mV 650mV - 750mV 650mV - 750mV
Dimensions (W x D x H) 483 x 88 x 320 mm 483 x 88 x 320 mm 483 x 88 x 320 mm
Weight 10 kg 12 kg 15.5 kg

Product Details

  • Brand
  • Reference
    AM-6550DMT
  • SKU
    02940
  • EAN13
    3701567914102
