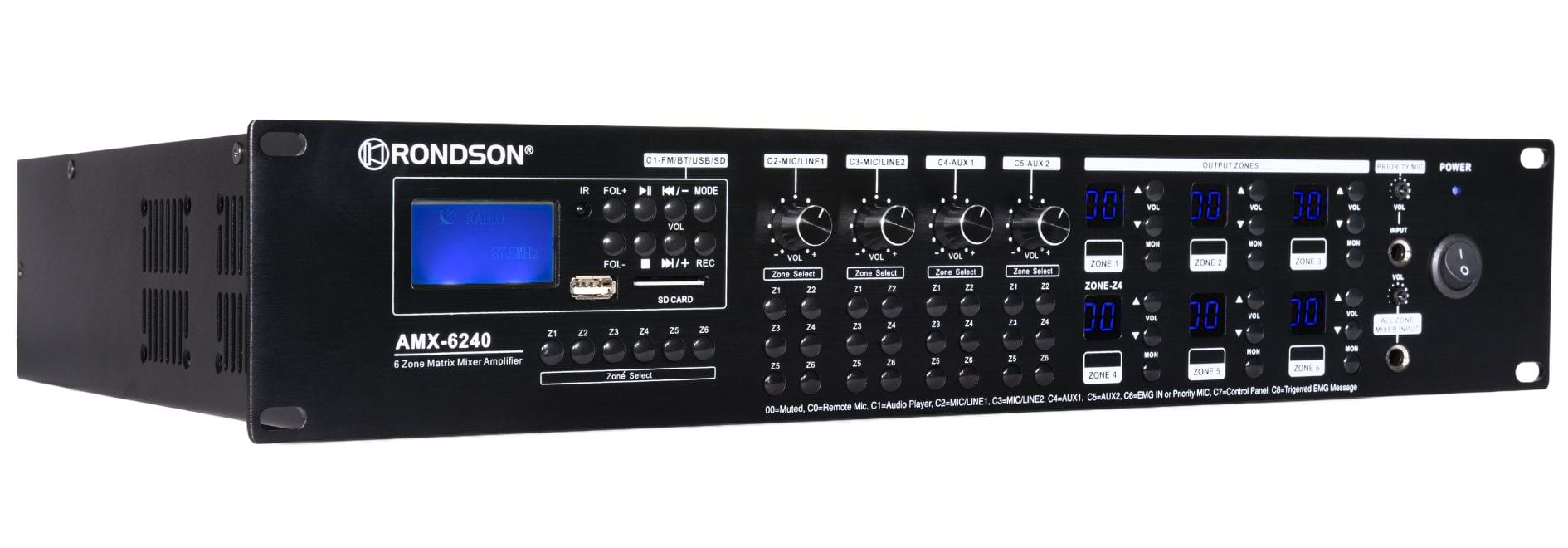

120W 6-zone matrix amplifier, 100 volt in-line

This Matrix Amplifier offers a complete solution for multi-zone calls and multi-source selection systems.

It operates on 230 V - 50/60 Hz or DC 24 V mains.

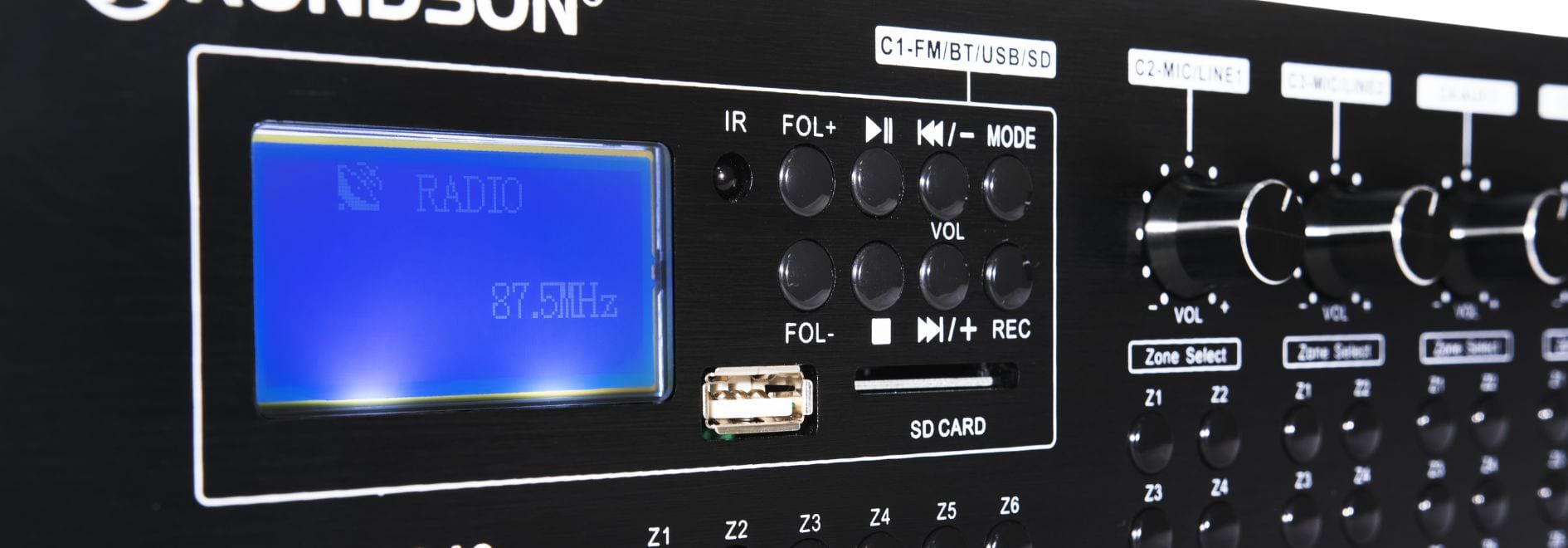

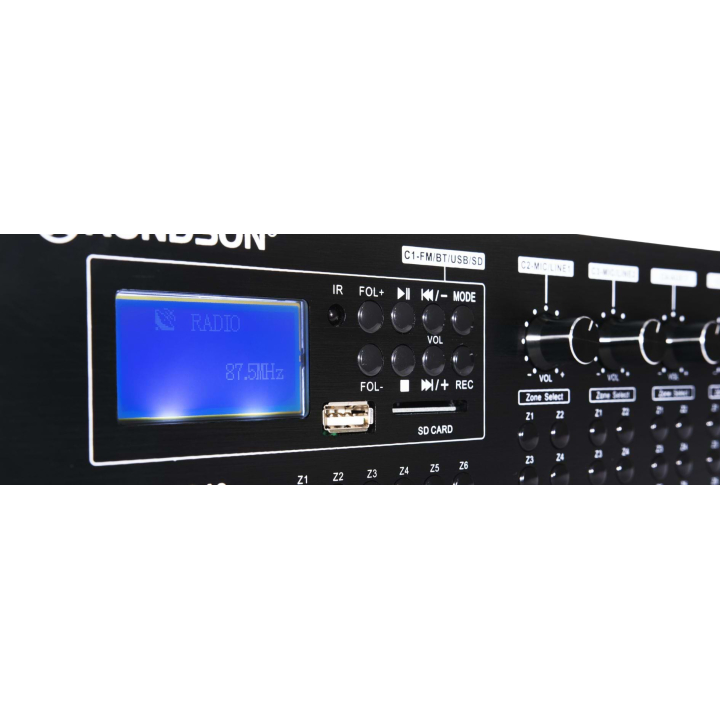

It has built-in sources such as MP3 / USB / SD / FM / Bluetooth Player.

Features :

It is equipped with :

2 XLR or balanced jack inputs (CH 1-2)

2 RCA inputs (AUX 1-2)

1 Euroblock terminal block (Remote trigger)

1 RCA input (EMC IN)

RJ45 for AMX-6B wall panel control and AMX-6A micro desk zone selection control

1 Input DC 24 V

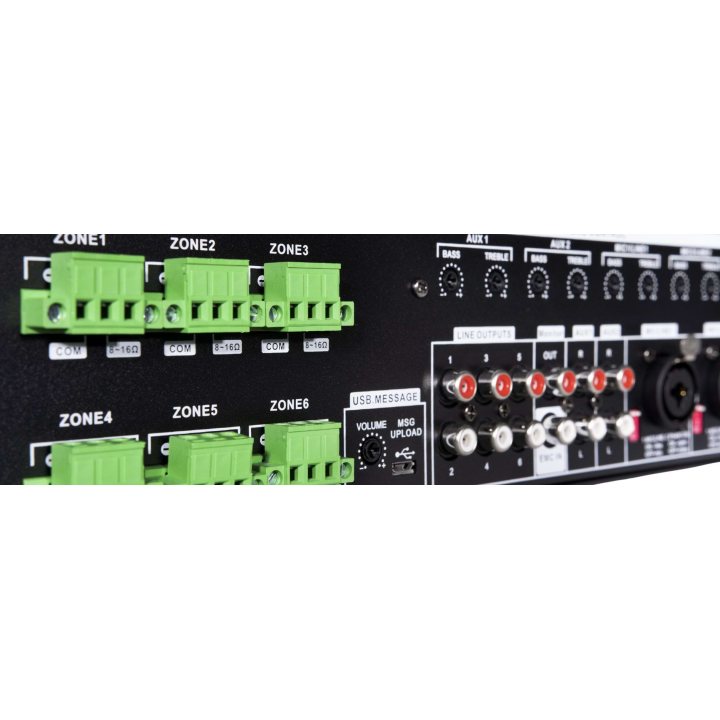

LINE OUT output on RCA/zones

1 RCA monitor output

Individual volume control per input and per zone

Settings :

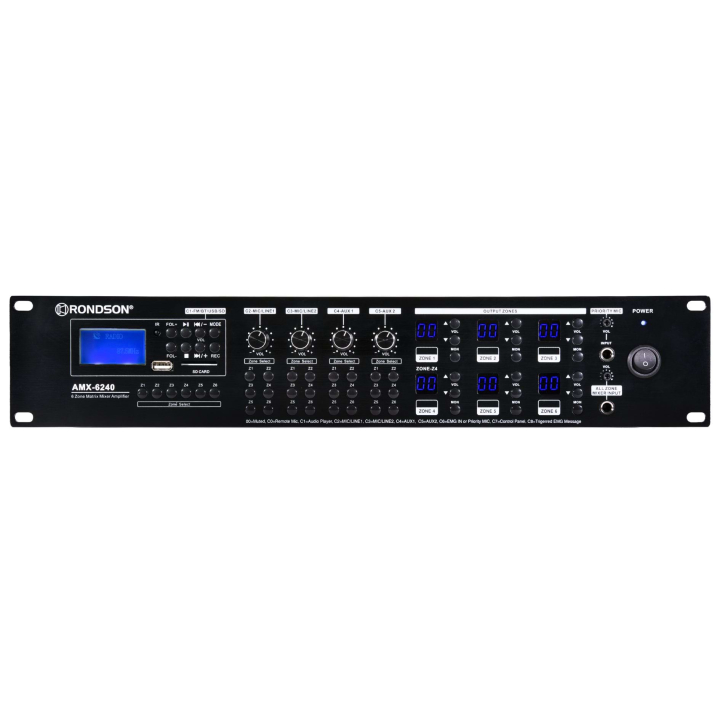

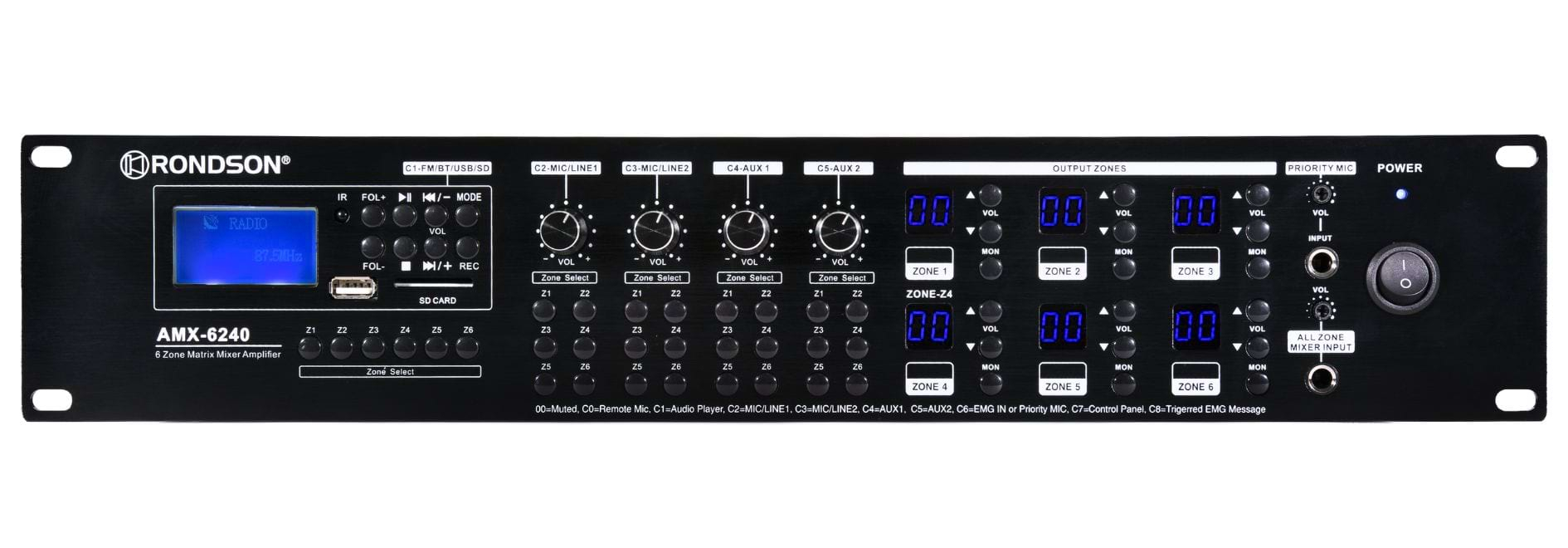

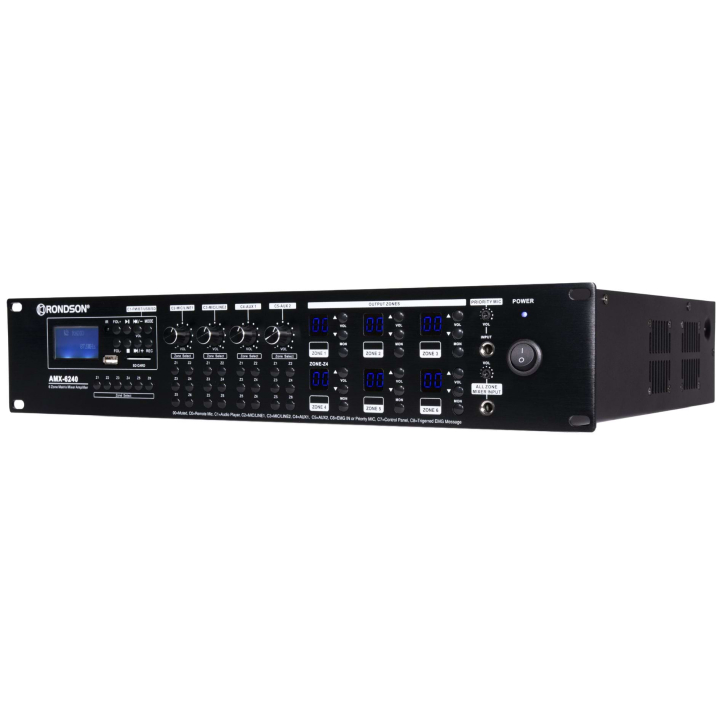

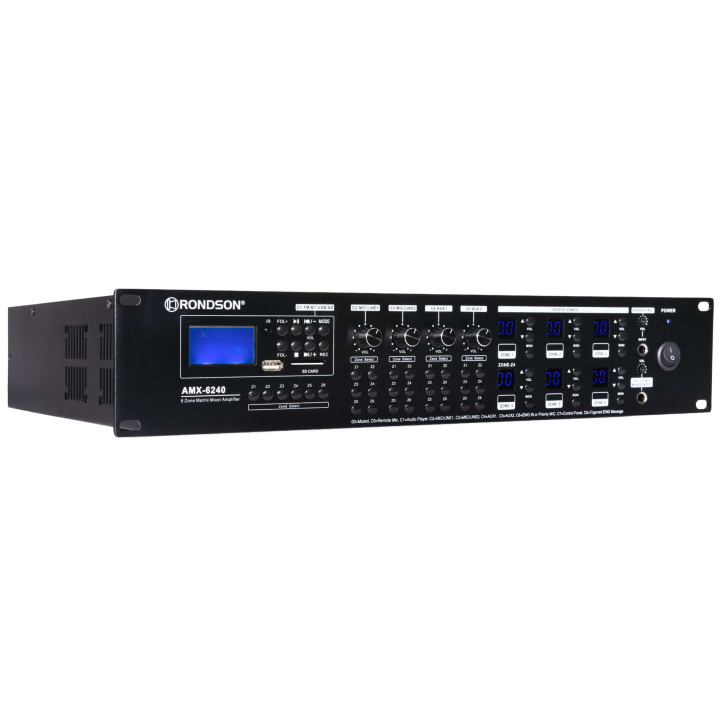

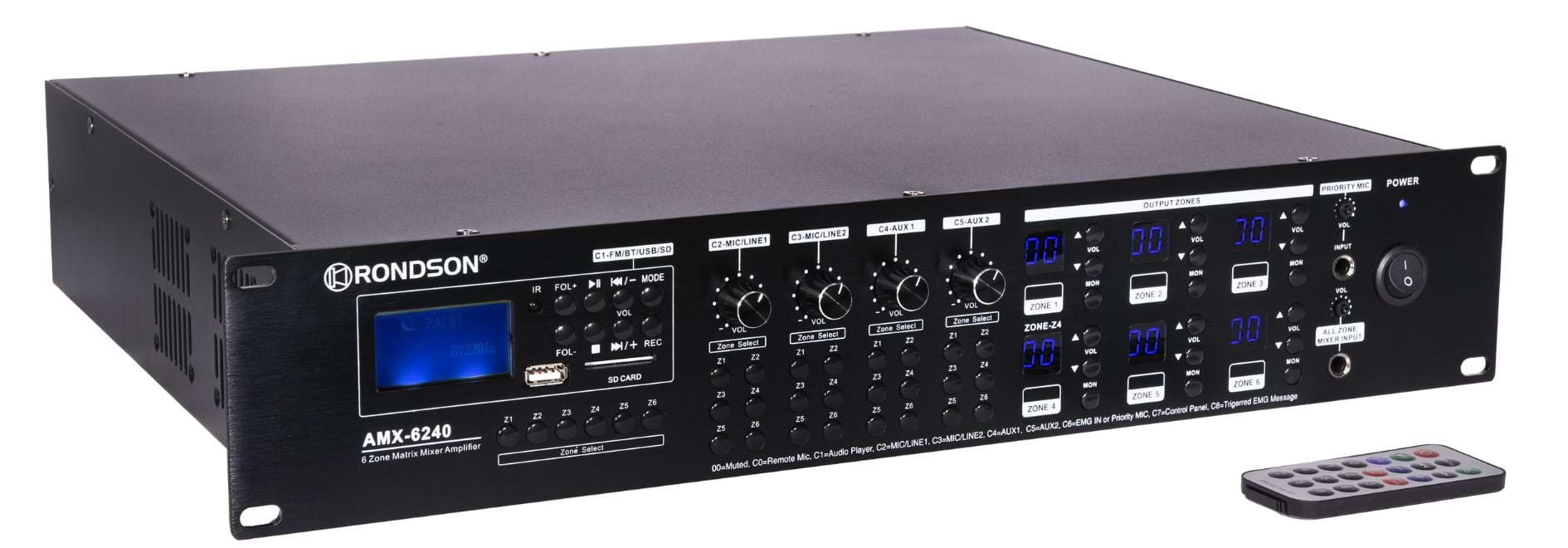

Front panel: 2 MIC/LINE volume controls (LINE 1-2) with tone controls and zone selectors

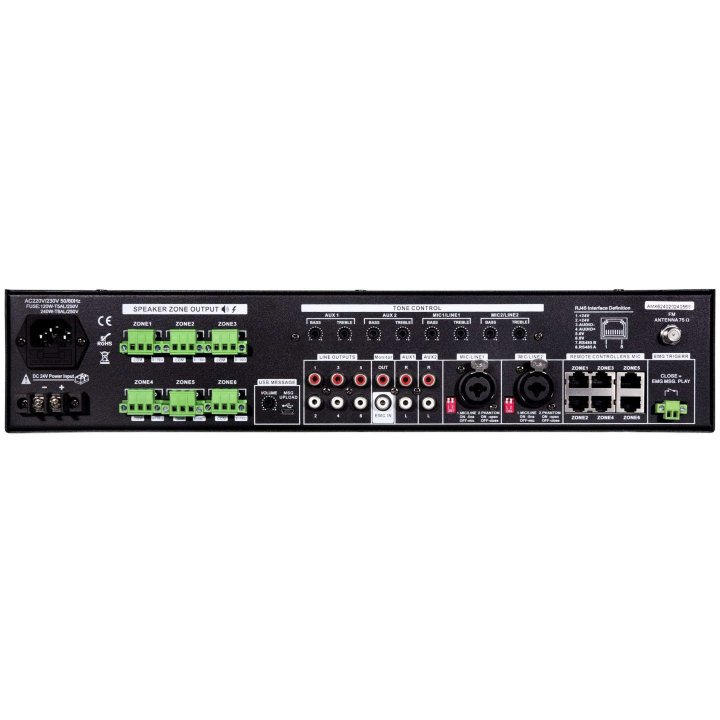

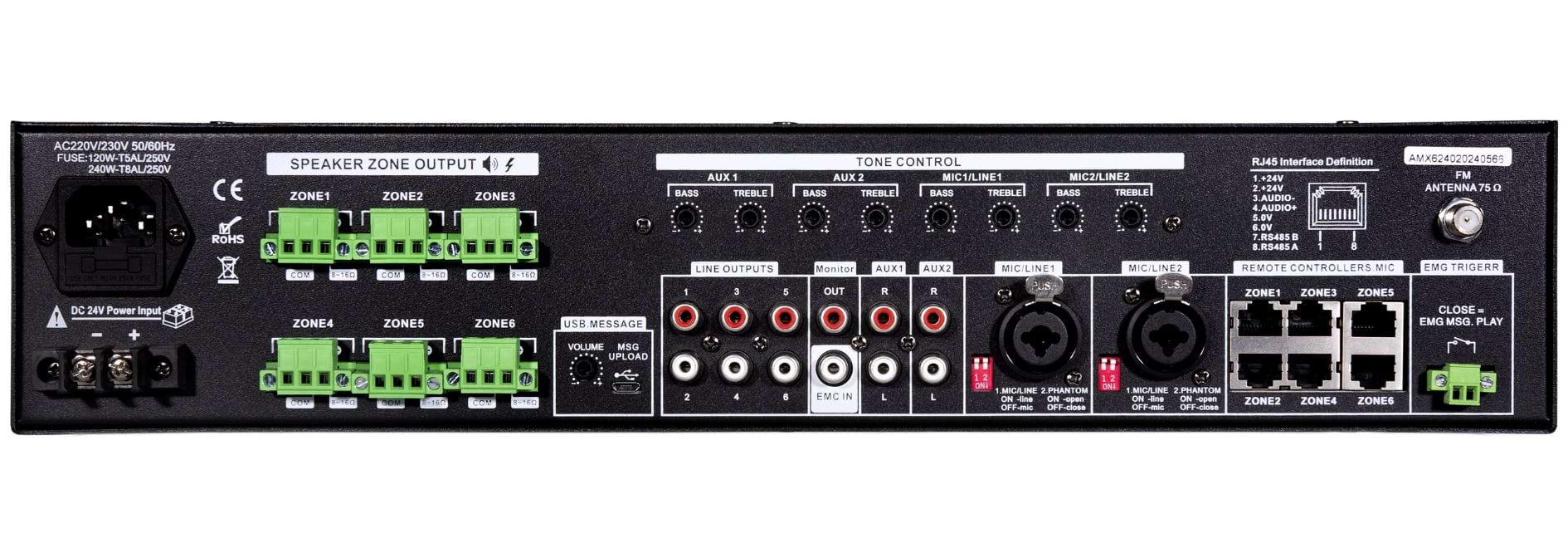

2 Volume controls (AUX 1-2) with zone selectors Rear panel: 4 gain settings for each input

1 HP monitor output on euroblock 8-16 Ω / 2-5 W

Dry contact

Thermal protection, overload and short-circuit protection
