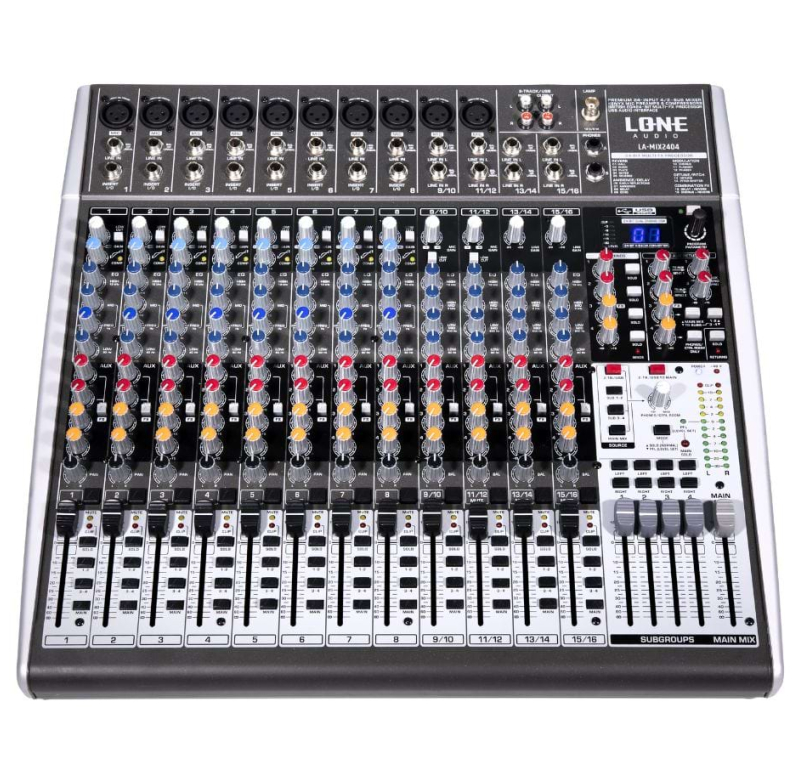

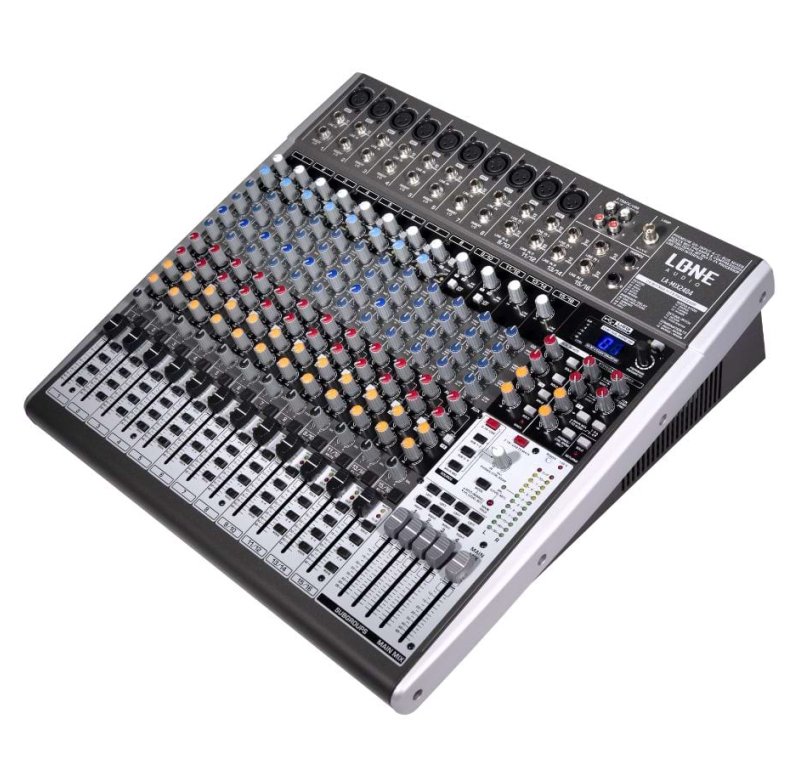

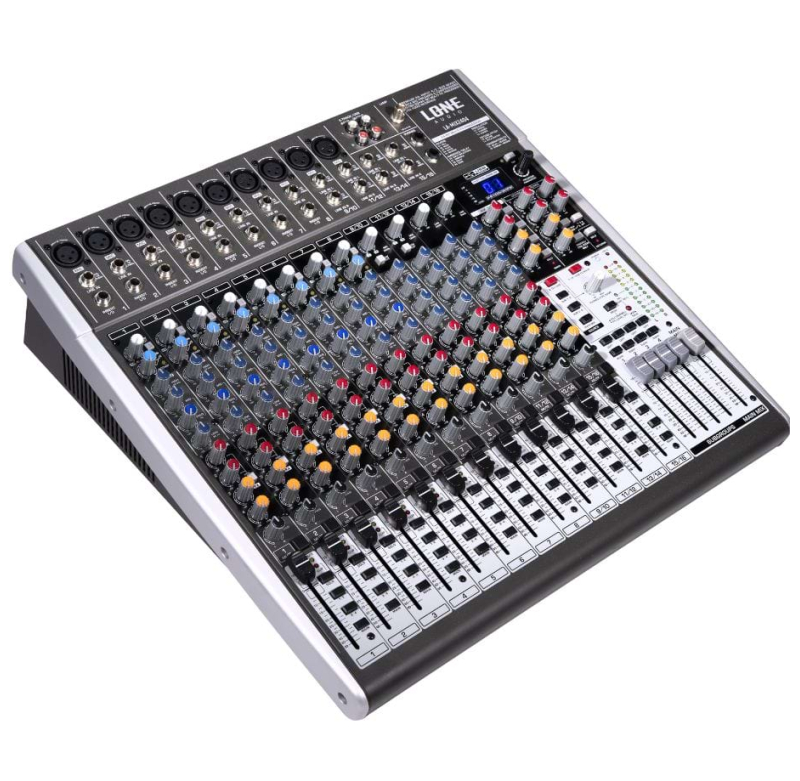

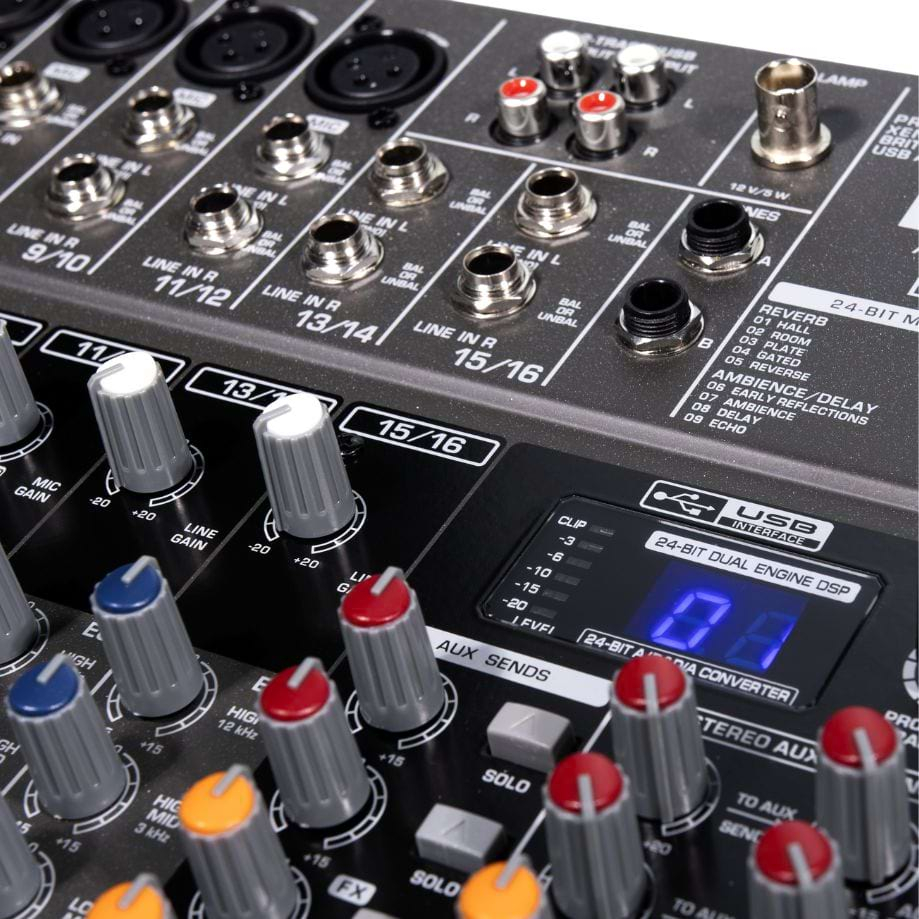

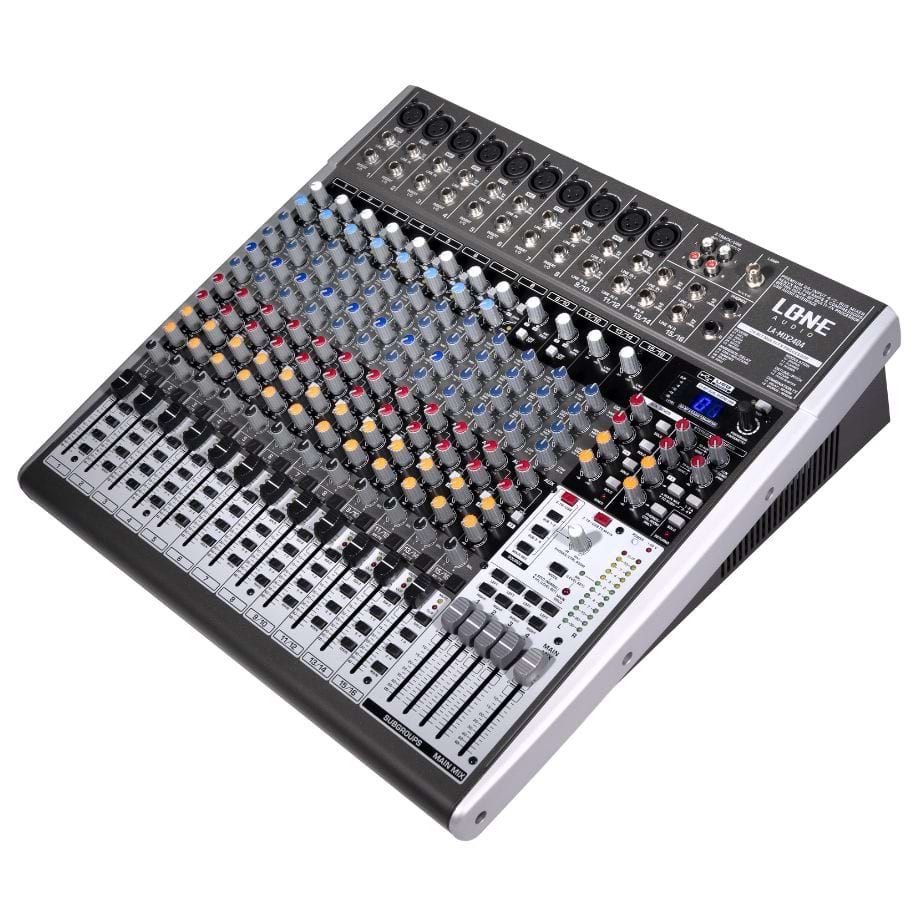

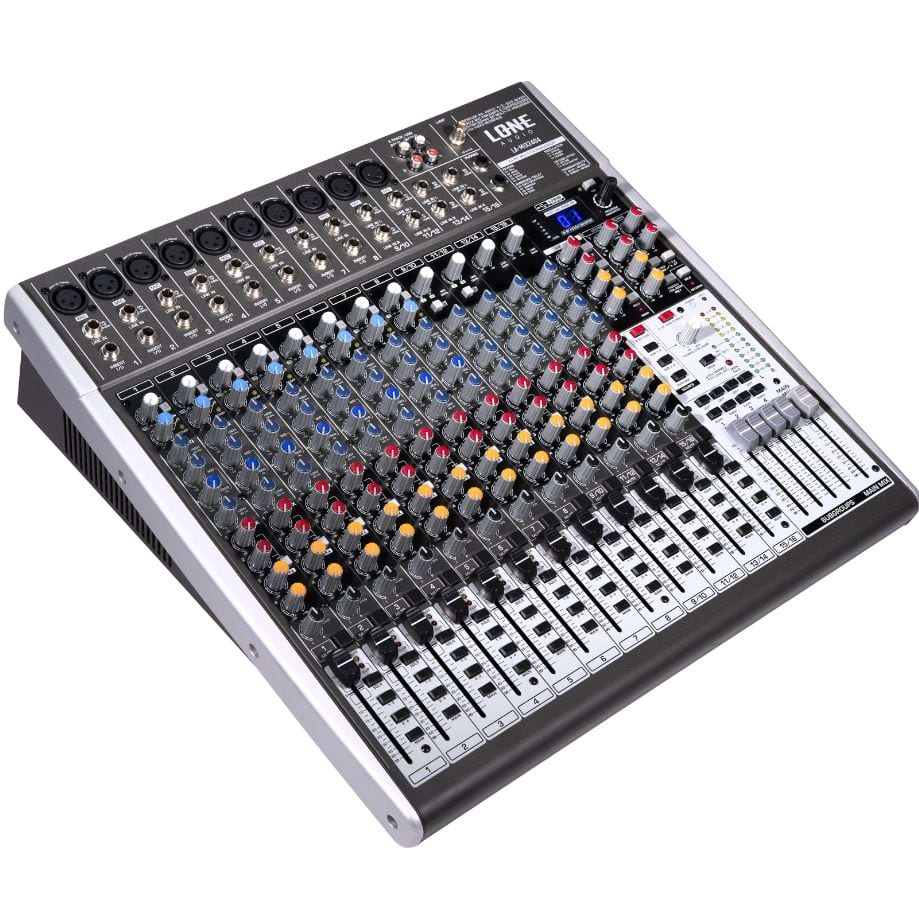

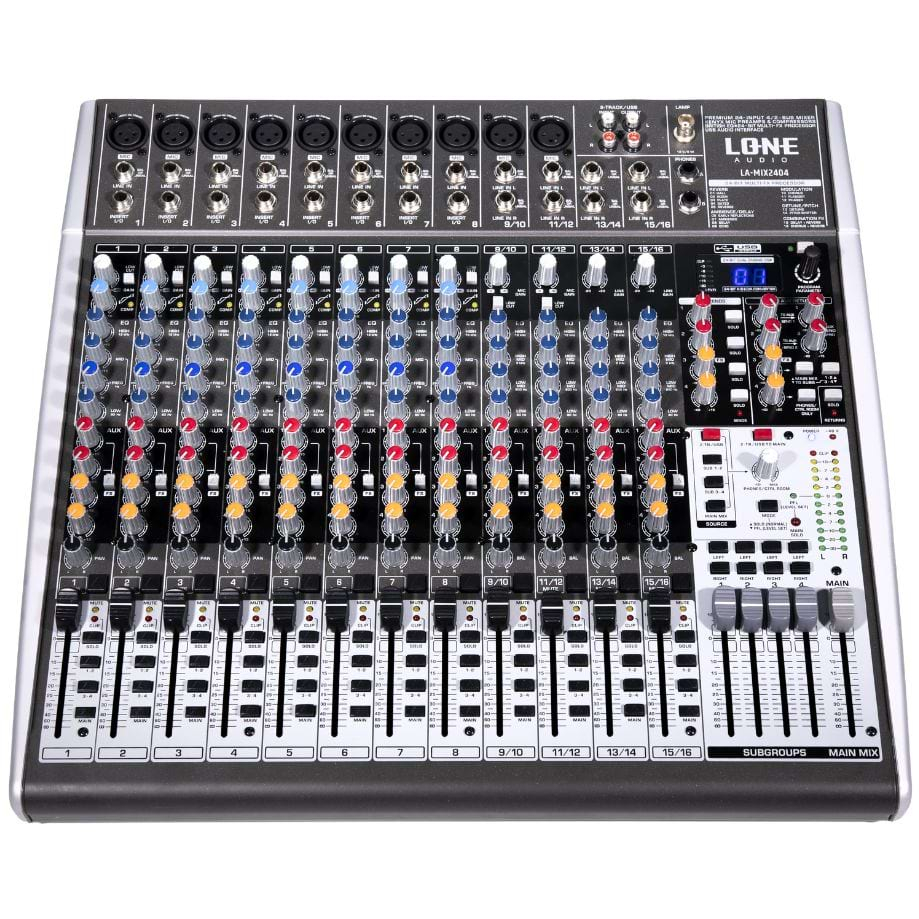

24-channel analog mixer
Reference : LA-MIX2404
SKU : 02839
EAN13 : 3701567913334
24-channel multimedia mixer
Versatile and powerful, this console offers exceptional audio quality with multiple inputs and integrated effects, ideal for sound professionals.
Description
Product sheet in PDF:
Features
- 10 mic inputs with 48V phantom power and 75 Hz low-cut filter
- 3-band EQ with parametric mids, compressor, and insert on channels 1 to 8
- 4 stereo inputs
- 4 auxiliary sends (2 switchable pre/post, 2 post)
- 4 subgroups with dedicated outputs
- 24-bit multi-effects processor with 16 built-in presets
- 2-Track input/output

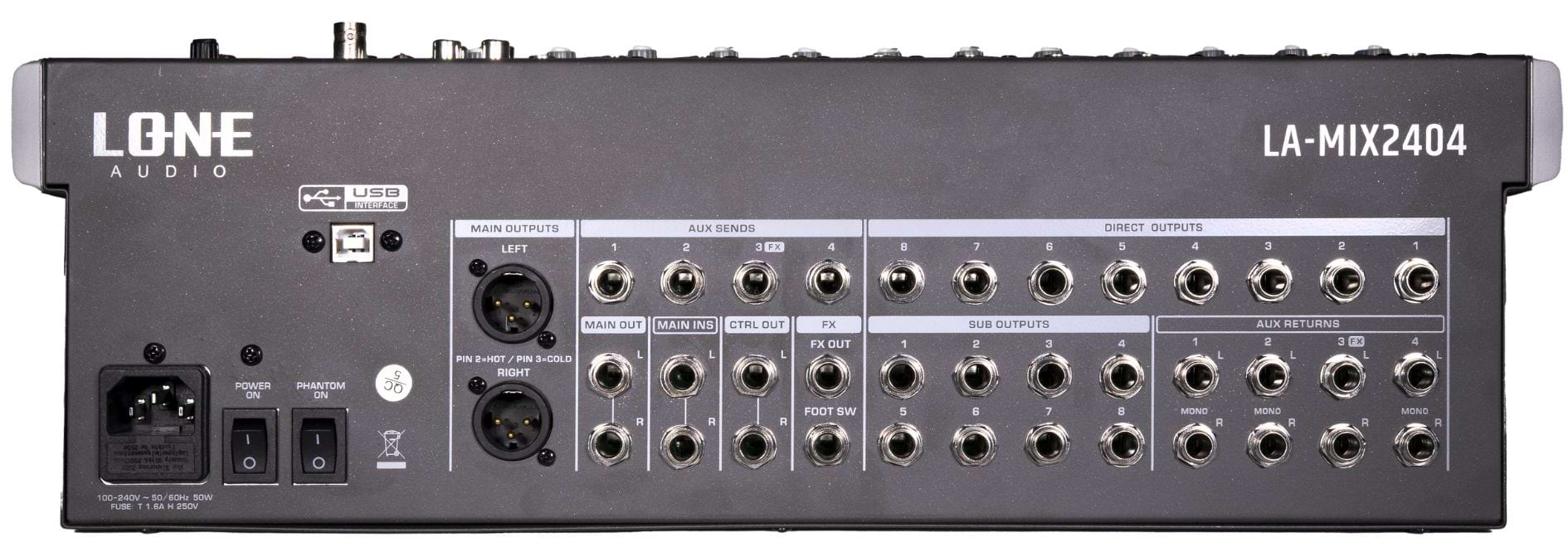

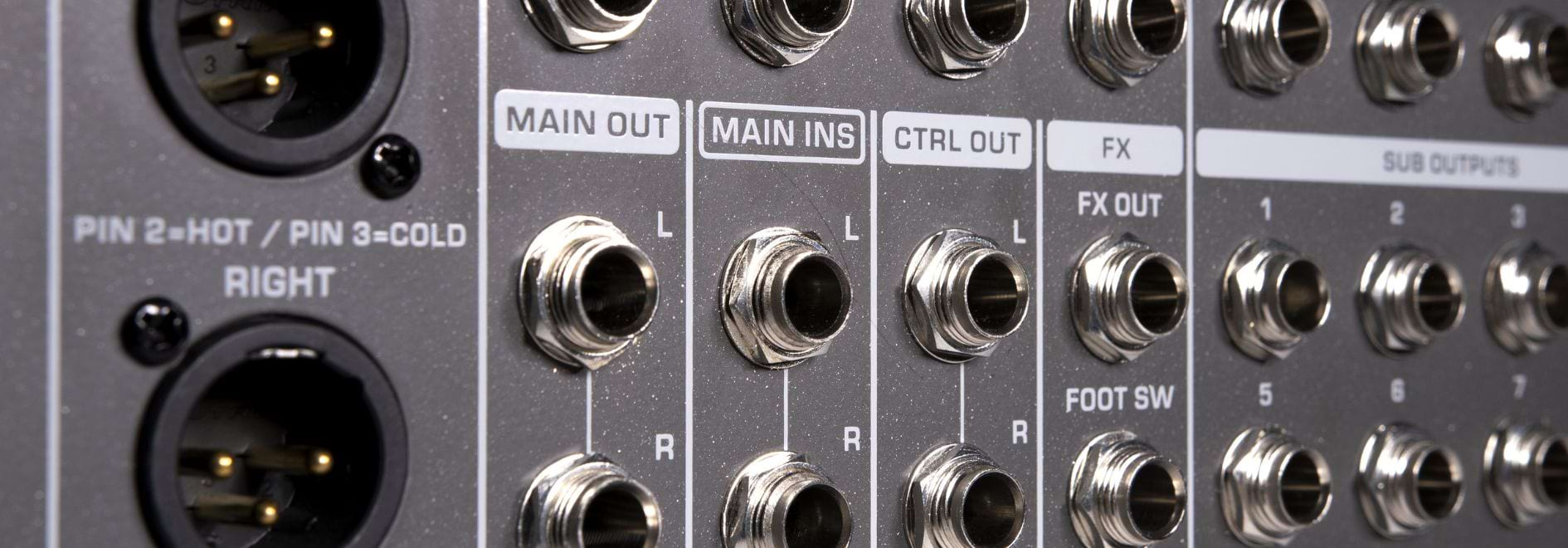

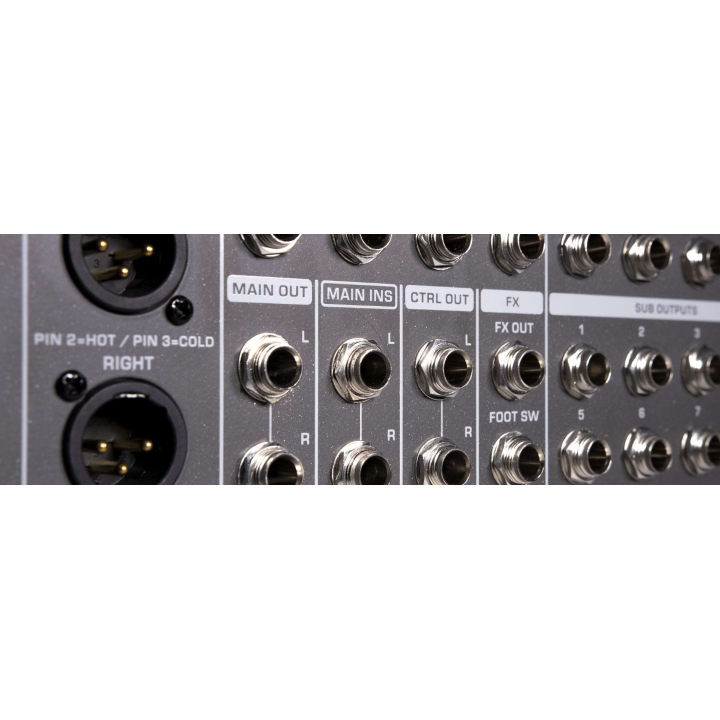

- Main XLR output
- Peak LED and Mute switch on each channel

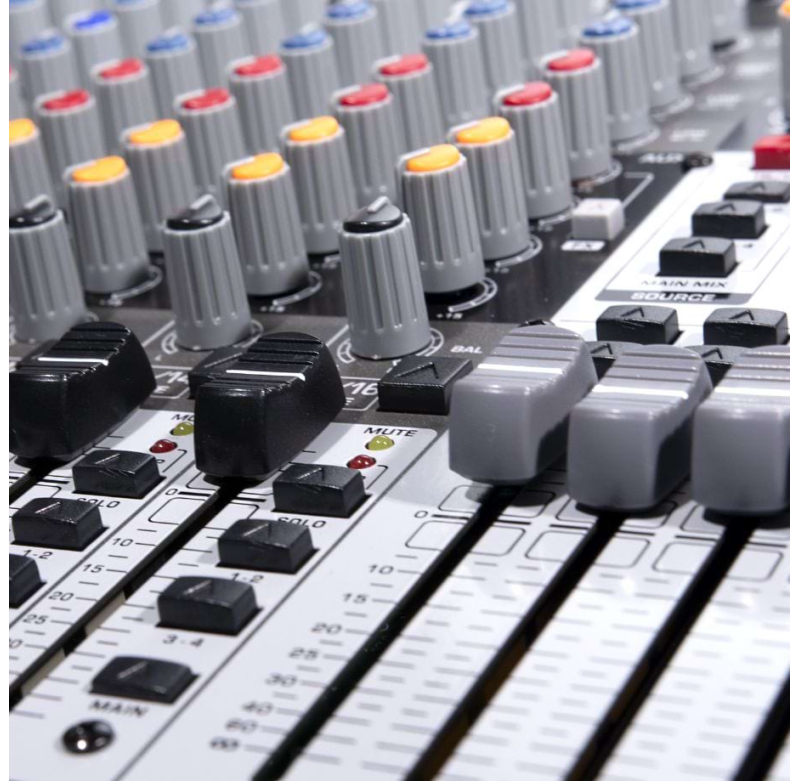

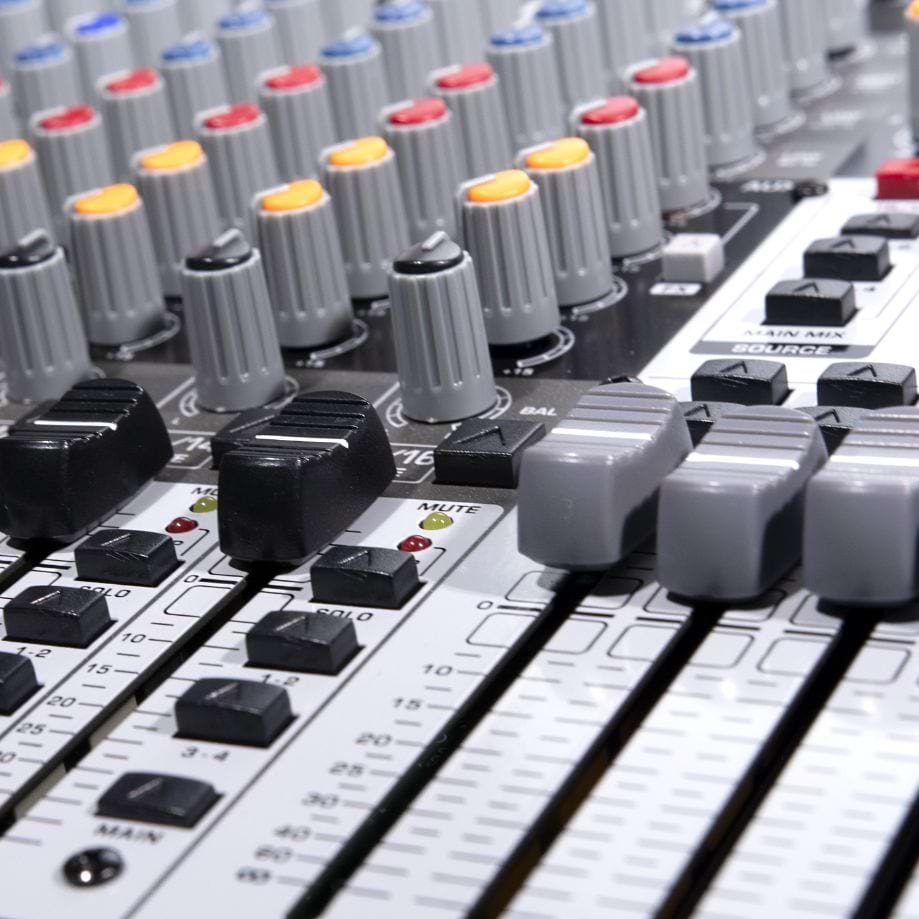

- 60 mm faders
- Built-in USB audio interface
- BNC connector for lamp
- Internal power supply
- Included rackmount brackets to make the mixer rack-mountable
| Feature | LA-MIX2404 |
|---|---|
| Type | Mixer |
| Number of line inputs | 16 |
| Phantom power | 48V |
| Microphone inputs | 12 |
| Stereo inputs | 4 |
| Compressor | Yes |
| Number of line outputs | 2 |
| Connection format | USB Type-B port |
| Max. sampling frequency | 48 kHz |
| Max bit resolution | 16 bit |
| Simultaneously usable channels | 12 |
| Master outputs | XLR |
| Dimensions (H x W x D) | 440 x 135 x 420 mm |
| Weight | 5.9 kg |
Product Details
-
Brand
-
ReferenceLA-MIX2404
-
SKU02839
-
EAN133701567913334
