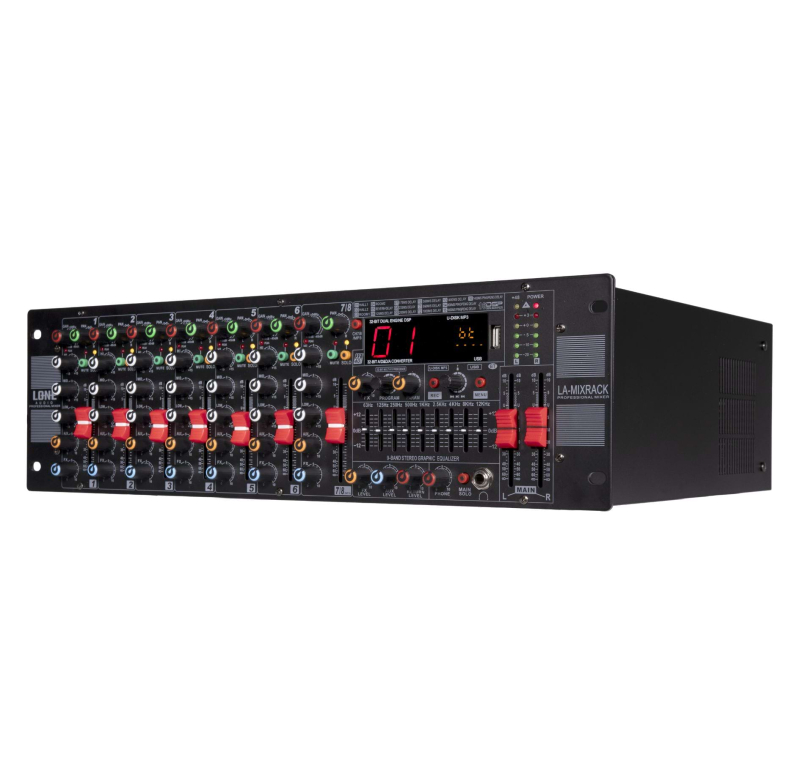

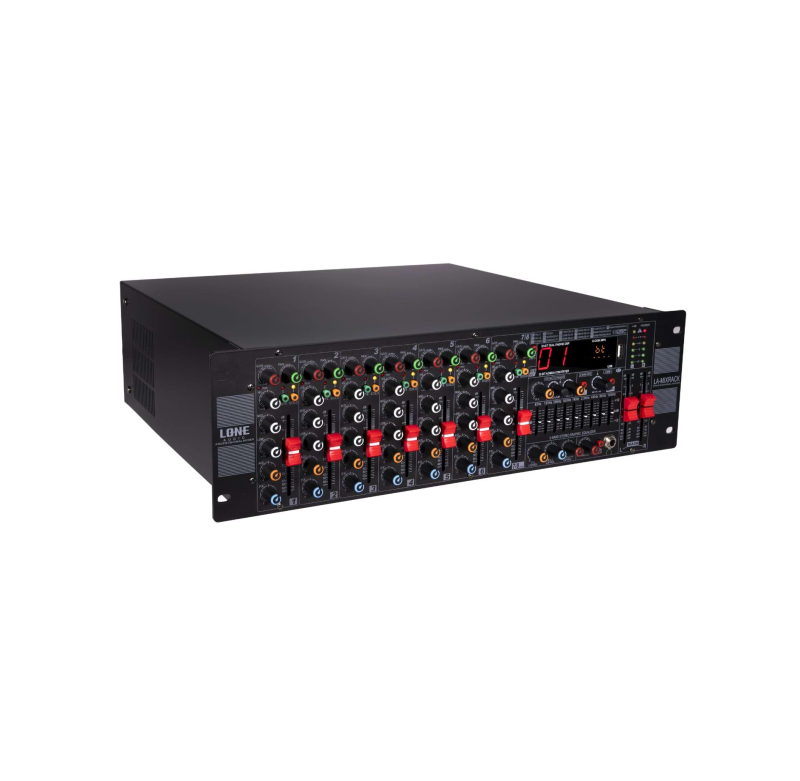

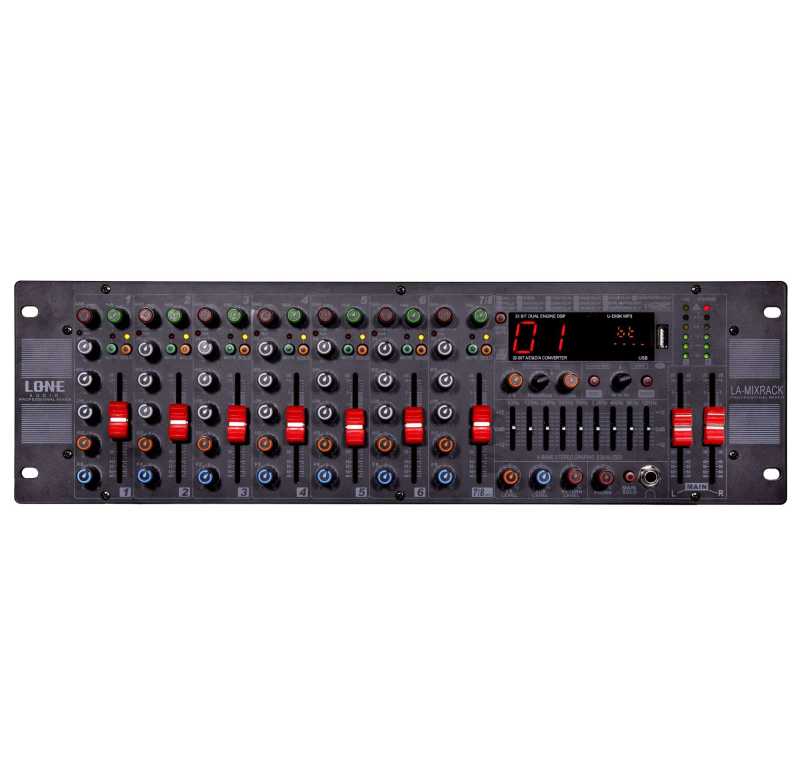

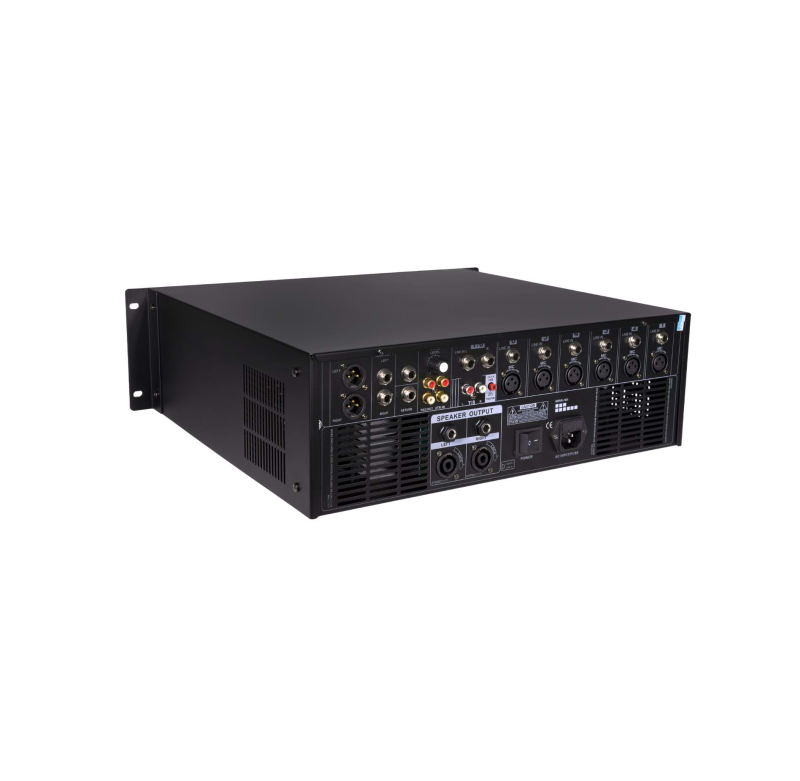

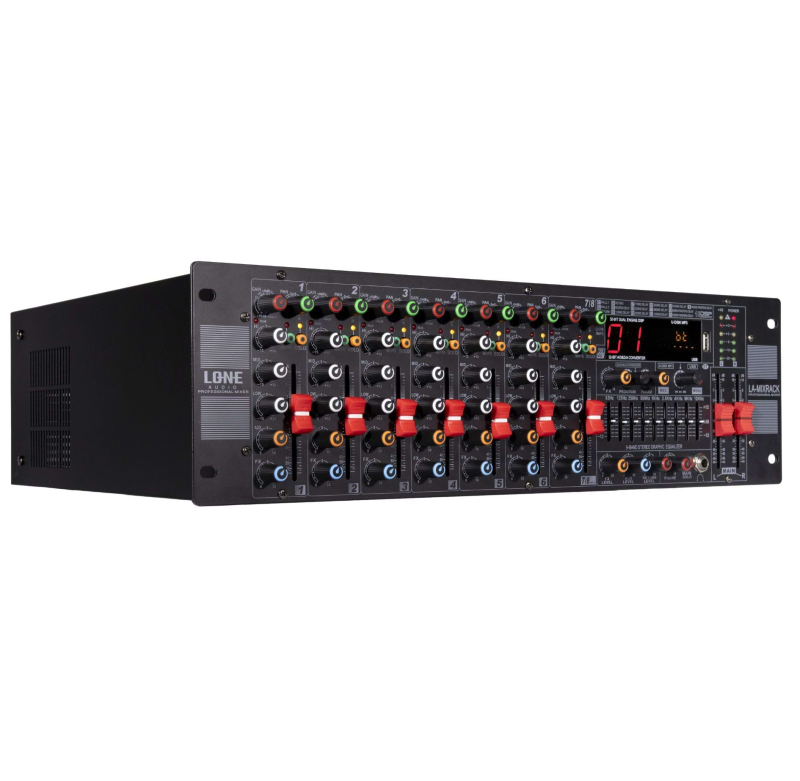

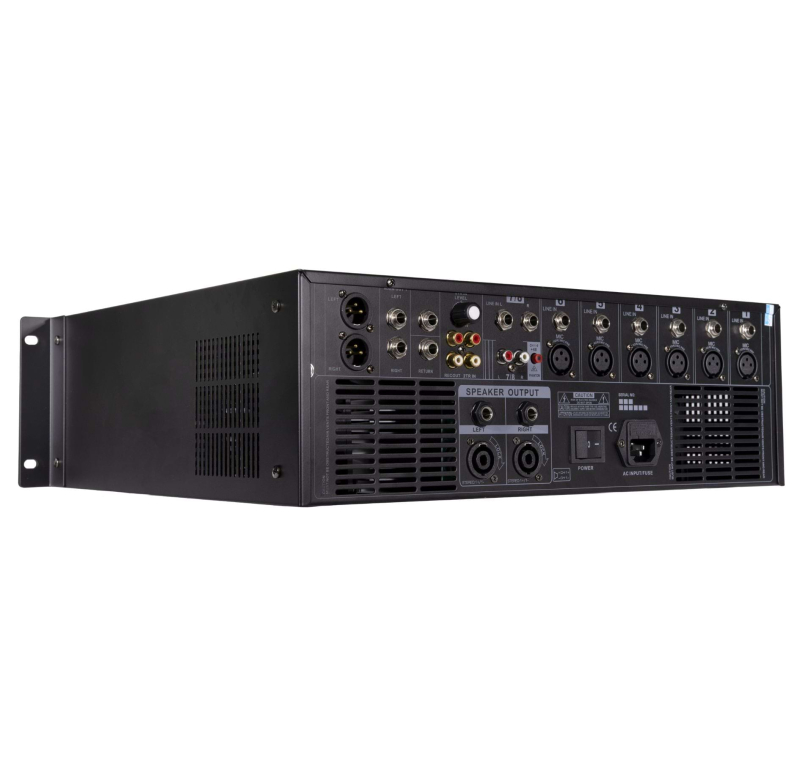

Amplified multimedia 8-channel mixing table
LA-MIXRACK
3701567912436
02840

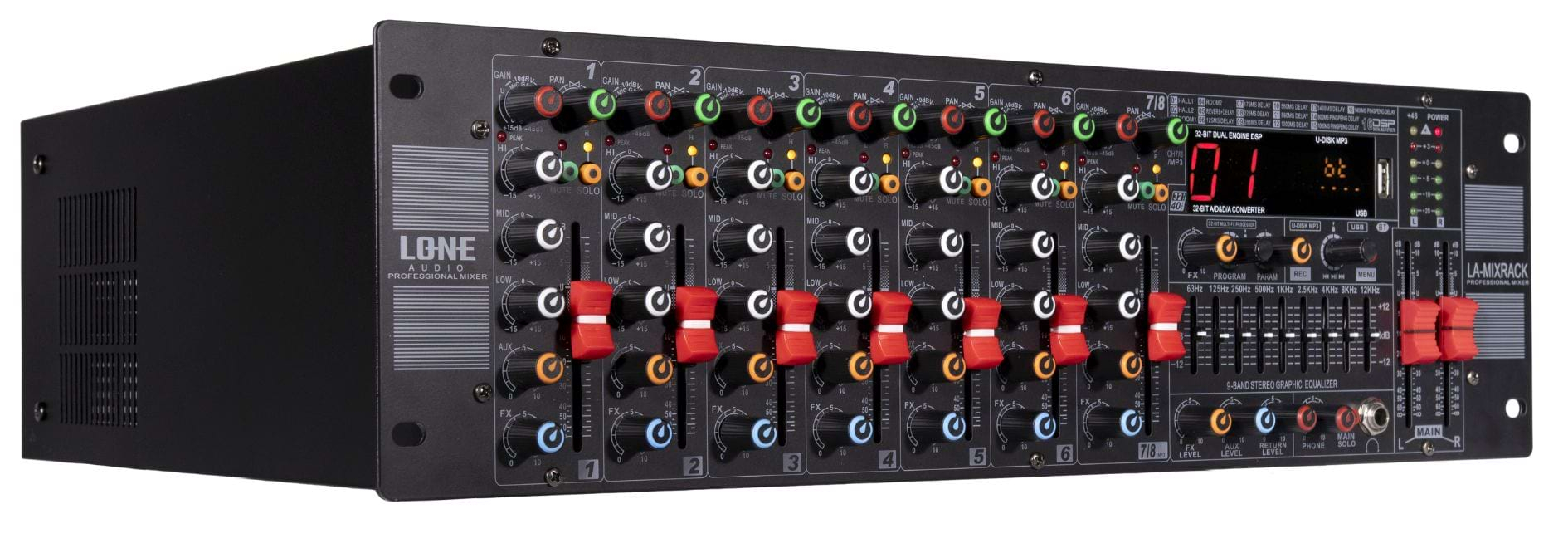

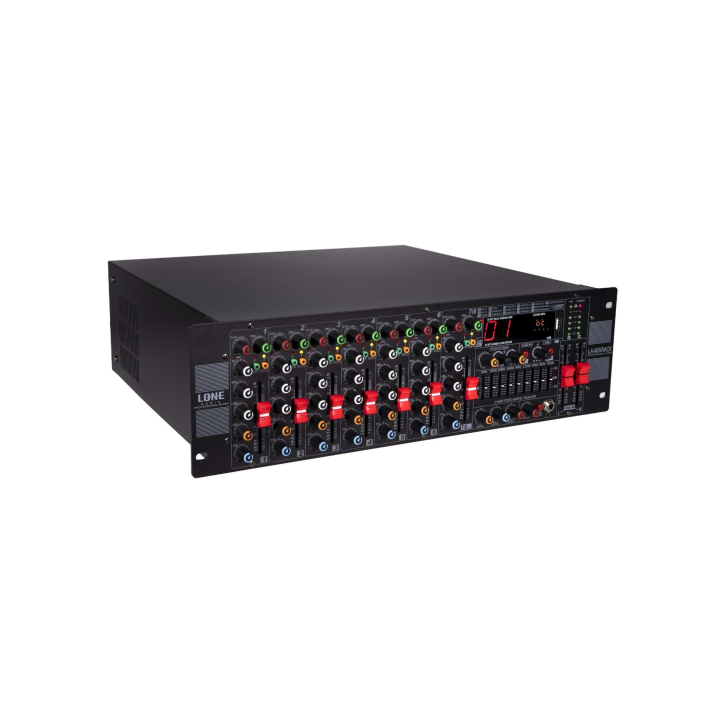

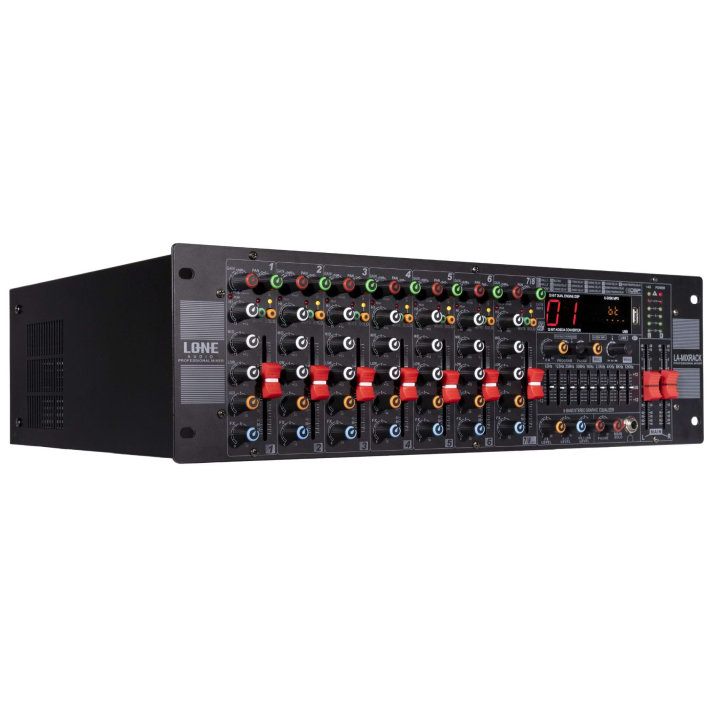

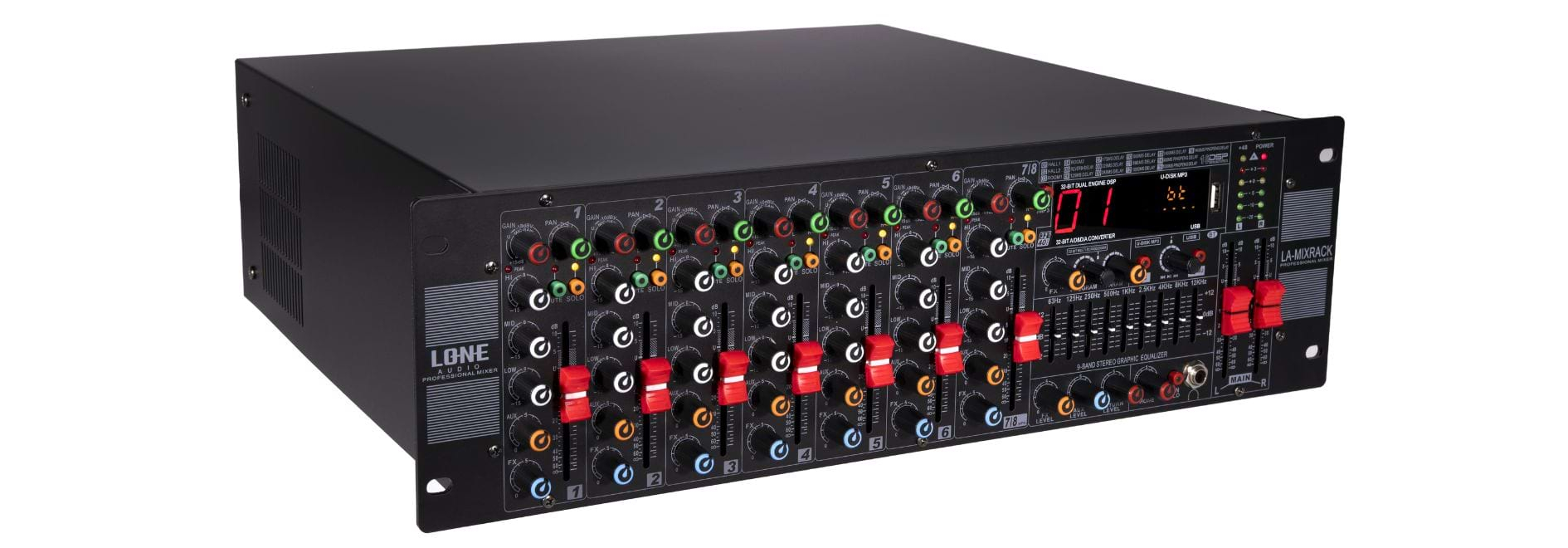

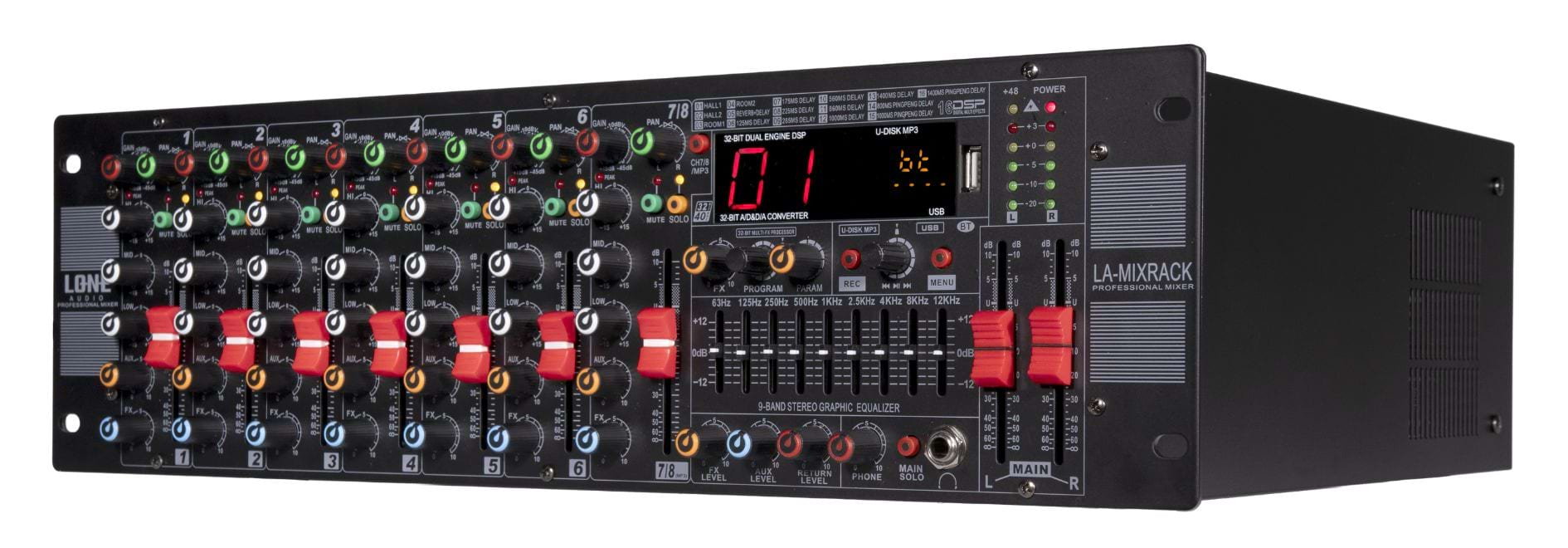

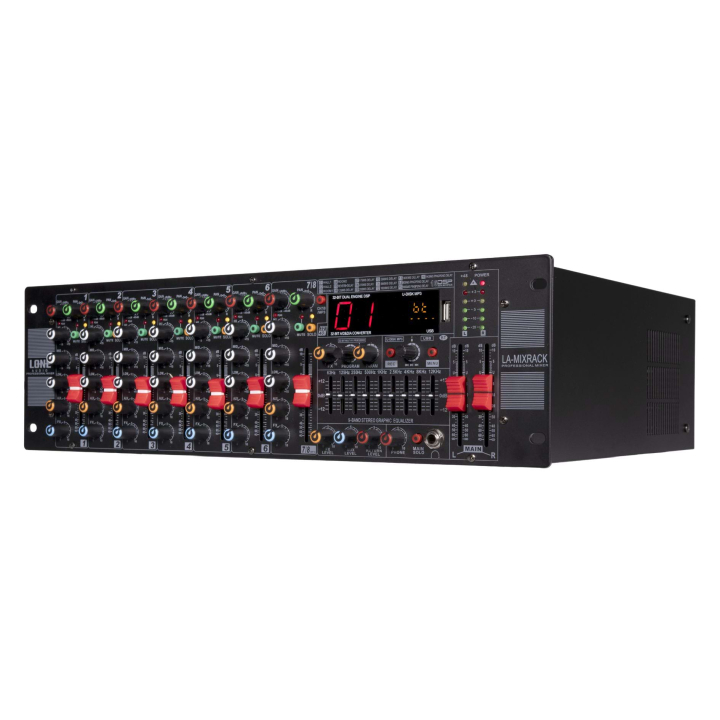

3U rack-mountable active multimedia mixer
2 x 350W
Output speaker 4Ω
Versatile and powerful, this console offers exceptional audio quality with multiple inputs and integrated effects, ideal for sound professionals.
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usData Sheet in PDF
DESCRIPTION :
8-channel amplified multimedia mixer with built-in USB interface, ideal for both live performance and recording.

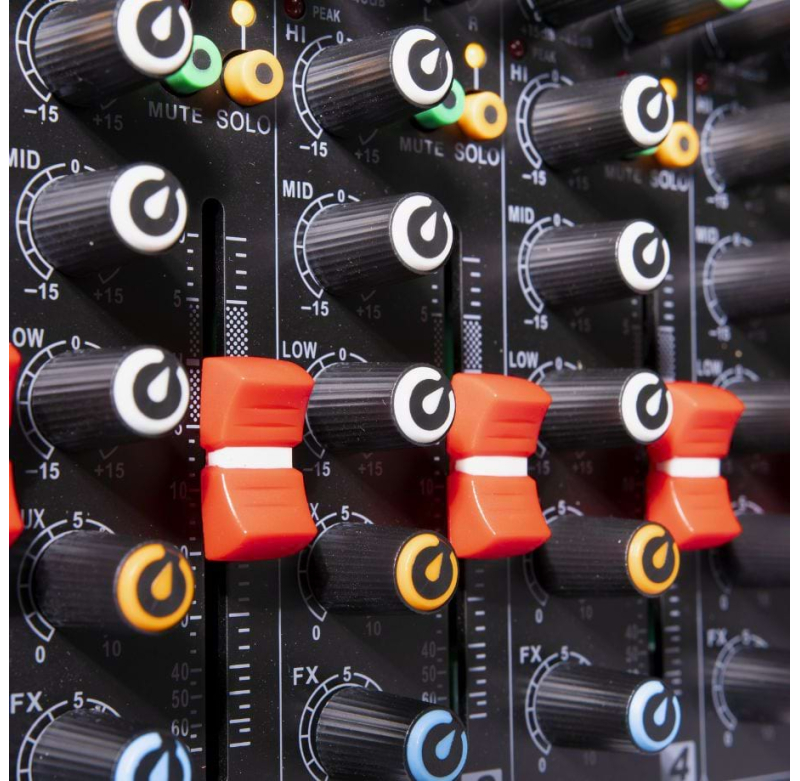

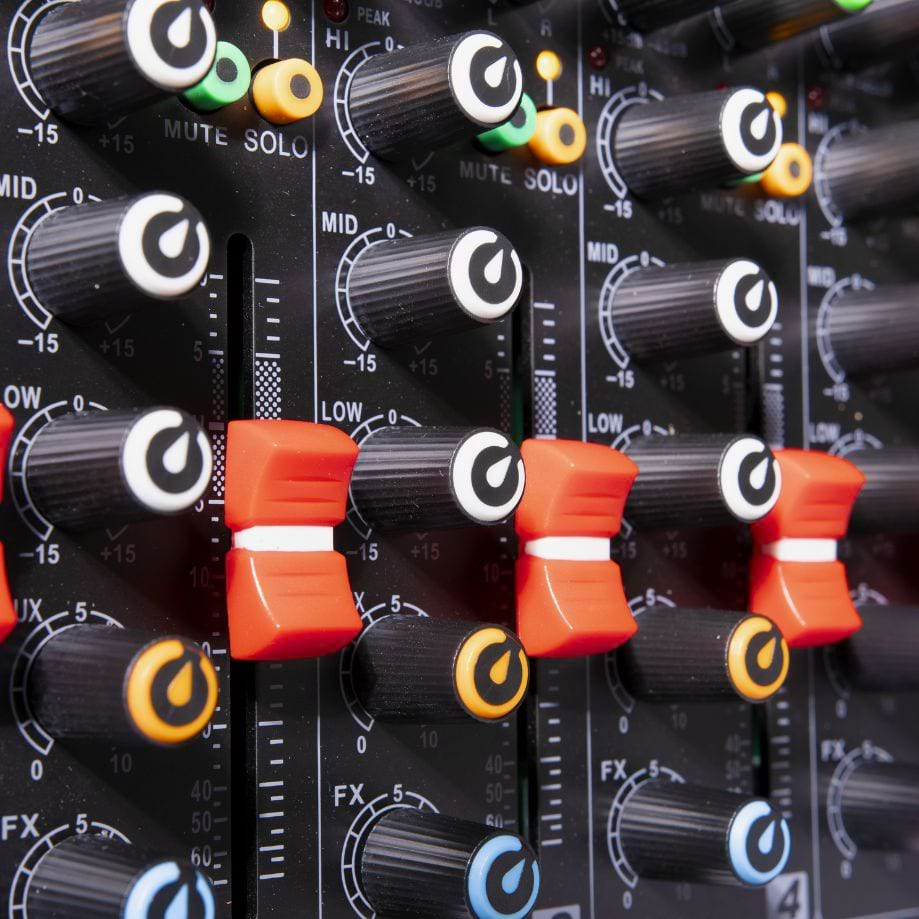

Eight studio-quality microphone preamplifiers Three-band equalizer on each channel Intuitive “One-Knob” compressors on channels 1 to 8.
24-bit effects processor with 16 presets including reverb, chorus, flanger, delay and pitch shifter.
It is equipped with :
- 60 mm faders
- 8 microphone inputs with Phantom power supply
- 75 Hz low-cut filter
- Compressors on each mic channel
- 24-bit effects processor with 16 built-in presets
- 2 stereo line inputs
- 3-band equalisation
- 2 auxiliary outputs (pre/post)
- Integrated USB audio interface

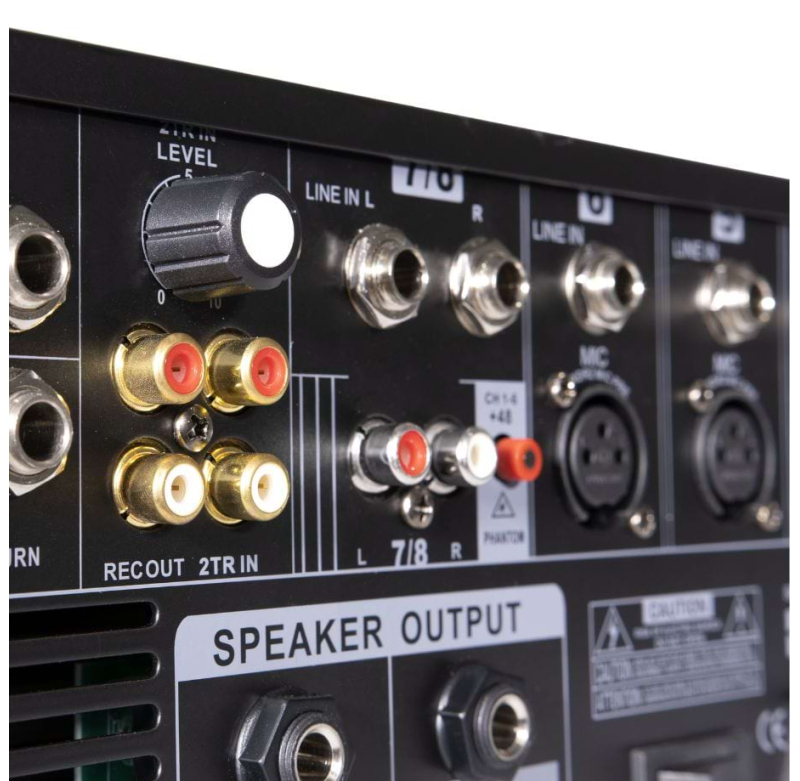

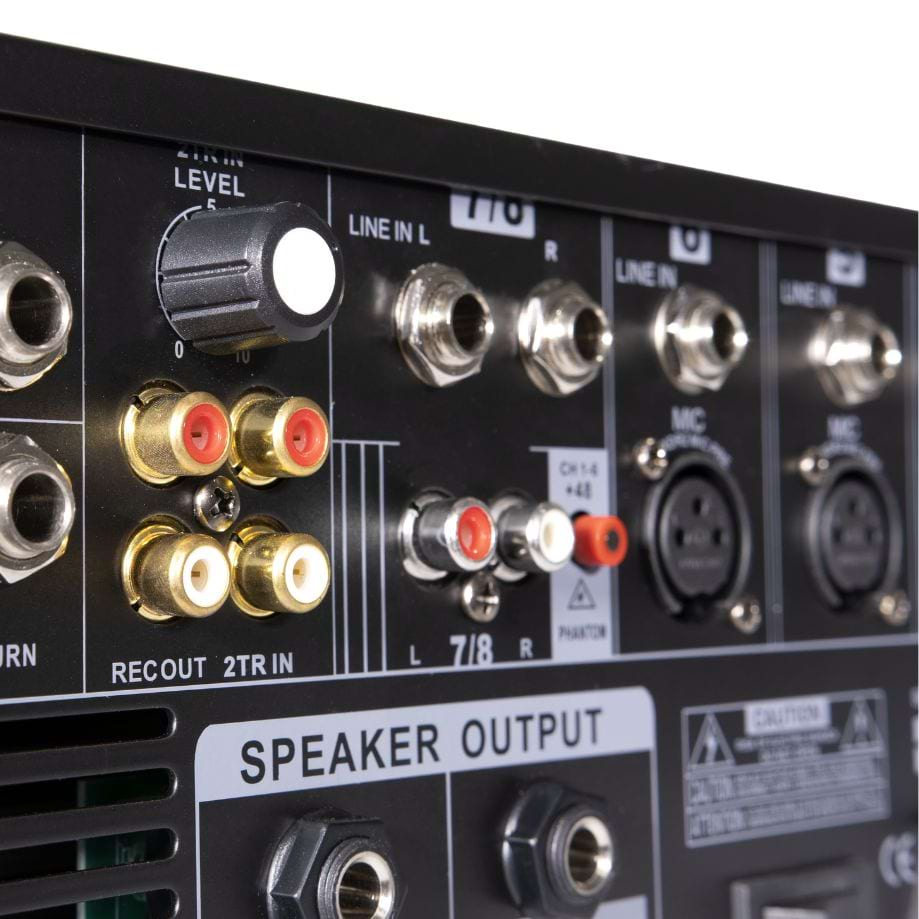

- 2-track recording input/output

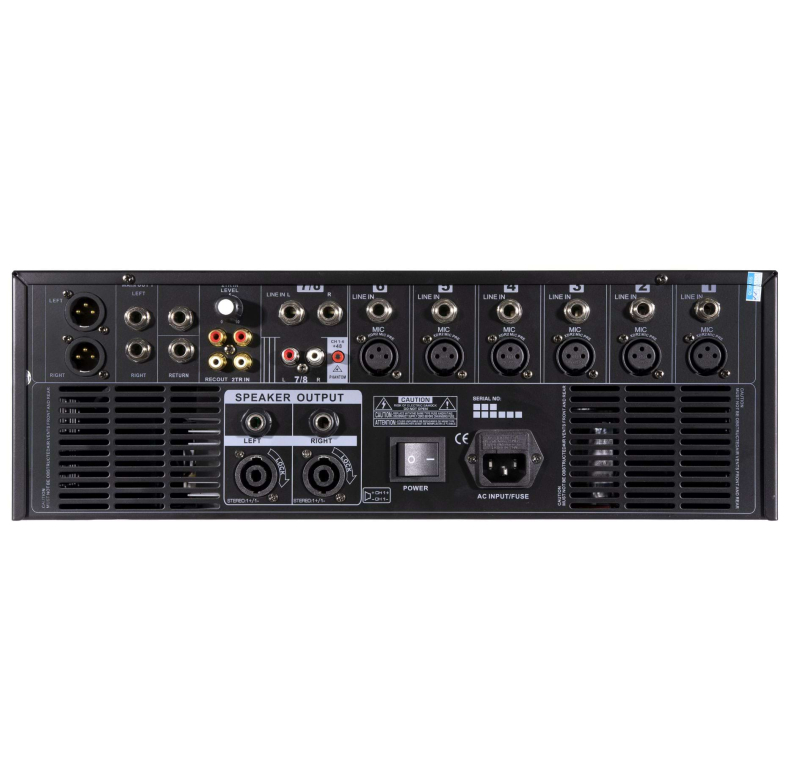

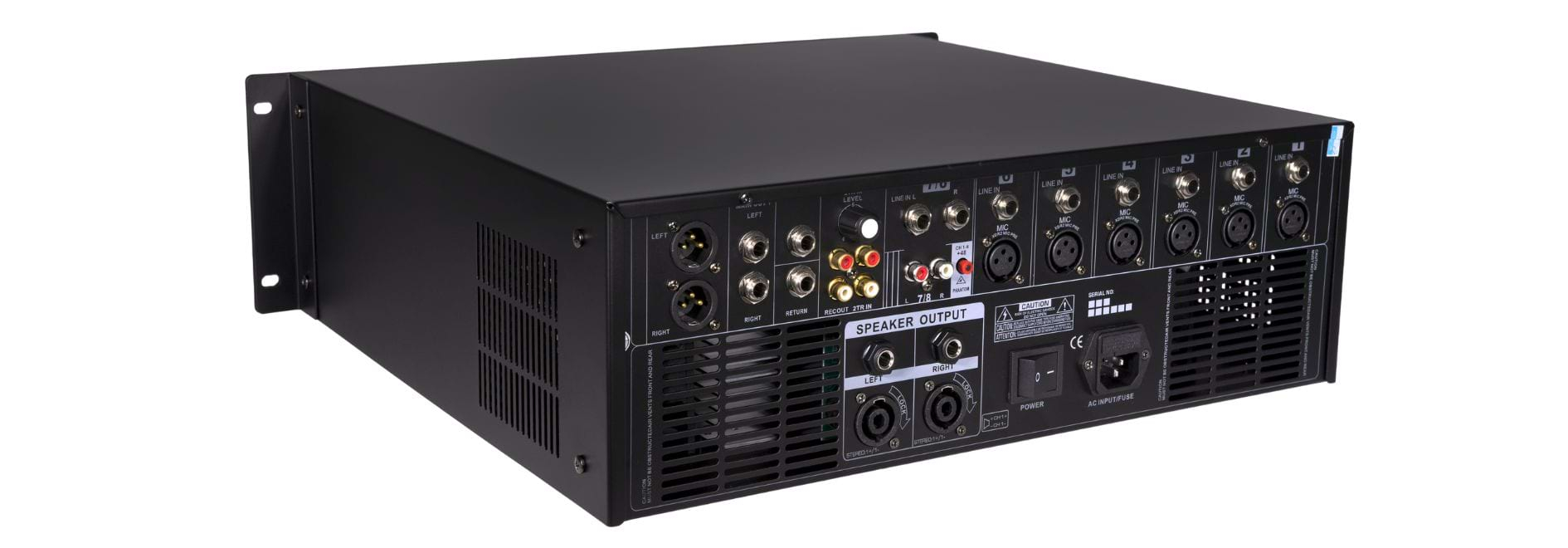

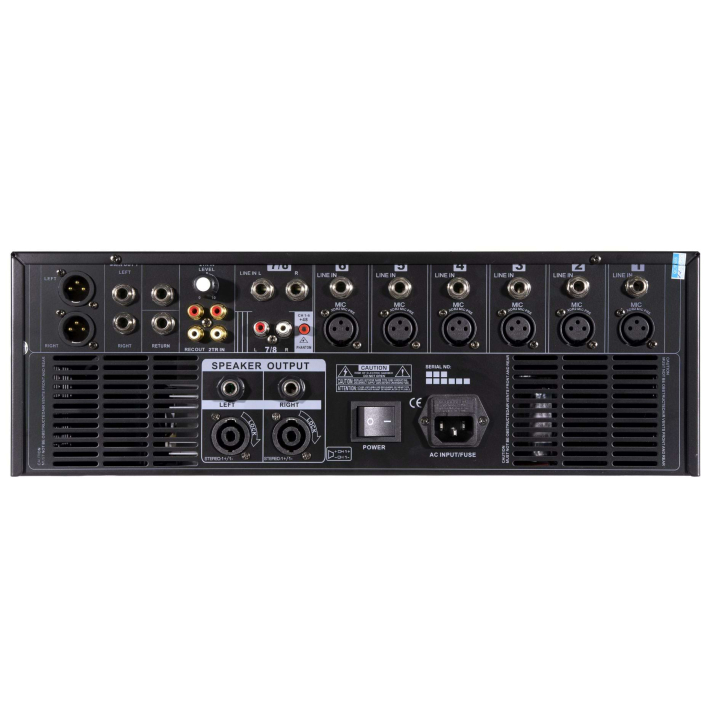

- XLR main outputs
- Alternative outputs 3-4 and cab control in 6.3 mm TRS jacks
Translated with DeepL.com (free version)
CHARACTERISTICS :
| CHARACTERISTICS | LA-MIXRACK |
| Type | Amplified mixer |
| Phantom power supply | 48V |
| Microphone inputs | 8 |
| Stereo inputs | 2 |
| Compressor | Yes |
| Number of line outputs | 2 |
| XLR Master | XLR |
| Max. sampling frequency kHz | 48 kHz |
| Max. bit definition | 16 bit |
| Simultaneously usable channels | 6 |
| Master outputs | XLR |
| Bluetooth and USB playback | yes |
| Dimensions (L x P x h ) | 480 x 415 x 140 mm - 3U |
| Weight | 11 kg |
