Telephone Interface Box - Sound system with audio file player

Name: Telephone Interface Box - Sound system with audio file player
Brand: RONDSON
SKU: SONOVAC

Reference : SONOVAC

SKU : 02286

EAN13 : 3701567902338

Telephone interface box with sound system and audio file player

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

SONOVAC

SONOVAC Installation

SONOVAC

Description

Product sheet in PDF format

Description :

This telephone insert module allows calls to be made to the public address system from a telephone line.

It is equipped with an adjustable chime that sounds at the beginning of the call.

It provides a dry contact during the call (NO).

It automatically hangs up after 2 to 3 seconds of silence.

It also offers PPMS broadcasting that can be adapted to any sound system.

Features:

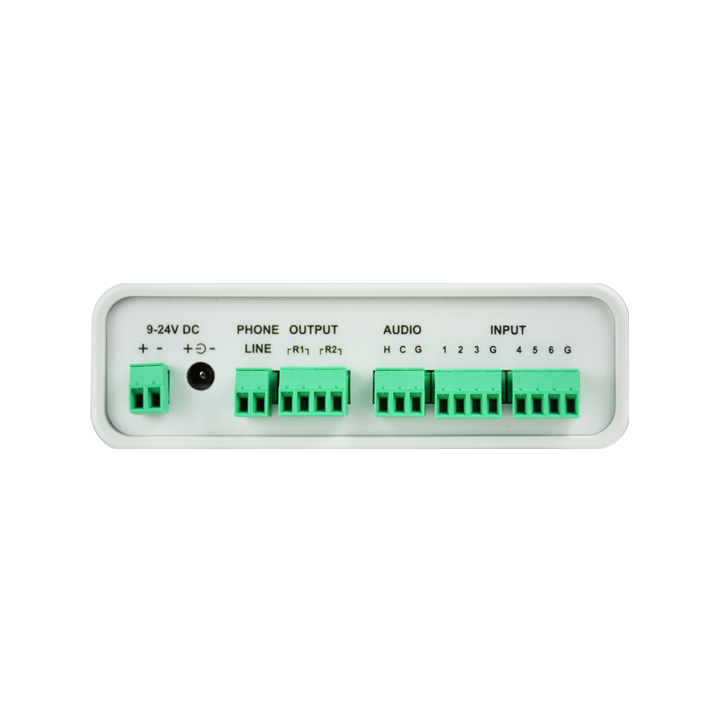

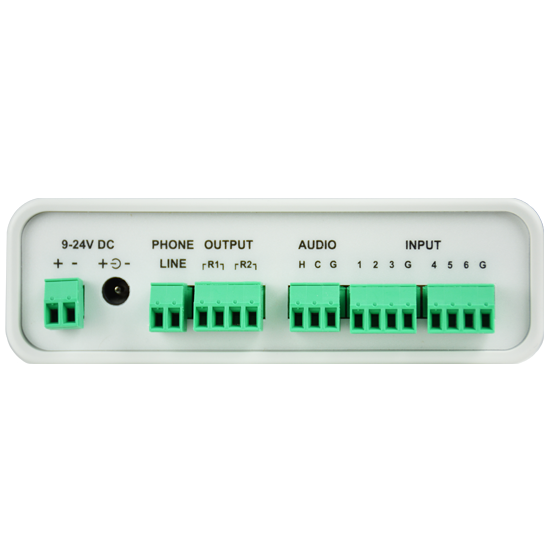

The Sonovac is powered by a supplied 9V DC power supply unit. It can be powered by a USB cable when connected to a computer.

Balanced audio output (L/R) or optional shielding (G)

Telephone line connects to a single telephone system (PABX) or an analogue line. Simply dial the number to broadcast an announcement.

Output relays R1 (message broadcast) and R2 (telephone announcement) can be connected to control external commands.

Input contacts 6 contacts that connect using one of the 2 common points (G)

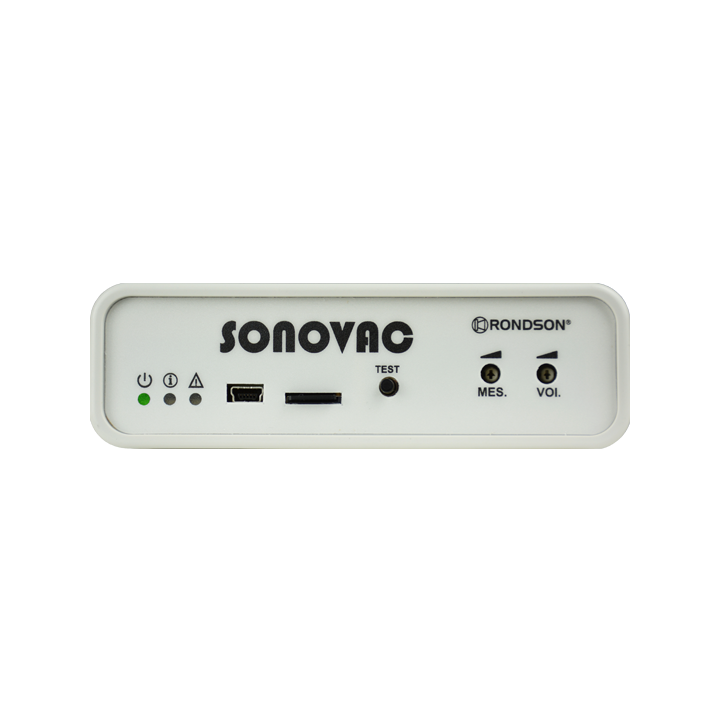

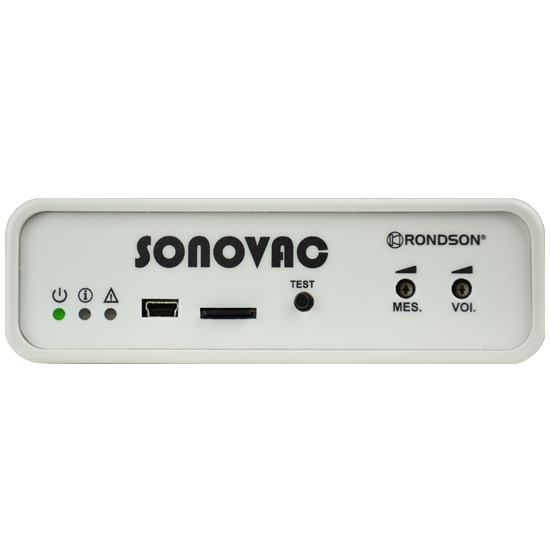

Signal LEDs green (powered), orange (message display) and red (configuration error)

Mini USB connector to connect the Sonovac to a computer in order to edit messages

Micro SD card containing pre-recorded messages (MP3 or WAV) and configuration files

Test button for broadcasting a pre-recorded message

Volumes: Equipped with 2 potentiometers (MES. and VOI.) to adjust message and voice volumes

FEATURES	Sonic vacuum cleaner
Designation	Telephone/PA system interface and evacuation system
Audio output	1 V, 600 Ω, balanced
Settings	Chime volume and tone / BF volume Busy tone
Displays	Green, orange and red LED
Food	9 to 24 V DC
Consumption	90 mA
Dimensions (W x D x H)	126 x 115 x 40 mm
weight	310 g
