Multi-zone microphone desk - 12 programmable buttons

Name: Multi-zone microphone desk - 12 programmable buttons
Brand: PASO
SKU: PMB112-G

Reference : PMB112-G

SKU : 02455

EAN13 : 8032872569646

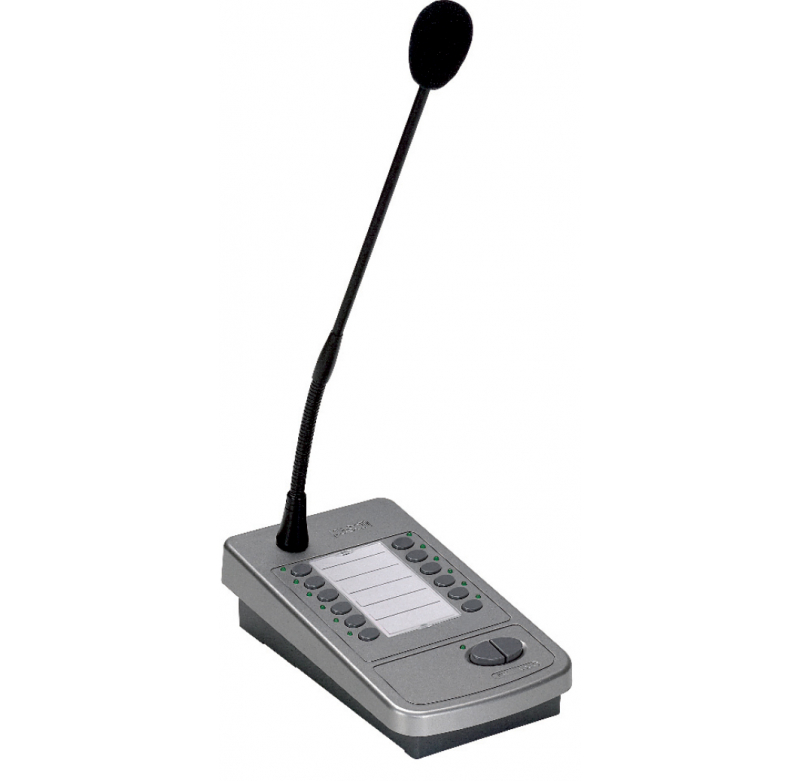

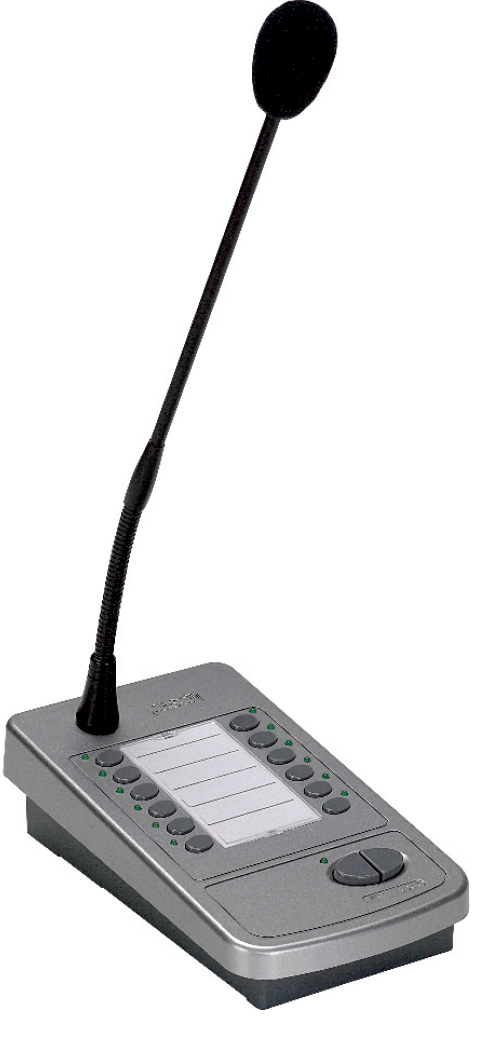

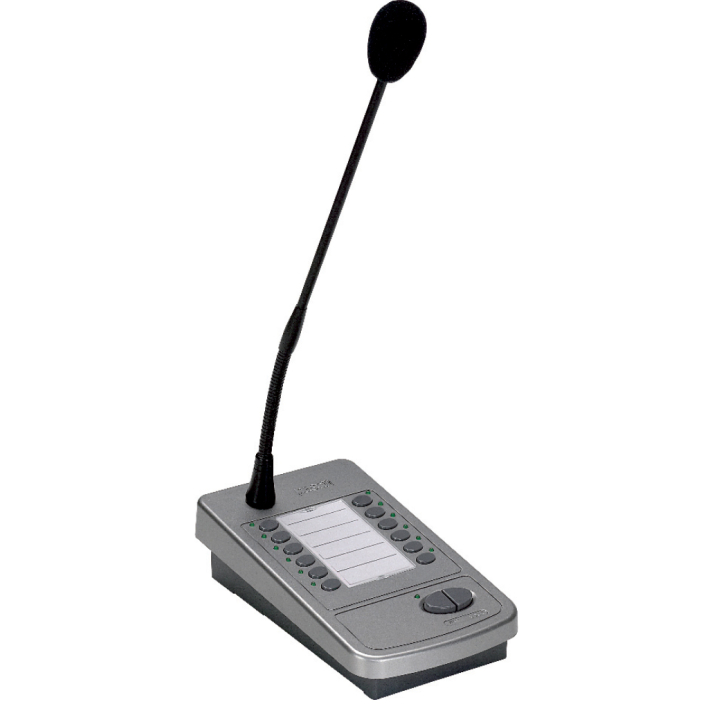

Multi-zone microphone desk

RATE: consult us on contact@rondson.com

Description

Description:

This console microphone is designed to broadcast general and/or zone calls typically connected to PAW-4500-VES voice evacuation systems.

It includes 12 programmable zone select buttons with corresponding LEDs, a general call button, a push-to-talk (PTT) button, a lock button for long announcements and a mic/busy LED.

RJ45 socket for connection with CAT5e cable.
Possibility to expand the system to 36 zones (with PMB112-EG or PMB106-G extension).

Features :

Type: Electret microphone, P.T.T. button
Number of selectable zones: 12
Power supply : 18 Vdc / 36 Vdc
Maximum absorption @24 Vdc : 22 mA
Bandwidth : 100 - 14.000 Hz
Speech filter @100 Hz : -10dB
Output level : 2,2 Vmax
Dynamic Limiter : yes
Dimensions1 : 116 x 60 (416) x 200 mm
Net weight : 0,60 kg
Weight : 0,96 kg
