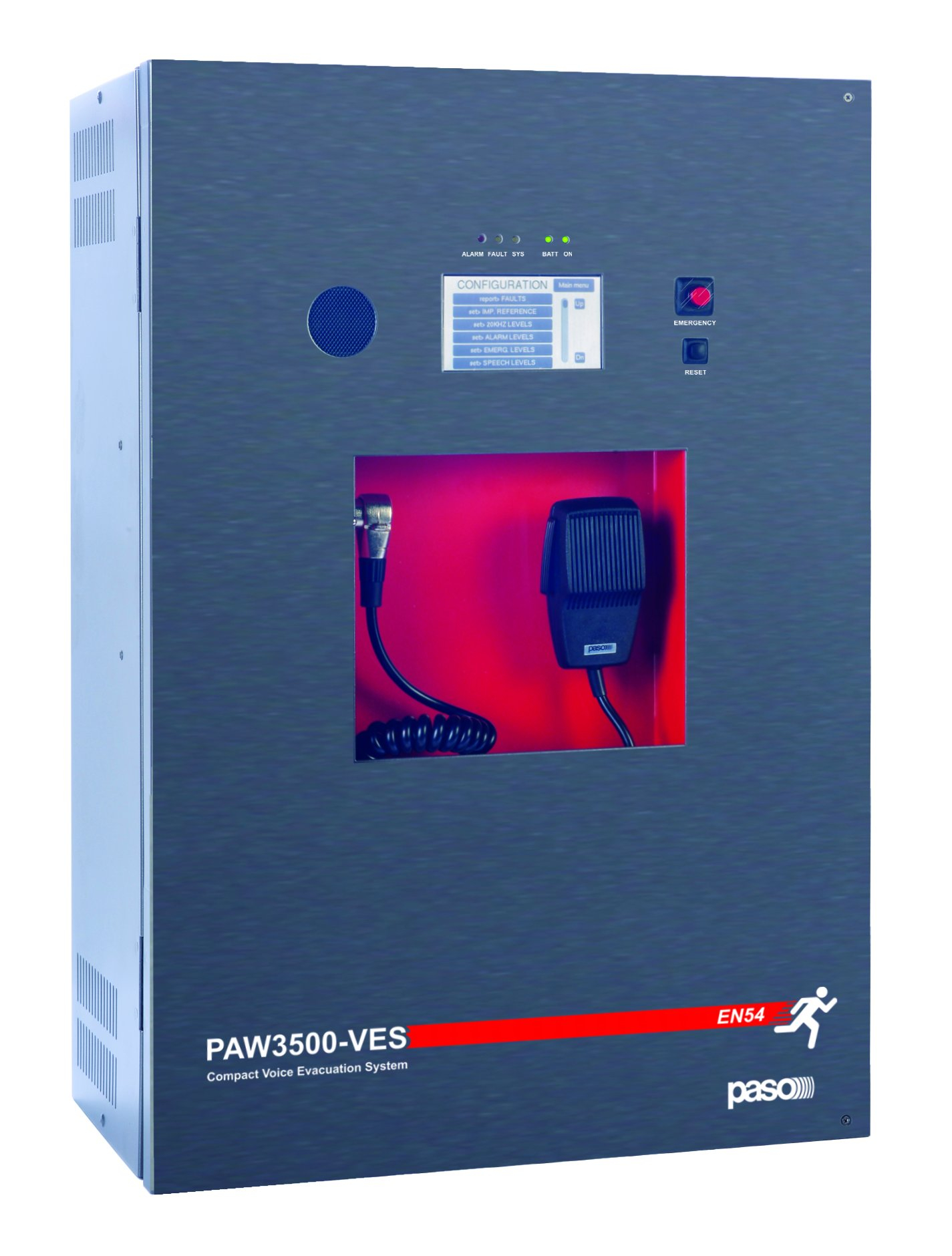

Compact enclosure PAW3502-VES certified EN54-16

Description :

Compact SSS - 500 W - 2 zones

The new PAW3502-V compact evacuation system equipped with an EN54-16 and EN54-4 certified control unit has been designed to facilitate installation in a wide range of applications.

Depending on the model, these systems are capable of managing up to 2 alarm zones via local controls, microphone panel and controlled inputs.

The excellent price/performance ratio of the PAW3502-V model makes it an ideal solution for small installations such as restaurants, stores or small establishments.

Features :

• Audio power rating: 500W freely distributed between zones up to a maximum of 250W in a single zone.
• 4.3" touch screen for displaying alarms and evacuations, zone selection, level adjustment and fault display.
• Monitored firefighter microphone on front panel (included).
• Sends EVACUATION and pre-recorded ALERT messages.
• 7 monitored inputs, each of which is configurable for playback, evacuation, programmable messages for each zone or message reset.
• 1 input for audio sources.
• 1 configurable relay output.
• Dual A+B outputs per zone.
• Secure front panel button for emergency release with LED indicator.
• Reset button on front panel.
• Possibility to generate announcements or background music from microphones.
• Possibility to connect up to 4 emergency microphones PMB132/12-V.
• Internal battery charger certified EN54-4 for 24V DC power supply (batteries not included).
