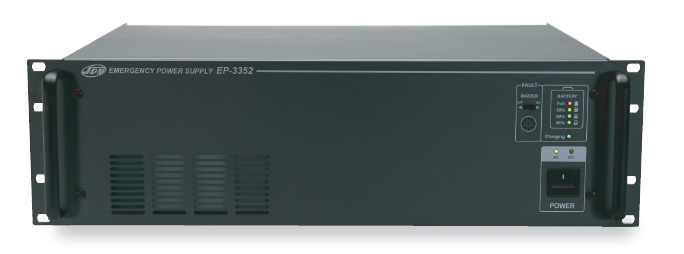

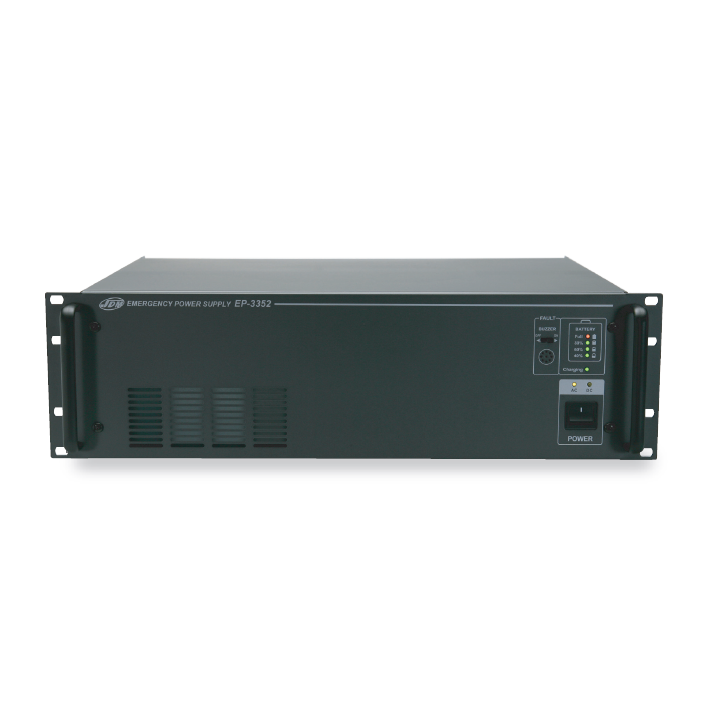

24 V stabilised emergency power supply without battery

Name: 24 V stabilised emergency power supply without battery
Brand: JD-MEDIA
SKU: EP-3352

Reference : EP-3352

SKU : 01076

EAN13 : 8809267793098

24V stabilized backup power supply without battery

220V-240V/24V 19" 3U rackmount

Types d'applications

PPMS/POMSE

EP-3352

Description

FEATURES

Automatically converts AC power to DC power in the event of a power failure
Overload and battery overvoltage protection circuit
Use of internal or external batteries
Waterproof battery without risk of leakage
Automatic battery charge and discharge
24V fuse per output
Protection circuit in case of wrong polarity "+" "-" connection
Battery charge indicator light
Buzzer sounds when power is switched to battery power or when the circuit is changed in the event of a fault

SPECIFICATIONS	EP-3352 (Code 01076)
End of charge voltage	Approx. 27,3 V DC
Load current	2,5 A limited
Consumption	105 W
Power supply	AC 230 V / 50 Hz / DC 24 V
Dimensions (W x D x h)	483 x 377 x 133 mm (3 U)
Weight	With batteries: 30Kg Without batteries: 12 Kg
Battery dimensions (W x D x H)	175 x 166 x 125 mm
Capacity	12 V / 24 Ah x 2
