240W amp preamplifiers, 4 zones with DC 24V
3701567910487
02370

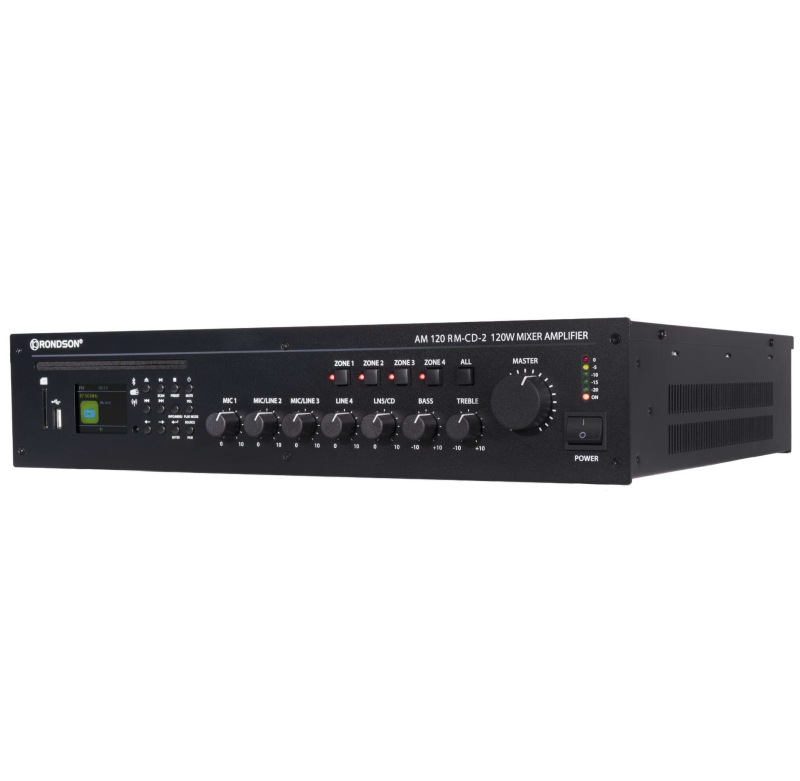

These 4-zone preamplifiers are available in 2 powers:
Reference: AM 120 RM-CD-2 - Code: 02369
Reference: AM 240 RM-CD-2 - Code: 02370
This product is no longer in stock
For professionals
To log inFor individuals
Contact usProduct sheet in PDF
Description:

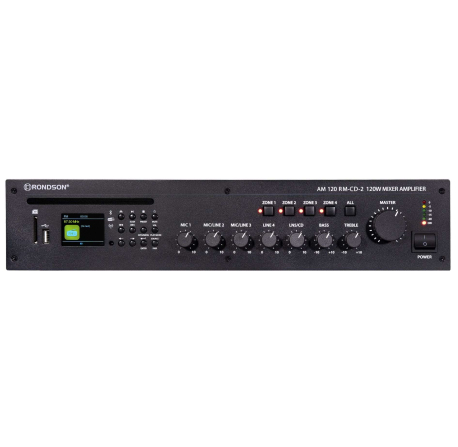

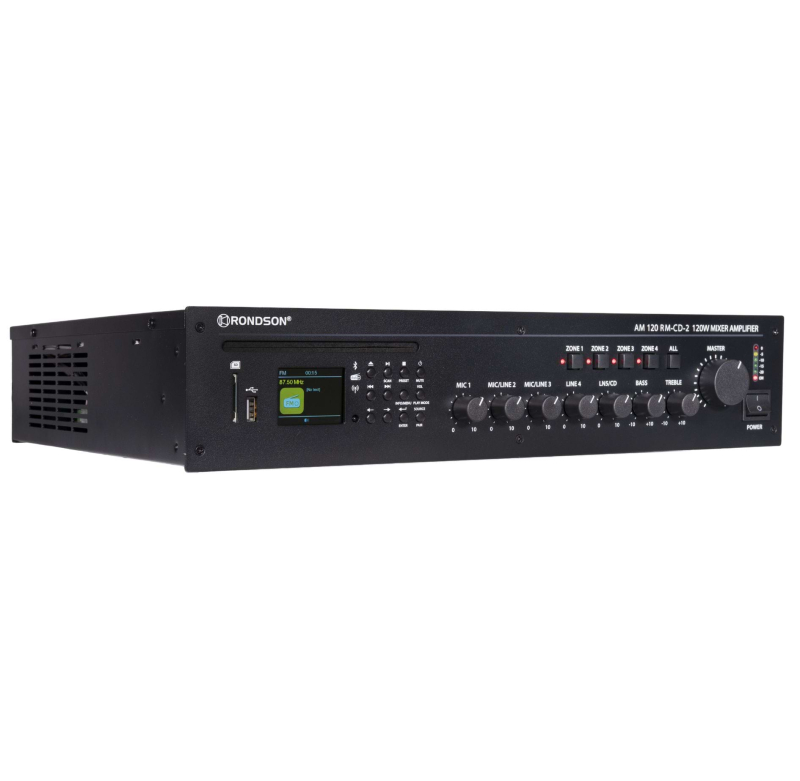

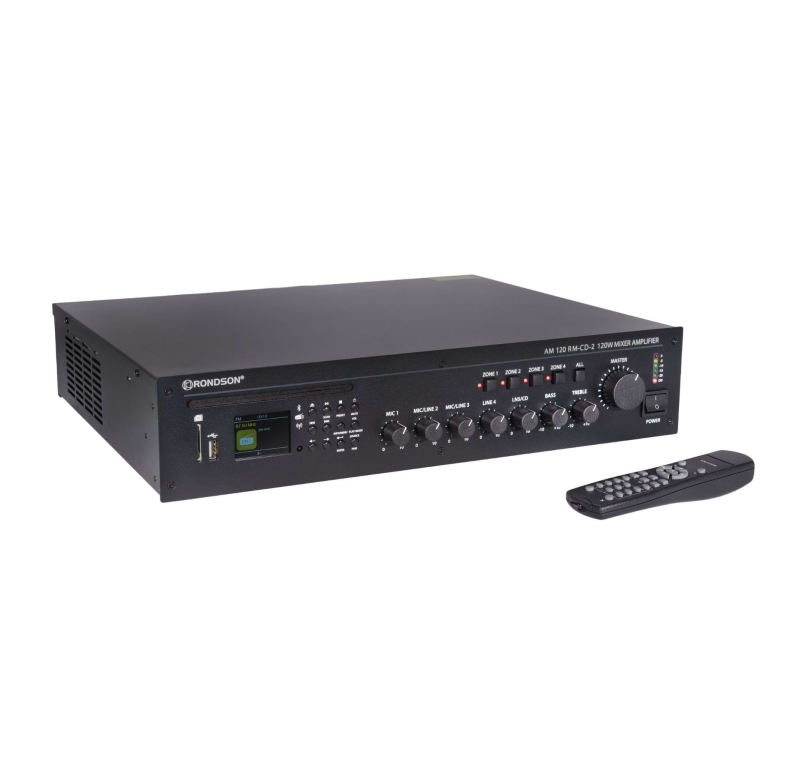

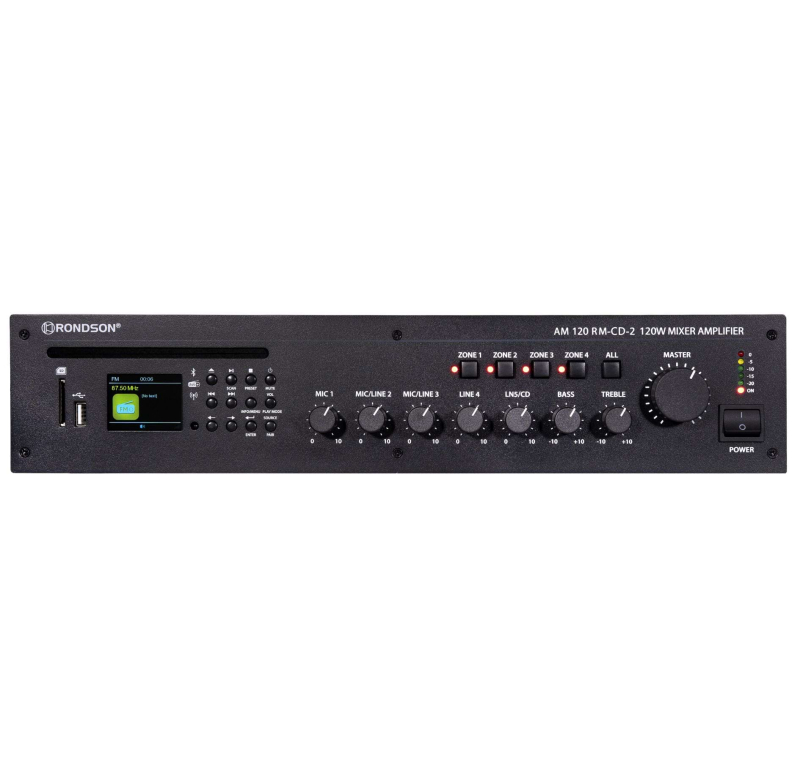

This 4-zone mixer amplifier with DSP effect is available in 240W.
It offers 70 and 100 V speaker outputs as well as 8 Ω in Low Impedance.

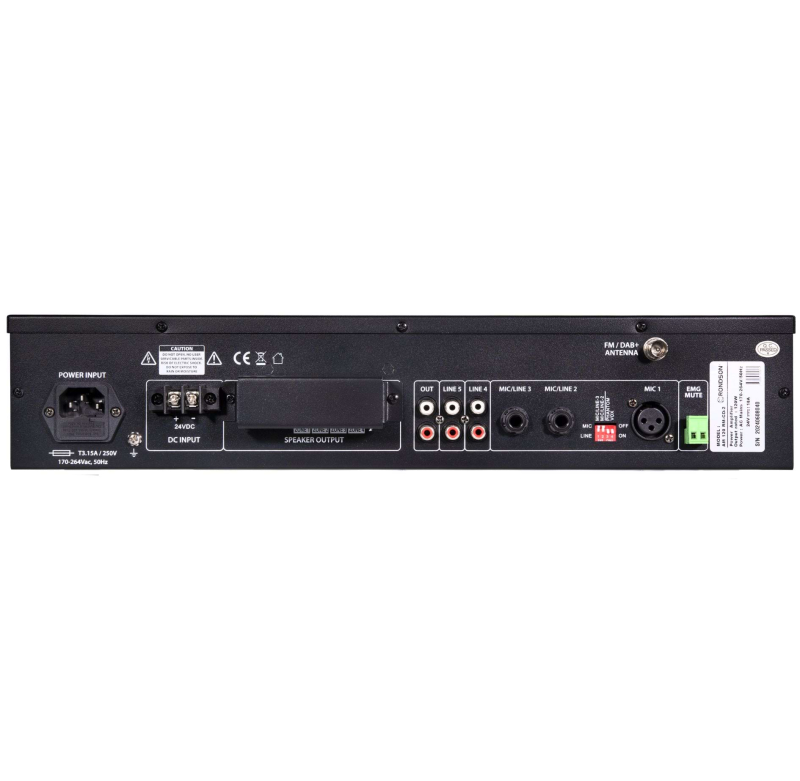

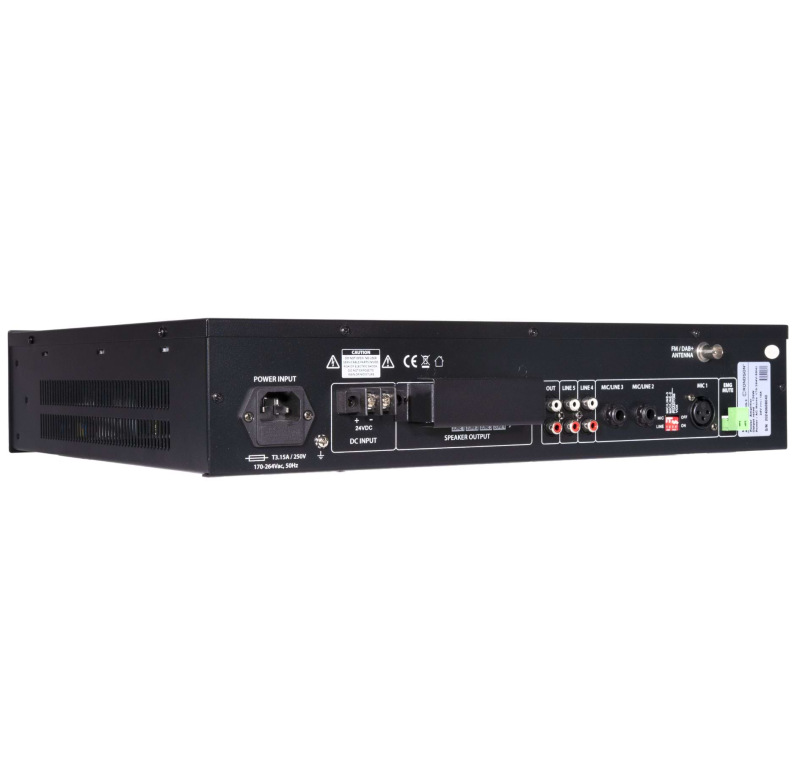

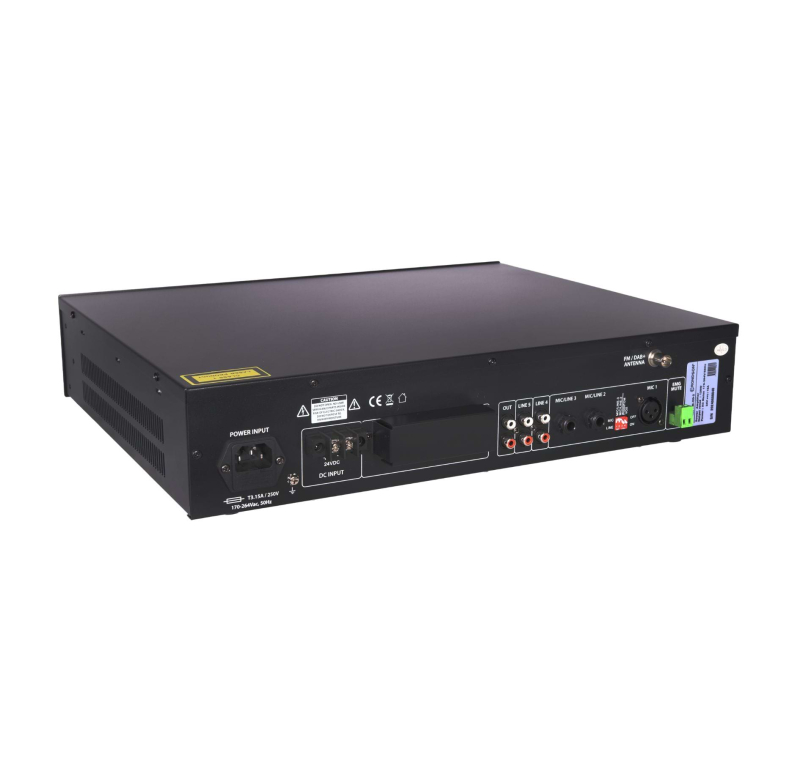

It operates on mains 115 V-230 V - 50 Hz or DC 24V.
Features :
It is equipped with:
• 1 XLR microphone input with configurable phantom power supply DC 18V
• 2 JACK 6.35 mm microphone inputs switchable to line inputs
• MIC 1 Priority by Talk Over
• 2 auxiliary RCA inputs
• REC OUT outputs by zones

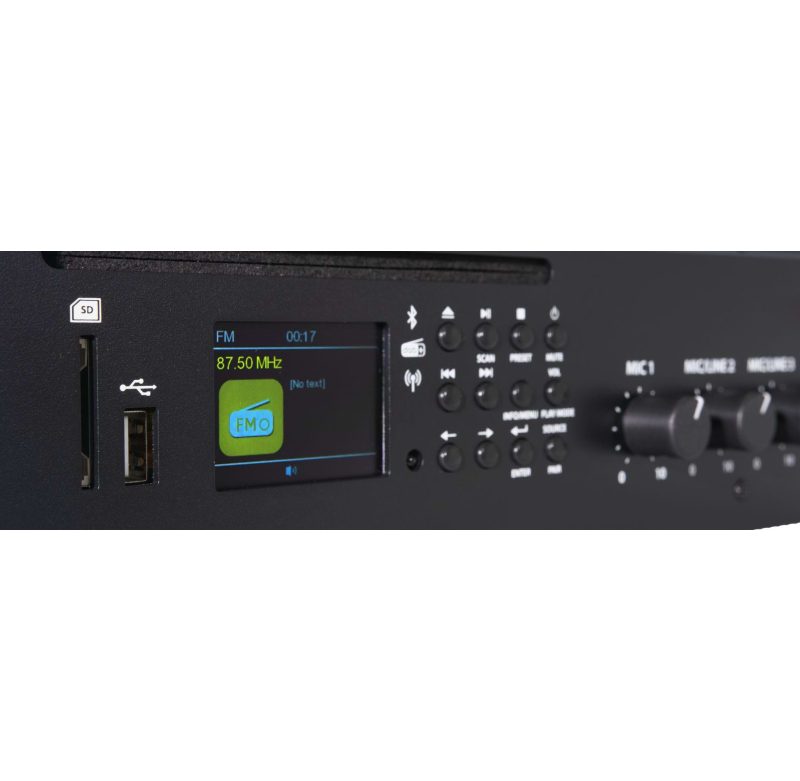

• FM Tuner Module and MP3, USB and SD CD player
• Bluetooth Player
• 4 selectable zones individually or together (ALL)
• Master volume adjustment
• Output level meter for each channel
• Dry contact for cut Sono "Music-cut"
• Thermal protection, overload and short circuit
• Brackets included
| characteristics | AM 240 RM-CD-2 |
| Type |
mixer amplifier |
|
Supply |
AC 115V/230V — 50 Hz DC 24V |
|
Output power |
240 W RMS |
|
HP ports |
8 Ω / 70 - 100 V |
|
Inputs / Sensitivity |
50 dBV symmetrical / 5 kohm - 10 dBV symmetrical - 10 dBV symétrique |
|
Audio sources |
Tuner FM / CD MP3 / USB / SD |
|
Tone Settings |
Graves : ± 10 dB à 100 Hz Acute : ± 10 dB à 10 kHz |
|
Bandwidth |
100 Hz – 16 000 Hz (± 3 dB) |
|
Signal-to-noise ratio |
MIC 1 à 3 : ≥ 70 dB LINE 2-5 : ≥ 80 dB |
|
Distortion Total harmonic |
< 2 % |
|
Displays |
power light Meters of the output levels |
|
Consumption |
700 W |
| Dimensions |
482 x 340 x 88 mm |
| Weight | 13 kg |
