Acoustic column 60W 100V line IP55

Reference : JS-CO60N

SKU : 02712

EAN13 : 3701567911521

Weatherproof wall-mounted compact loudspeakers 40W

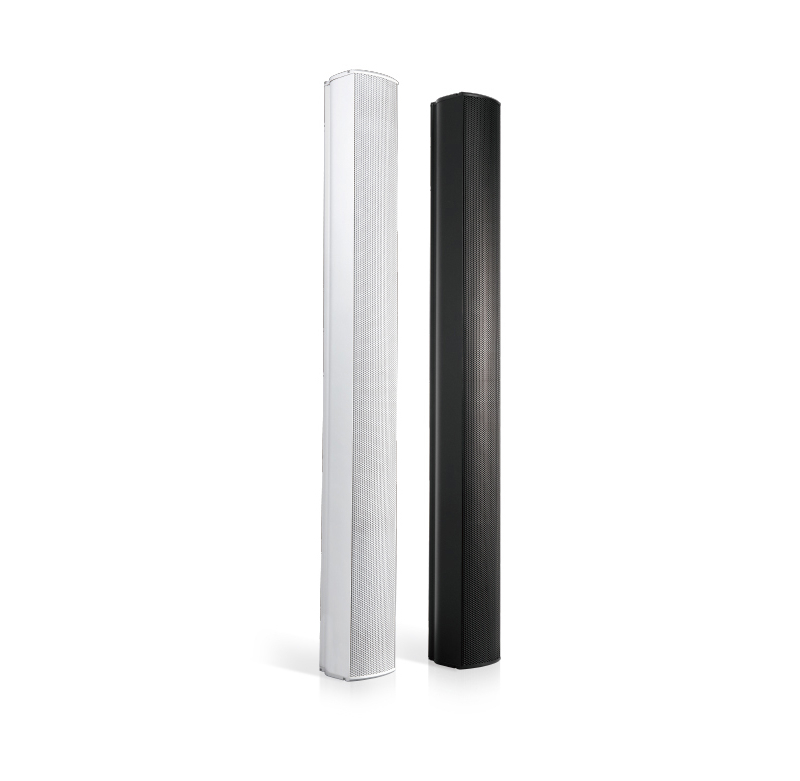

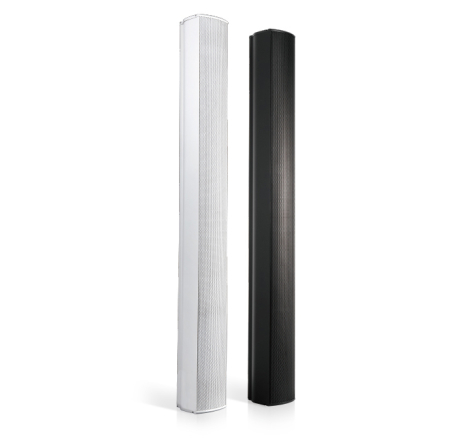

60W acoustic columns (120W in 8Ω) available in 2 colors:

Reference : JS-CO60BL- Code : 02711

Reference : JS-CO60N - Code : 02712

Power output

60 W

Color

Types d'applications

LIEUX DE CULTE

Indice de Protection

IP55

JS-CO60

Download (1.28MB)

Description

Datasheet PDF

60W acoustic column in 100V line (120W in 8Ω)

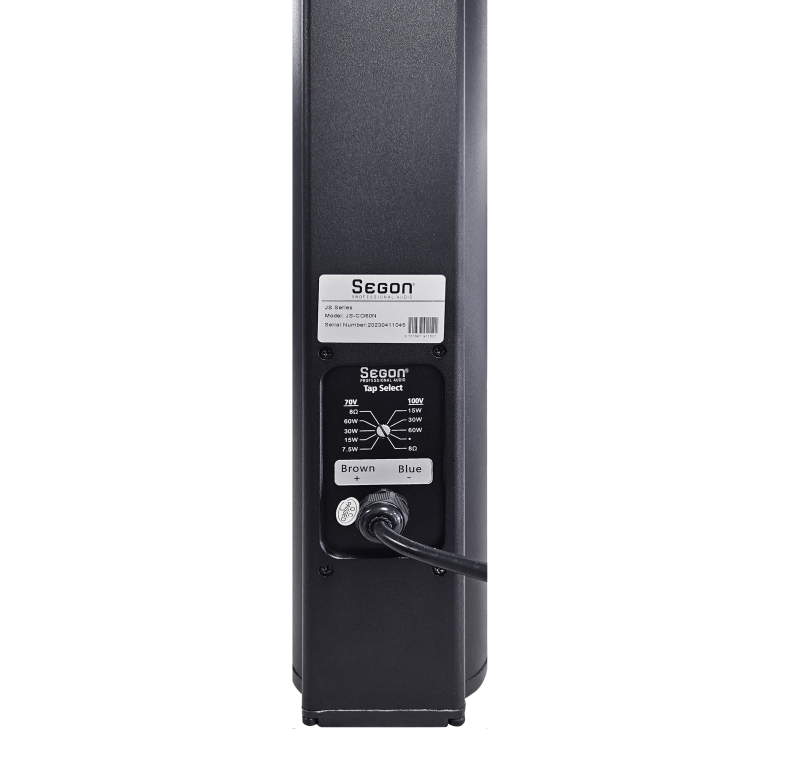

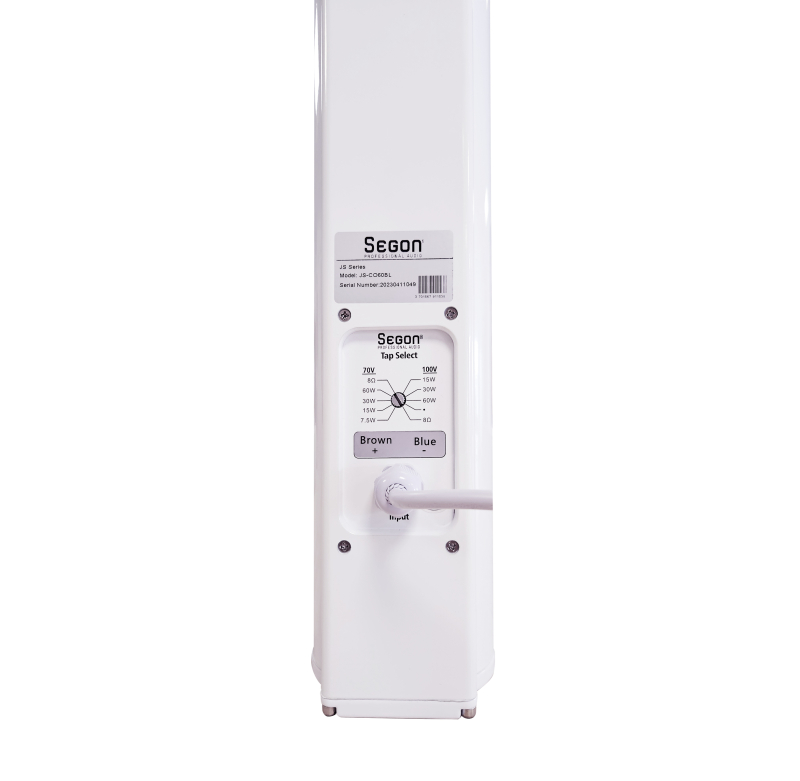

- 5-position switch for power settings
power settings
- 4 drivers with tweeter
- Cable gland
- IP55 protection with cover to ensure
to ensure watertightness

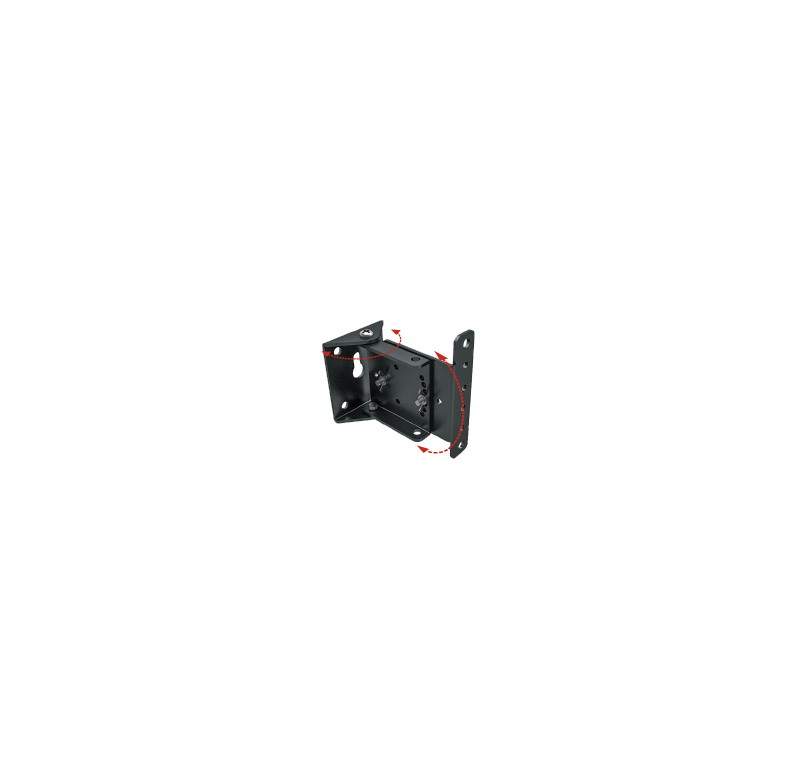

- Accessories : JS-COFIX brackets and screws included

- Applications: Conference rooms, places of worship, schools...

SPECIFICATIONS	JS-CO60BL / JS-CO60N
Type	Acoustic column
Material	lacquered aluminum
Colour	White and Black
Power	7.5W@70V;15W@100V Tap=666Ω 15W@70V;30W@100V Tap=333Ω 30W@70V;60W@100V Tap=166Ω 60W@70V;N/C@100V Tap=83Ω 120W（480W peak，100hrs/8Ω
Sensitivity	93 dB
Max SPL	114 dB
Angle	120° x 70°
Dimensions (W x D H)	1170 x 91 x 120 mm
Weight	6,5kg
Protection rating	IP55
Connecting	on Euroblocks terminal blocks
Accessory	Brackets and screws for wall mounting
