View larger

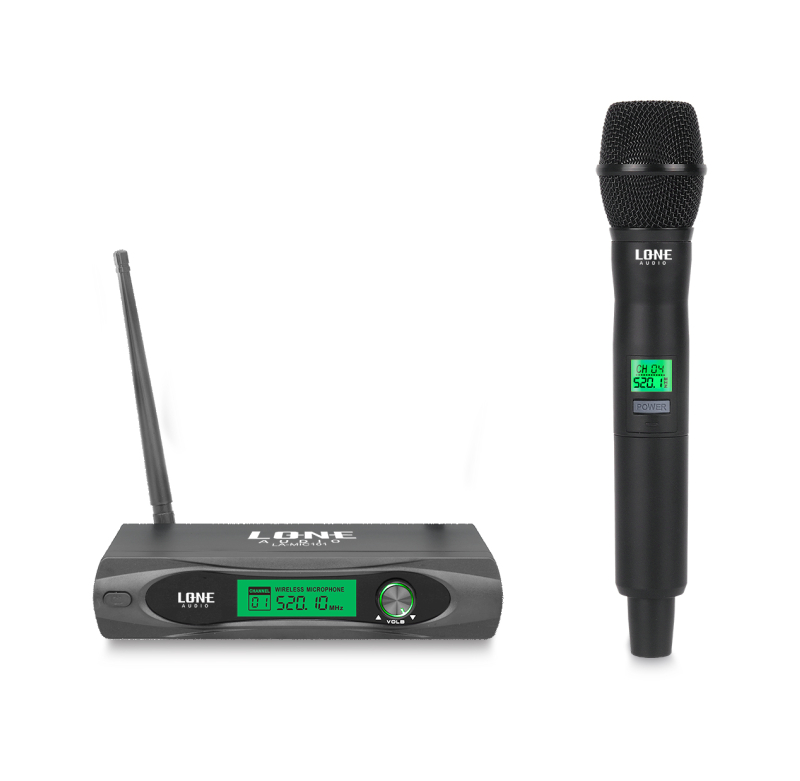

UHF wireless receiver set with 1 handheld microphone
LA-MIC101
3701567911736
02720
UHF receiver microphone set with 1 handheld microphones.
4 Fixed frequencies 500 to 700 MHz
Transmission power: 10 mW
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usDATA SHEET IN PDF
Professional quality UHF microphone set!
Dual channel UHF receiver equipped with selectable PLL synthesised receiver modules
Automatic reception system
Anti-interference system for simultaneous operation of several units
Reception distance of 50 metres
Transmitter power: 10 mW
Function display on LCD screen
Infrared "sync" function to transmit the frequency to the transmitters.
Ideal for professional vocal or audio applications, speeches, animations, etc.
1 jack cord (mix output) and 2 XLR cords
| SPECIFICATIONS | BE-2020 | |
| Reception method |
2 CHANNELS |
|
|
System |
Synthesized PLL |
|
|
Frequency stability |
± 10 ppm |
|
|
Image interferes rate |
> 50 dB | |
|
Signal-to-noise ratio |
> 90 dB | |
|
Sensitivity |
- 90 dBuV | |
|
Harmonic distortion |
< 0,5 % | |
|
Frequency Response |
50 – 15 000 Hz | |
|
Output impedance |
600 Ω | |
|
Audio output level |
- 400 mV, balanced / unbalanced | |
|
Display |
LCD | |
|
Audio output jack |
2 XLR balanced, 1 jack unbalanced | |
|
Antenna sockets |
2 x BNC in front panel | |
|
Power supply |
DC 12V - 700 mA | |
|
Dimensions (W x D x H) |
444 x 180 x 51 mm (rackable) | |
|
Weight |
2,75 Kg | |
|
Consumption |
< 5 W | |
|
Hand microphone |
BE-2020MIC | |
|
Batteries |
2 x AA / 1,5 V (delivered) | |
