Preamplifier 10 inputs Microphones

Name: Preamplifier 10 inputs Microphones
Brand: RONDSON
SKU: PM 10P

Reference : PM 10P

SKU : 02501

EAN13 : 3701567903342

Out-of-Stock

Preamplifier 10 microphone inputs with selectable priorities

Types d'applications

SUPERMARCHÉ

Zones

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Description

Description :

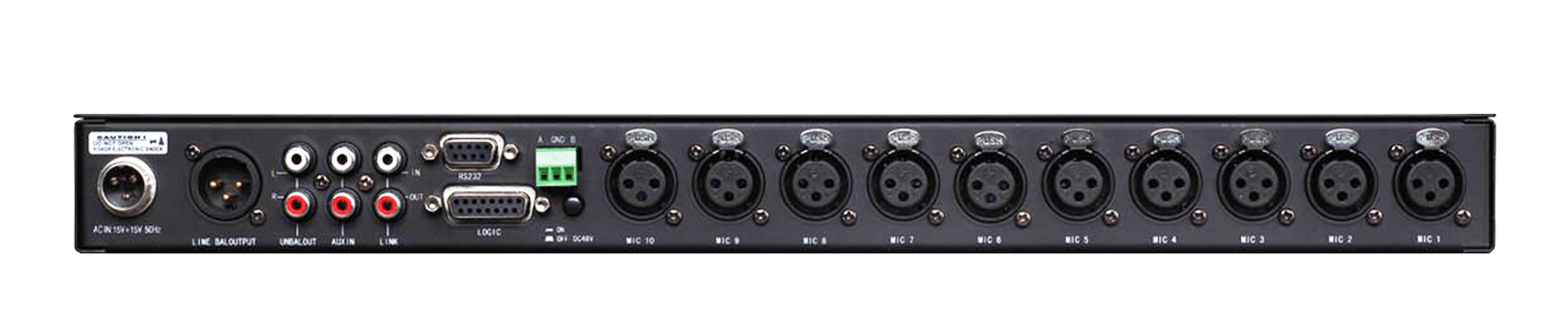

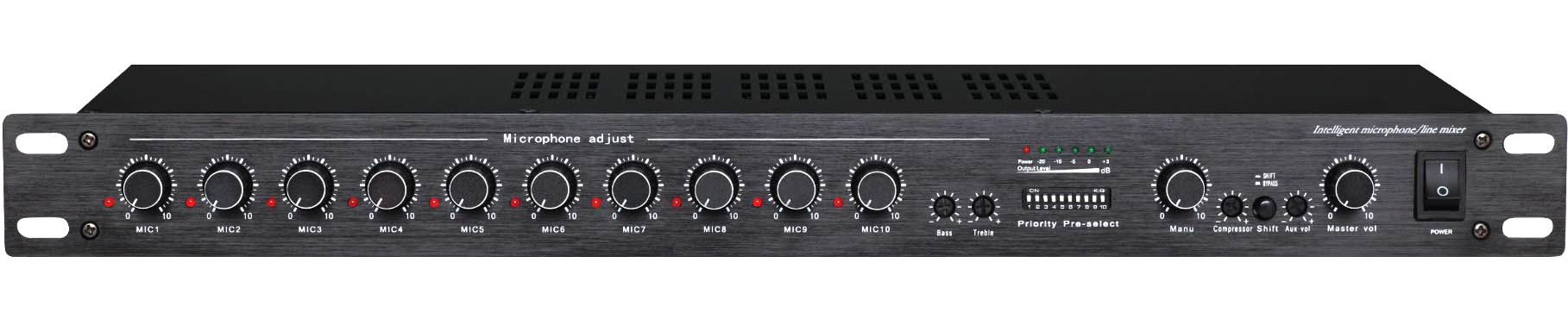

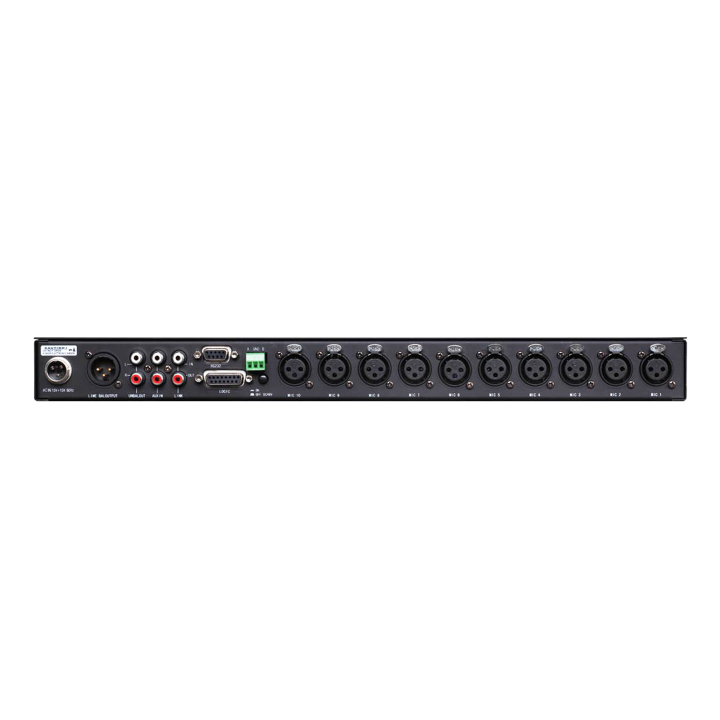

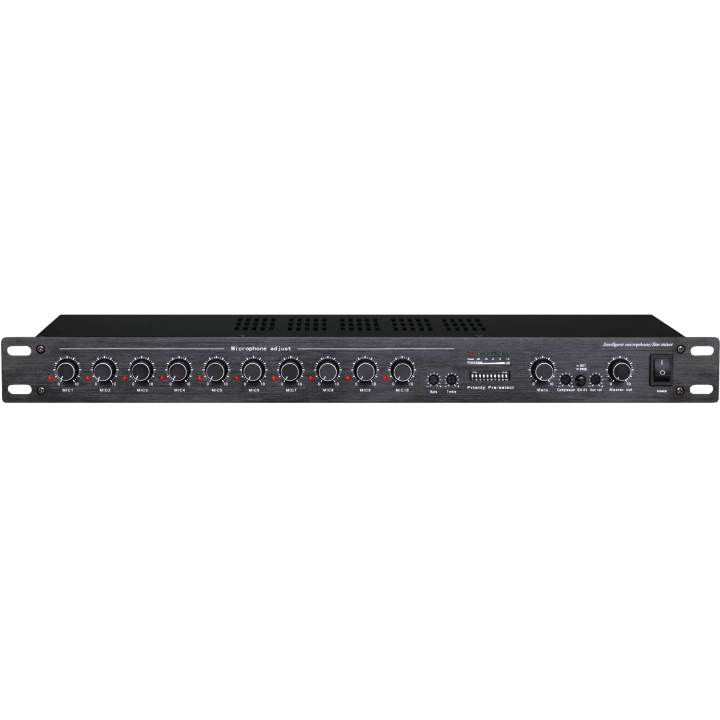

The PM 10P is a professional 10 channel mixing preamplifier for general public address. This preamplifier allows you to set different sources with priority levels for optimal sound diffusion. Its versatility allows a basic use of a preamplifier but also adapts to set up JS-90C microphone consoles for use in conferences.

Features :
It is equipped with :

Master Volume adjustable on the front panel
Manu: output level adjustment on the front panel
10 inputs with individual volume control
General "bass" and "Trebble" settings on each input
SHIFT By PASS function
Each channel can be configured as a speech priority, the other channels will be attenuated to 20 or 40 dB via a dip switch.
1 RS-232 socket
48 V phantom power on each MIC input (CH 1 to 10)
RCA LINK socket - 1 input IN - 1 output OUT
Input signal indicator light
RCA LINK socket - 1 input IN - 1 output OUT
entry RCA LINE.
Balanced MASTER XLR and RCA output

SPECIFICATIONS	PM 10P
Type	10 channel preamplifier
Inputs/Sensitivity	MIC : - 50 dBu (2,45 mV) 5 KΩ symmetric LINE : 0 dBu (775 mV) 5 KΩ symmetric AUX : - 10 dBu (245 mV) 15 KΩ asymmetric
Output/Sensitivity	+4 dBu (V.R MAX)
Output level	+8 dBu (V.R MAX)
Harmonic distortion total	< 0,5 %
Frequency Response (line signal)	20 – 20 000 Hz (± 0,5 dB)
Phantom power supply	48 V
Signal to Noise Ratio	MIC > 75 dB LINE/AUX : > 85 dB
Consumption	4,8 W
Power supply	AC 220V - 50/60 Hz
Dimensions (L x P x h)	430 x 221 x 44 mm
Weight	3,2 kg
