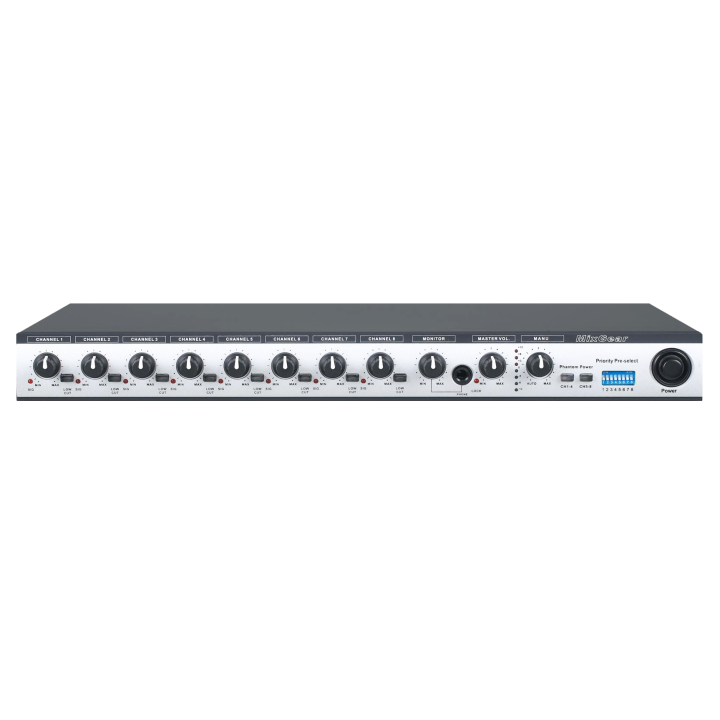

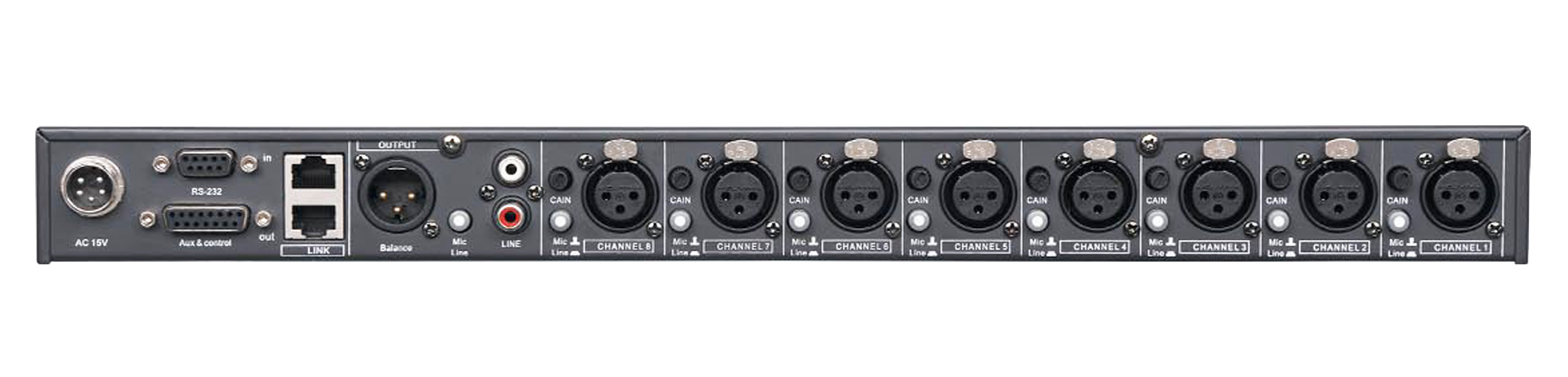

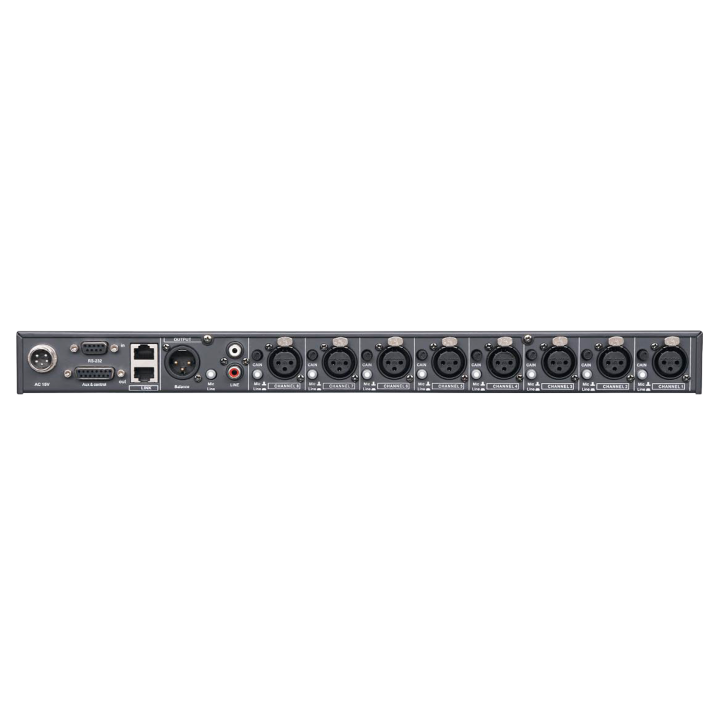

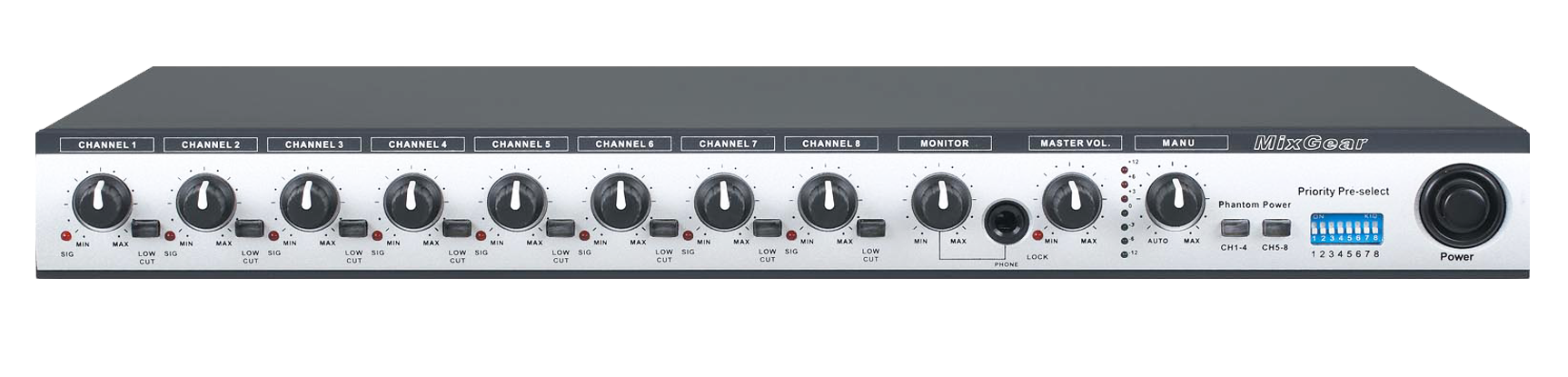

Preamplifier 8 inputs Microphones

The PM 8P is a professional 8-channel mixing preamplifier to create a comfortable sound system.
This preamplifier allows you to set different sources with priority levels for optimal sound diffusion. Its versatility allows a basic use of a preamplifier but also adapts to set up JS-90C microphone consoles for conference use.

Features :

It is equipped with :

• 8 inputs with individual volume control equipped with a MIC/LINE parameter activation button for different input levels.
• Adjustable on each input for gain control
• Each channel can be configured as a speech priority, the other channels will be attenuated to 20 or 40 dB via a dip switch.
• 1 RS-232 socket
• Phantom power on CH 1-4 and CH 5-8
• Each LOW cut selectable on each input
• Input signal indicator light
• A Master volume allows the general adjustment of the output signal of the device.
• RCA LINE input.
• MASTER XLR and RCA balanced output
• NOMA function (number of attenuated open microphones): is used to automatically adjust the output level as the number of channels used increases.
