Dual receiver set with 2 tie microphones

Name: Dual receiver set with 2 tie microphones
Brand: SEGON PROFESSIONAL AUDIO
SKU: JS-WM18D/2BP

Reference : JS-WM18D/2BP

SKU : 02751

EAN13 : 3701567905162

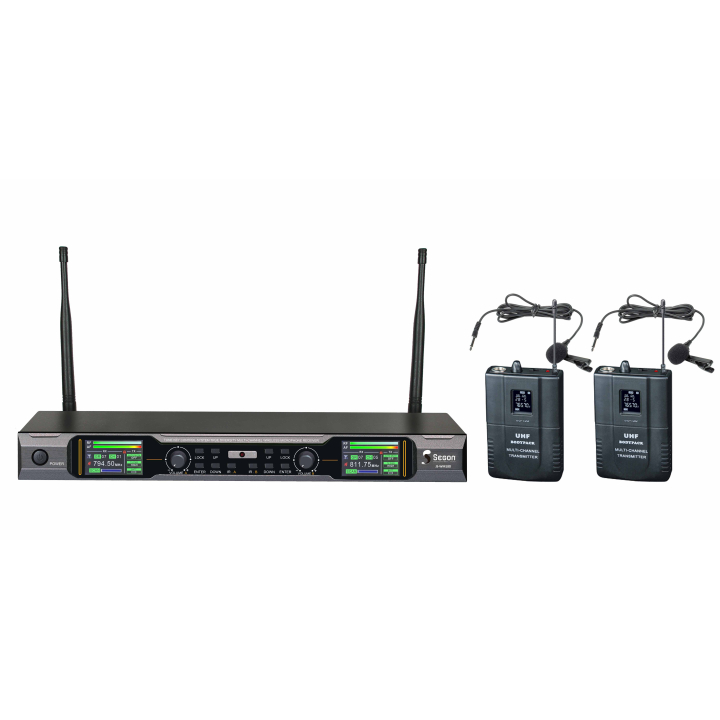

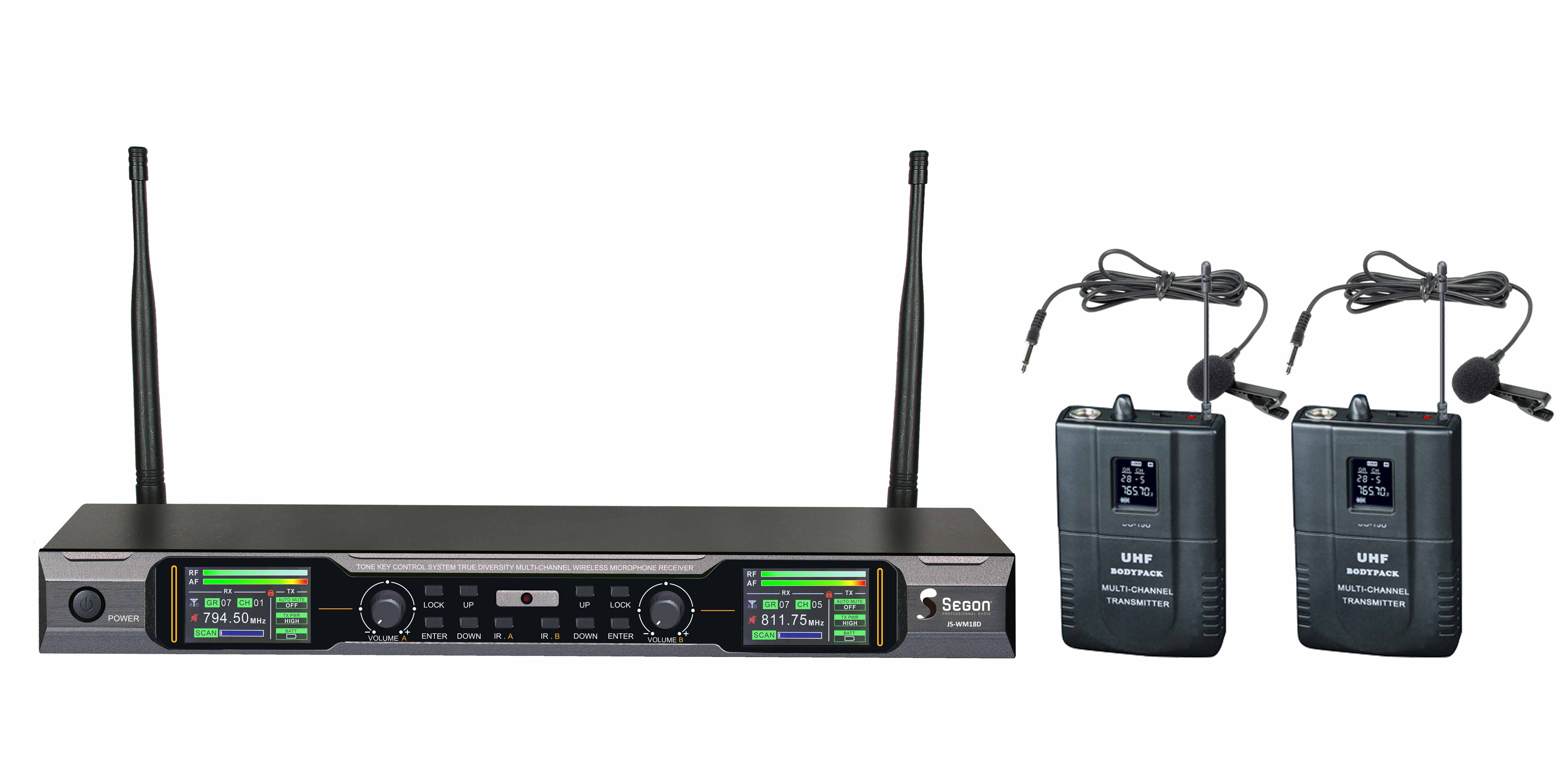

True Diversity receiver box with 2 tie microphones

Canaux

Fréquences modulables

660 - 690 MHz

Description

Professional quality UHF dual diversity microphone set!

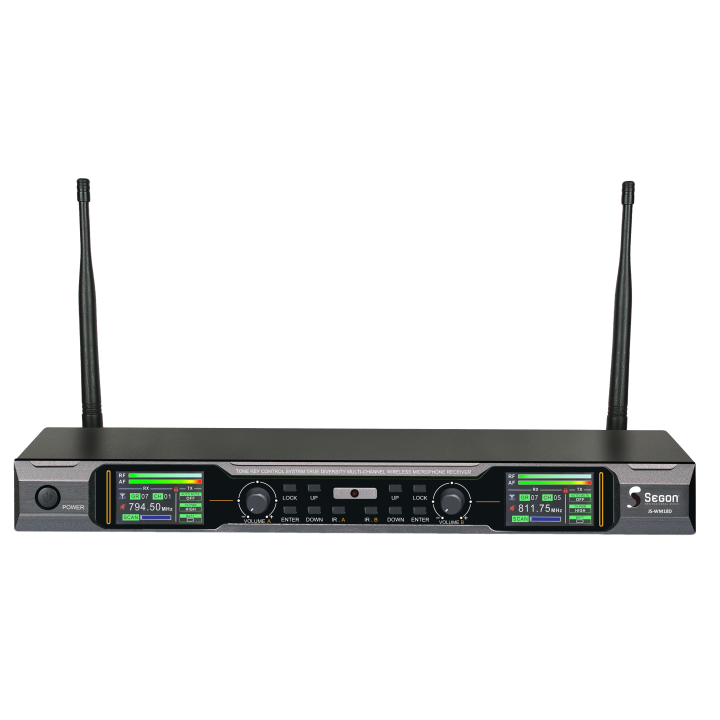

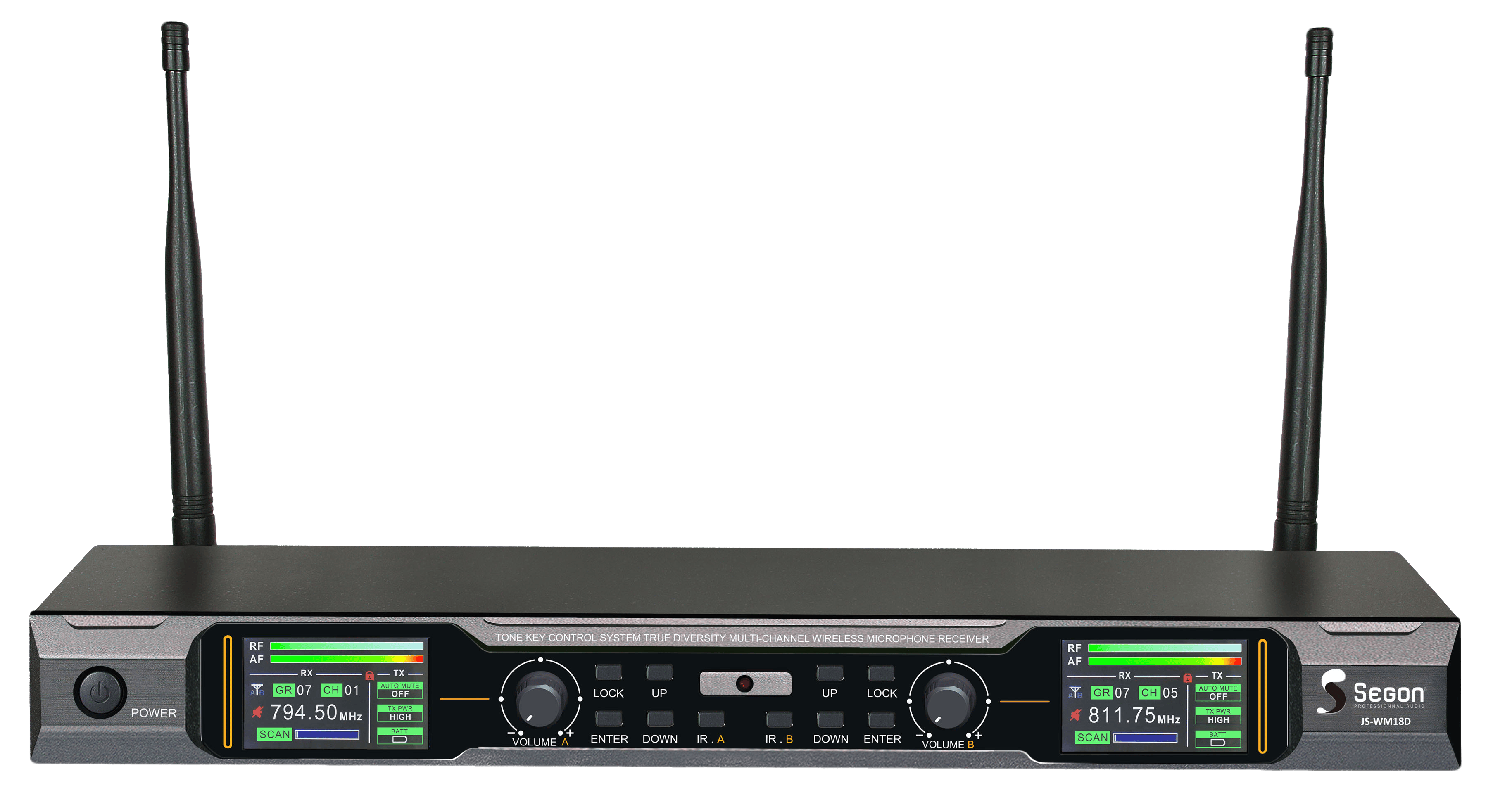

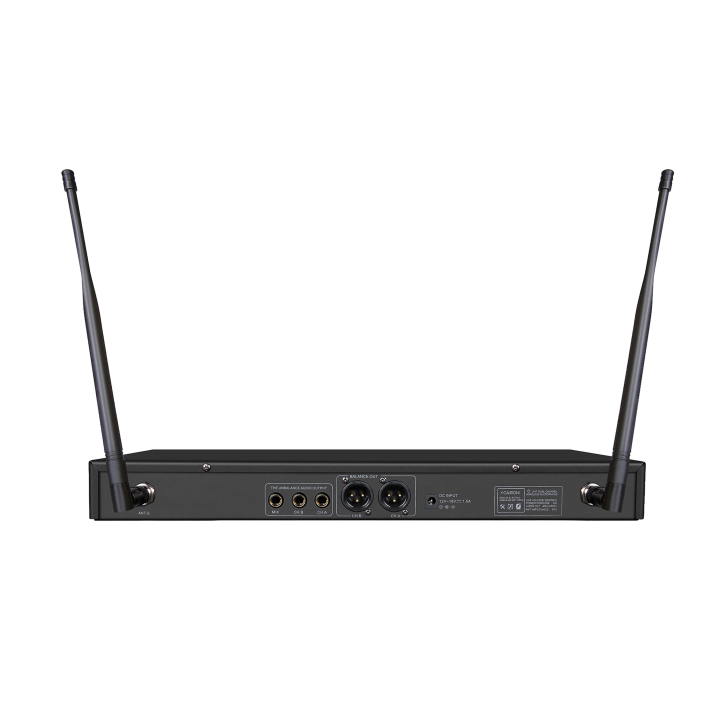

Receiver:

UHF receiver equipped with receiver modules for 30 selectable PLL synthesised group frequencies (240 channels)
Frequency range: 660-690 MHz
True Diversity Automatic Reception System
Anti-interference system for simultaneous operation of several units
Reception distance of 80 metres
Function display on LCD screen
Infrared "sync" function to transmit the frequency to the transmitters.
Ideal for vocal, singing or professional audio applications on stage
19" Rackable
1 jack cord (mix output) and 2 XLR cords

Tie transmitters:

SPECIFICATIONS	JS-WM18D
Reception method	Dual Diversity UHF set, 2 tie microphones
System	Synthesized PLL
Frequency stability	< + 30 ppm
Image interferes rate	> 80 dB
Signal-to-noise ratio	> 90 dB
Sensitivity	- 17 dBuV
Total harmonic distortion	< 0,5 %
Frequency Response	40 Hz – 15 000 Hz (± 3 dB)
Output impedance	600 Ω
Audio output level	400 mV, Symmetrical/Asymmetrical
Display	LCD

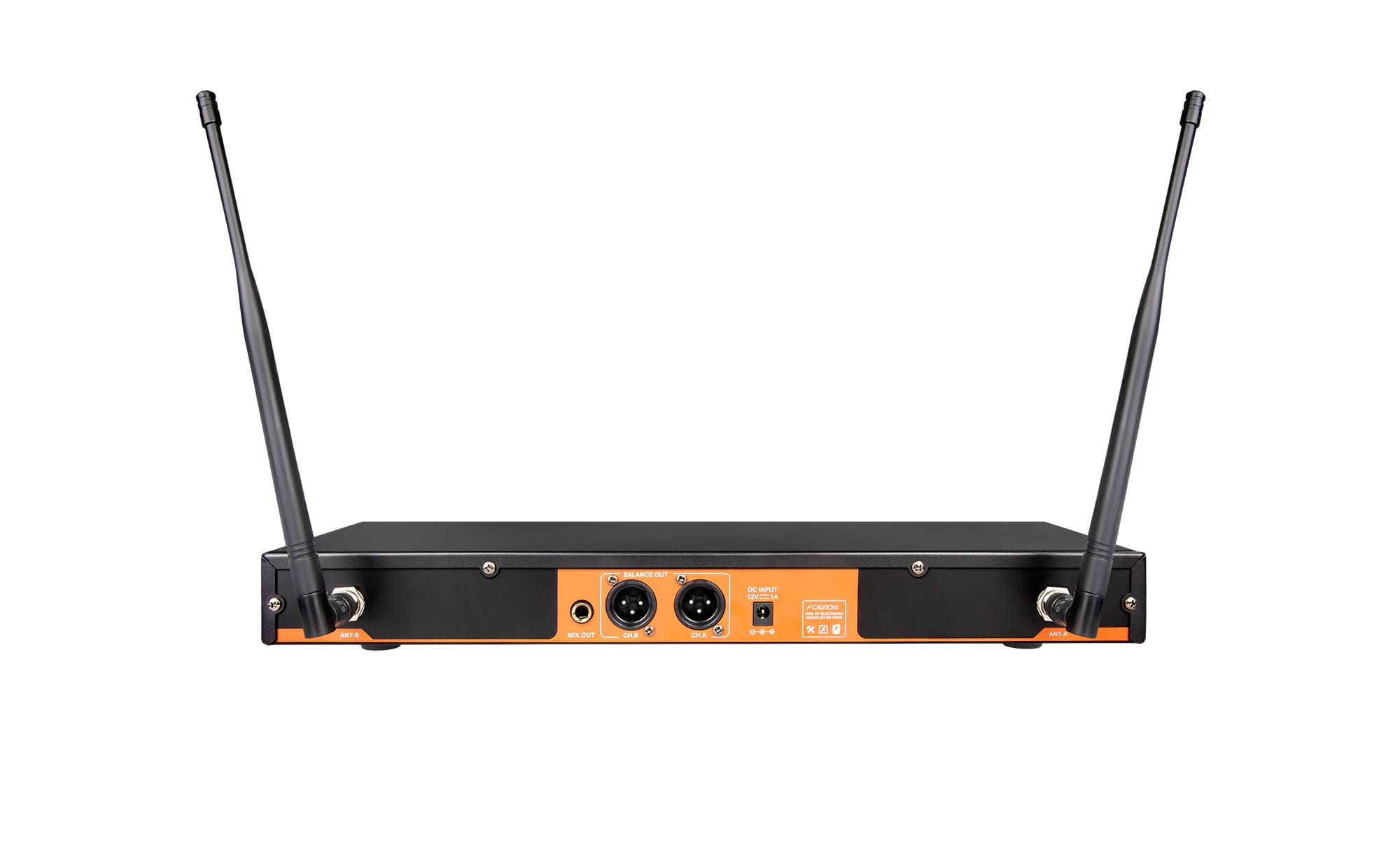

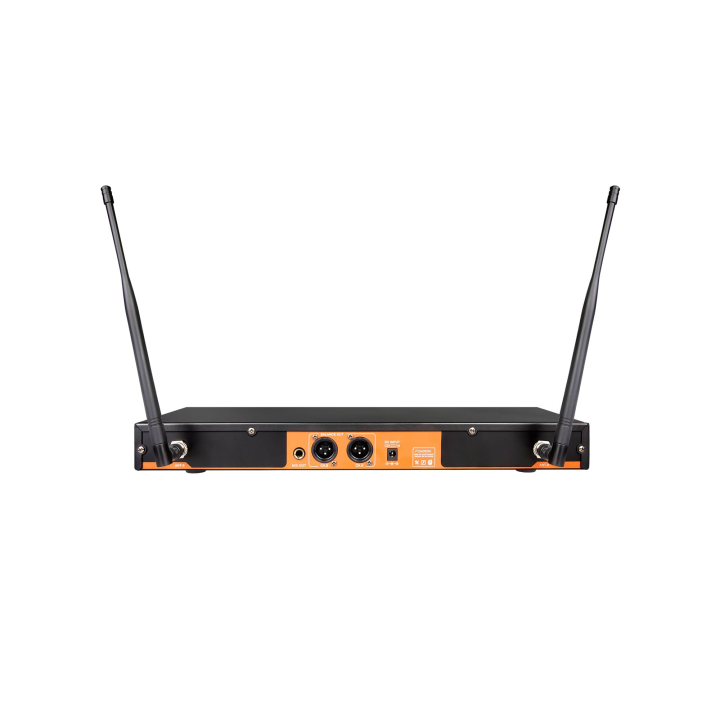

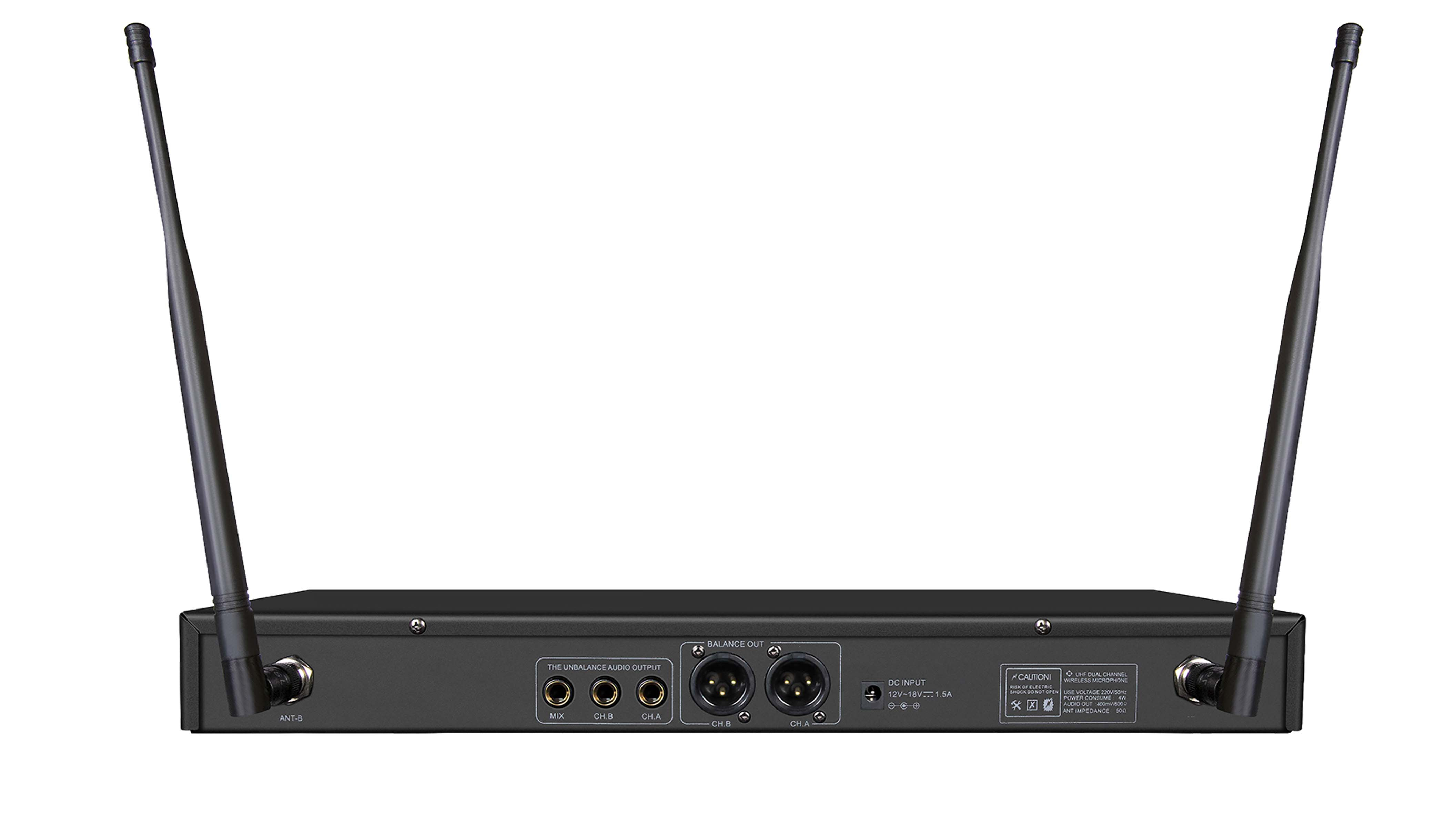

Audio output sockets	2 XLR symmetrical, 3 Jack asymmetrical
Antenna socket	2 x BNC
Power supply	DC 12V-18 V
Consumption	< 5 W
Dimensions (W x D x H)	420 x 225 x 45 mm (rackable 19“)
Weight (receiver + hand microphone)	2,75 Kg

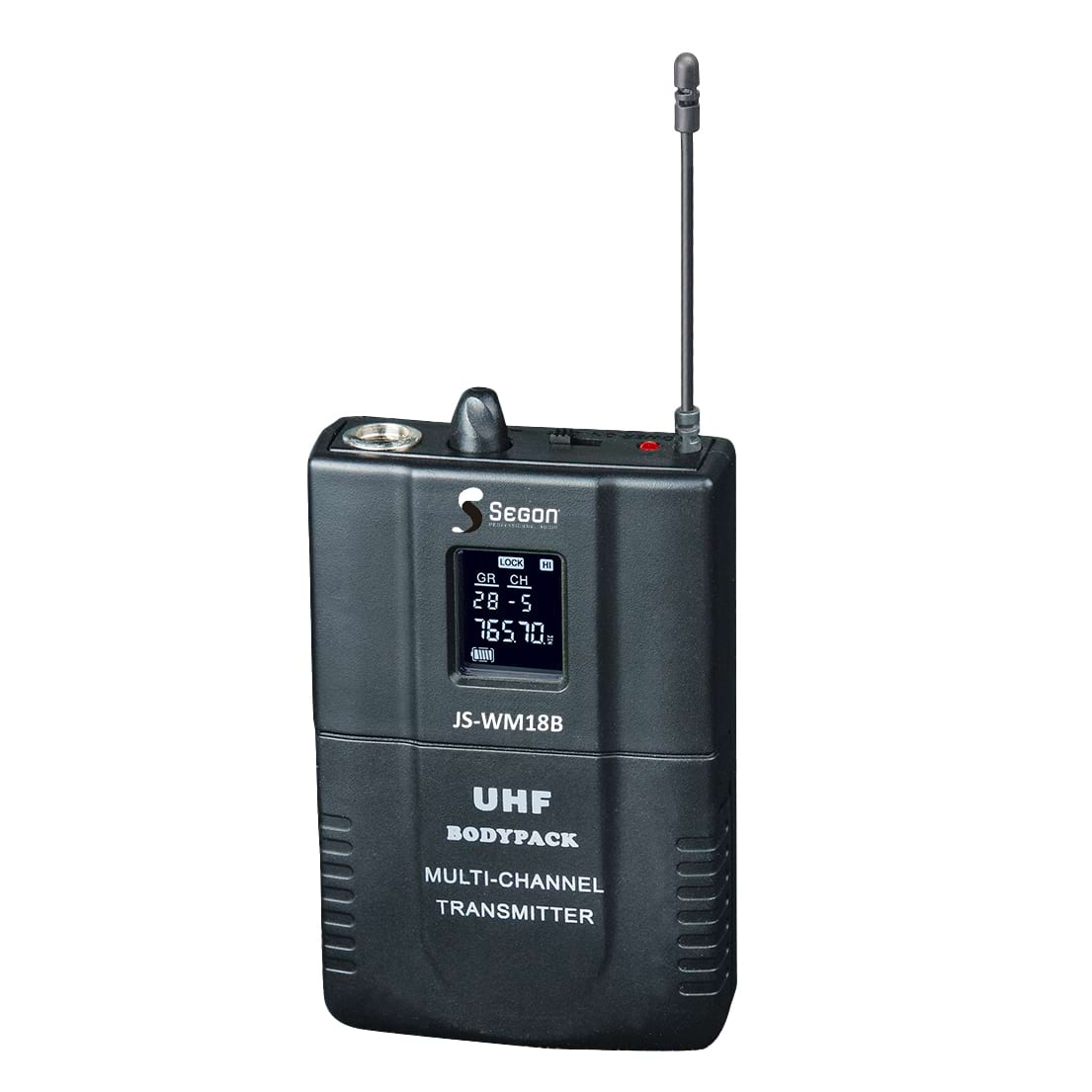

Transmitter box + lapel microphone	JS-WM18B
Batteries	2 x AA / 1,5 V (not delivered)
