Dual-channel HF microphone system with 2 hand microphones

Name: Dual-channel HF microphone system with 2 hand microphones
Brand: LONE AUDIO
SKU: LA-MIC102

Reference : LA-MIC102

SKU : 02721

EAN13 : 3701567911743

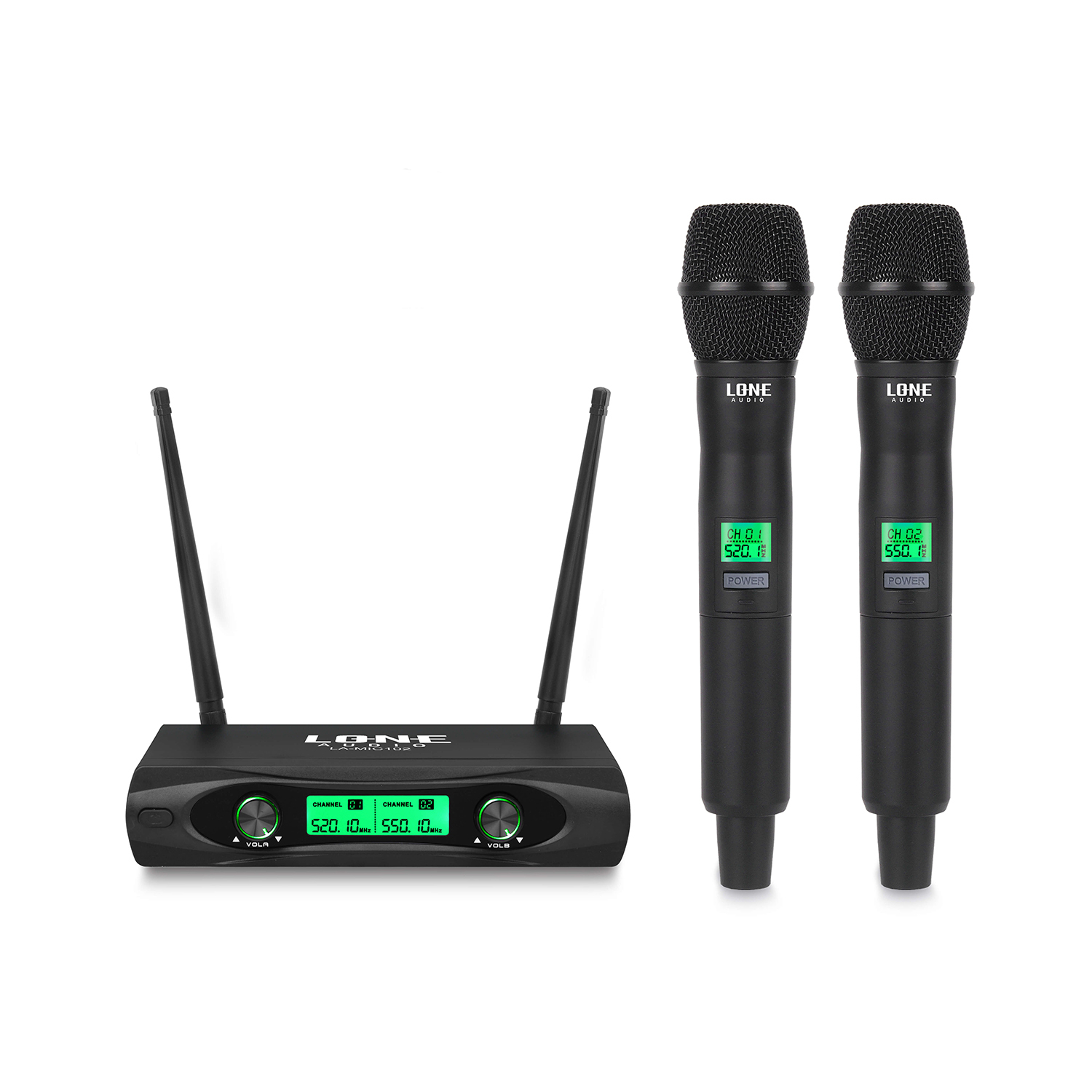

Dual UHF receiver set with 2 handled microphones
Frequency fixed : between 500-700Mhz
Emission power : 10 mW

Canaux

Type de Micro

LA-MIC102

Description

DATASHEET IN PDF

Professional quality UHF microphone set!

Dual channel UHF receiver equipped with selectable PLL synthesised receiver modules

Automatic reception system

Anti-interference system for simultaneous operation of several units

Reception distance of 50 metres

Transmitter power: 10 mW

Function display on LCD screen

Infrared "sync" function to transmit the frequency to the transmitters.

Ideal for professional vocal or audio applications, speeches, animations, etc.

1 jack cord (mix output) and 2 XLR cords

SPECIFICATIONS	BE-2020
Reception method	2 CHANNELS
System	Synthesized PLL
Frequency stability	± 10 ppm
Image interferes rate	> 50 dB
Signal-to-noise ratio	> 90 dB
Sensitivity	- 90 dBuV
Harmonic distortion	< 0,5 %
Frequency Response	50 – 15 000 Hz
Output impedance	600 Ω
Audio output level	- 400 mV, balanced / unbalanced
Display	LCD

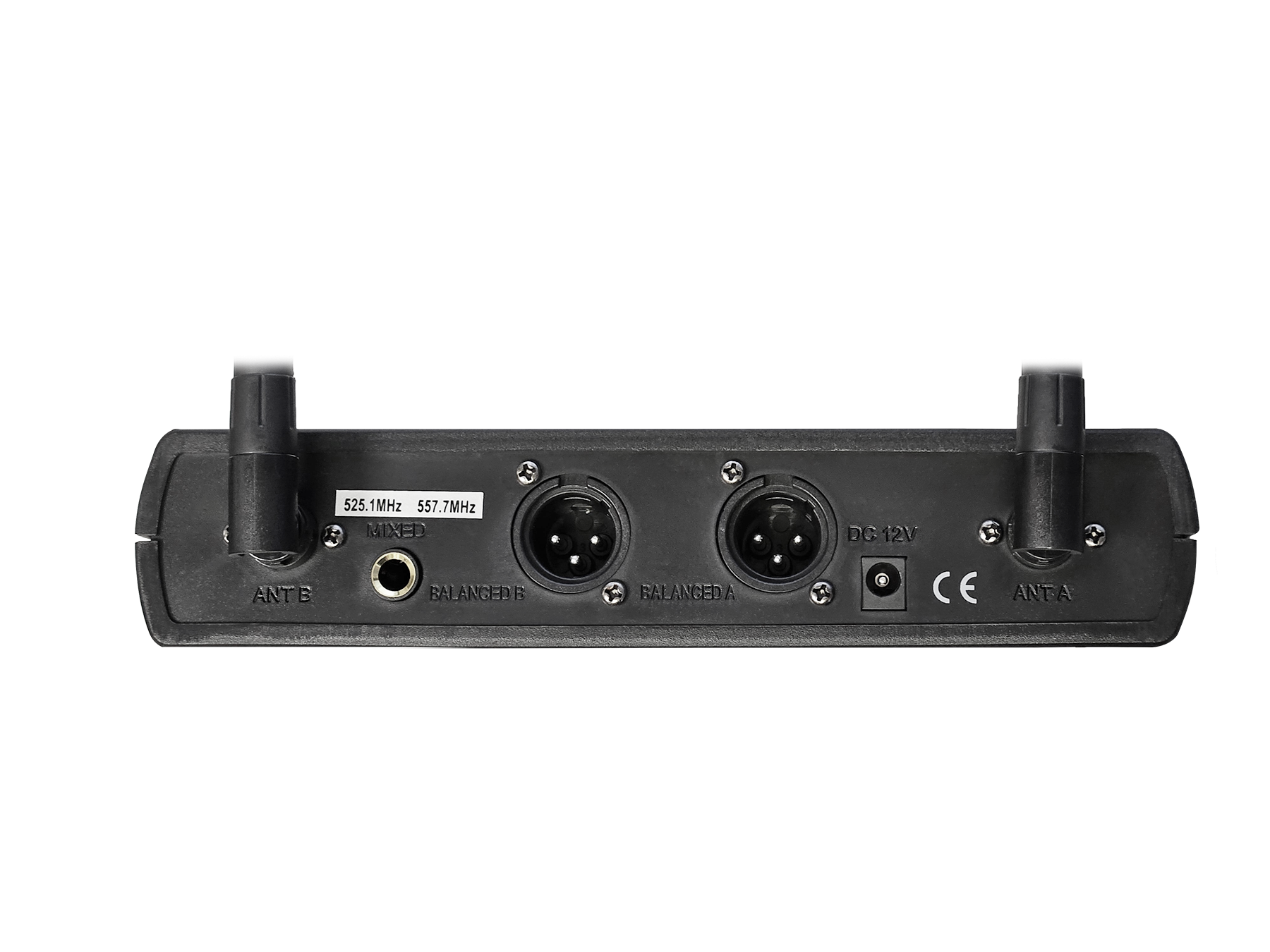

Audio output jack	2 XLR balanced, 1 jack unbalanced
Antenna sockets	2 x BNC in front panel
Power supply	DC 12V - 700 mA
Dimensions (W x D x H)	444 x 180 x 51 mm (rackable)
Weight	2,75 Kg
Consumption	< 5 W
Hand microphone	BE-2020MIC
Batteries	2 x AA / 1,5 V (delivered)
