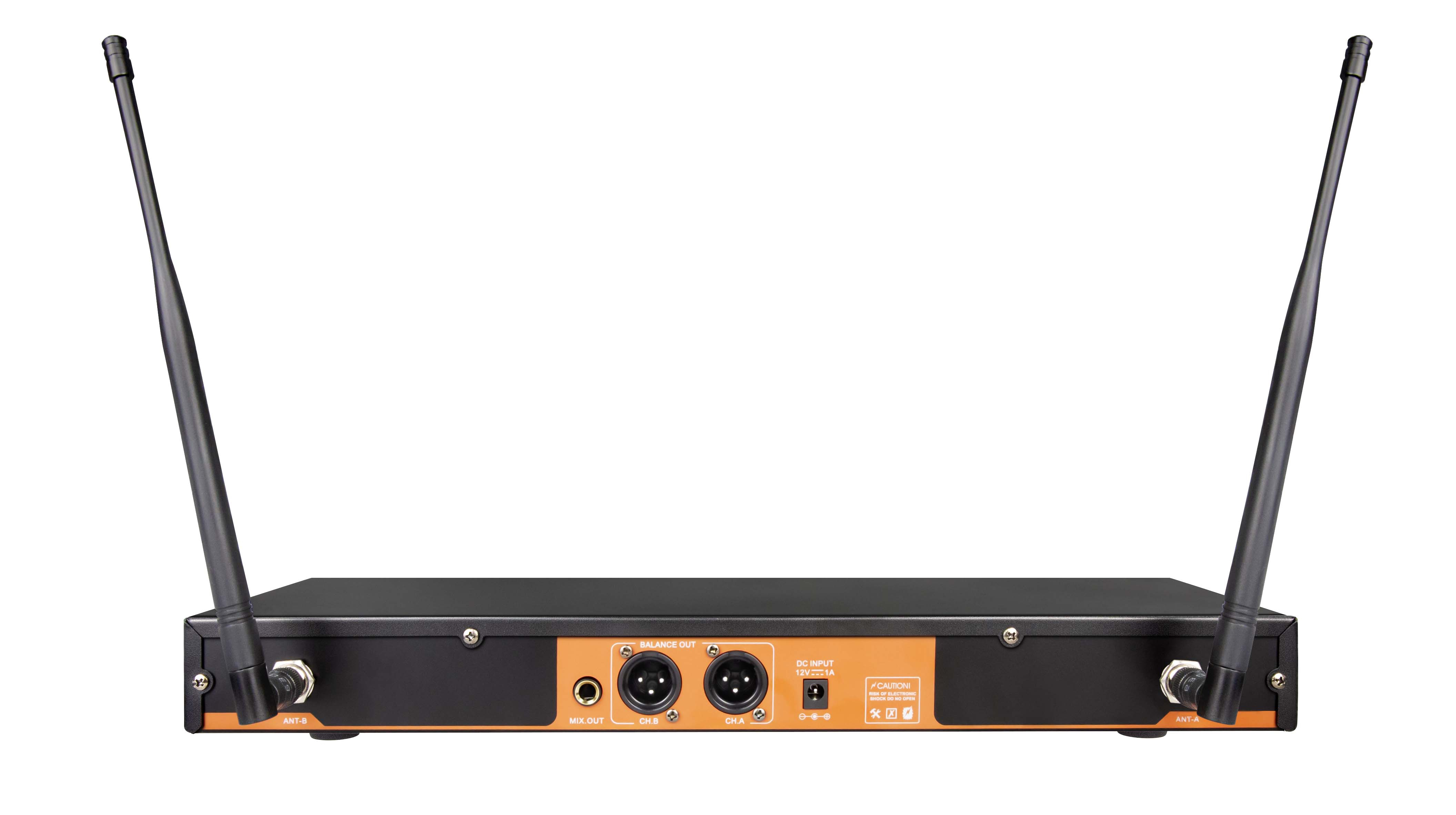

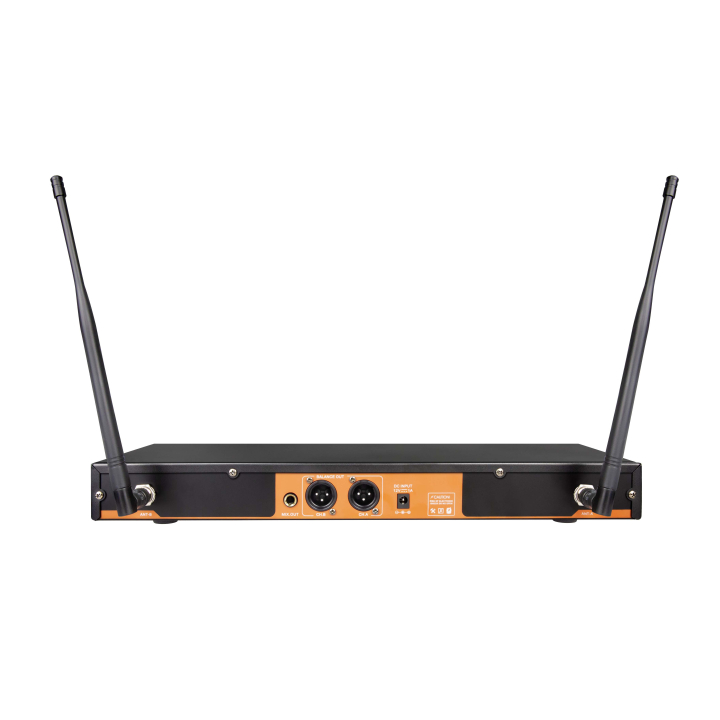

Dual UHF receiver set - 2 handheld microphones
Reference : BE-5038/2H-83
SKU : 02154
EAN13 : 3701567909290
Professionals:
Login
Individuals:
Contact us
Wireless microphone with TRUE DIVERSITY UHF receiver and 2 handheld microphones
660 à 690 Mhz - 20 Frequencies
30 mW
Description
- Dual channel UHF receiver equipped with
- True diversity automatic reception system
- Anti-interference system for simultaneous operation of several units
- Reception distance from 10 to 150 metres
- Function display on LCD screen
- Infrared "sync" function to transmit the frequency to the transmitters.
- Ideal for professional vocal or audio applications
- 1 jack cord (mix output) and 2 XLR cords
- Brackets supplied
Product Details
-
Brand
-
ReferenceBE-5038/2H-83
-
SKU02154
-
EAN133701567909290
Data sheet
-
SystemSynthétisé PLL
-
Output impedance600 Ω
-
Reception methodTrue diversity 2 CANAUX
-
Frequency stability± 0,005 %
-
Image rejection ratio+ 80 dB
-
Signal-to-noise ratio+ 105 dB à 1 KHz
-
Audio output level- 12 dB
-
Prises d’antenne2 x BNC
-
AlimentationDC 12-18 V 500 mA
-
AffichageLCD
-
Distorsion harmonique totale0,5 %
-
Bande passante30 - 20 000 Hz
-
Prises sortie audioXLR symétrique
-
Sensibilité- 107 dBm
-
Handheld microphoneH-83
-
Batteries or rechargeable batteries2 x AA / 1,5 V (livrées)
-
Dimensions (W × D × H)482 x 190 x 44 mm (1 U)
-
Weight3 kg
-
Boîtier émetteur + micro cravatePT-10/CM-506
