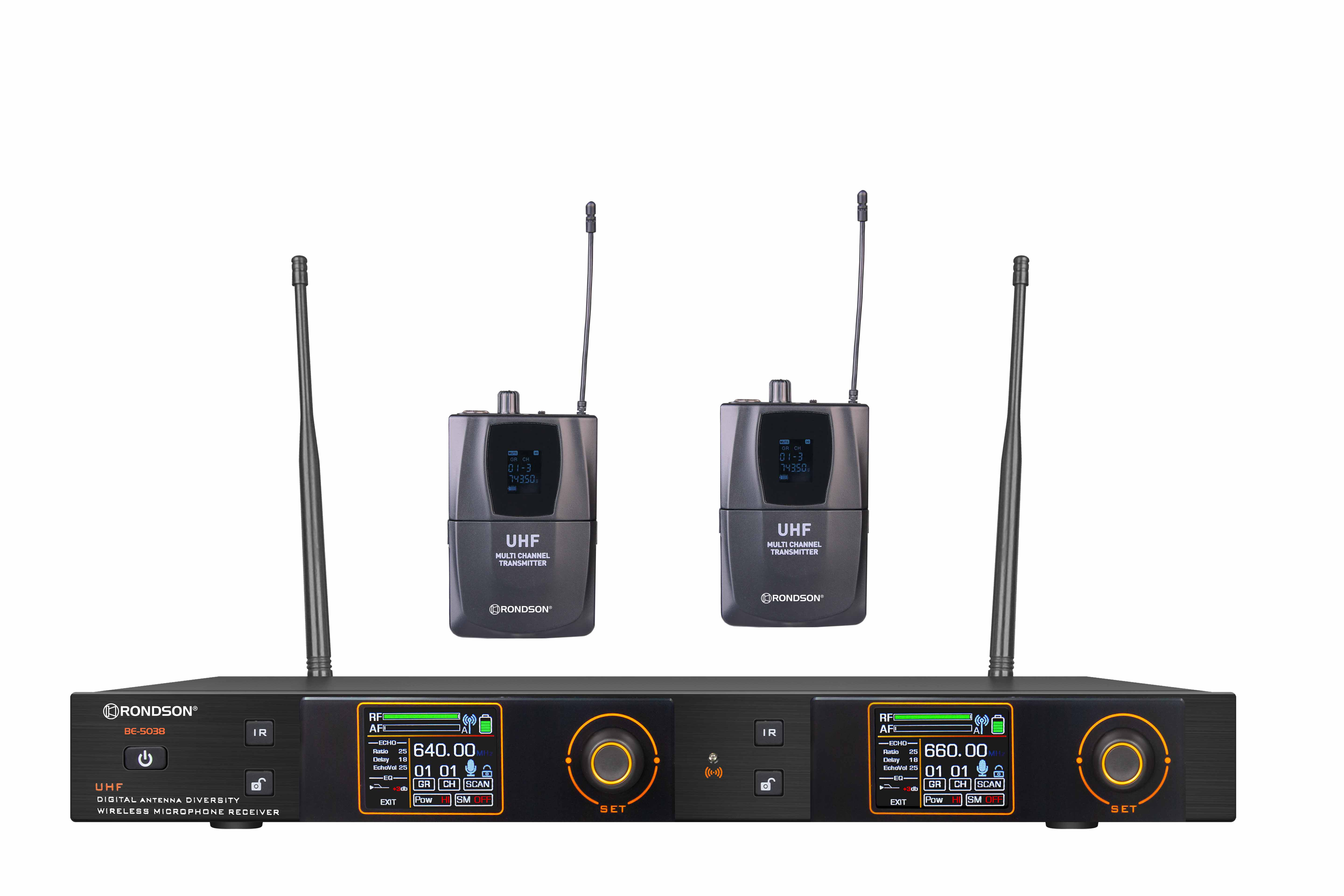

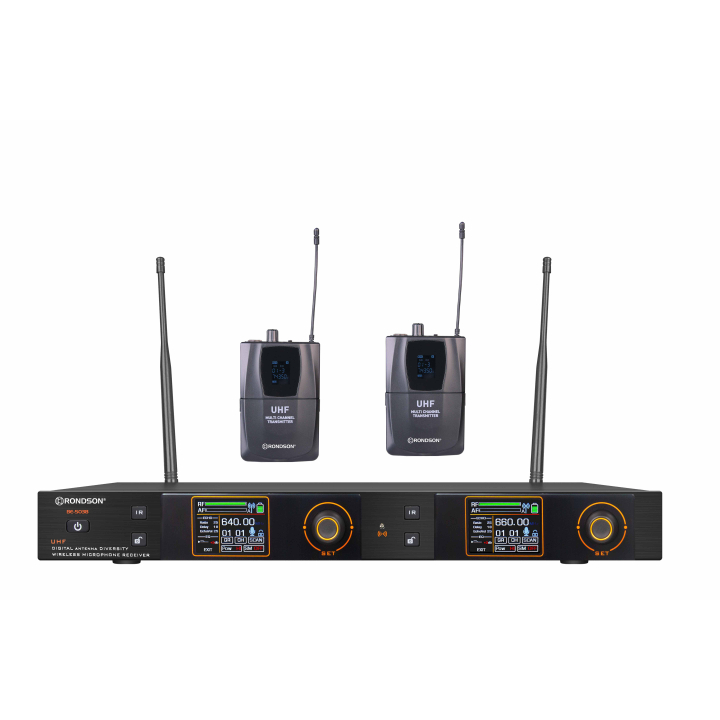

Dual UHF set with 2 bodypack microphones
Reference : BE-5038/2PT-10
SKU : 02156
EAN13 : 3701567909283
TRUE DIVERSITY UHF dual receiver set with 2 bodypack microphones
660 à 690 Mhz - 20 Frequencies
30 mW
Description
Professional quality double UHF set!
- Dual channel UHF receiver
- True diversity automatic reception system
- Anti-interference system for simultaneous operation of several units
- Reception distance from 10 to 150 metres
- Function display on LCD screen
- Infrared "sync" function to transmit the frequency to the transmitters.
- Ideal for professional vocal or audio applications
- 1 jack cord (mix output) and 2 XLR cords
- Brackets supplied
| SPECIFICATIONS | BE-5038 | |
| Reception method |
True diversity 2 CANAUX |
|
|
System |
Synthesized PLL |
|
|
Frequency stability |
± 0,005 % |
|
|
Image interferes rate |
> 80 dB | |
|
Signal-to-noise ratio |
> 105 dB à 1 KHz | |
|
Sensitivity |
- 107 dBm | |
|
Harmonic distortion |
< 0,5 % | |
|
Frequency Response |
15 – 20000 Hz | |
|
Output impedance |
600 Ω | |
|
Audio output level |
- 12 dB | |
|
Display |
LCD | |
|
Audio output jack |
XLR balanced | |
|
Antenna sockets |
2 x BNC | |
|
Power supply |
DC 12-18 V 500 mA | |
|
Dimensions (W x D x H) |
482 x 190 x 44 mm (19“ 1 U) | |
|
Weight |
3 Kg | |
|
Micro handheld transmitter |
H-83 | |
|

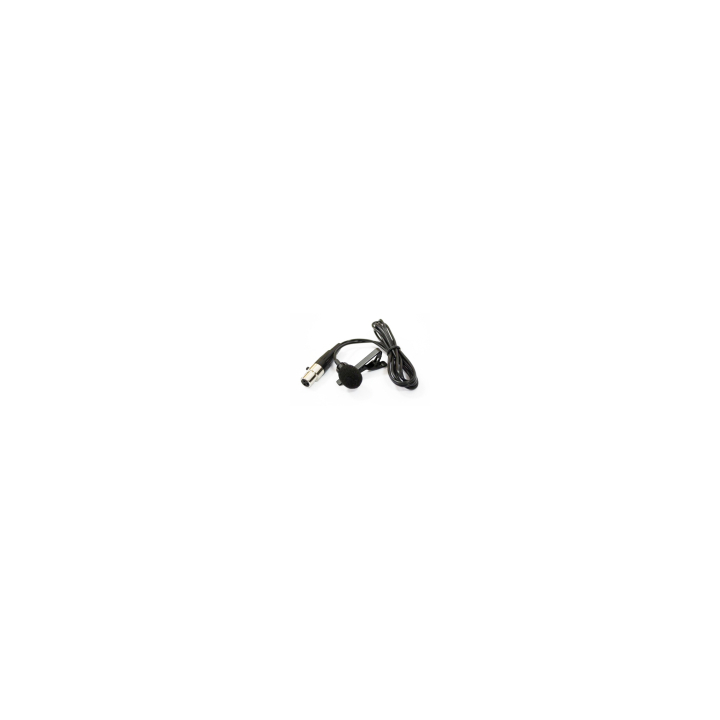

Transmitter box + lapel microphone |
PT-10/CM-506 | |
|
Batteries |
2 x AA / 1,5 V (delivered) |
|
Product Details
-
Brand
-
ReferenceBE-5038/2PT-10
-
SKU02156
-
EAN133701567909283
Data sheet
-
Output impedance600 Ω
-
Reception methodTrue diversity 2 CANAUX
-
SystemSynthétisé PLL
-
Frequency stability± 0,005 %
-
Image rejection ratio+ 80 dB
-
Signal-to-noise ratio+ 105 dB à 1 KHz
-
Audio output level- 12 dB
-
Prises d’antenne2 x BNC
-
AlimentationDC 12-18 V 500 mA
-
AffichageLCD
-
Distorsion harmonique totale0,5 %
-
Bande passante30 - 20 000 Hz
-
Prises sortie audioXLR symétrique
-
Sensibilité- 107 dBm
-
Handheld microphoneH-83
-
Batteries or rechargeable batteries2 x AA / 1,5 V (livrées)
-
Dimensions (W × D × H)482 x 190 x 44 mm (1 U)
-
Weight3 kg
-
Boîtier émetteur + micro cravatePT-10/CM-506
