10W bass-reflex in-wall speakers

Reference : PBT 10 BL
SKU : 02308
EAN13 : 3701567912115

10W wall-mounted speaker

Color
Share

Description

DATA SHEET IN PDF

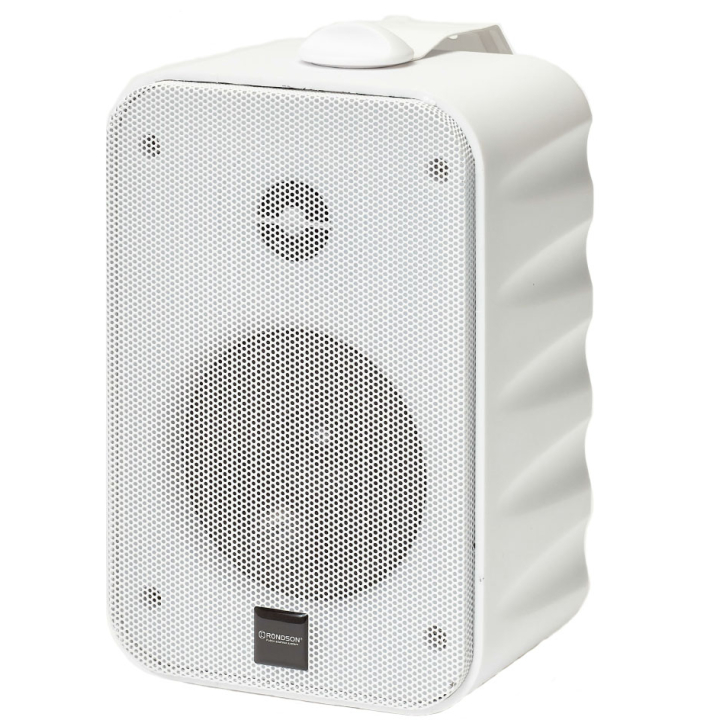

  • High-quality white or black speakers with a modern design and trapezoidal shape for easy installation in corners
  • 100 V line or 8 Ω switchable operation
  • Metal grille and mounting bracket, polypropylene cone woofer
  • Metal brackets at rear to accommodate side mounting
SPECIFICATIONS PBT 10 BL
Type 2-way bass reflex speaker
Material ABS + metal grid
Colour White
Speaker 8 cm + tweeter
Sensitivity 90dB / 1W / 1 m
Frequency Response 100 Hz - 20 000 Hz
Angle of coverage 120°
BI line power 8 Ω
Line power 100 V  10 - 5 - 5,5 W RMS
Ligne 100 V 10 W
Connecting Euroblock
Dimensions W x D x H 208 x 140 x 120 mm
Weight 2.75 Kg
Accessories included Wall mounting

Product Details

  • Brand
  • Reference
    PBT 10 BL
  • SKU
    02308
  • EAN13
    3701567912115
