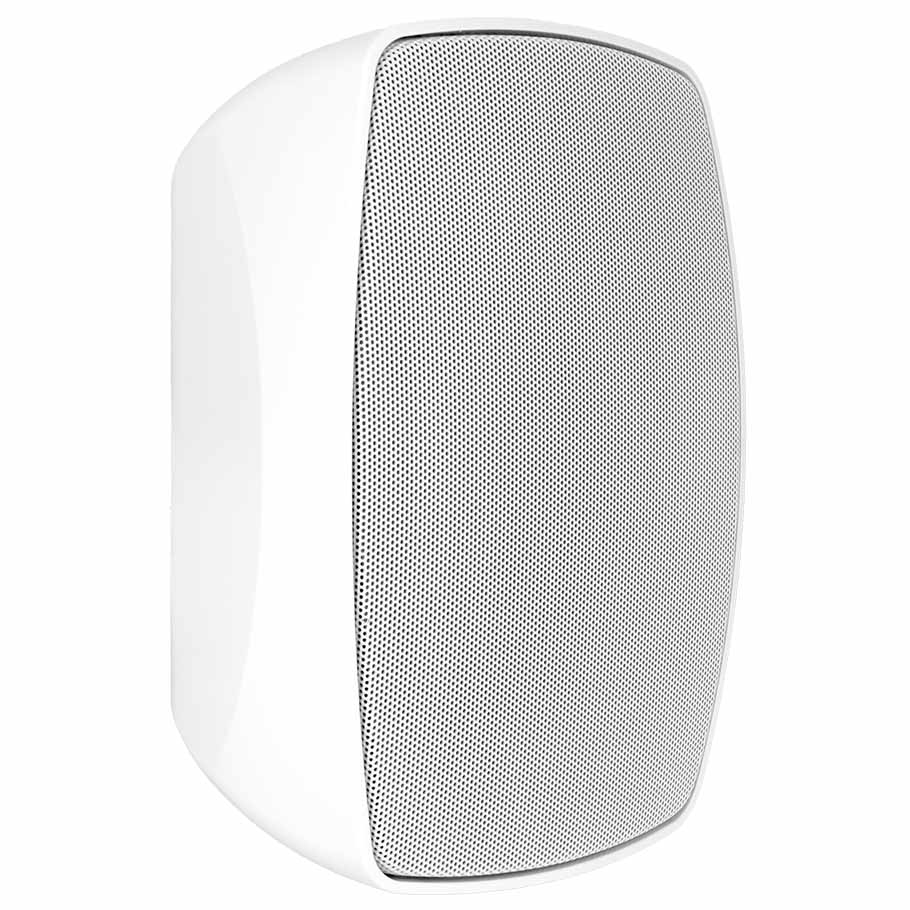

30W 100V wall speakers with protection rating IP55
Reference : PBT-5B
SKU : 02916
EAN13 : 3701567914188

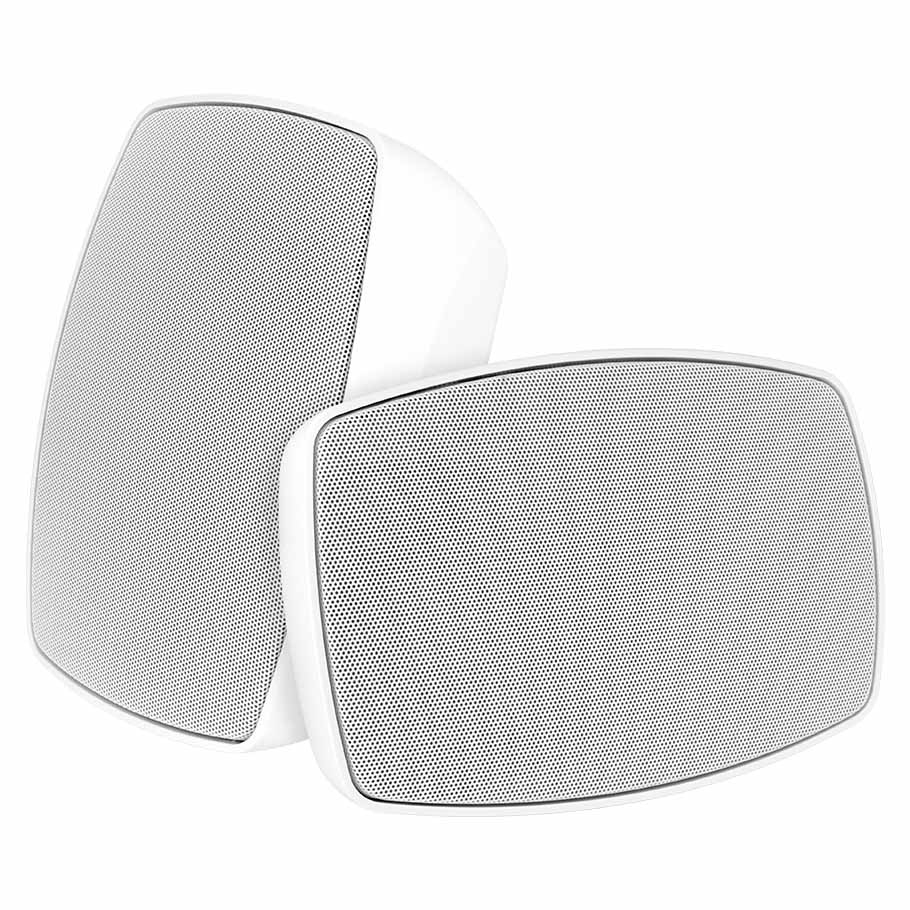

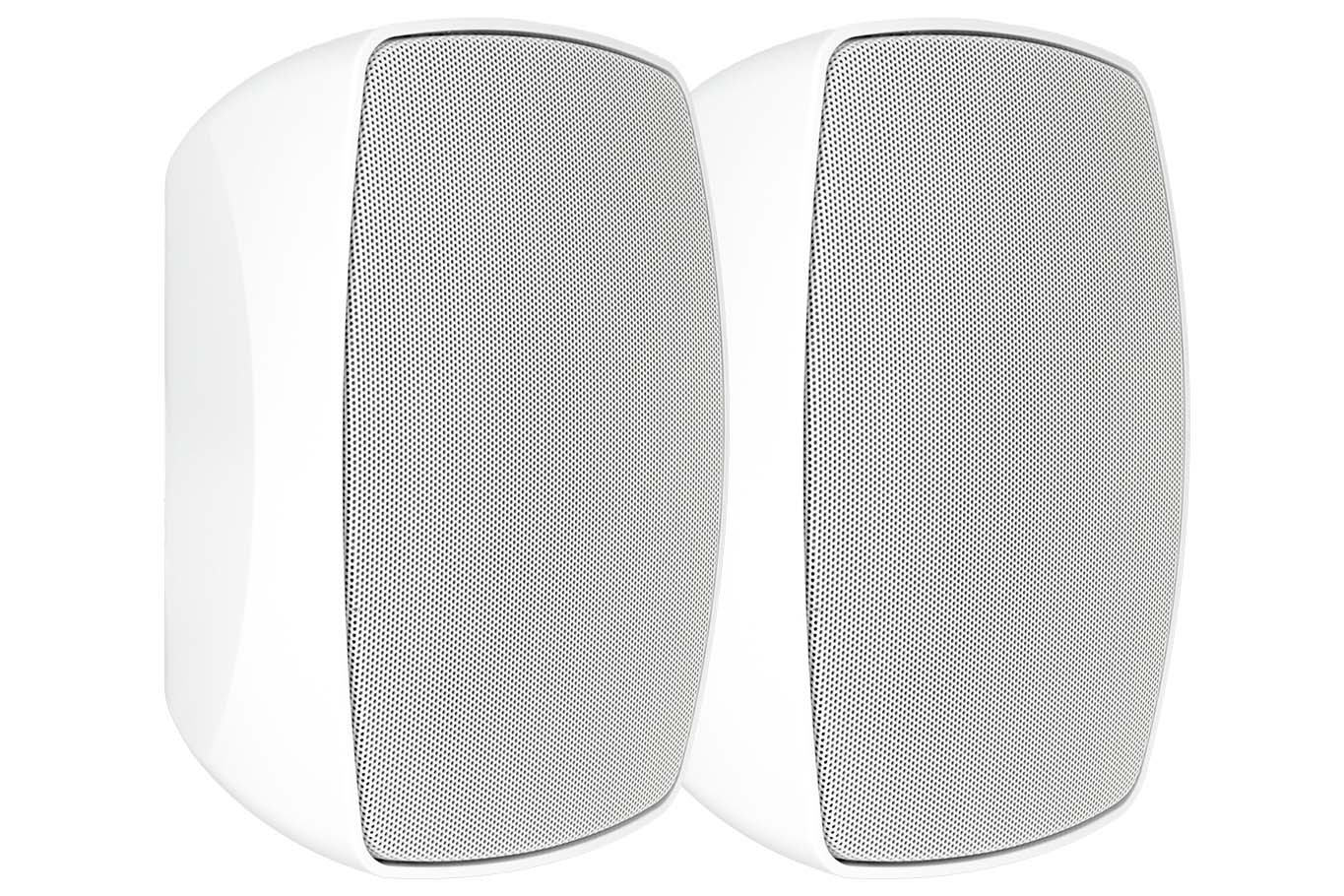

Pair of 5" & 30W wall speakers available in 2 colors:
Référence : PBT-5B - Code : 02916
Référence : PBT-5N - Code : 02917
(sold in pairs)
Description
Product sheet in PDF
• Pairs of speakers in white or black color, with a modern aesthetic, rectangular shape for easy assembly
• Use in line 70/100V or in low impedance 8 Ω

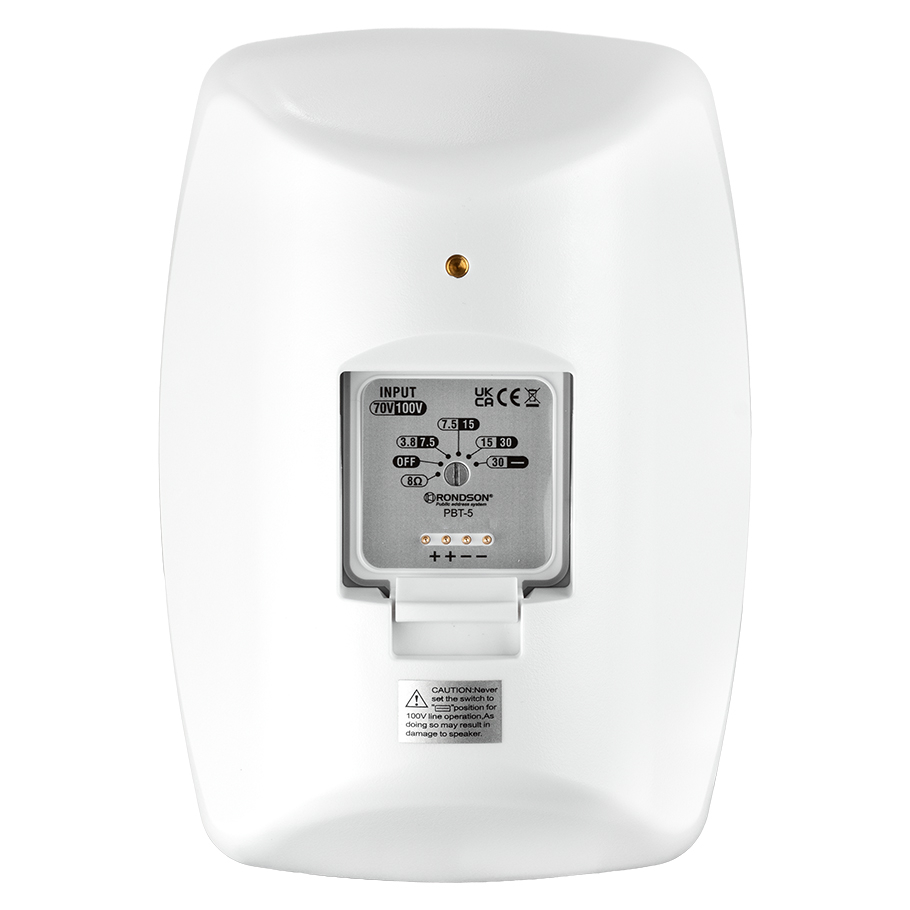

• Rear face power adjustment (by switch)
• protection rating IP55 for outdoor use

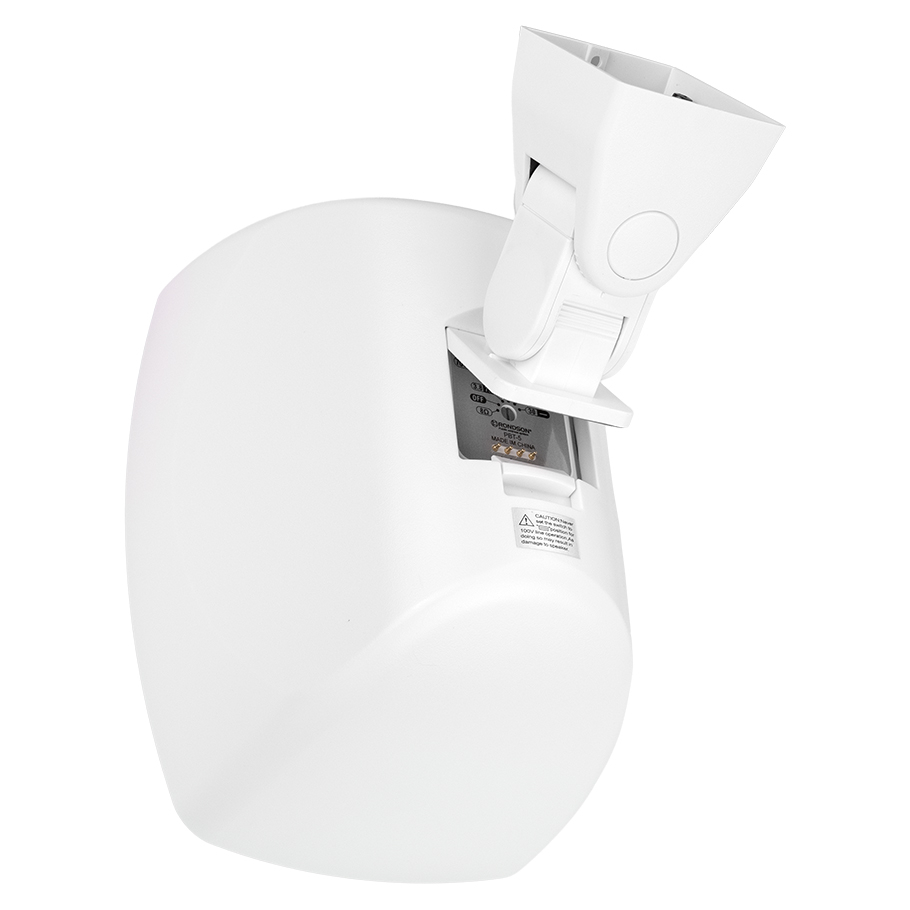

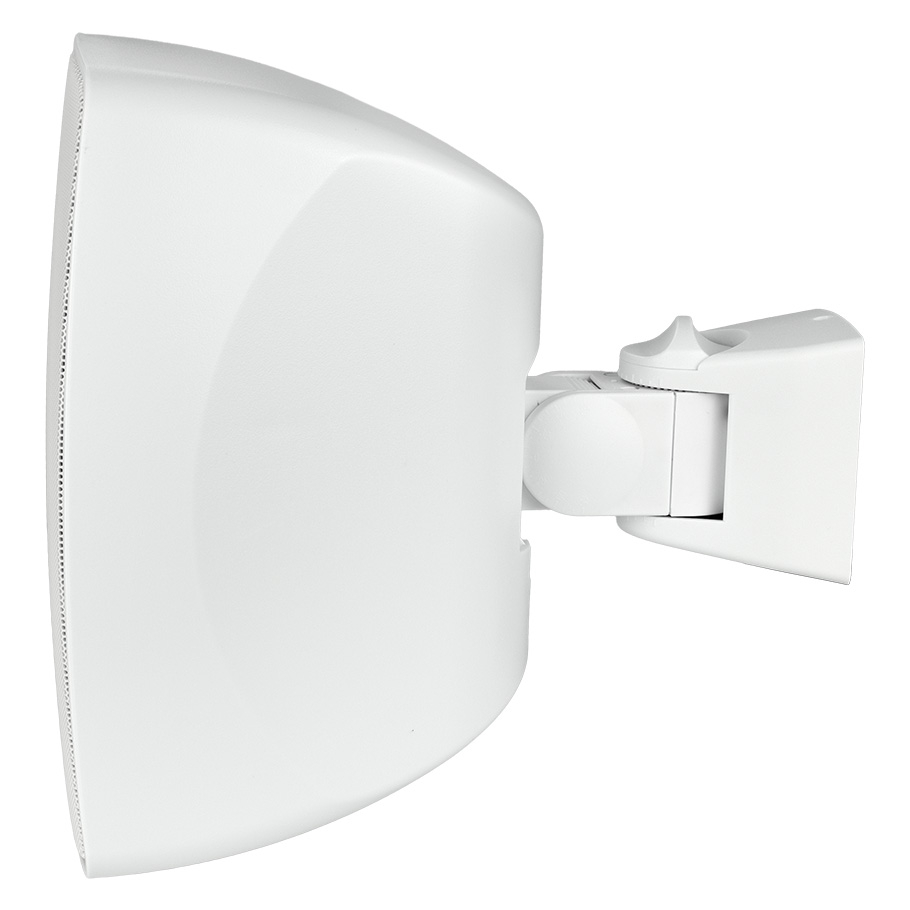

• Delivered with clip-on mounting bracket
• Delivered with screws, dowel and steel cable
|
CHARACTERISTICS |
PBT-4B / PBT-4N |
|
Type |
2-way bass-reflex speaker |
|
Material |
ABS + grille métal |
|
Colour |
white or black |
|
Speakers |
13 cm + Tweeter - 5" |
|
Sound pressure |
87 dB / 1 W/1 m |
|
Bandwidth |
85 - 20 000 Hz |
|
Covered angle |
130° |
|
BI line power |
8 Ω– 30 W RMS |
|
Power line 100 Volts |
30 - 15 - 7,5W RMS |
|
Dimensions |
250 x 175 x 156 mm |
|
Connection |
Bornes wago |
|
Weight |
1,60 kg |
Product Details
-
Brand
-
ReferencePBT-5B
-
SKU02916
-
EAN133701567914188
Data sheet
-
TypeEnceinte bass-réflex 2 voies
-
MatièreABS + grille métal
-
ColorisBlanc
-
Haut-parleurs16 cm + Tweeter
-
Pression acoustique87 dB / 1 W / 1 m
-
Bande passante85 - 20 000 Hz
-
BranchementsBornes wago
-
Angle couvert130°
-
Puissance ligne BI8 Ω – 30 W RMS
-
Puissance ligne 100 V30 - 15 - 7,5 W RMS
-
Indice de ProtectionIP55
-
Dimensions (L x P x h)250 x 175 x 156 mm
-
Poids1,6 kg
