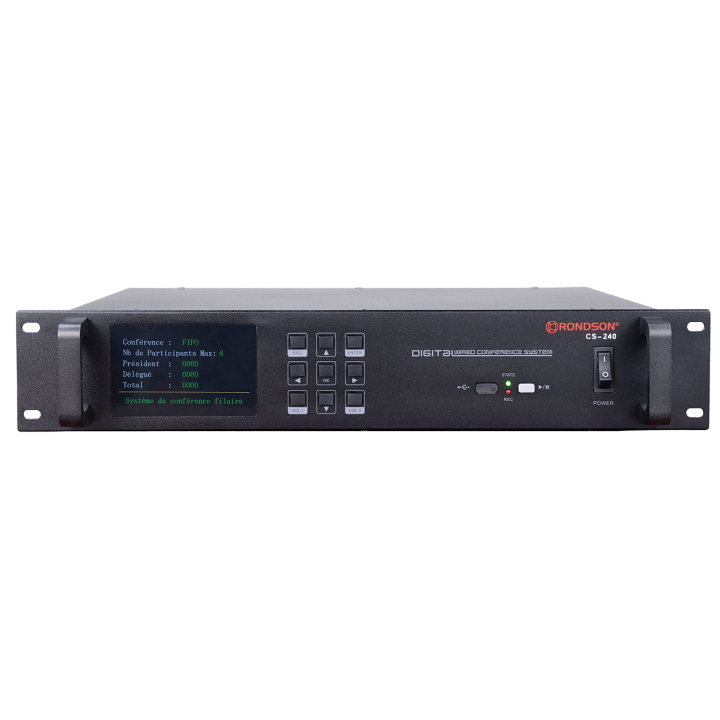

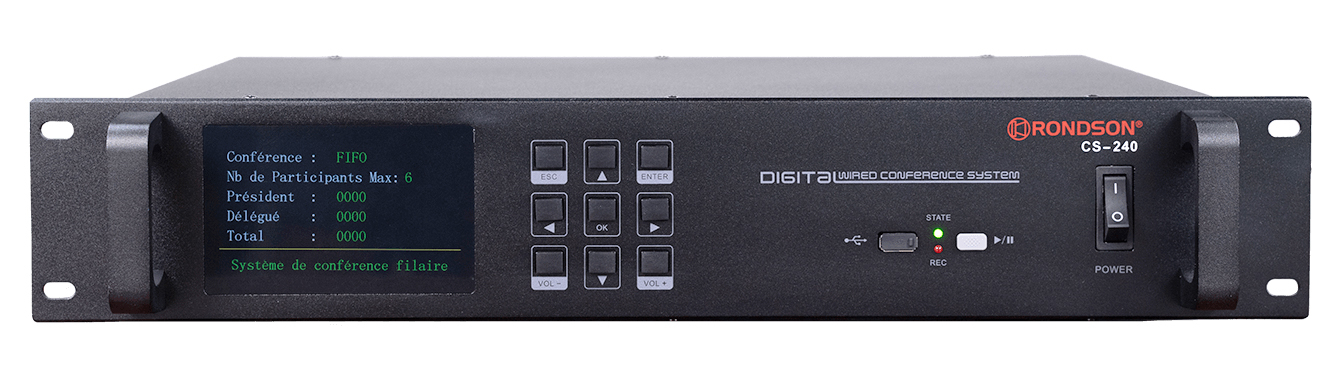

Wired conference system CS-240 - Central Unit

DATA SHEET IN PDF

Conference control unit

• The CS-240 Preamplifier Control Unit can accept up to 54 microphones (16 microphones on each LINK circuit).

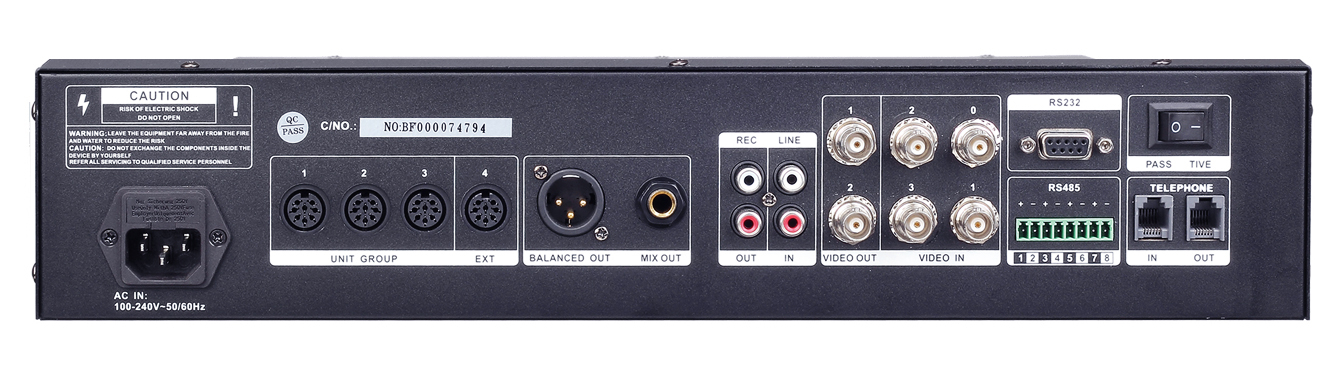

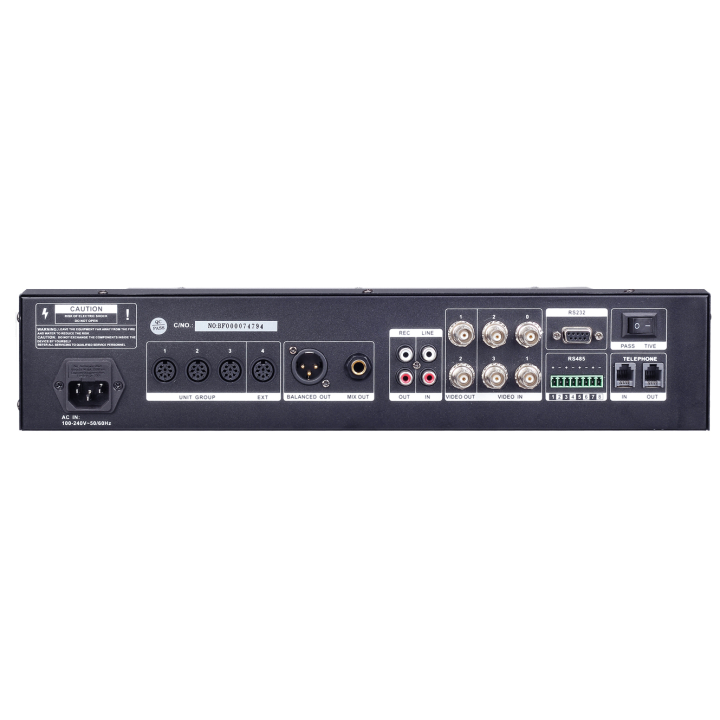

• 4 x 8-pin DIN ports for lecterns up to 100 m.
• Lcd display
• 1 MIC/LINE XLR input
• 1 AUX input (RCA)
• 2 AUX outputs (RCA)
• VIDEO inputs and outputs
• USB port for recording the discussion via a front-panel configurable reader/recorder
• Built-in DSP module to prevent saturation
• Power supply: AC 220 V / 240 V, 50 Hz
• Supplied with 1 x 10 ml cable for connection to the first desk circuit.
• Dimensions: 482 x 350 x 66 mm
• (Supplied with 1.5 U brackets: EQ 1500)
• Weight : 5 Kg

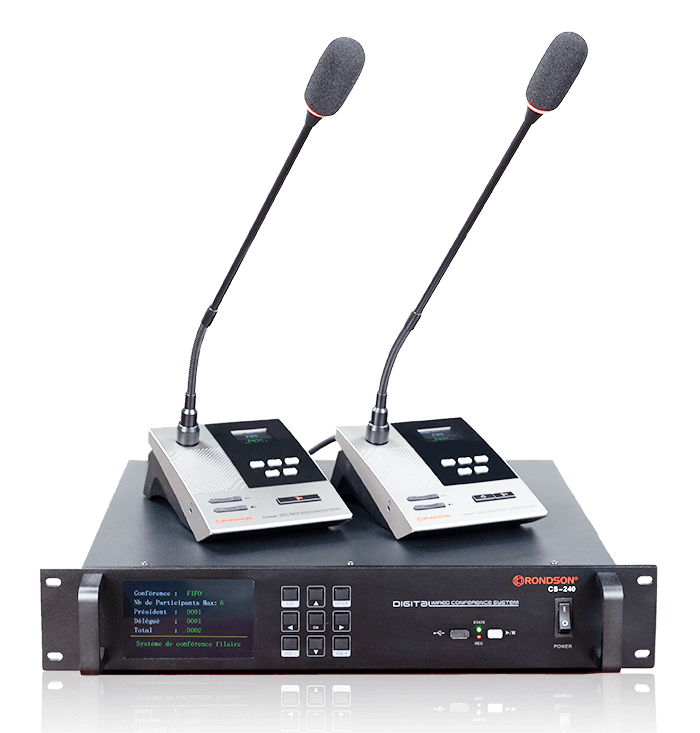

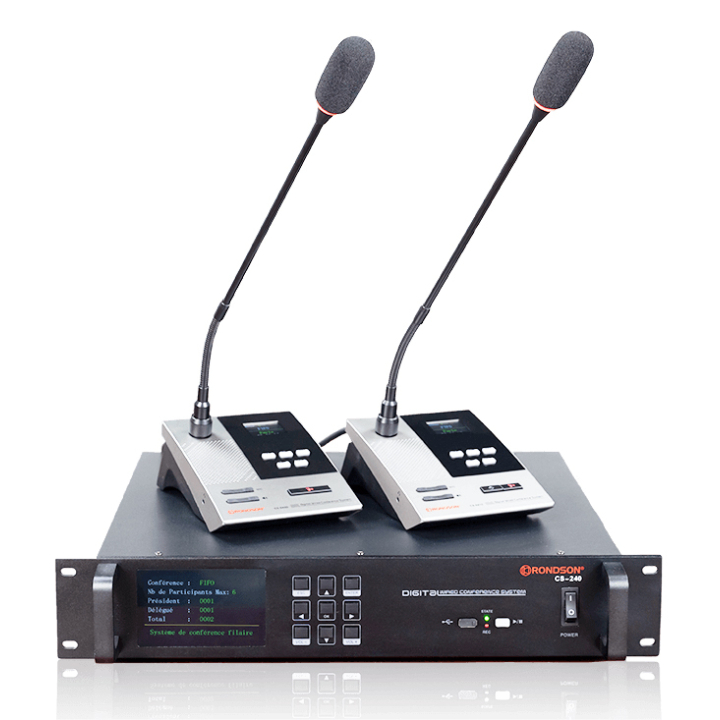

The CS-240 system revolutionises all-digital technology for conferencing, combining advanced digital technology with audio technology, enabling advances in overall conference management and control. This conferencing system not only has the advantage of being reliable, stable, simple with proper operation, but also has good scalability with the central unit.

This system is mainly designed for small and medium sized projects offering a wired digital discussion and conferencing system.
