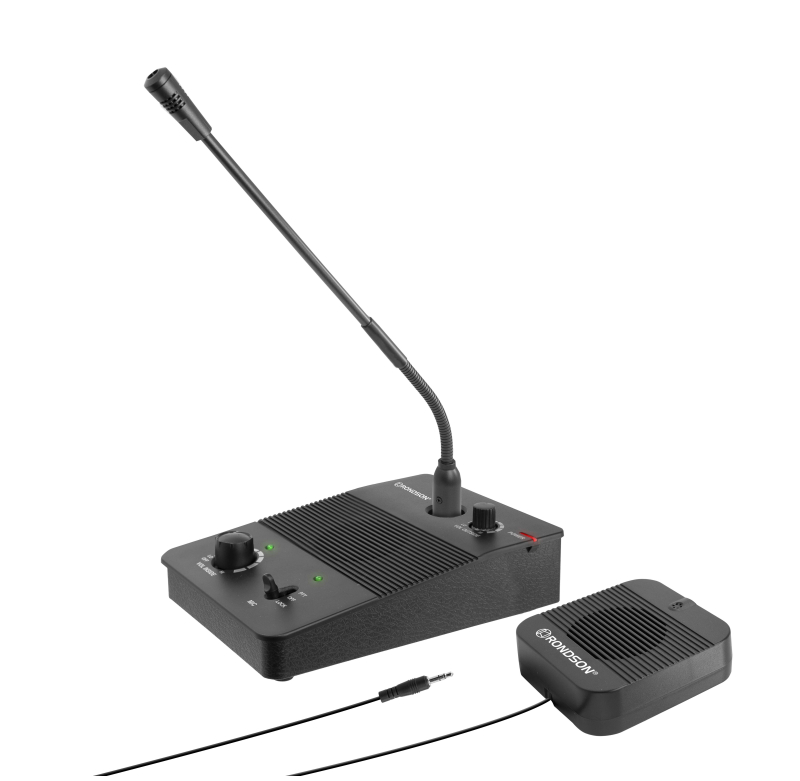

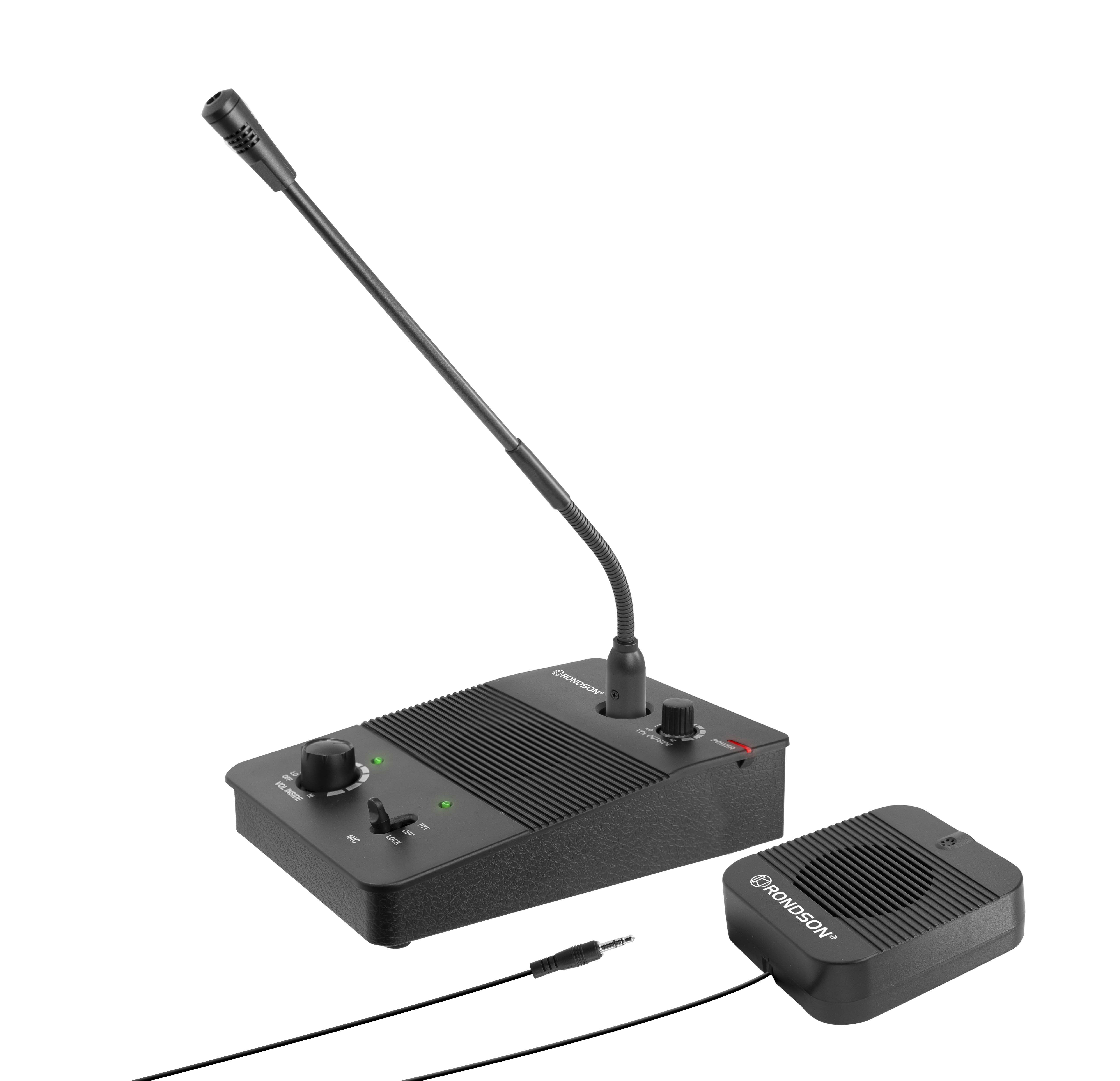

12V double communication kiosk intercom

Reference : GM 23 R
SKU : 02763
EAN13 : 3701567912344

Dual communication counter intercom GM 23 R

Types d'applications
Share

Description

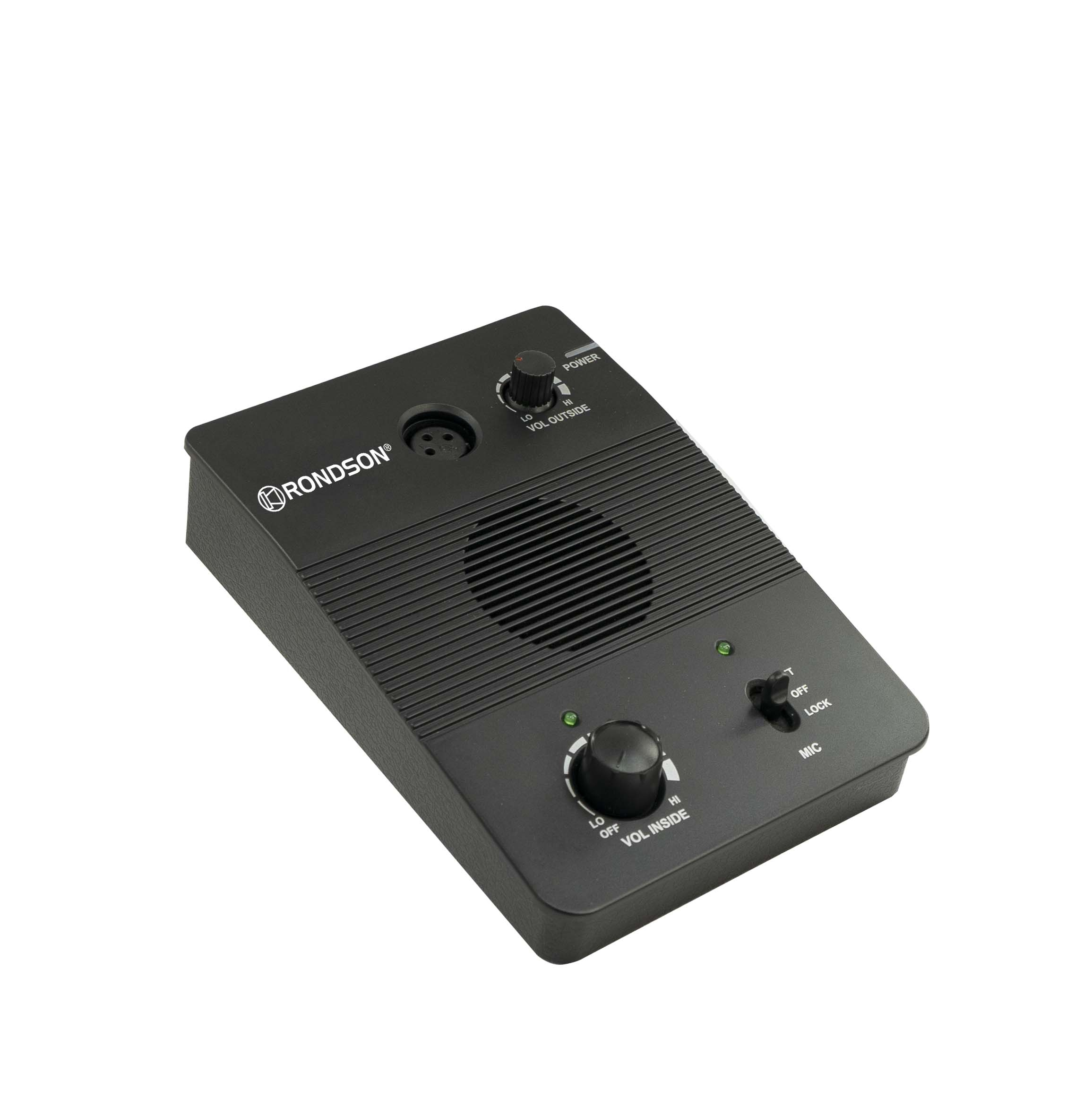

A counter intercom system enabling easy, simultaneous communication between the customer and the counter clerk.

This system is particularly suitable for public-facing premises with enclosed counters, where people communicate through a glass or plexiglass partition: banks, public buildings, museums, hospitals, shops, etc.

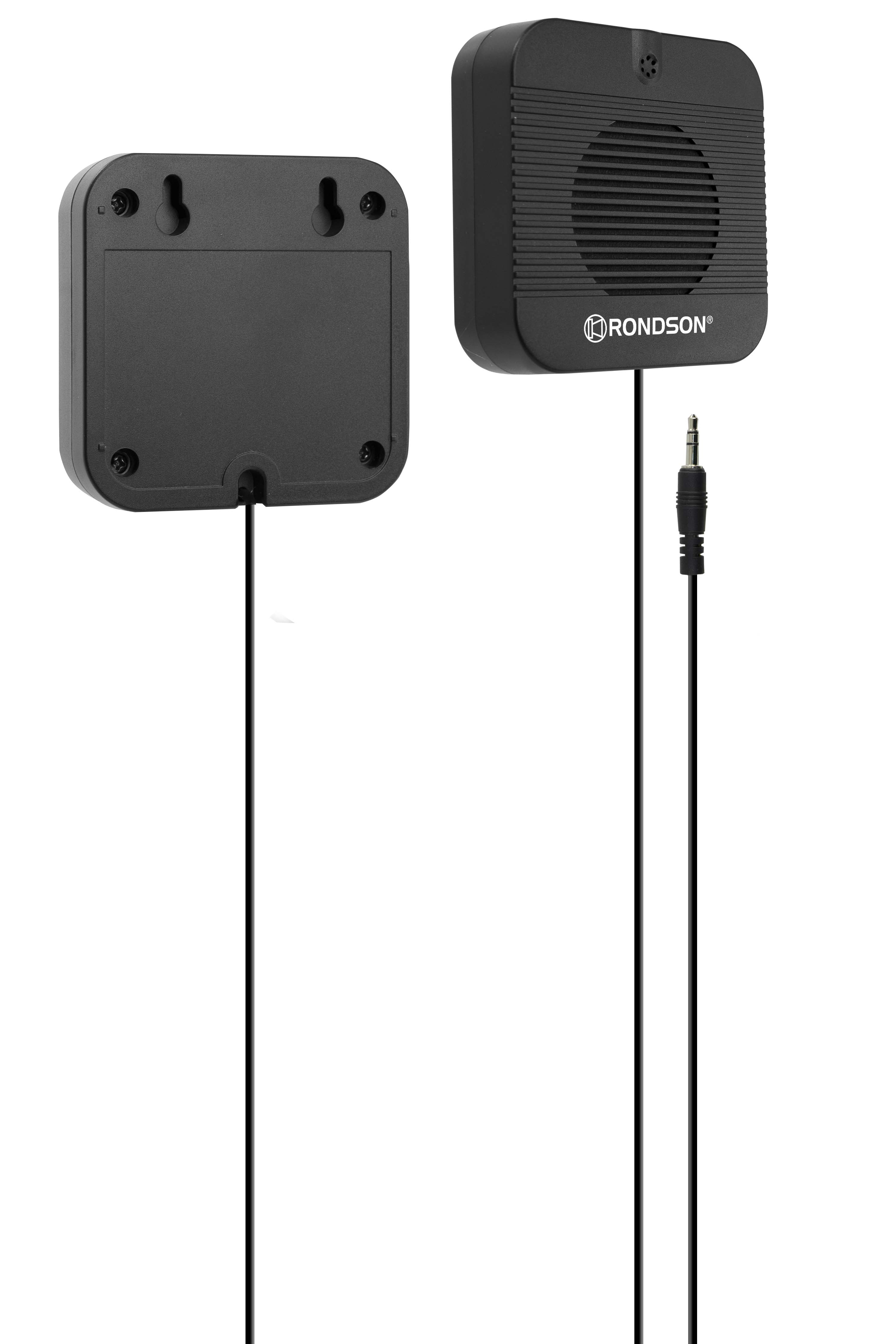

The public-side microphone module can be fitted to a glass or plexiglass partition using Velcro or screws, requiring a cut-out of Ø 50 mm.

Quick and easy installation.

Specifications:

  • Power supply: DC 12 V / 500 mA

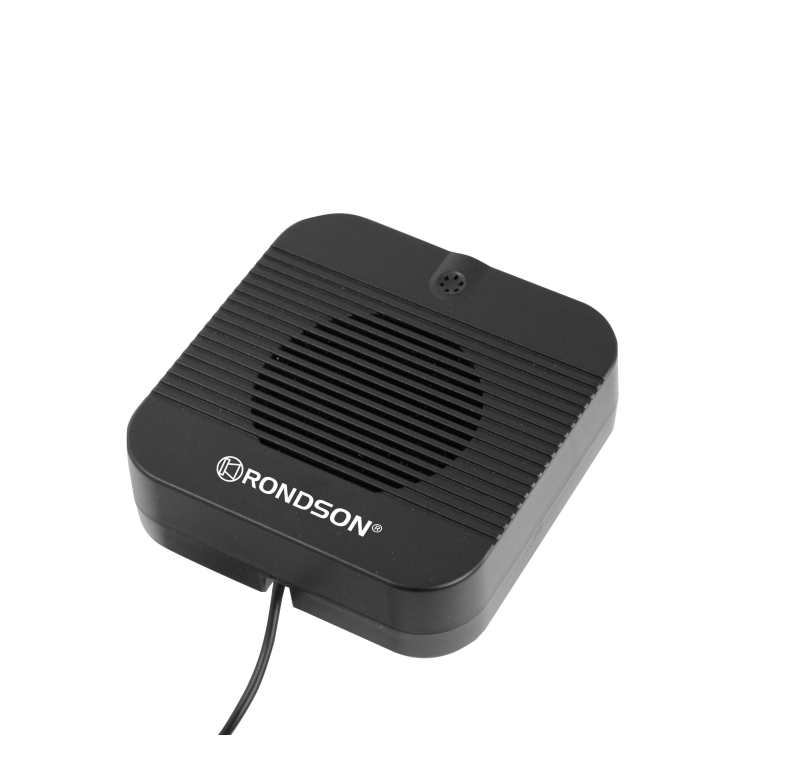

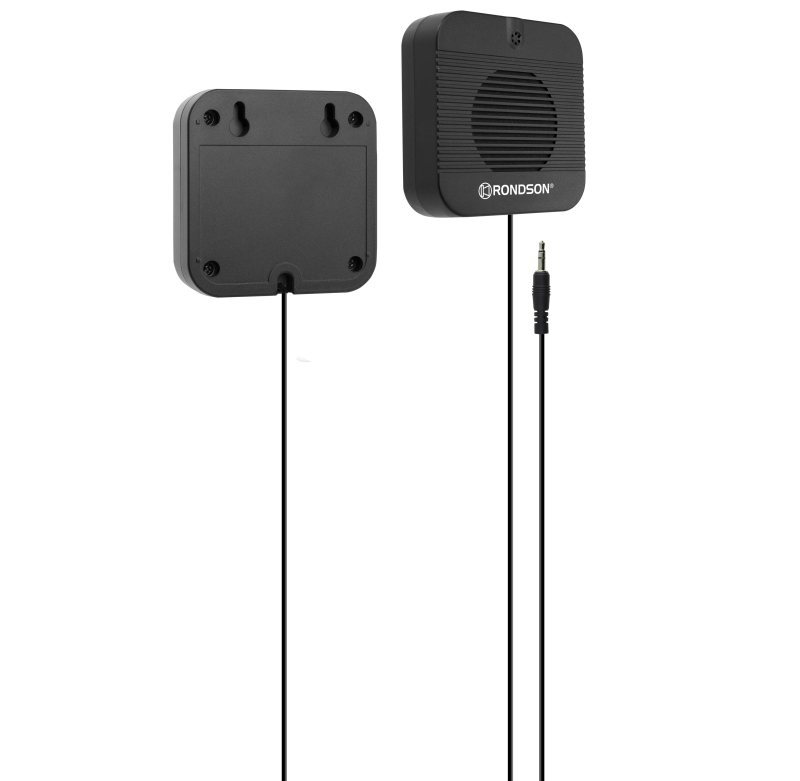

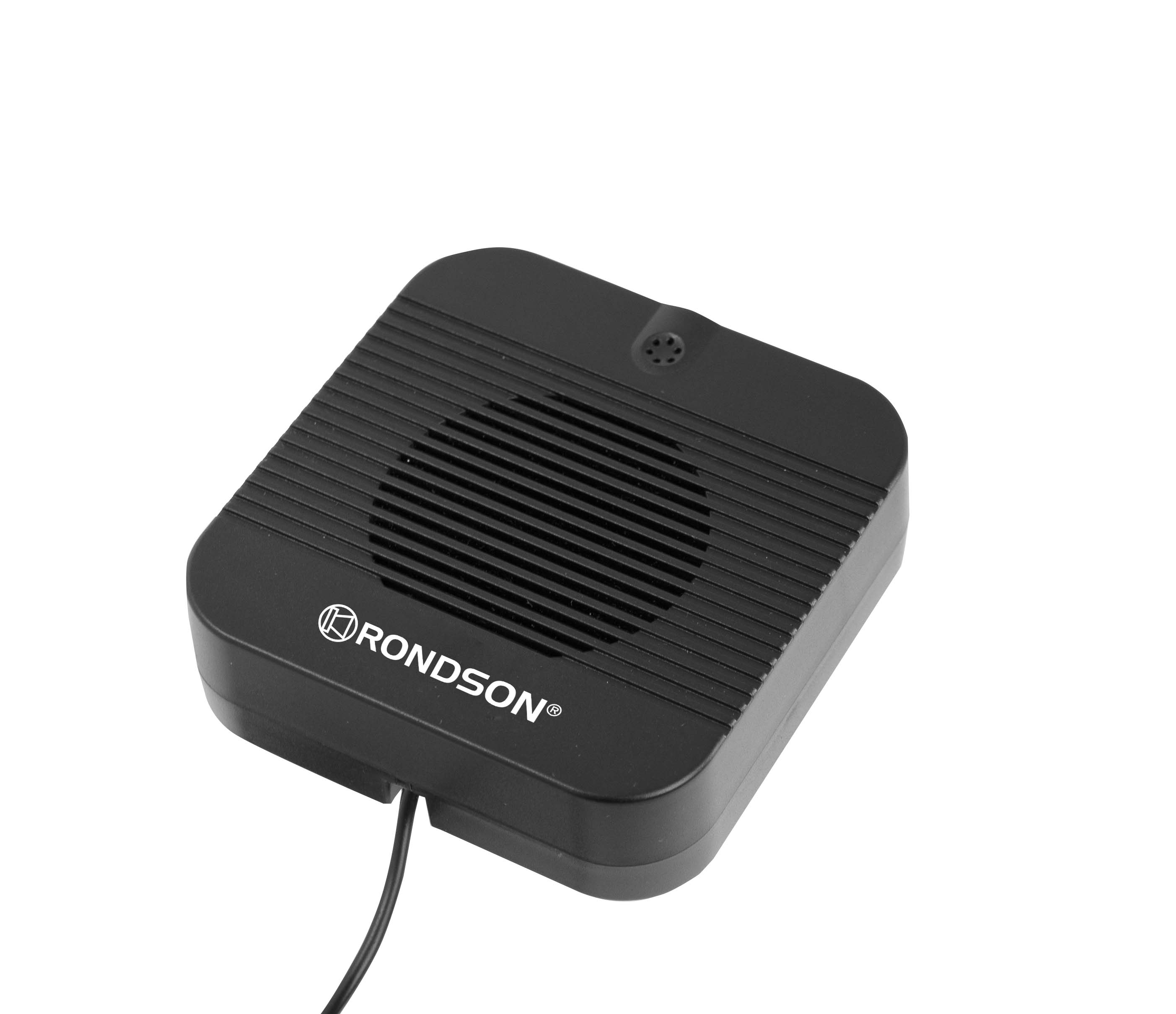

  • 1 external microphone module with public-side loudspeaker
  • 1 external listening loudspeaker
  • 2 m of cable between the two units
  • Power supply unit included

Option: this counter intercom is also available as an audio kit combined with a loop amplifier for the hearing-impaired: PACK DUO-2.

Product Details

  • Brand
  • Reference
    GM 23 R
  • SKU
    02763
  • EAN13
    3701567912344

Data sheet

  • Type
    Interphone de guichet double
  • Speaker outputs
    Intérieur : 8Ω, 3W Extérieur : 8Ω, 3W
  • Alimentation
    DC 12V/500 mA
  • Bande passante
    50 – 20 000 KHz
  • Sensibilité
    -47 dB

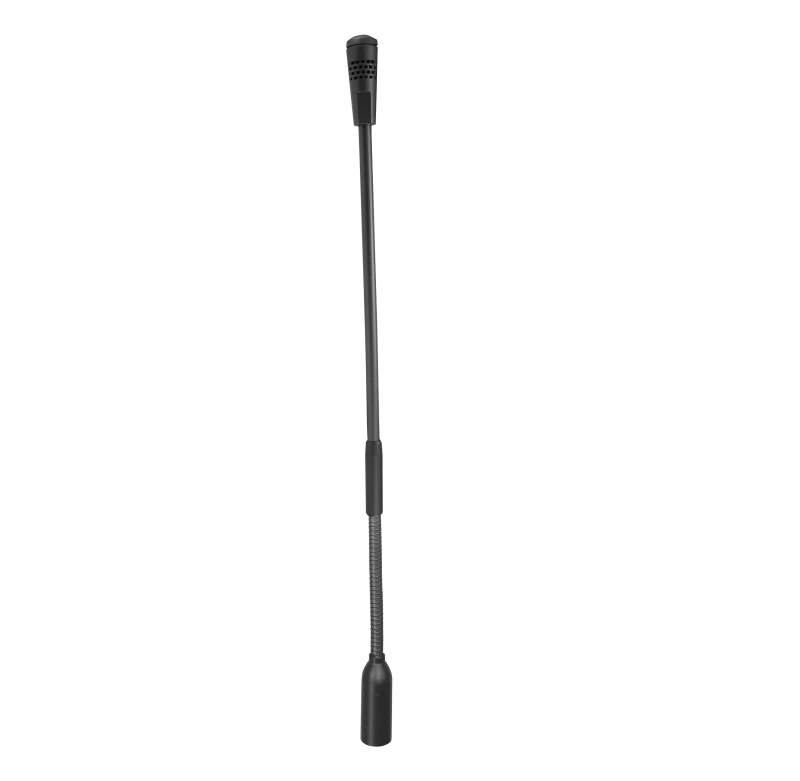

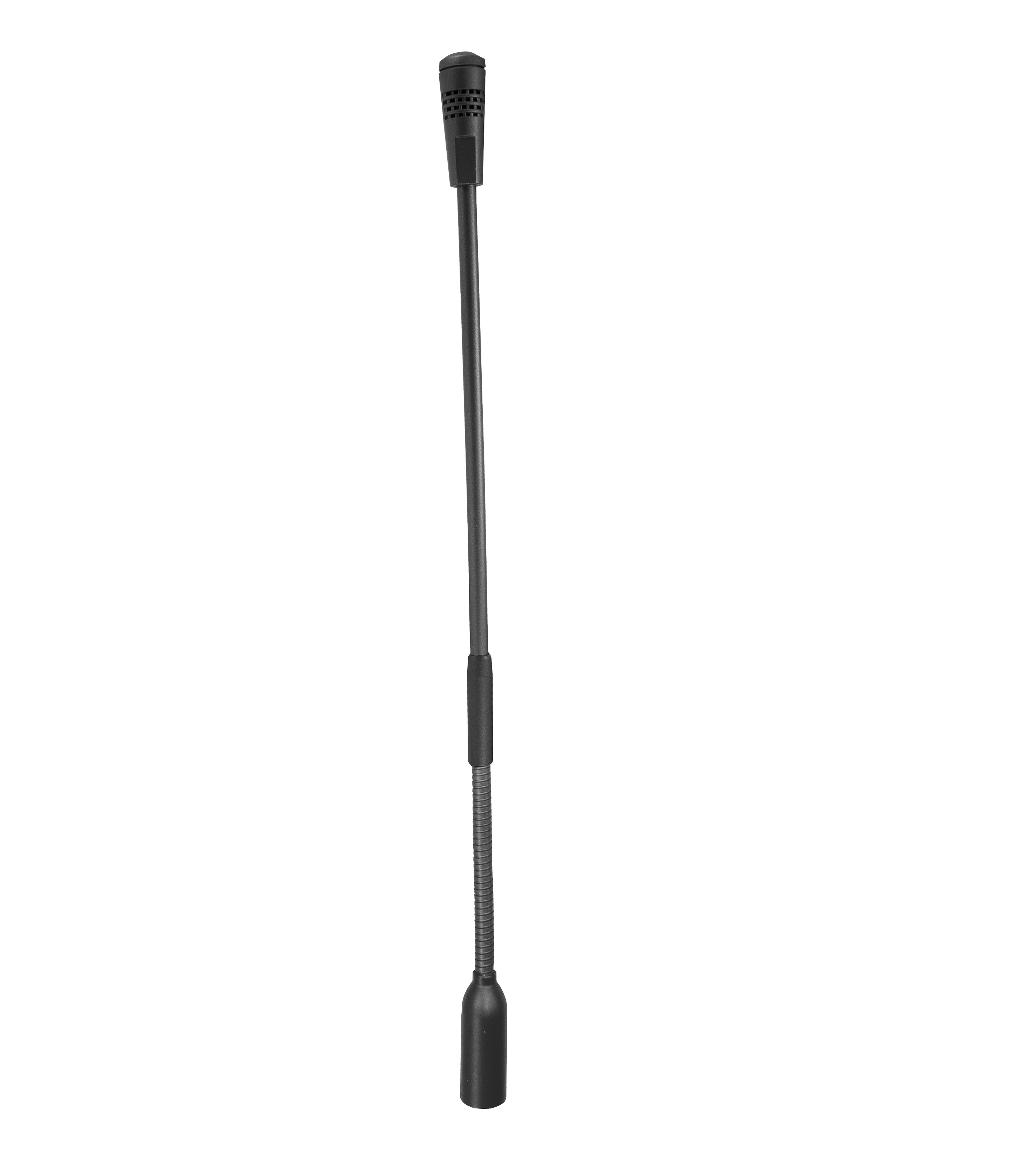

  • Microphone col de cygne
    À condensateur
  • Microphone externe
    Bidirectionnel

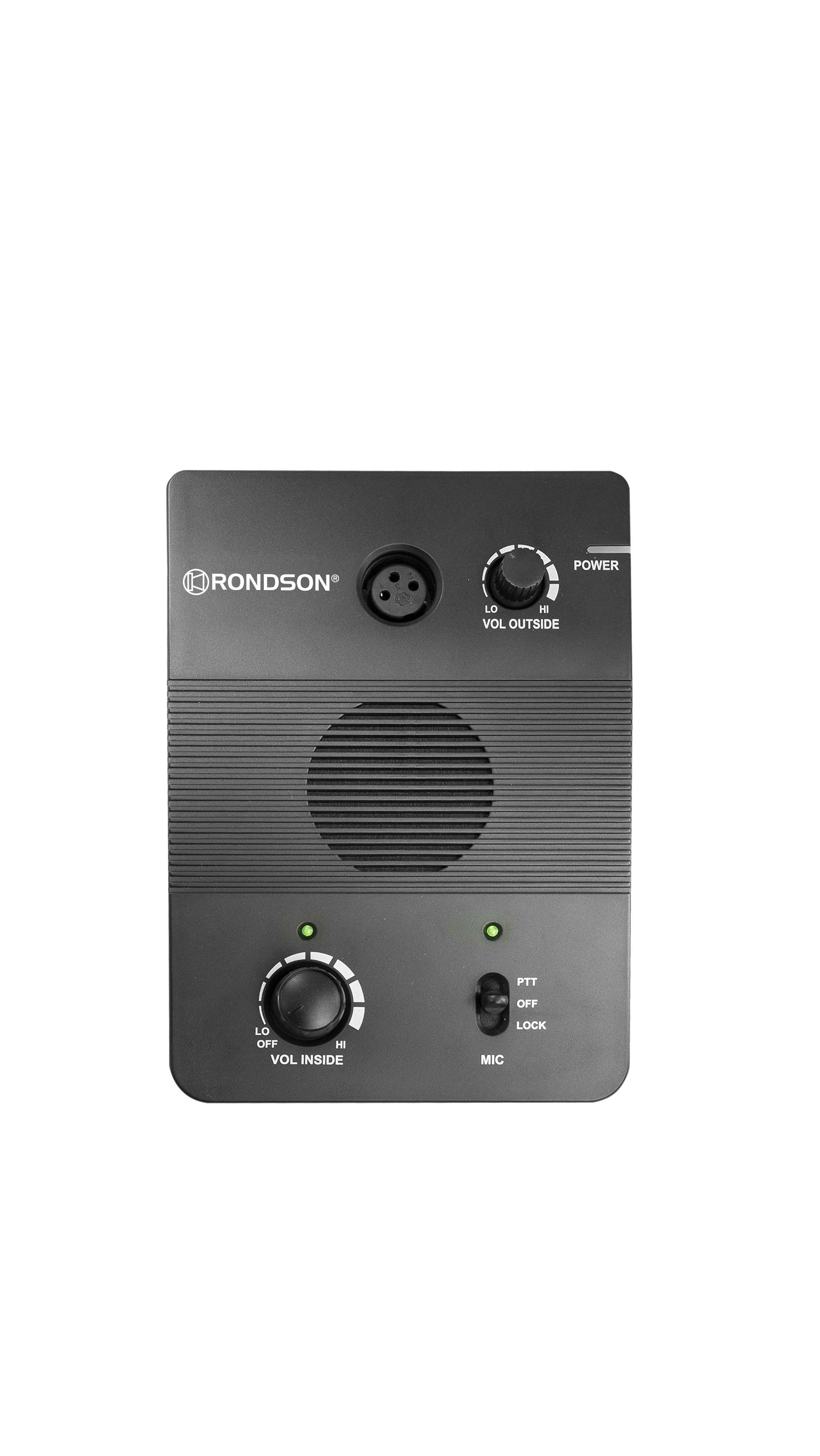

  • Dimensions

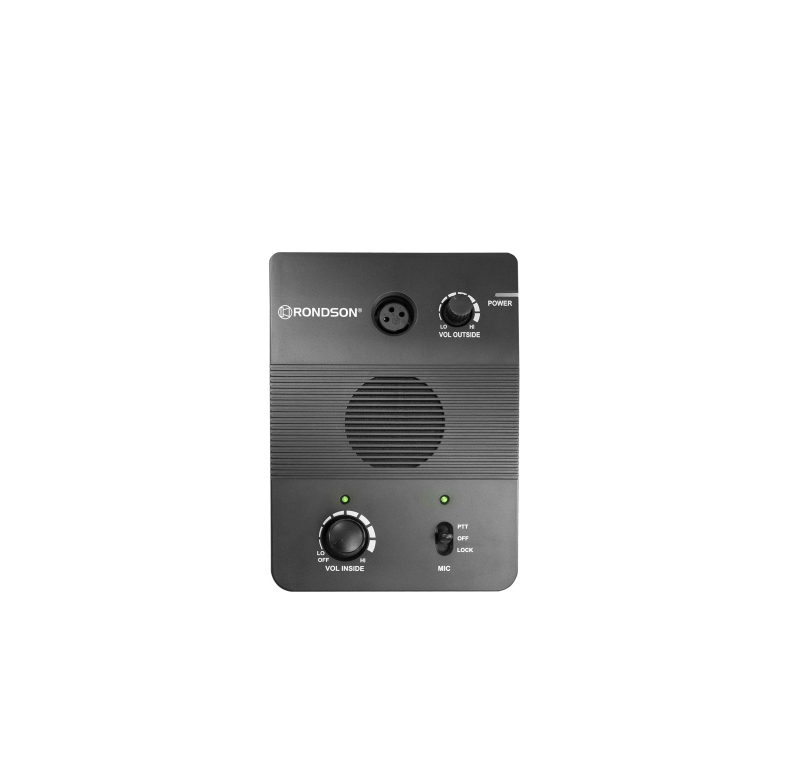

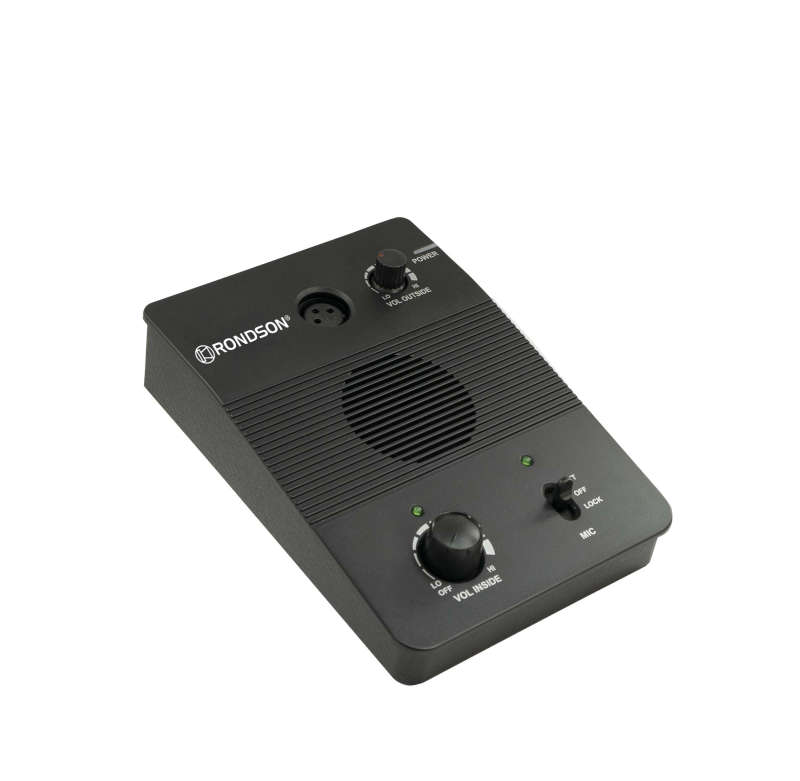

    Bloc principal : 17,4x 12,4 (cm) Module microphone HP : Ø 8,5 cm Microphone externe : Ø 2,5 cm
  • Weight
    50g + ou - 5g
