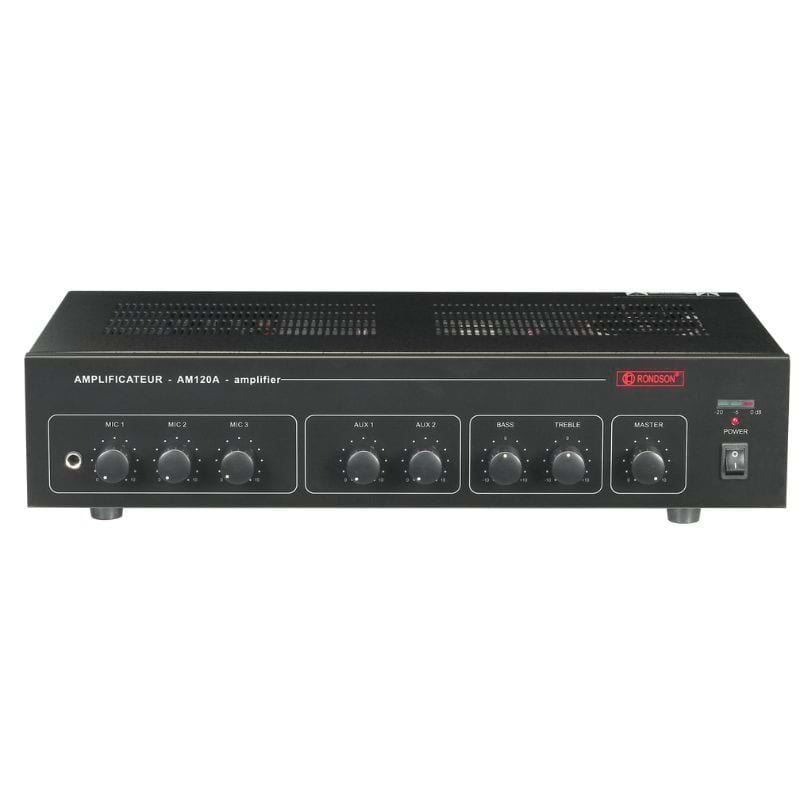

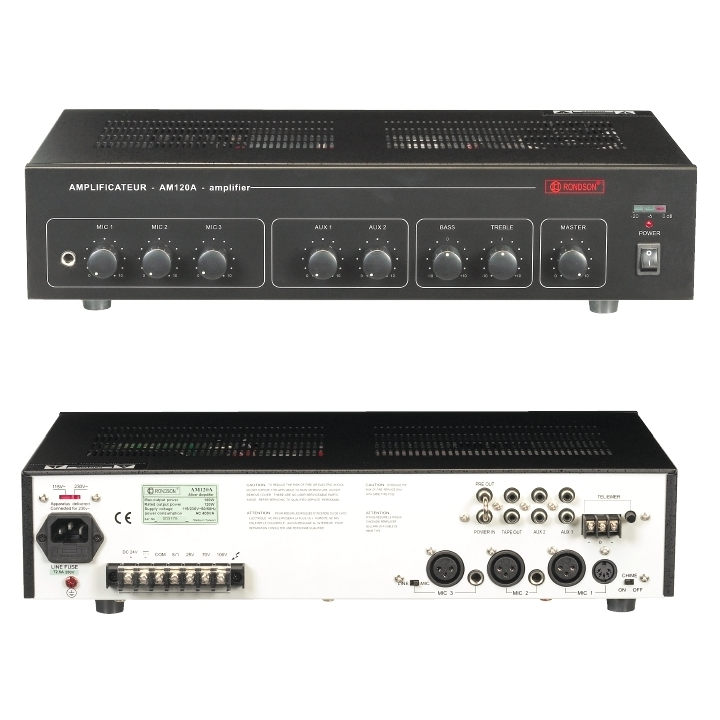

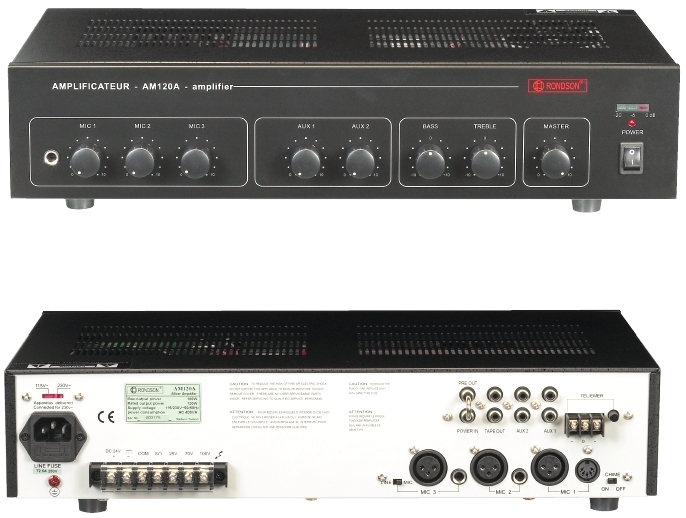

Standard 100V amplifiers preamplifiers

These mixing amplifiers are available in 4 powers: 30 W, 60 W, 120 W and 240 W.

They include 100 V, 70 V and 25 V loudspeaker outputs, as well as 8 Ω (Low Impedance).

They operate on mains (230 V) or DC (24 V).

Features :

They are equipped with :

• 1 balanced DIN-JACK-XLR MIC1 balanced microphone input (priority) via talkover or remote control.
• 2 balanced microphone inputs (JACK-XLR) MIC2 and MIC3

All three inputs can be switched to phantom-powered microphones (internal operation), the MIC 3 can be switched online, a chime (2-tone "ding dong") can be activated by the MIC 1 microphone connected to the 5-pin DIN socket (PA 100D Call Microphone Panel) or to the stereo jack on the front panel (PA 100J Panel).

• 1 telephone input, super priority emergency message
• 2 RCA AUX inputs (Tuner, K7, CD, etc.)
• 1 input and output for equalizer or power unit
• 1 recording output for tape recorder

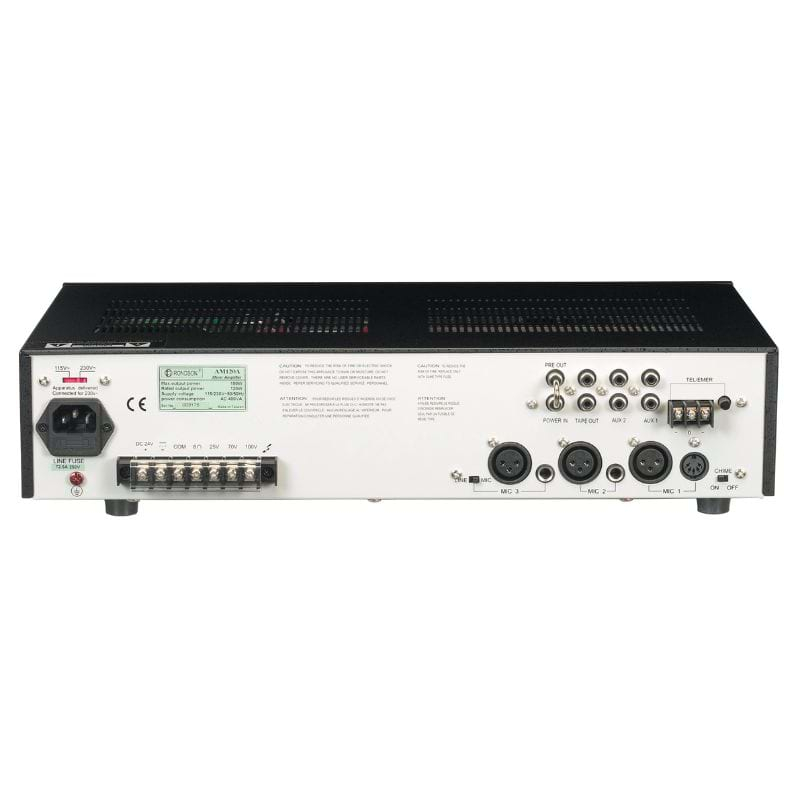

• HP outputs on terminal block BI 8 Ω, HI 25 V, 70 V or 100 Volts
• 1 cooling fan
