All-in-one kit with 40W bluetooth amplifiers and 4 ceiling speakers

Name: All-in-one kit with 40W bluetooth amplifiers and 4 ceiling speakers
Brand: RONDSON
SKU: KIT-40E

Reference : KIT-40E

SKU : 02718

EAN13 : 3701567911781

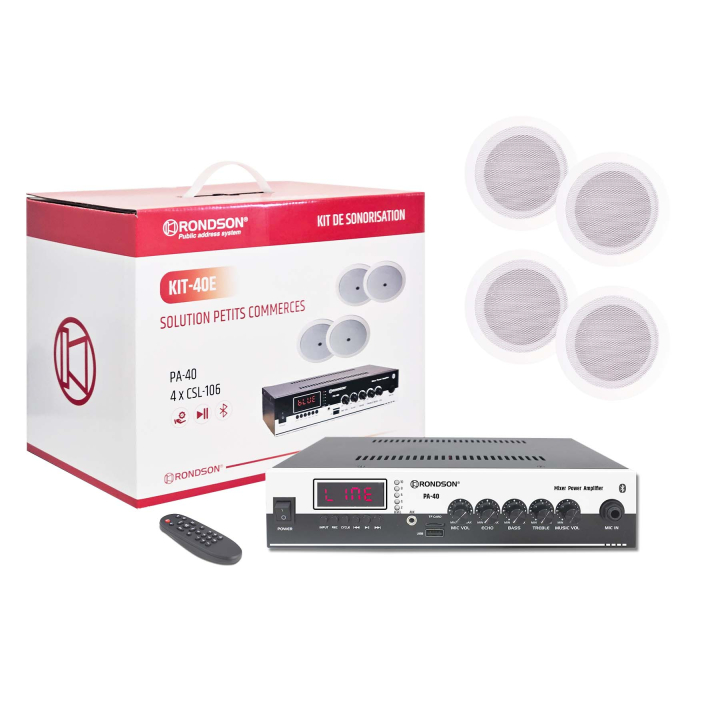

All-in-one sound kit :
40W in-line 100V mixing amplifier
Integrated audio source module, tuner, USB and Bluetooth
remote control
4 ceiling speakers

Power output

40 W

BLUETOOTH

USB

KIT-40E

Download (5.8MB)

Description

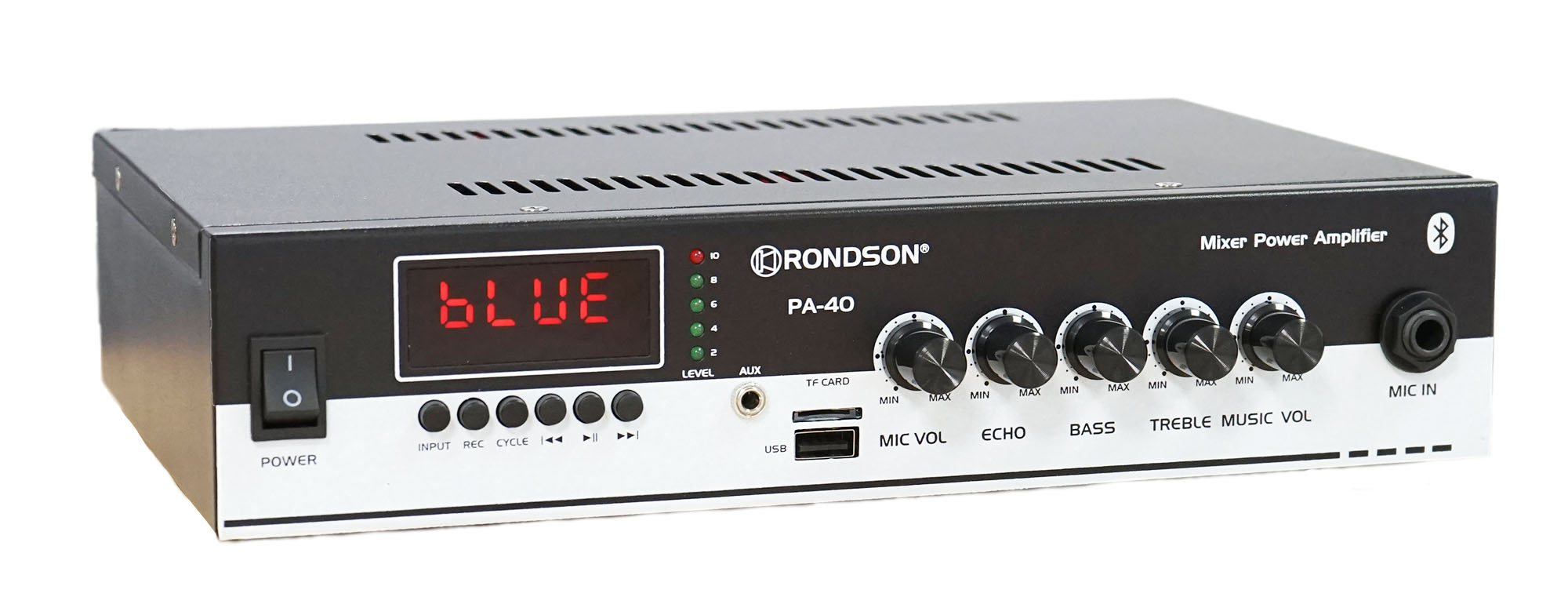

Amplifier Description :

40W mixing amplifier
It offers 100V, 70V and 4Ω low impedance speaker outputs.
It operates on mains 240 V - 50/60 Hz and DC 12V and DC 24V.

Specifications :

Mic volume, Echo, Tone and Master volume control (front panel)
1 MIC JACK 6.5 input (front panel)
1 AUX mini jack input (front panel)
1 AUX RCA output

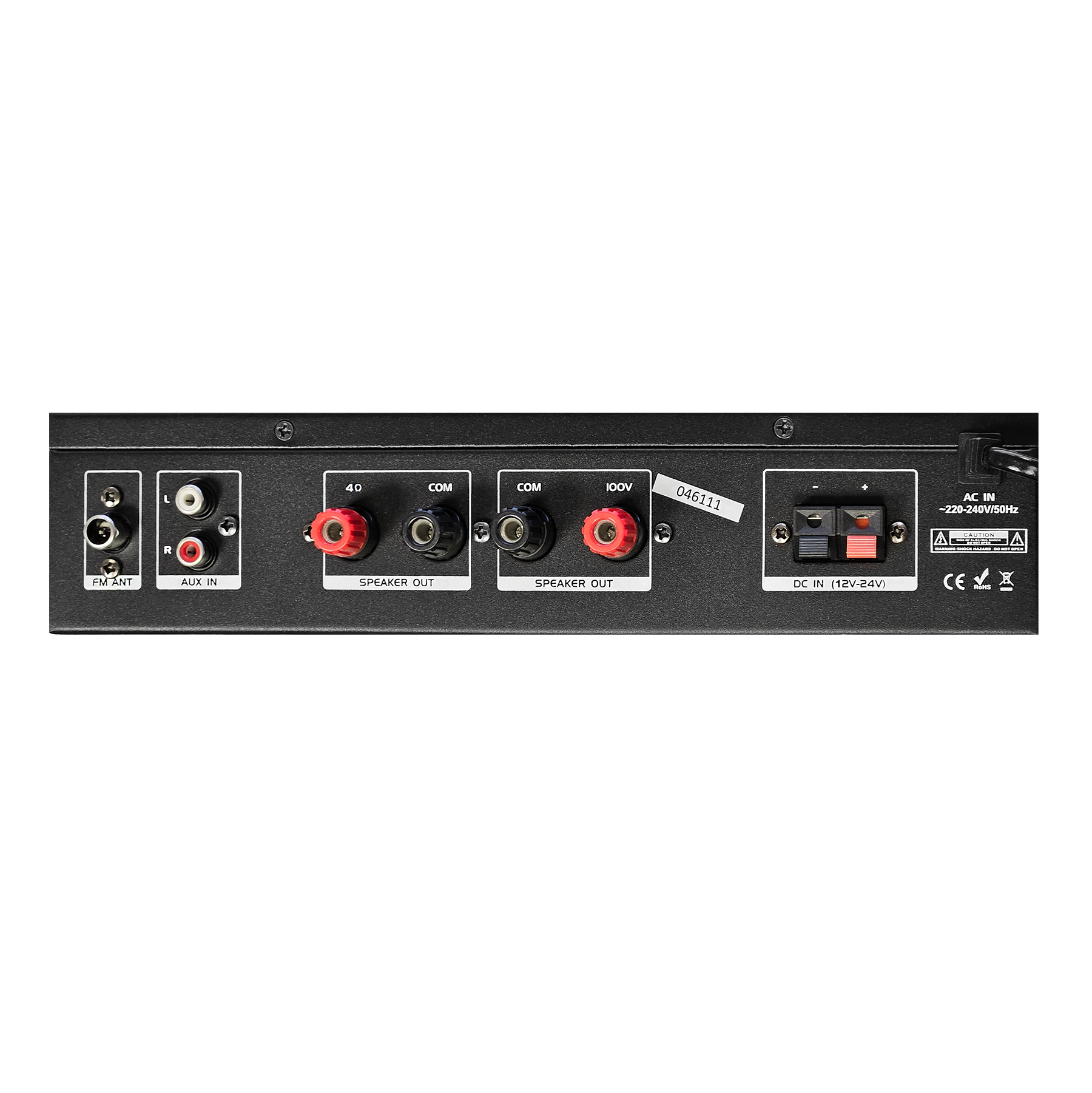

2 Speaker outputs on banana strips
Push-button terminals for 12 or 24 V power supply

Audio source module :

USB player can play MP3 or WMA files via USB key or SD CARD
Recording function: simple recordings can be made directly from inputs 1 to 3 onto a USB stick or SD card
Built-in Bluetooth module for streaming audio from smartphones, tablets, PCs or other Bluetooth-enabled devices
Multilingual settings
Indicators: Power, Signal, Protection
Thermal, overload and short-circuit protection
infrared remote control

SPECIFICATIONS	PA-40
Type	Mixing amplifier 40W
Integrated sources	MP3 / USB / SD / TUNER / BLUETOOTH
Power supply	AC 110V / 240V – 50 / 60 Hz - DC 24V
Speaker output	70 and 100V, 4 Ω
Inputs/Sensitivity	AUX input: 0 dB / 10 kΩ asymmetrical
Frequency Response	20 Hz – 20 000 Hz
Signal-to-noise ratio	89 dB
Consumption	50 W
Total harmonic distortion	<0,5%
Protection and cooling	Fan, Thermal protection, overload and short-circuit
Dimensions (W x D x H)	280 x 185 x 62 mm
Weight	2,2 kg

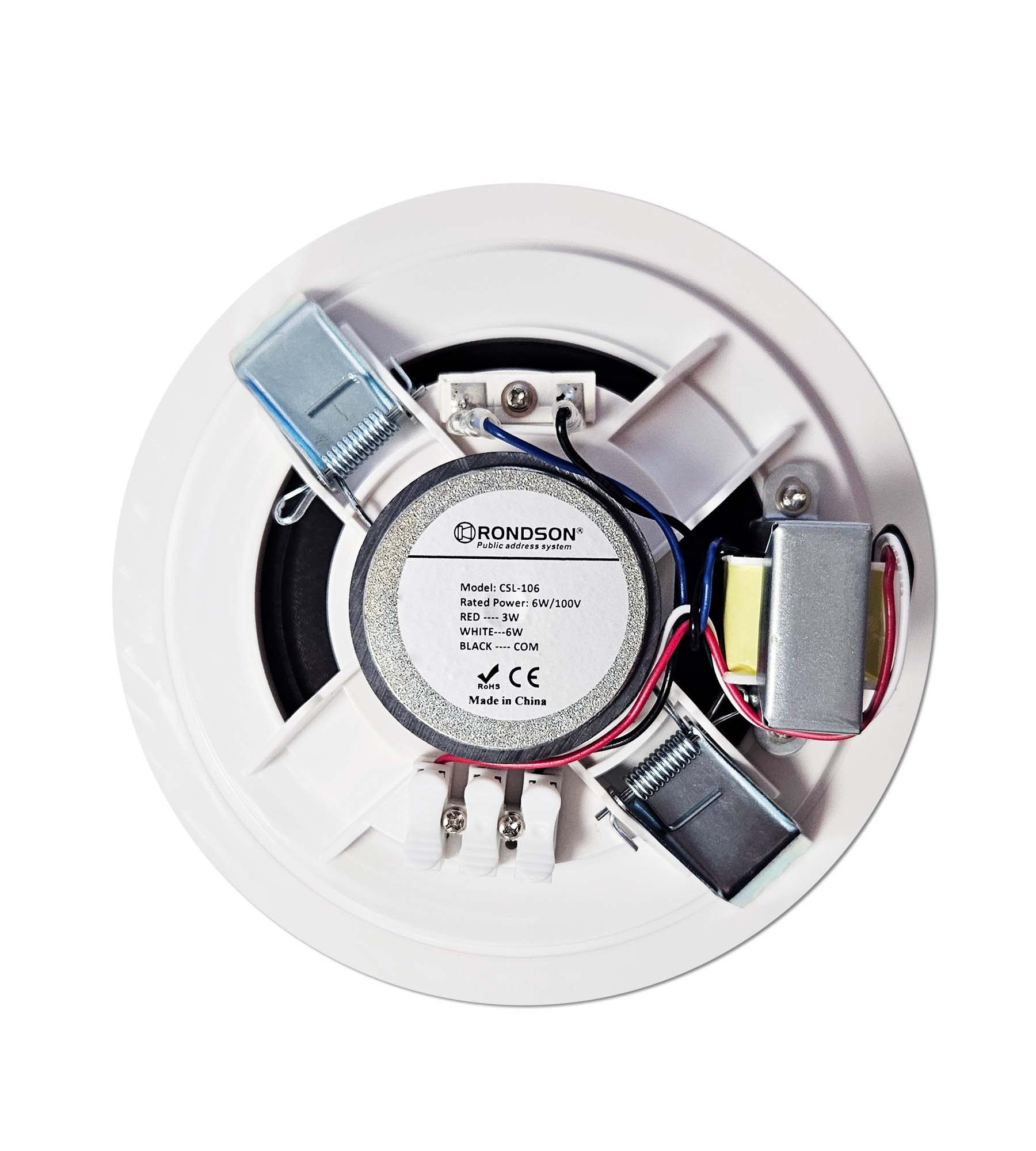

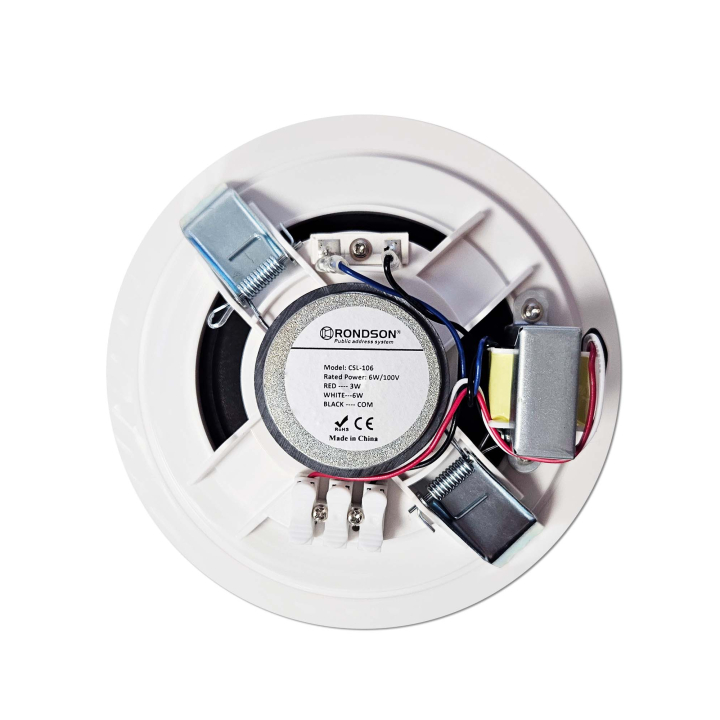

Description of the loudspeakers :

Quick-fit ceiling loudspeaker in plastic enclosure and metal grille, 100V line operation, 2-power selection on domino
Good value for money
Discreet, modern design

sPECIFICATION	CSL-106
Type	Ceiling speaker
Material	ABS + steel grill
Speaker	Ø 130 mm - 8 Ω
Acoustic	99 dB / 1 W / 1 m
Frequency response	100 - 16000 Hz
Puissance RMS ligne	6 - 3 W
Impedances 100V	1,7 KΩ / 3,3 KΩ
Wire	on domino
Dimensions (Ø x h)	Ø 175 x 60 mm
Weight	0,5 Kg
Whole mounting	Ø 150 mm
