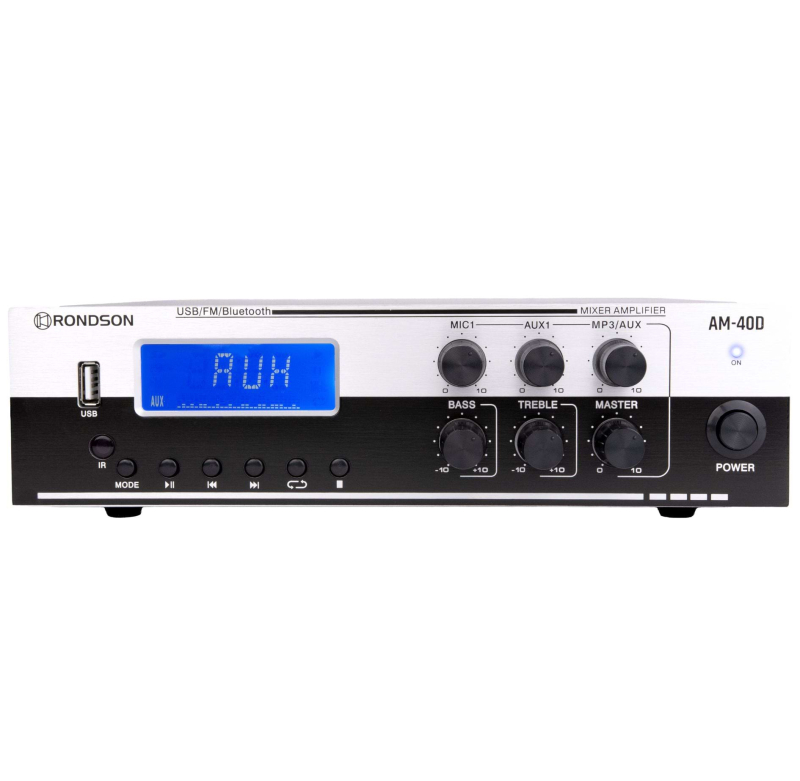

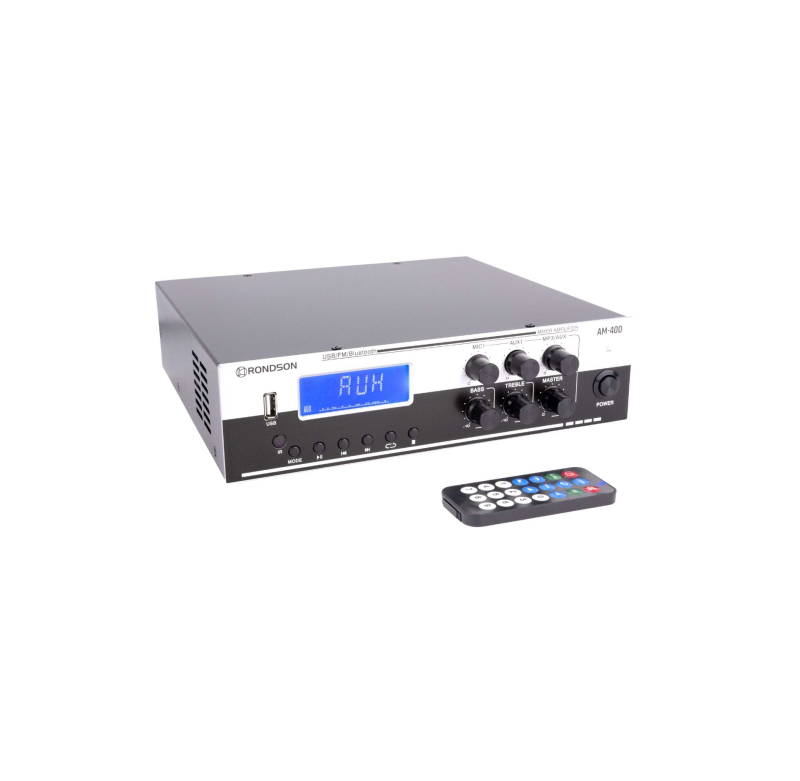

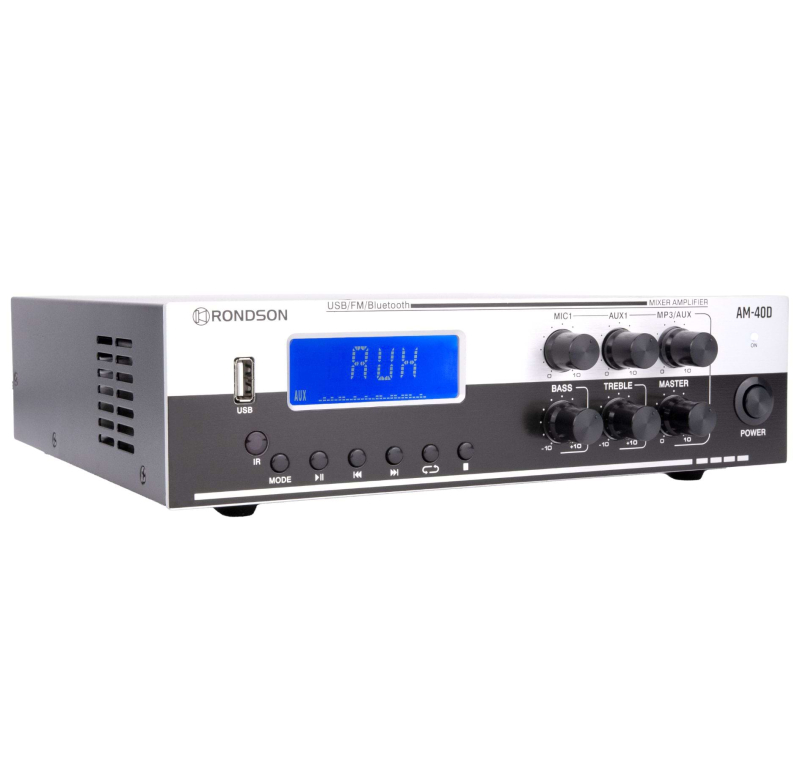

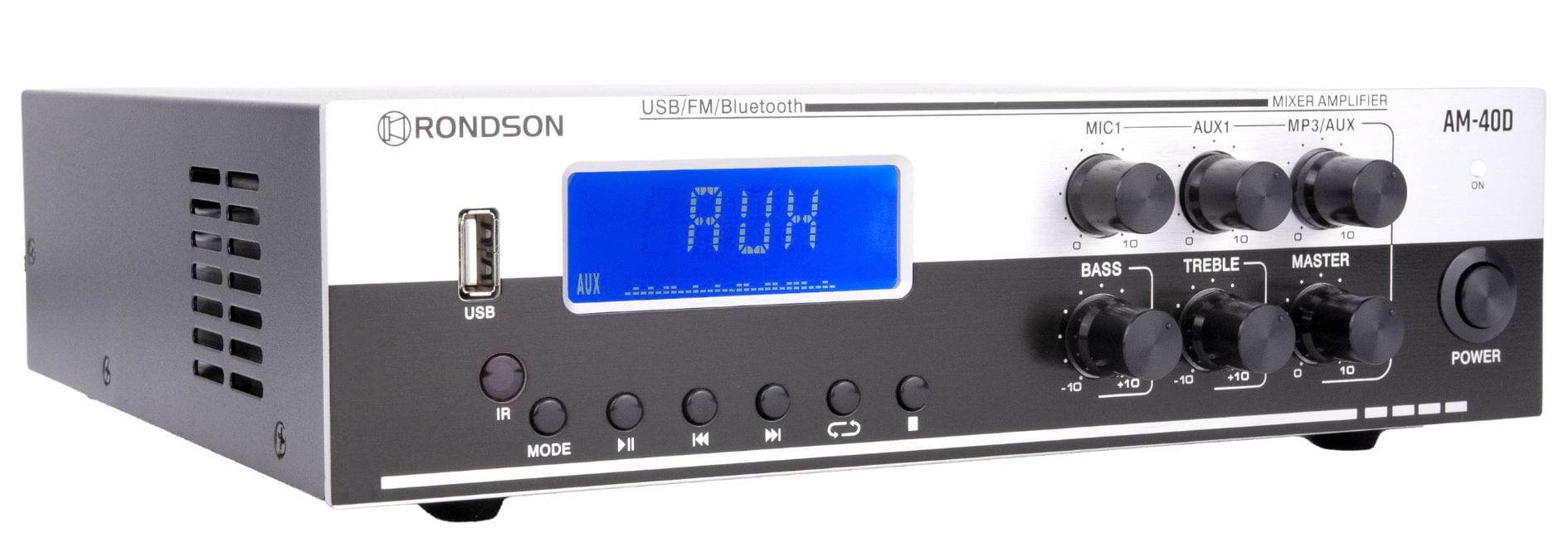

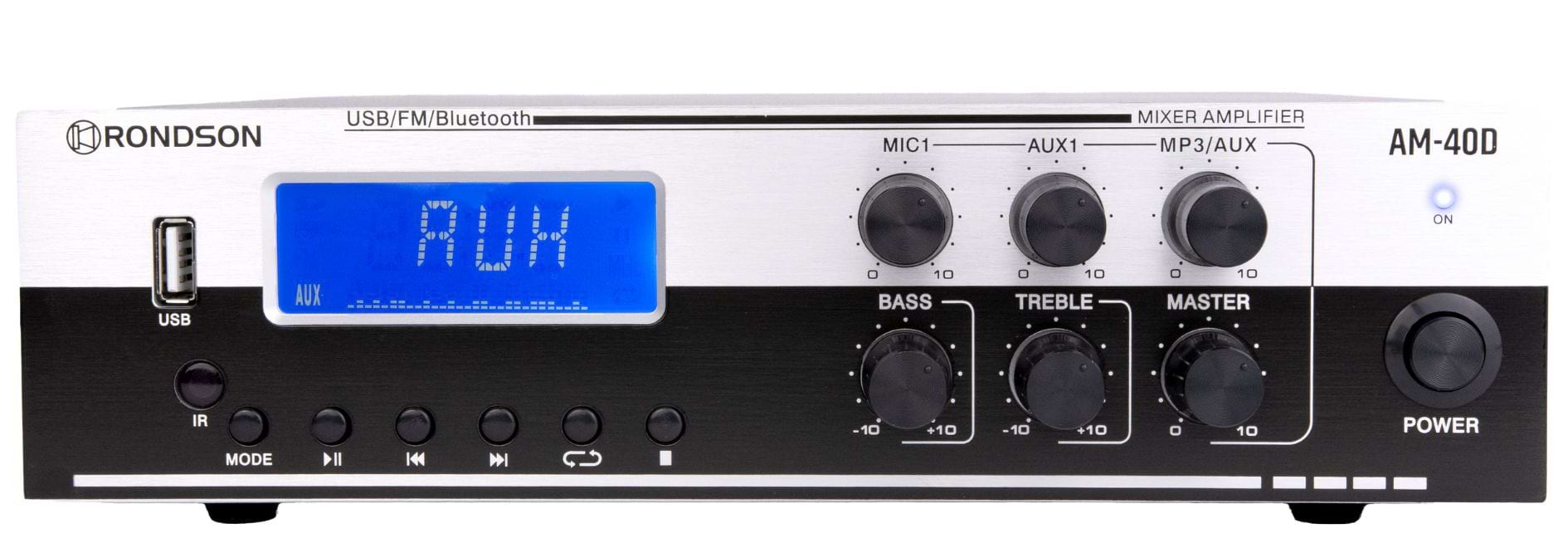

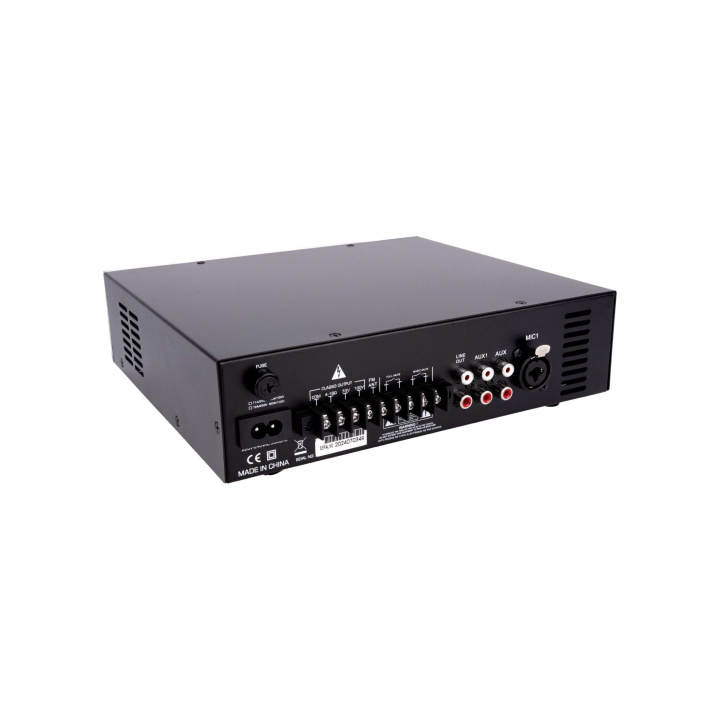

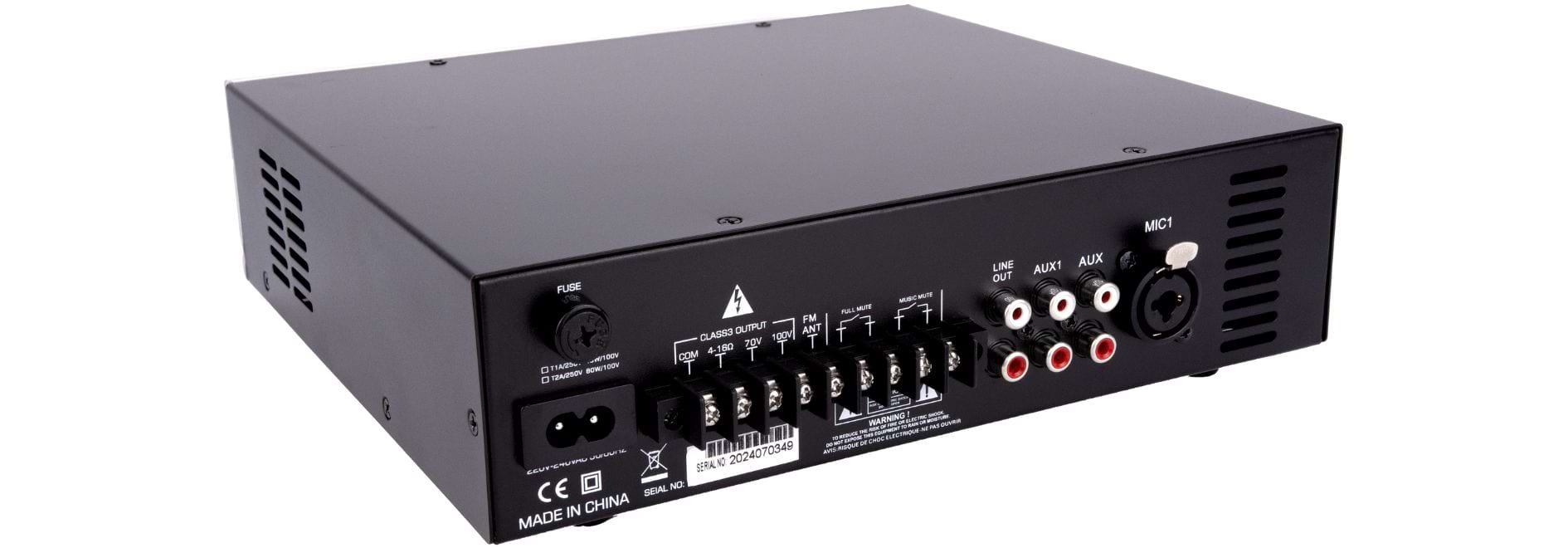

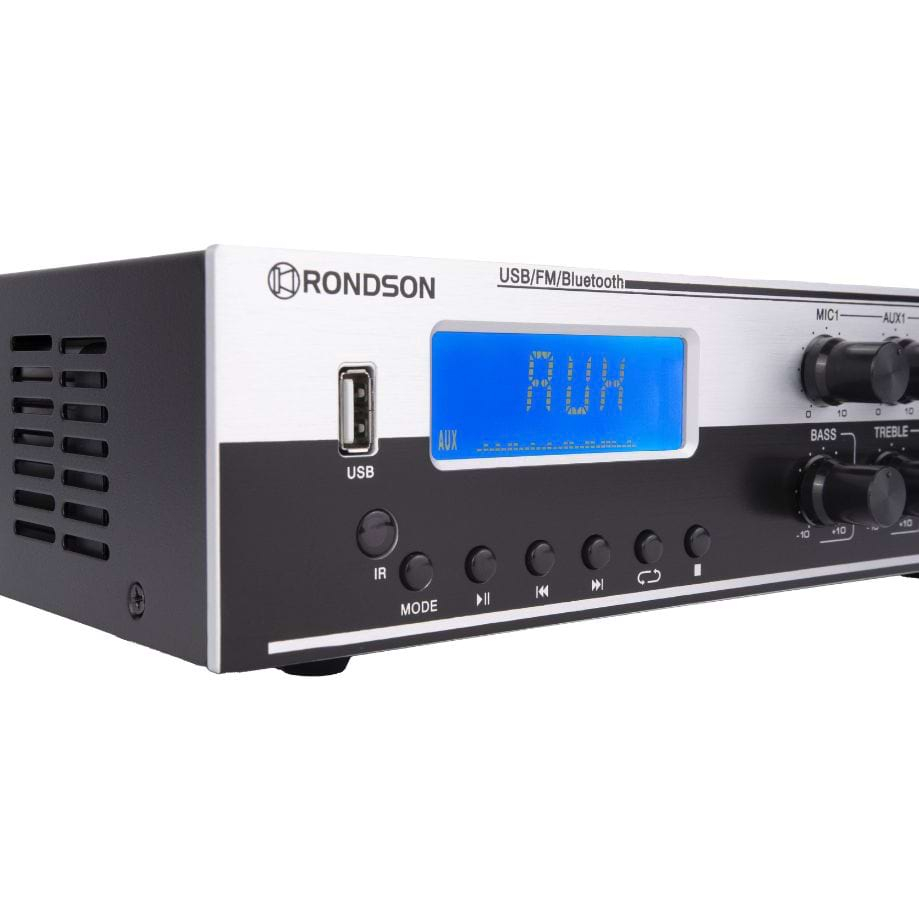

40W Multimedia Mixer Amplifier (Bluetooth/USB)
Reference : AM-40D
SKU : 02787
EAN13 : 3701567912580
Description
PDF Datasheet
Description :
40W mixer amplifiers
Multimedia player : FM Tuner / USB / Bluetooth

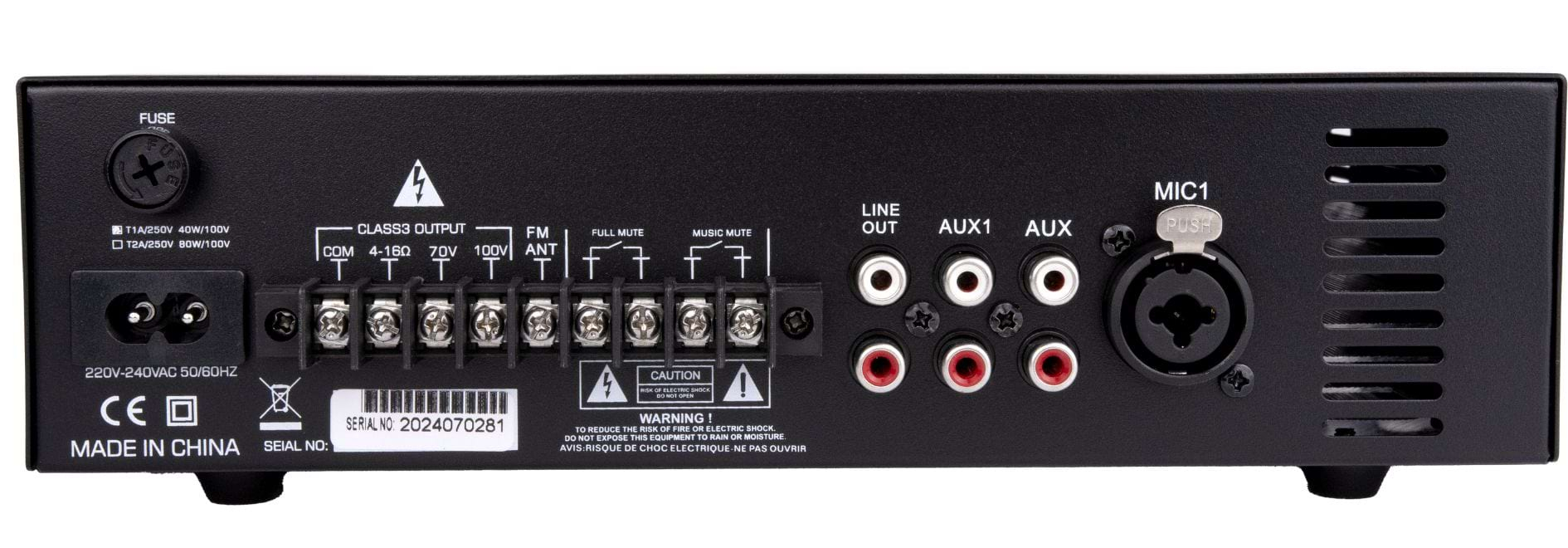

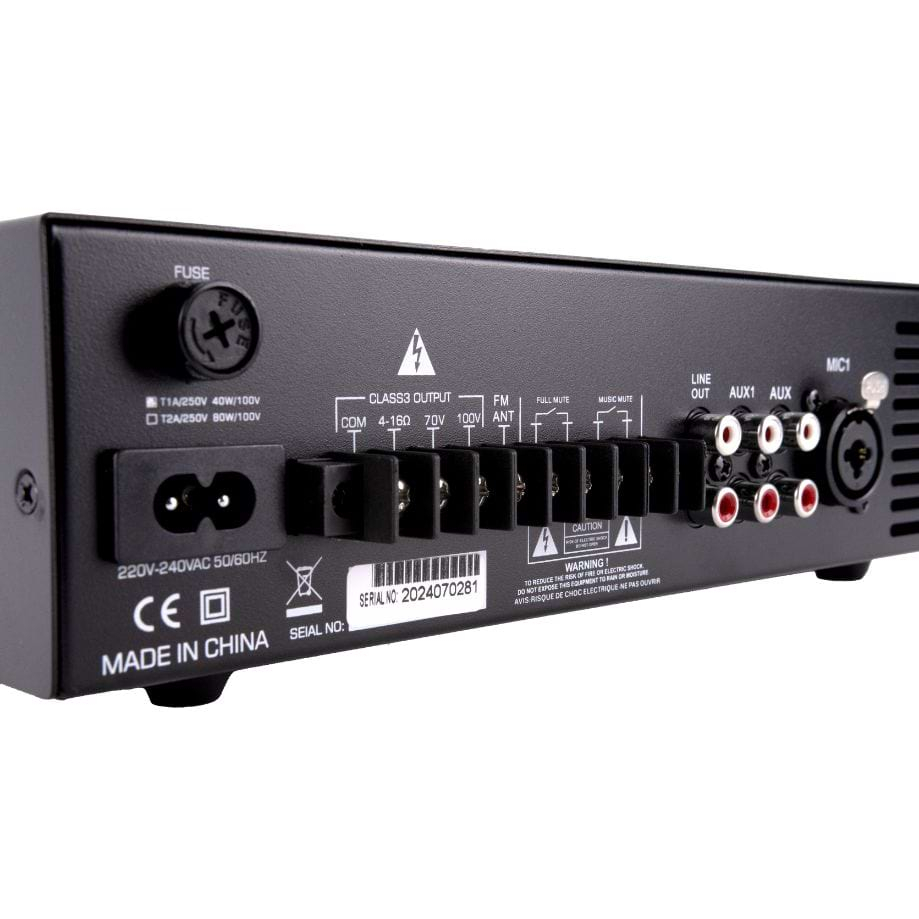

Provides 100V and low impedance 4 -16 Ω speaker outputs
Operates on 240V - 50 Hz mains
Features :

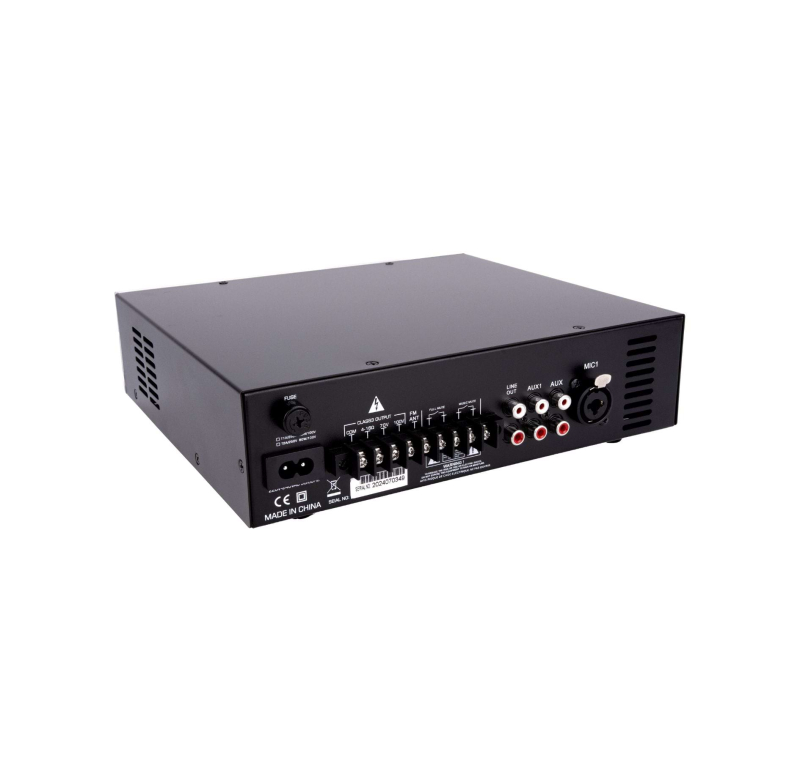

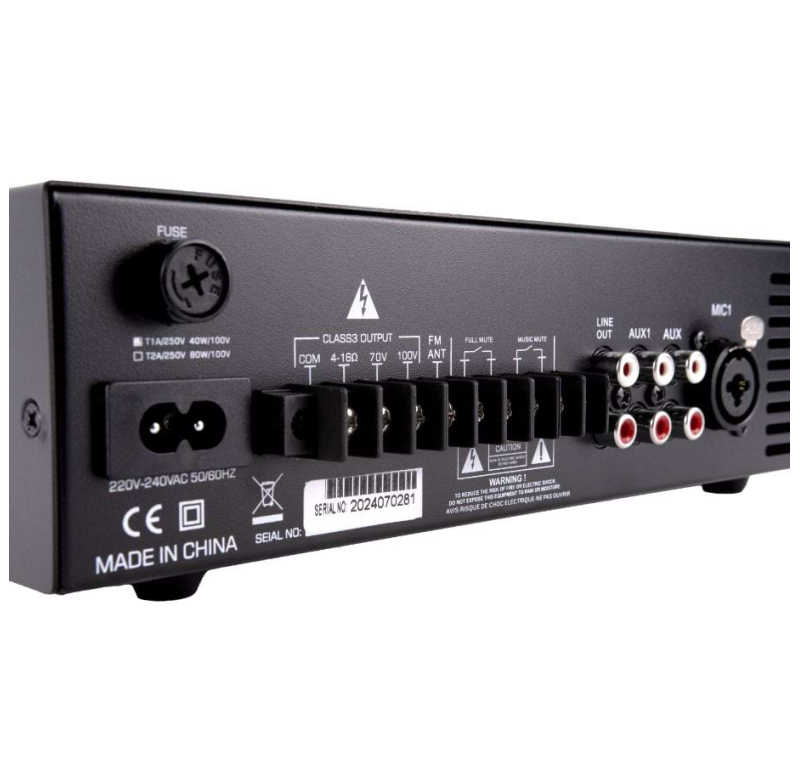

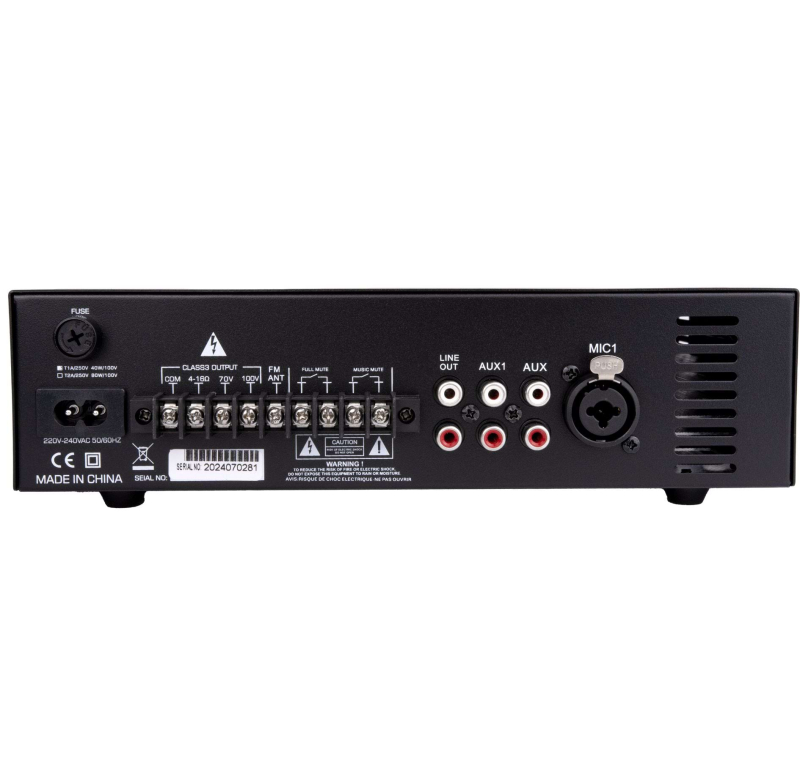

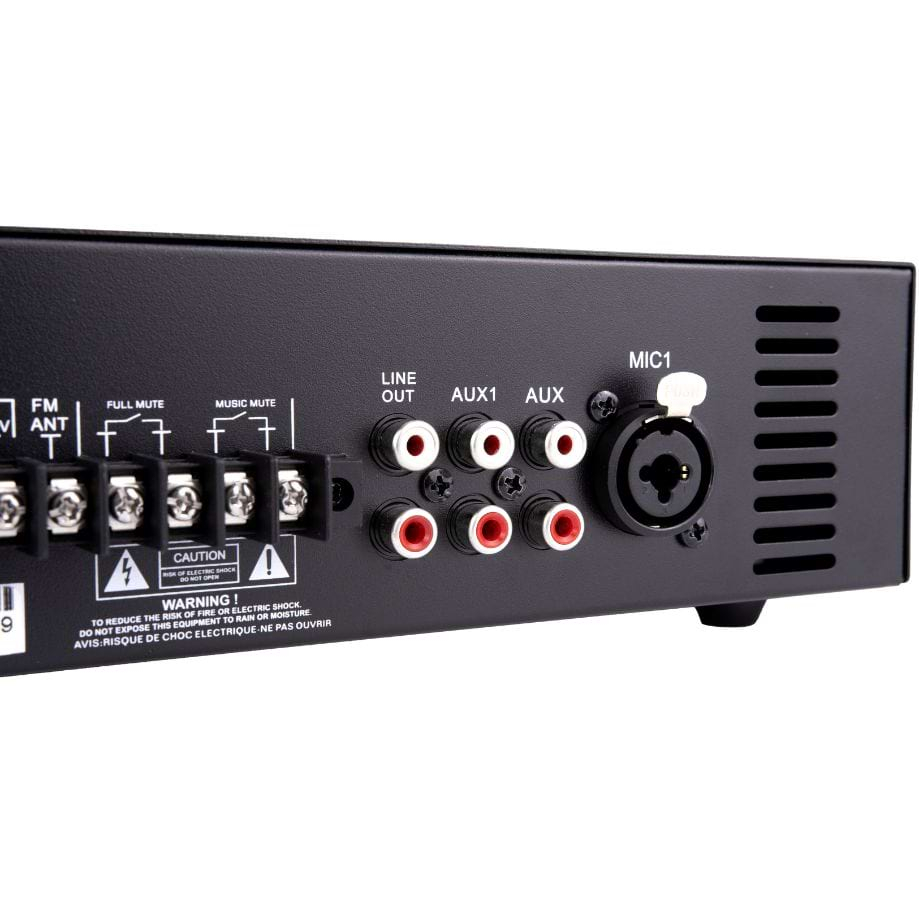

It is equipped with :

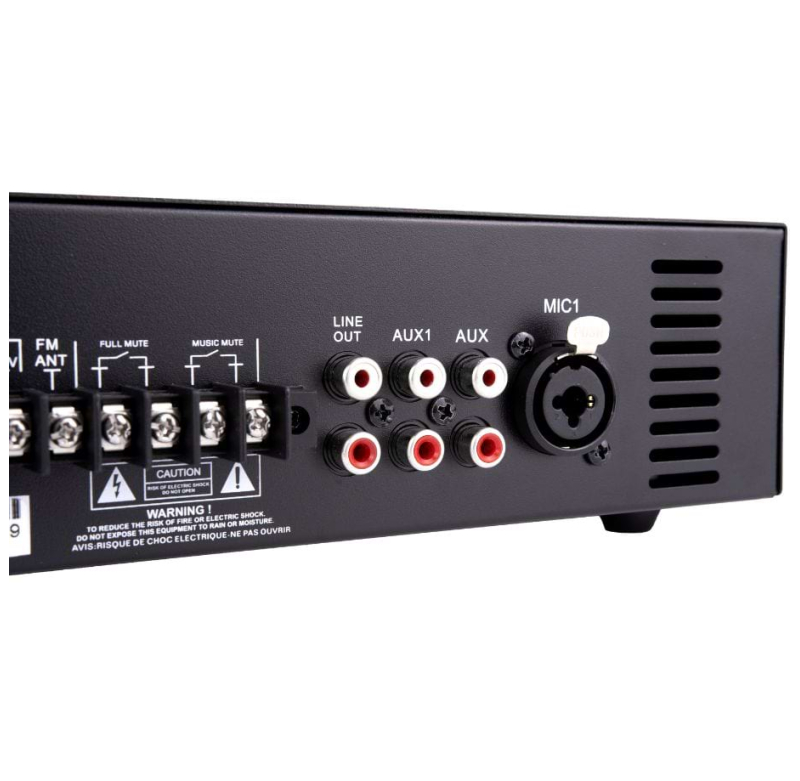

•1 XLR JACK 6.35 mm combo input
• 2 RCA AUX inputs
• 1 RCA LINE OUT
• FM tuner module and MP3 / USB and SD player
• Bluetooth receiver module for broadcasting from your mobile phone, tablet or laptop
• Thermal, overload and short-circuit protection

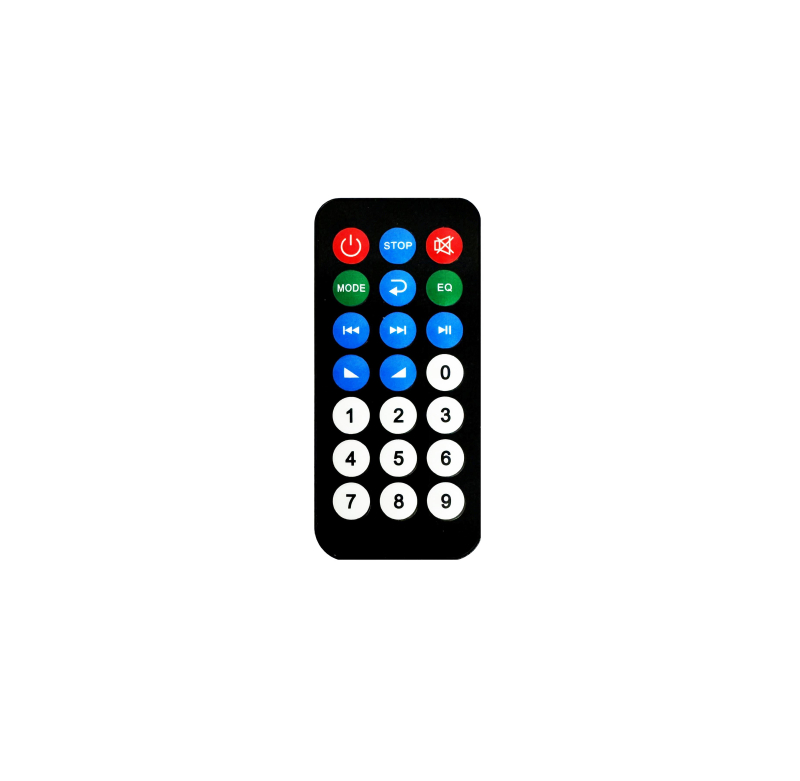

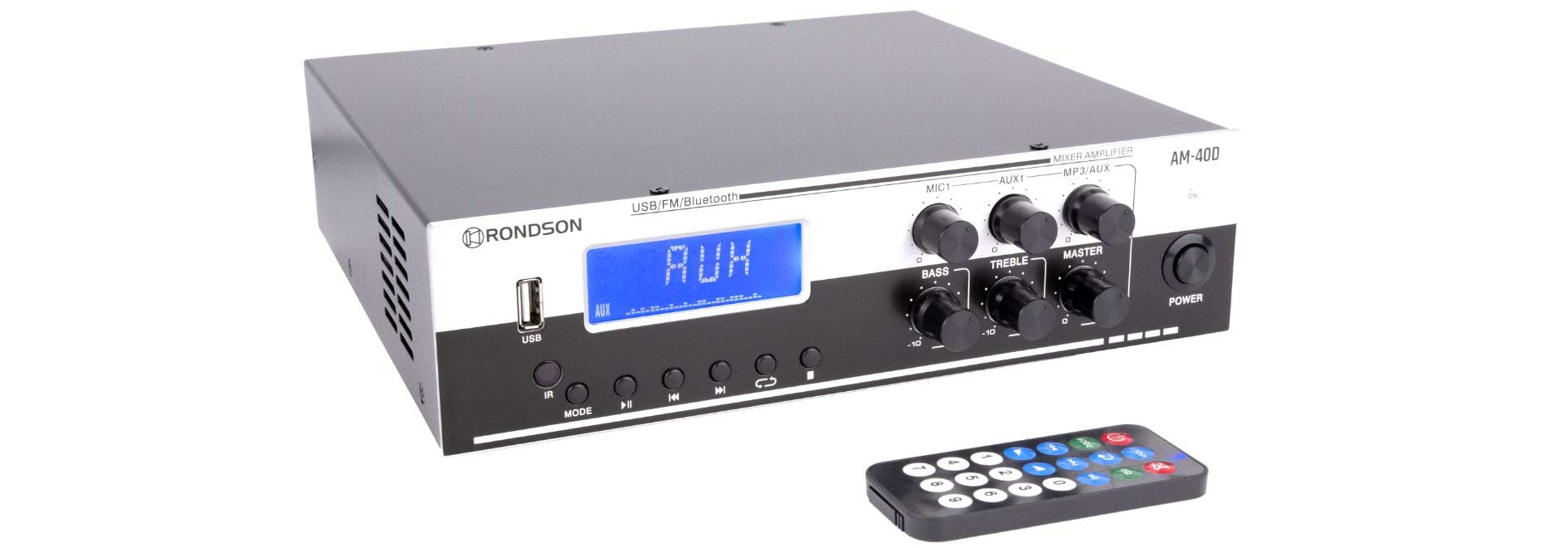

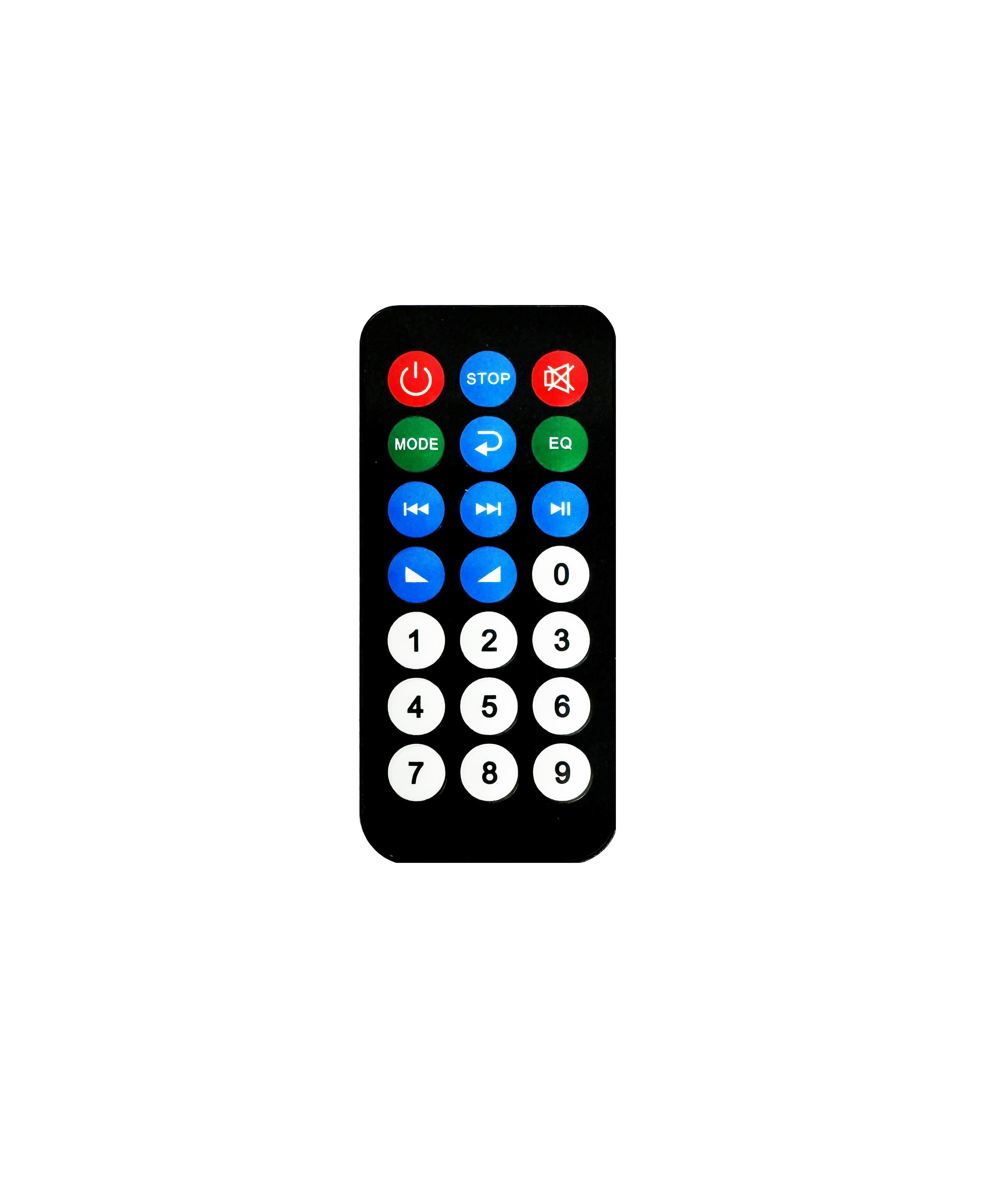

• Remote control
| SPECIFICATIONS | AM-40D |
| Type |
Pre-amplifier |
|
Power supply |
AC 240V — 50 Hz |
|
Output power |
40 W RMS |
|
Speaker outputs |
4-16 Ω / 100 V |
|
Output / Sensitivity |
0 dBV / 600 Ω |
|
Inputs / Sensitivity |
MIC 1 : 4 mV AUX 1 : 400 mV AUX 2 : 550 mV |
|
Tone Settings |
Bass : ± 10 dB à 100 Hz Treble : ± 10 dB à 10 kHz |
|
Frequency band |
80 Hz – 20 000 Hz (± 3 dB) |
|
Signal/Noise ratio |
≥ 75 dB |
|
Total harmonic distortion |
< 0,5 % |
|
Displays |
Power indicator Output level meters |
|
Dimensions (W x D x H) |
220 x 230 x 66 mm - 2U |
|
Weight |
4 kg |
Product Details
-
Brand
-
ReferenceAM-40D
-
SKU02787
-
EAN133701567912580
Data sheet
-
TypeAmplifiers and preamplifiers
-
RMS power40 W
-
Speaker outputs4-16 Ω / 100 V
-
Signal-to-noise ratio75 dB
-
AlimentationAC 240V — 50 Hz
-
Distorsion harmonique totale0,5 %
-
Bande passante80 Hz – 20 000 Hz (± 3 dB)
-
Réglages tonalitéGraves : ± 10 dB à 100 Hz Aigus : ± 10 dB à 10 kHz
-
Entrées / Sensibilité400 mV / 550 mV 4 mV
-
Sortie / Sensibilité0 dBV / 600 Ω
-
Dimensions (W × D × H)220 x 230 x 66 mm - 2U
-
Weight4 kgs
