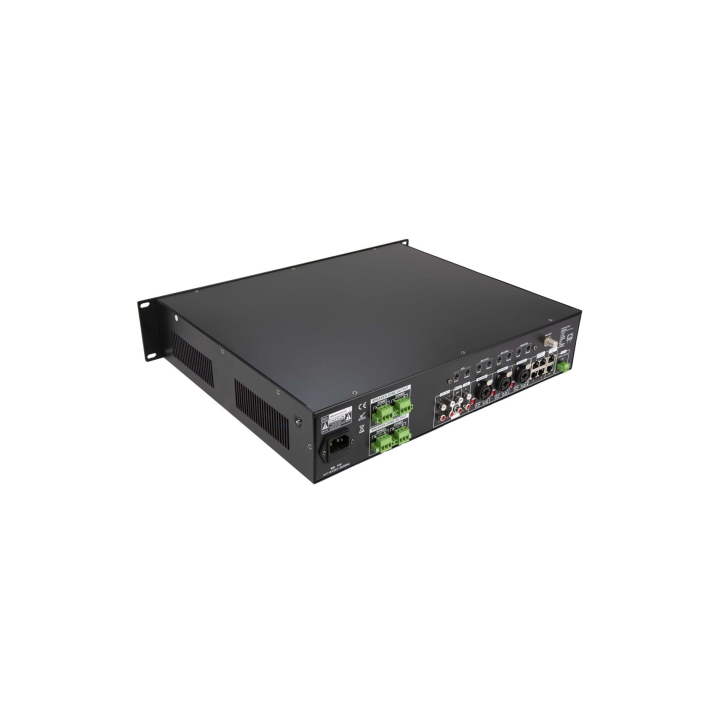

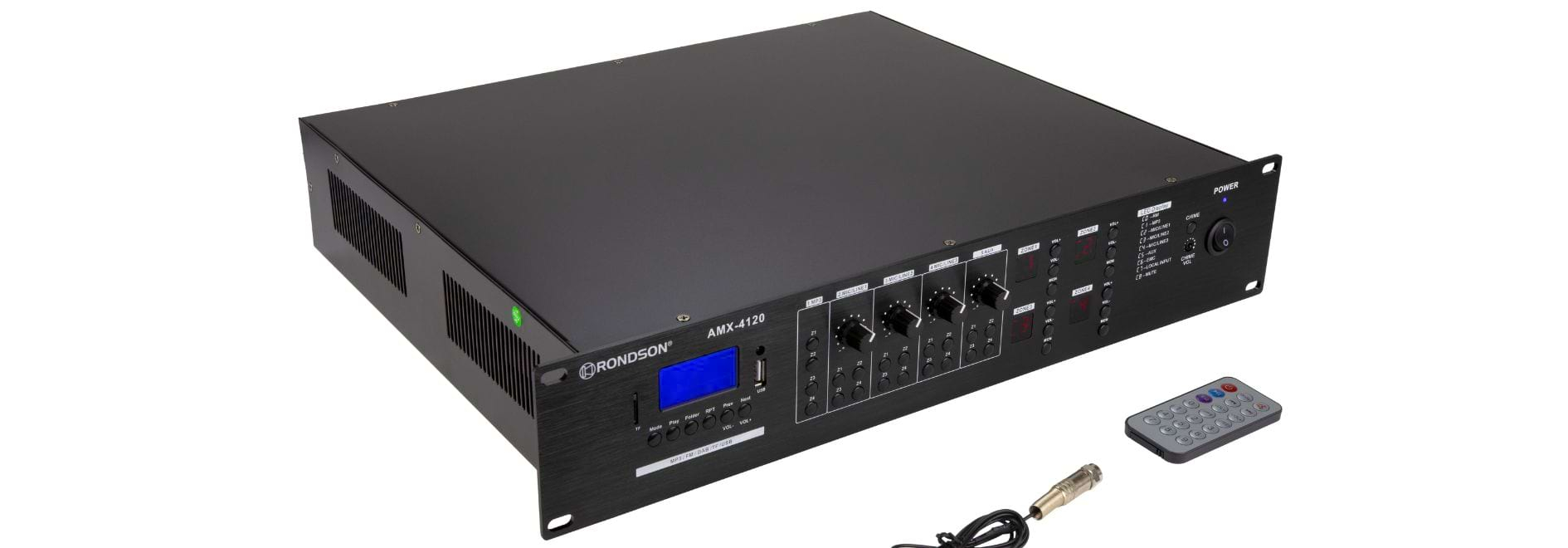

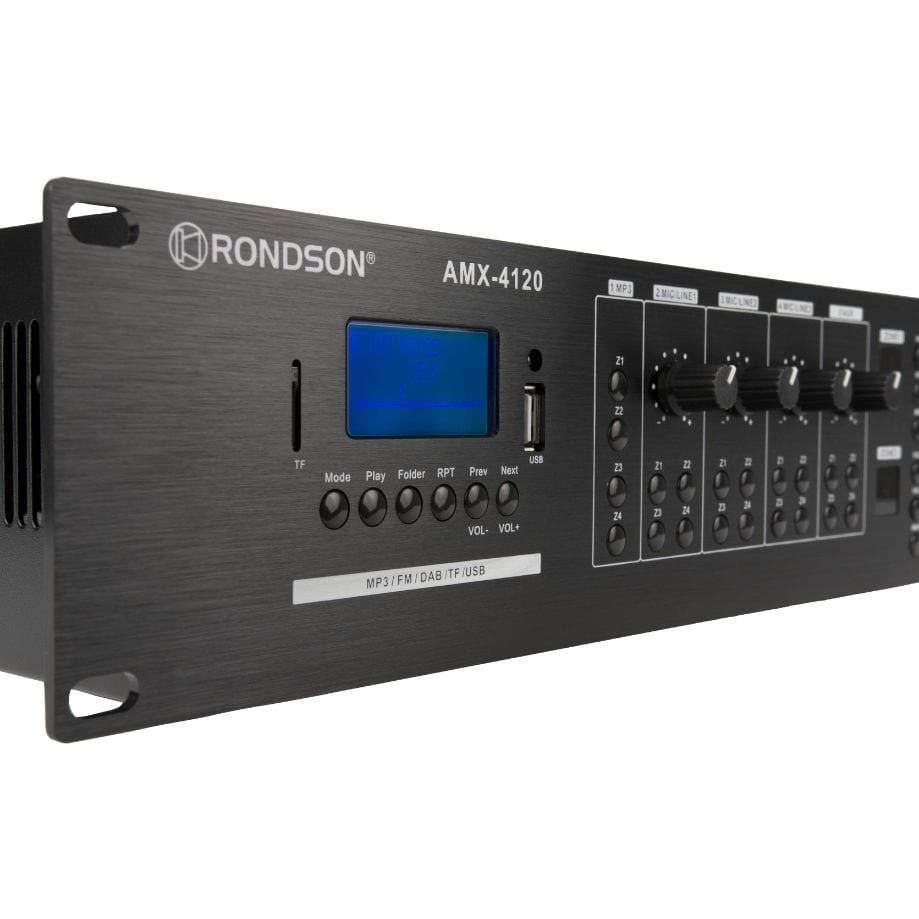

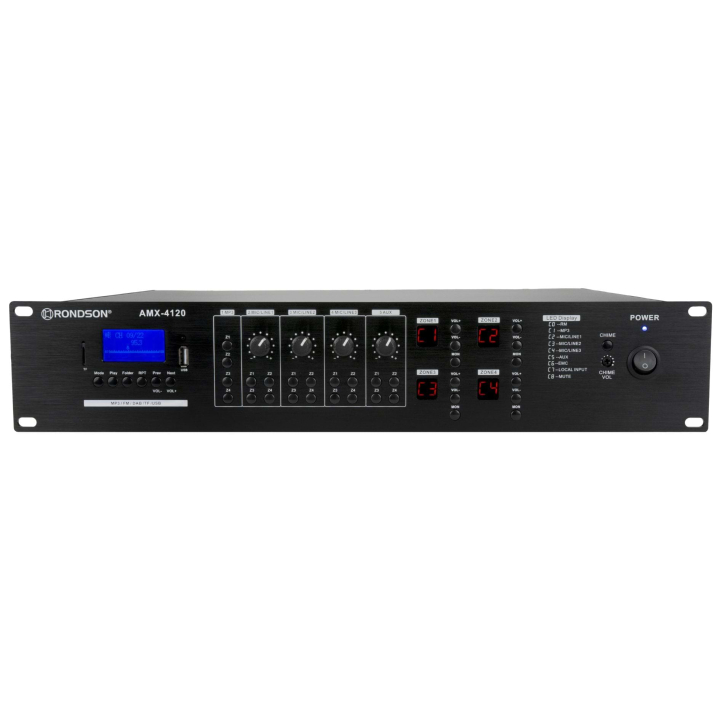

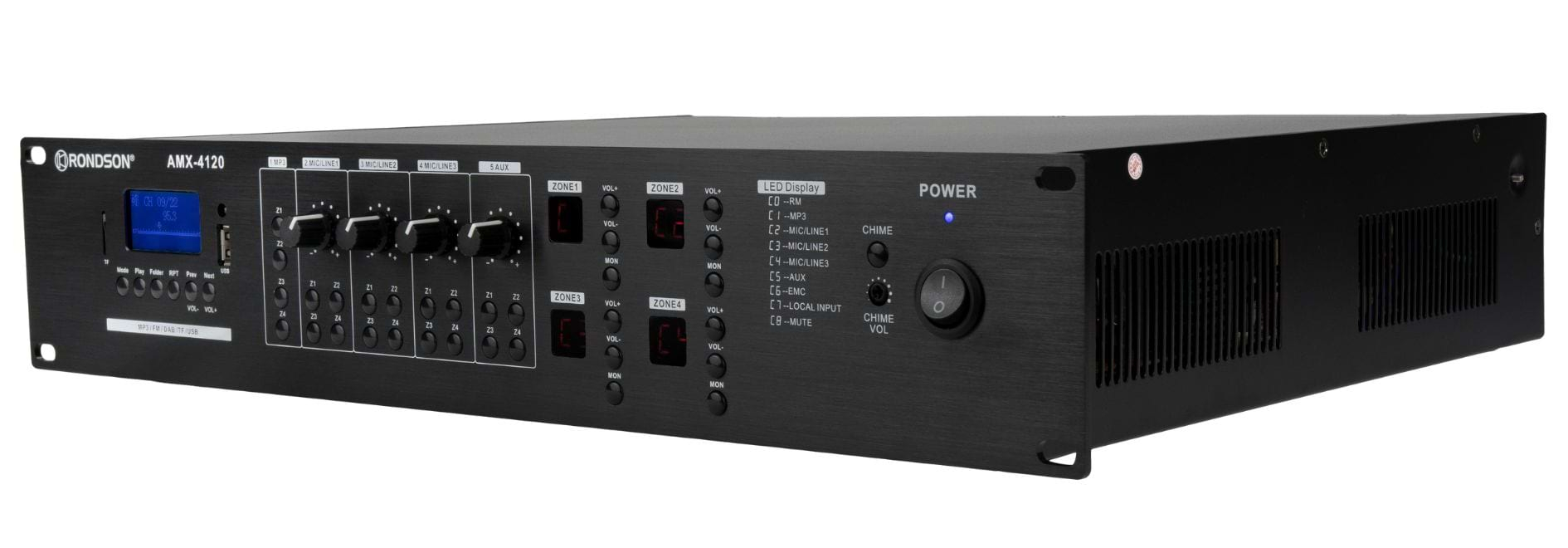

4x240W 4-zone mixing amplifier with multimedia player

Name: 4x240W 4-zone mixing amplifier with multimedia player
Brand: RONDSON
SKU: AMX-4240

Reference : AMX-4240

SKU : 02824

EAN13 : 3701567913228

4x240W 4 zone mixing amplifier with integrated media player

100V line

DC 24V

Microphone call station and compatible wall plate

Dry contact for sound cut-off

Power output

4 x 240 W

TUNER

BLUETOOTH

USB

Coupure sono

DC 24V

Zones

AMX-4 SERIE

Série AMX

Description

4 x 240 W mixer amplifier.

It offers a complete solution for multizone paging and multi-source selection systems.

It operates on 230 V – 50/60 Hz mains or 24 V DC power.

It features built-in sources such as an MP3 / USB / SD player / FM Tuner / Bluetooth.

Product Data Sheet (PDF):

Equipped with:

2 balanced XLR or Jack inputs (CH 1-2)
2 RCA inputs (AUX 1-2)
1 Euroblock terminal (Remote trigger)
1 RCA input (EMC IN)
RJ45 for AMX-4B wall panel control and AMX-4A paging microphone zone selection control
1 DC 24 V input
LINE OUT on RCA / zones
1 RCA Monitor output
Individual volume control per input and per zone
Settings:

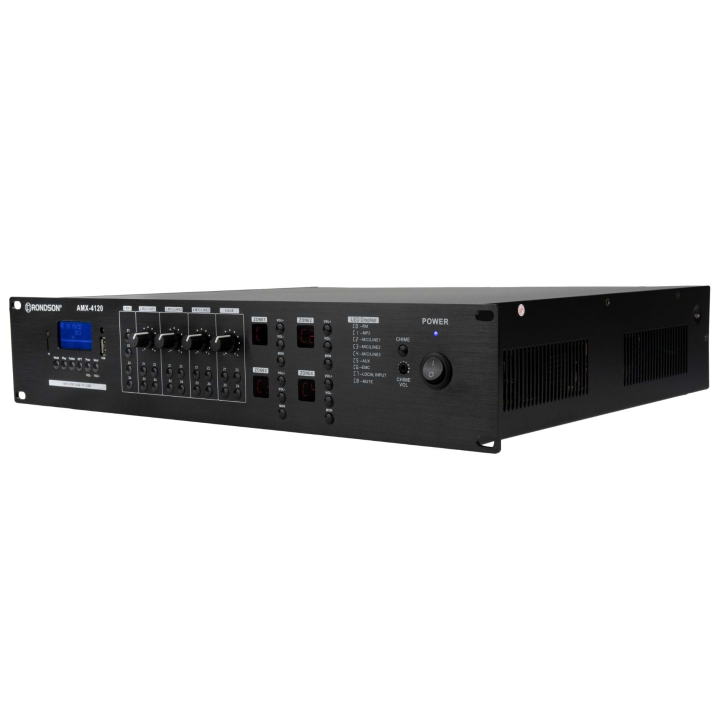

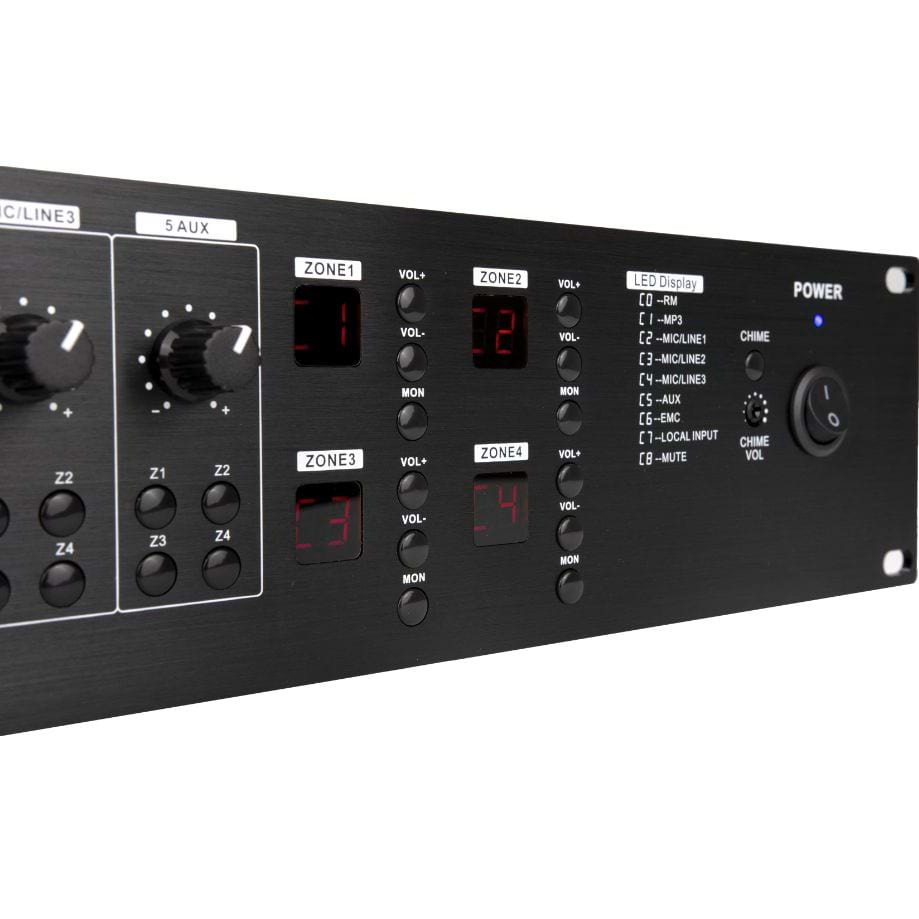

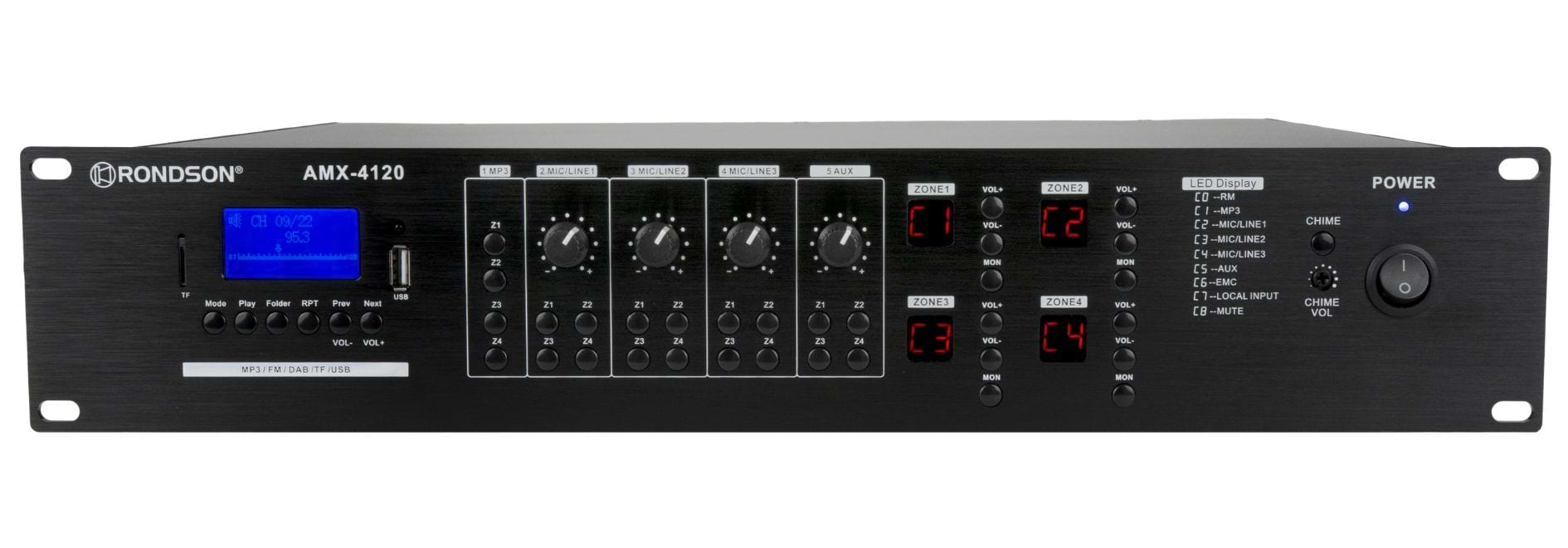

- Front panel: 2 MIC/LINE volume controls (LINE 1-2) with tone settings and zone selectors, 2 volume controls (AUX 1-2) with zone selectors

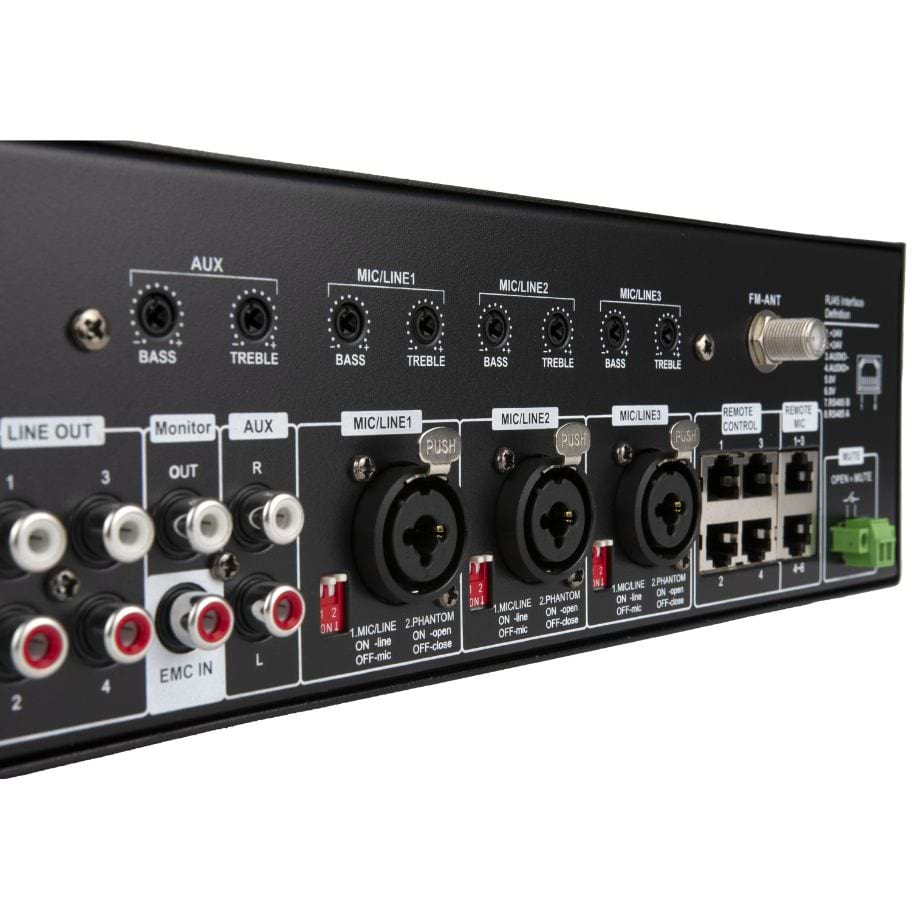

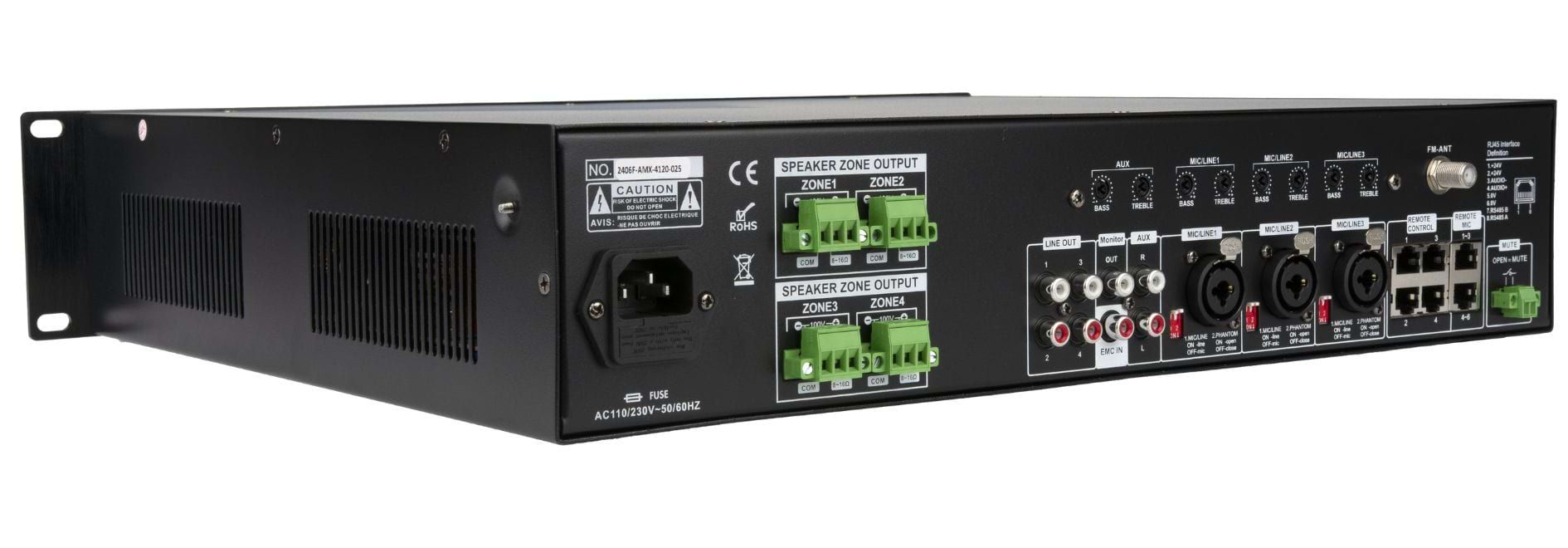

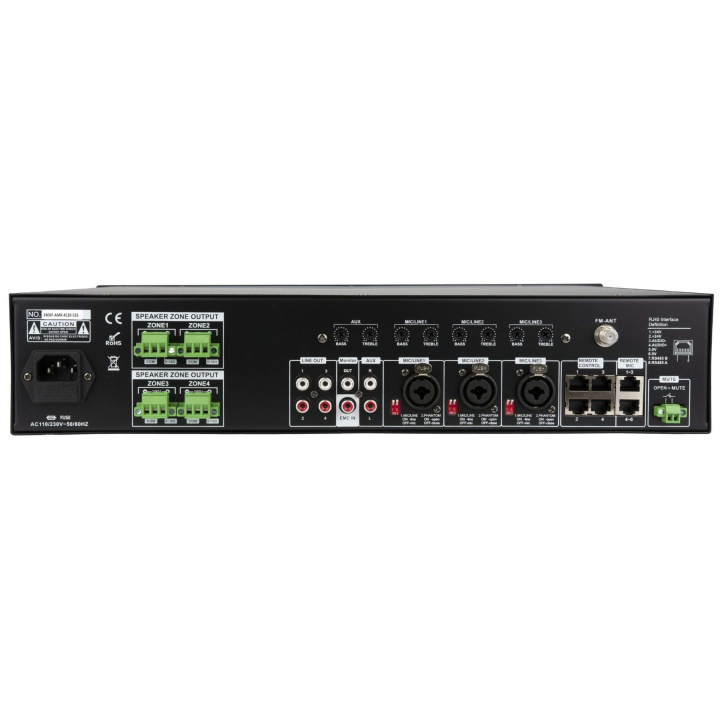

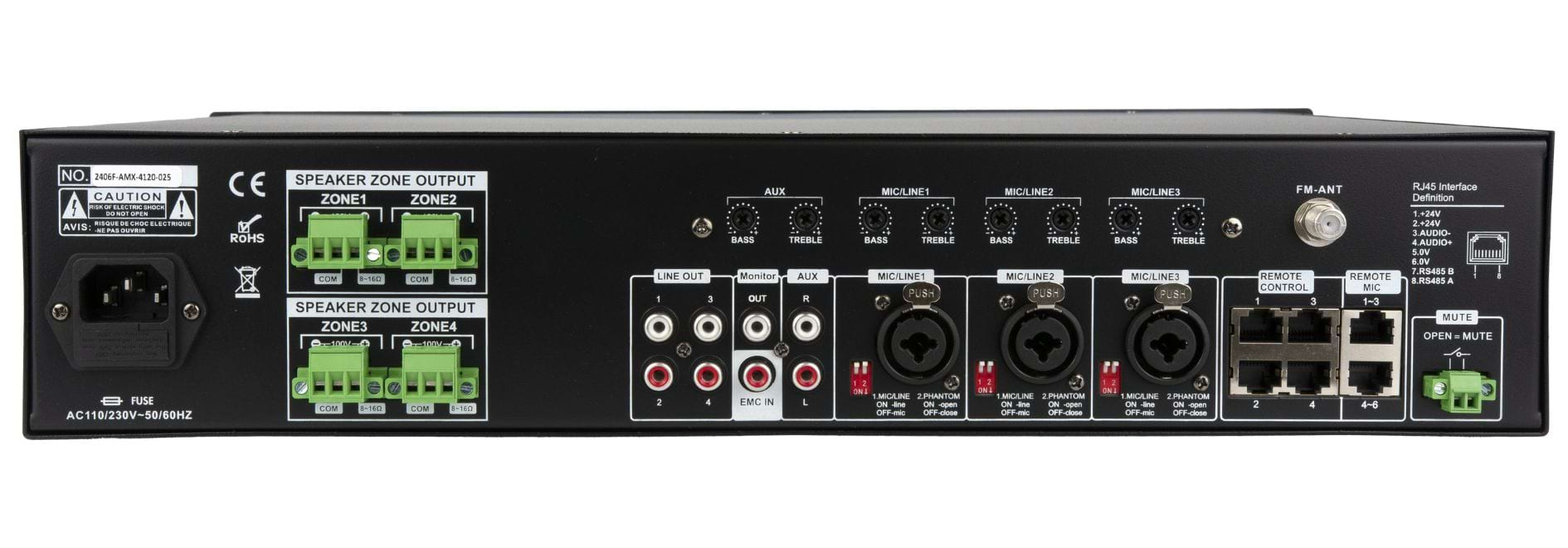

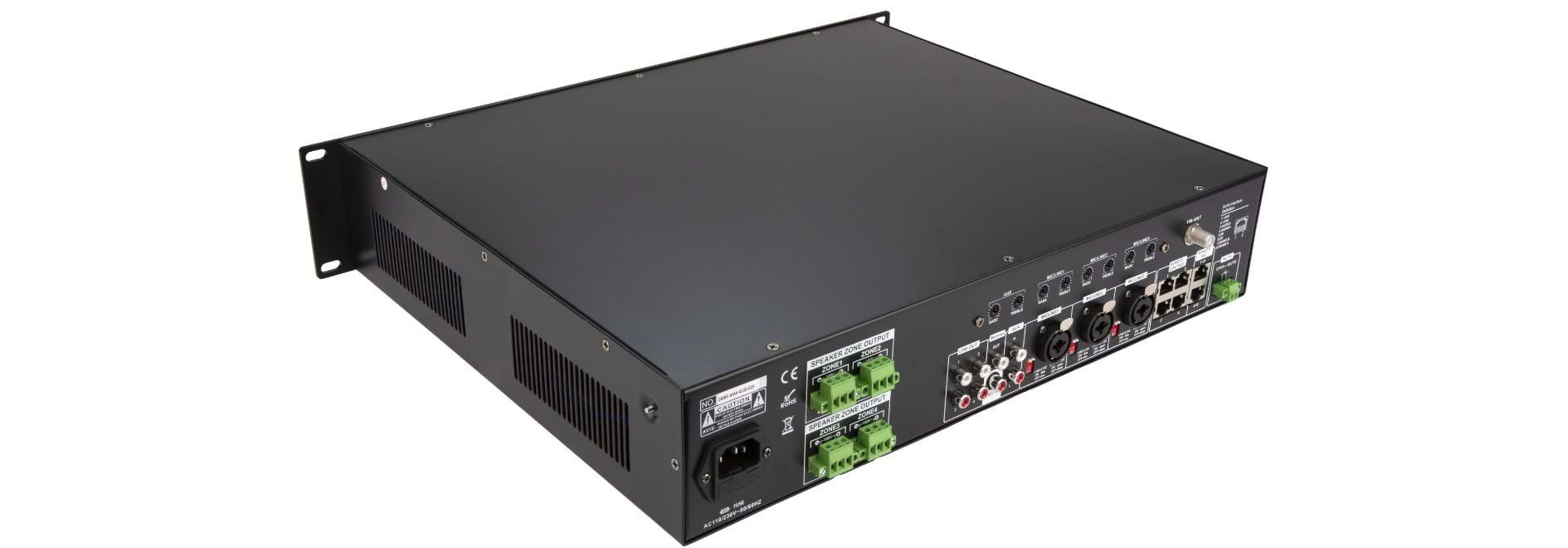

- Rear panel: 4 gain controls for each input, 1 speaker monitor output on Euroblock 8-16 Ω / 2-5 W
Dry contact
Thermal, overload, and short-circuit protection
Built-in 19" (2U) rackmount brackets

Technical Specifications — AMX-4240
Specifications	AMX-4240
Type	Preamplifier-amplifier
Power	4 x 240 W
Built-in sources	MP3 / USB / SD / TUNER / BLUETOOTH
Power supply	AC 230V – 50/60Hz / DC 24V
Speaker output	4 channels, 100V, 8 - 16 Ω
Inputs / Sensitivity	MIC/LINE 1-3: 60 dB - 16 dB / 20 kΩ Balanced LINE 1: +20 dB / 20 kΩ Balanced 2 RJ45: 0 dB / 600 Ω Balanced
Output level	0 dB / 600 Ω balanced
Frequency response	70 Hz – 20,000 Hz (± 3 dB)
Signal-to-noise ratio	> 80 dB
Consumption	1100 W
Total harmonic distortion	< 0.5 %
Tone control	Input: Treble: 12 kHz / Mid: 2.5 kHz / Bass: 80 Hz (+15 dB) Output: Treble: 10 kHz / Bass: 100 Hz (+15 dB)
Protection and cooling	Fan, thermal, overload, and short-circuit protection
Dimensions (W x D x H)	484 x 405 x 88 mm
Weight	6.5 kg
