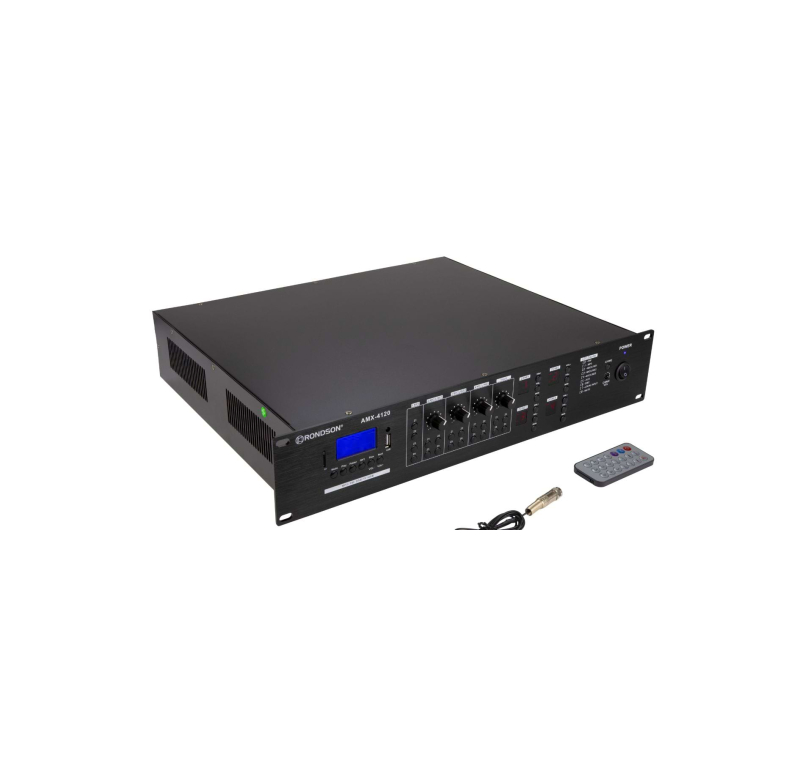

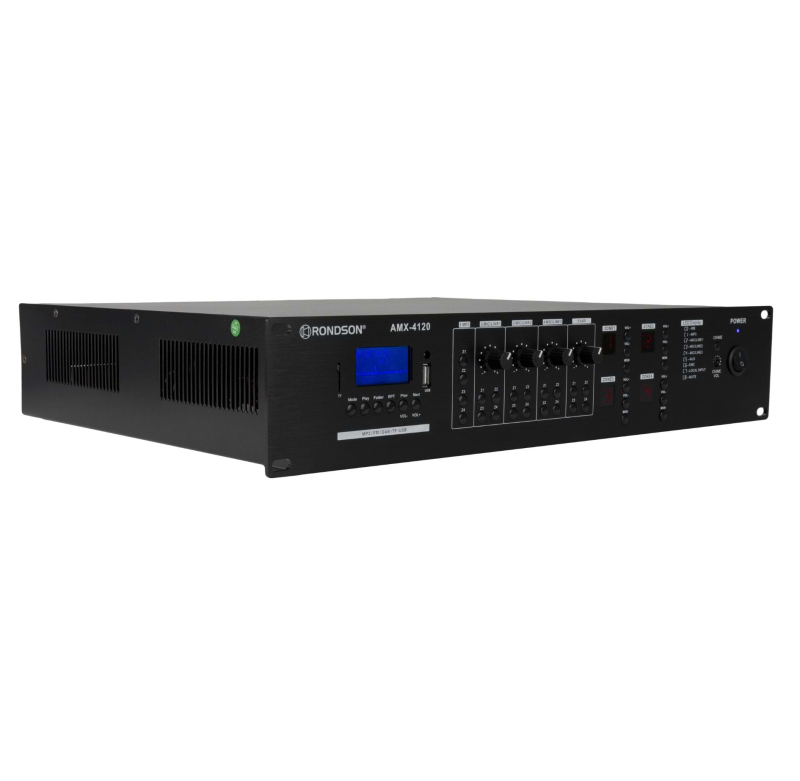

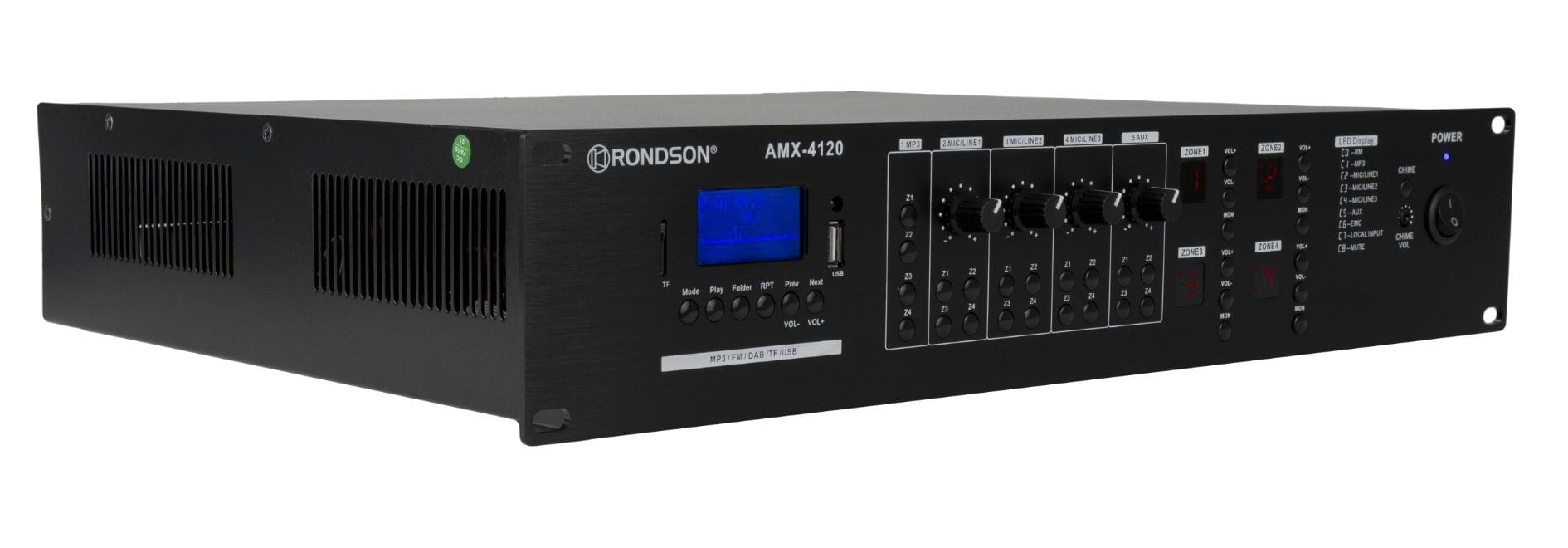

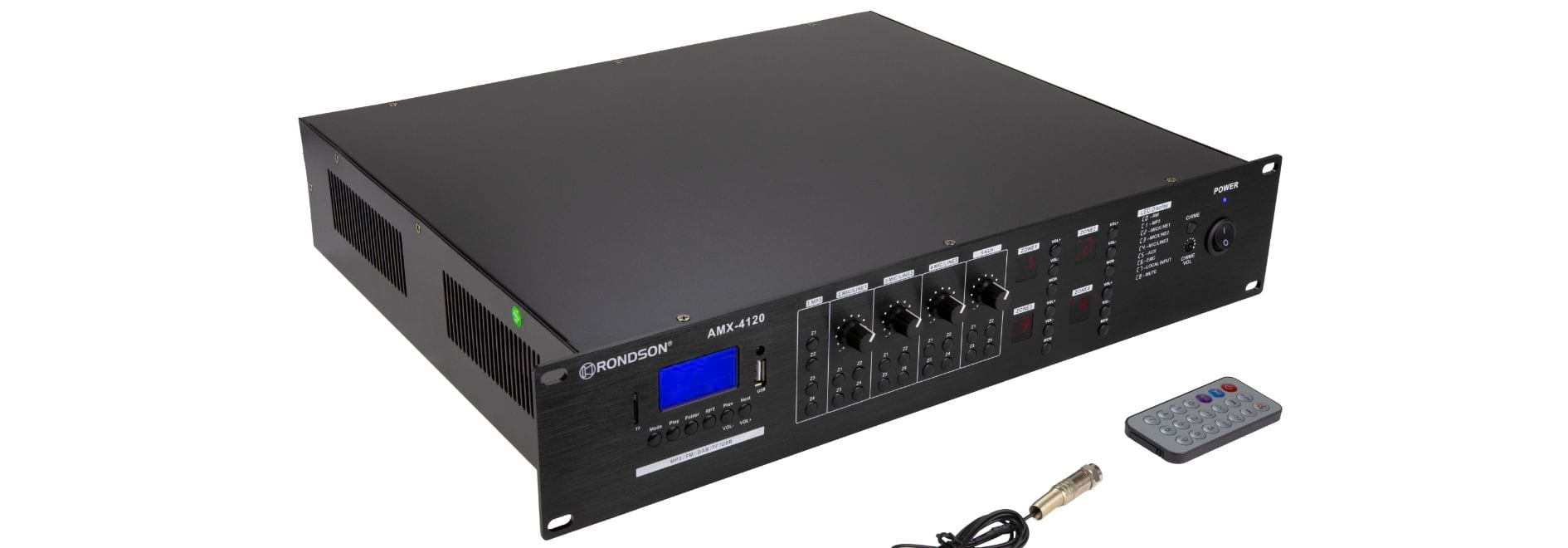

4x500W 4-zone mixer amplifier with multimedia player

Name: 4x500W 4-zone mixer amplifier with multimedia player
Brand: RONDSON
SKU: AMX-4500

Reference : AMX-4500

SKU : 02825

EAN13 : 3701567913235

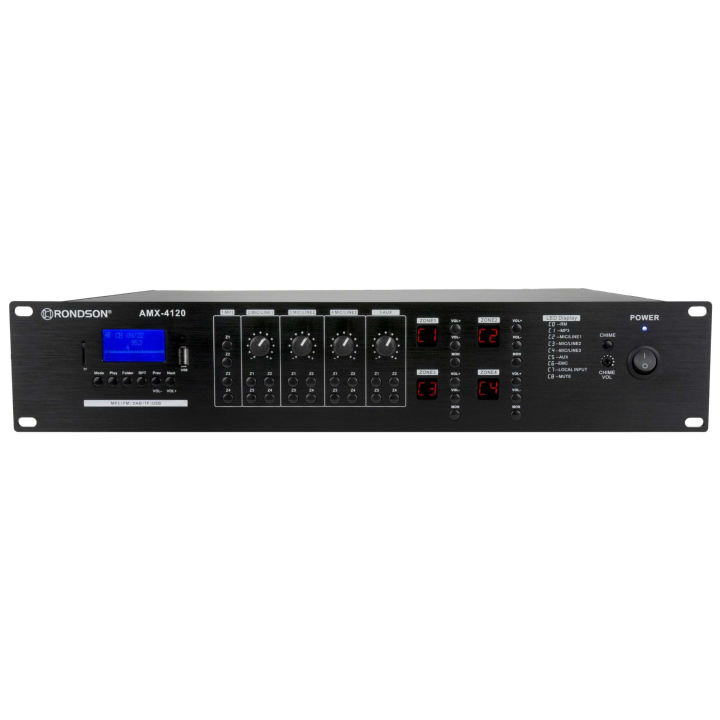

4x500W 4-zone mixing amplifier with multimedia player

500W 4-zone mixer amplifier

Built-in media player

100V line

24V DC

Compatible with call-out microphone console and wall-mounted control panel

Dry contact for PA system cut-off

19" rack-mountable (2U)

Power output

4 x 500 W

TUNER

BLUETOOTH

USB

Coupure sono

DC 24V

Zones

AMX-4 SERIE

Download (911.84KB)

Série AMX

Download (3.35MB)

Description

Amplifier-mixer 4 x 500W

Provides a complete solution for multi-zone calls and multi-source selection systems.

It operates on 230 V - 50/60 Hz or DC 24 V.

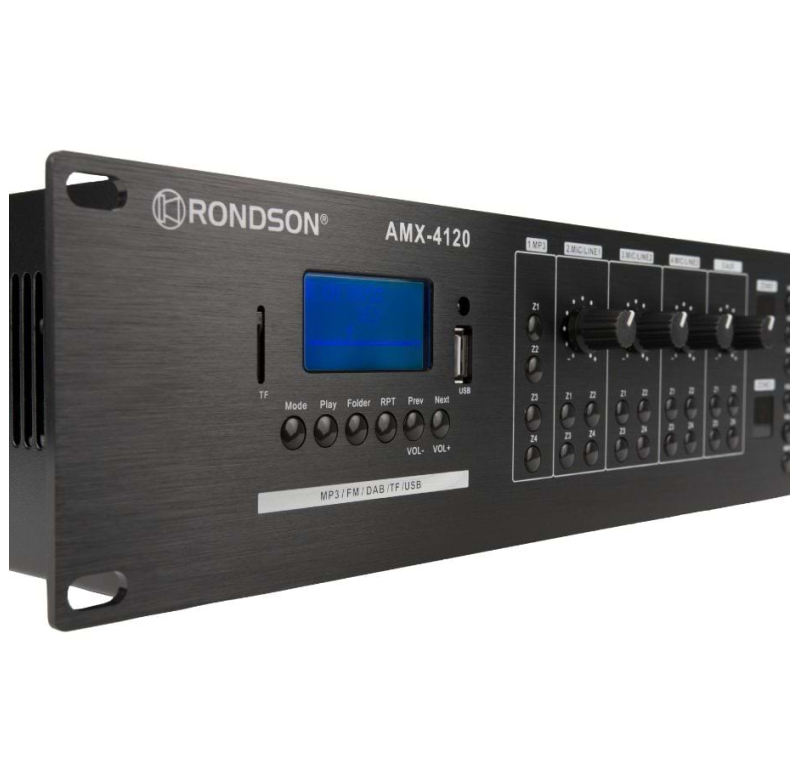

It has integrated sources such as MP3 player / USB / SD / FM Tuner / Bluetooth.

Features :

It is equipped with :

2 XLR or balanced jack inputs (CH 1-2)
2 RCA inputs (AUX 1-2)
1 Euroblock terminal block (Remote trigger)
1 RCA input (EMC IN)
RJ45 for AMX-4B wall panel control and AMX-4A console microphone zone selection control
1 DC 24 V input
LINE OUT on RCA/zones
1 RCA Monitor output
Individual volume control for inputs and zones
Settings :

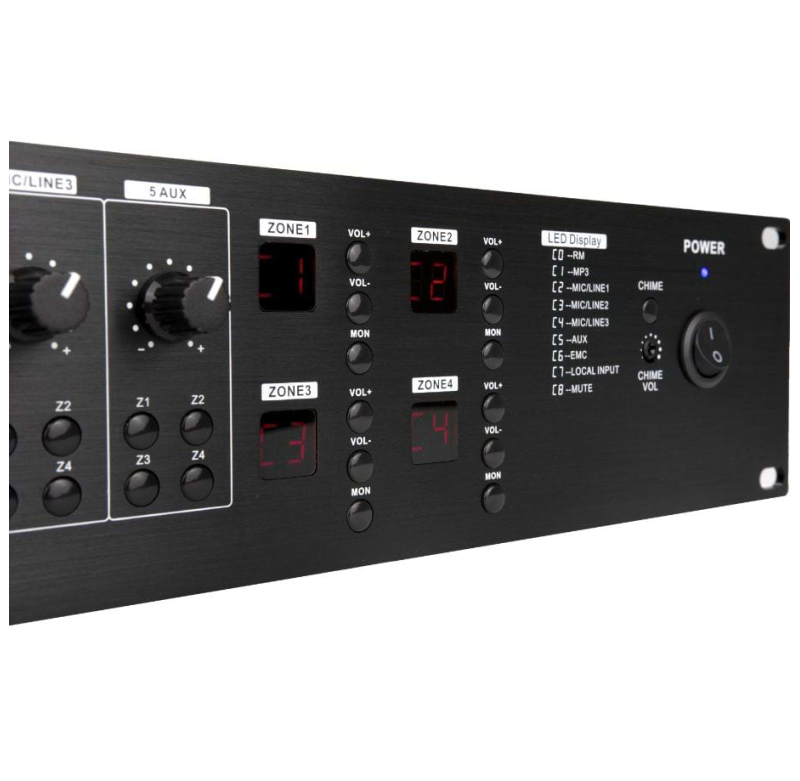

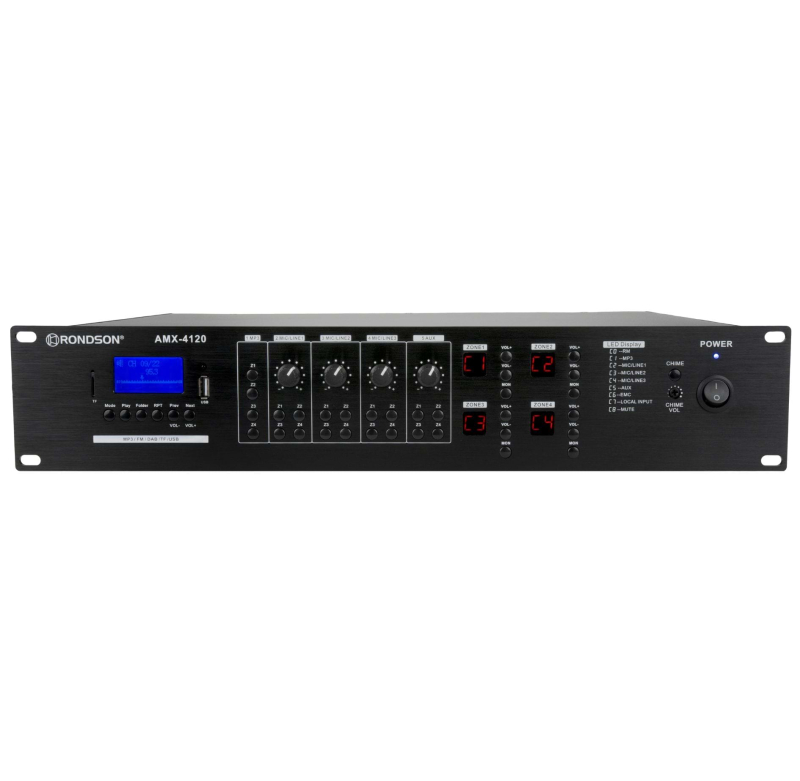

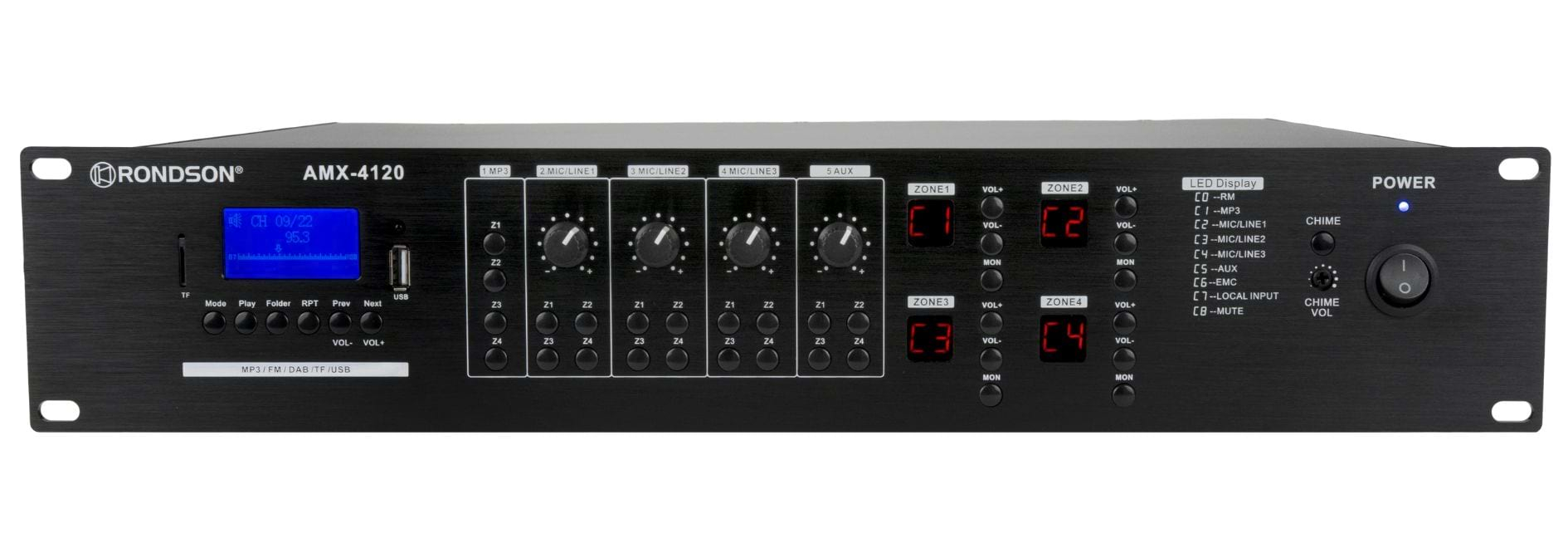

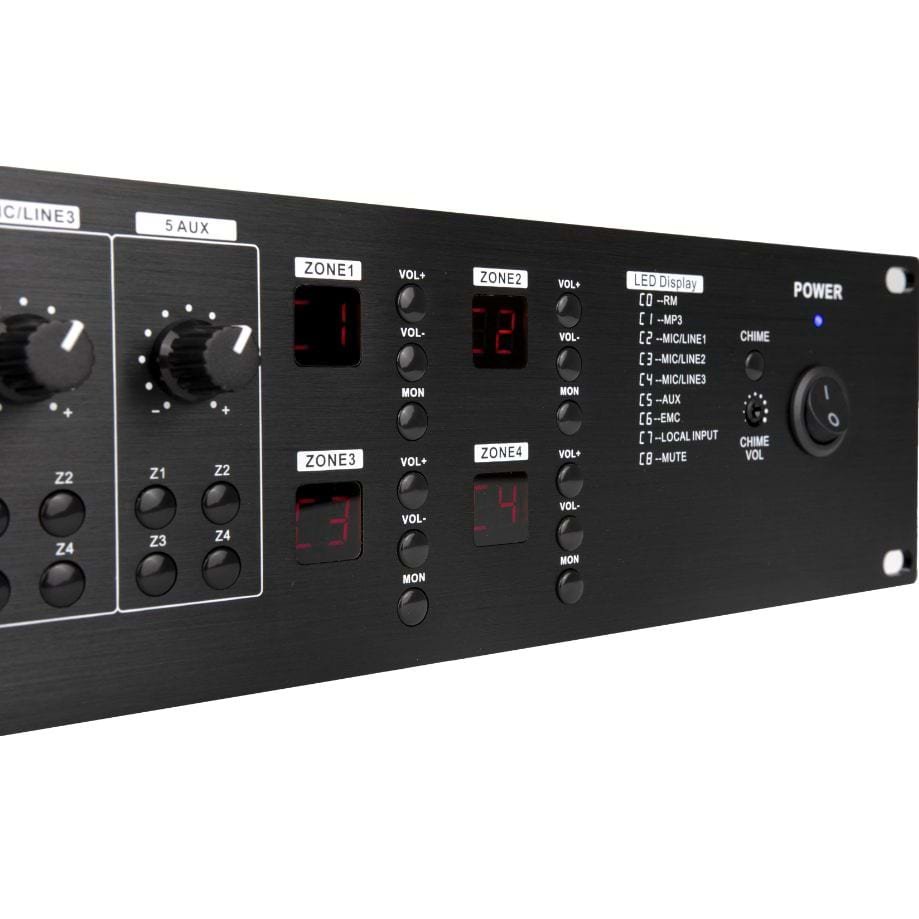

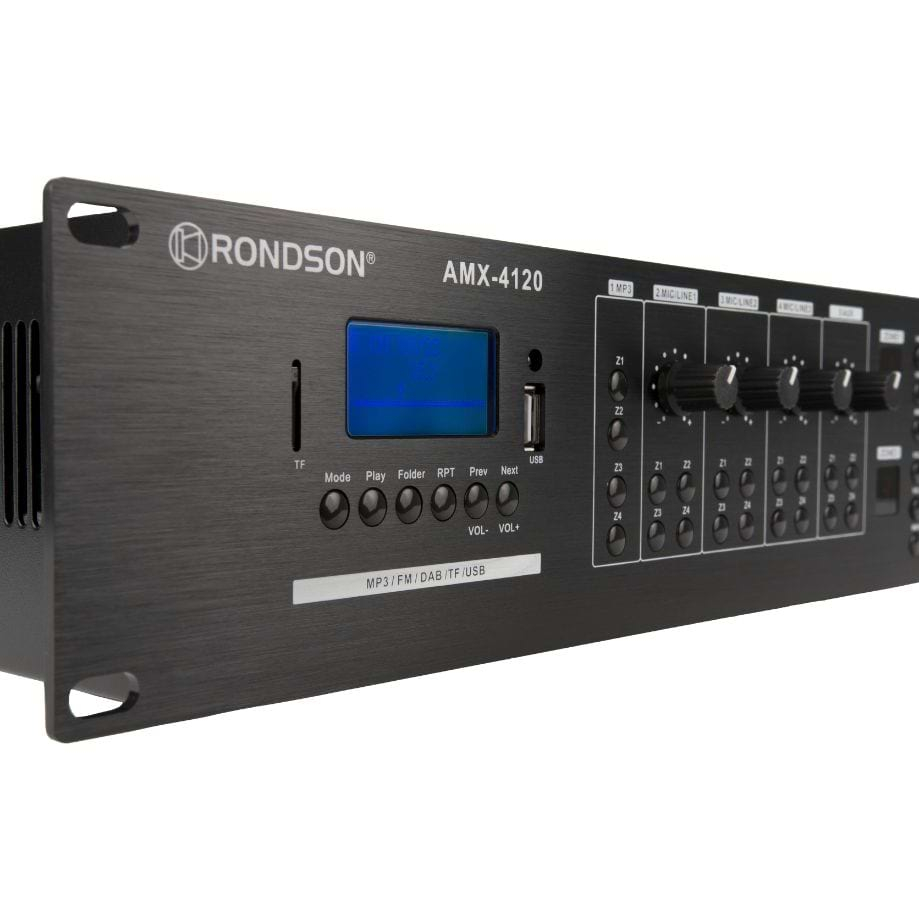

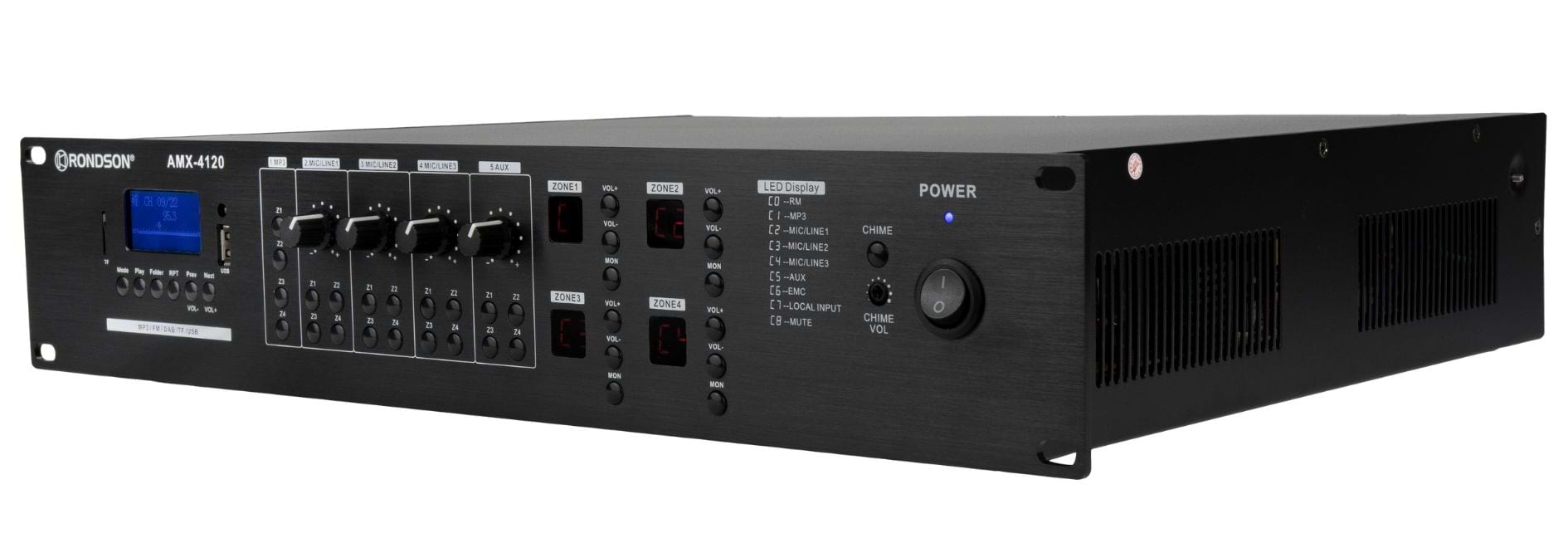

Front panel: 2 MIC/LINE volume controls (LINE 1-2) with tone controls and zone selectors 2 AUX volume controls (AUX 1-2) with zone selectors

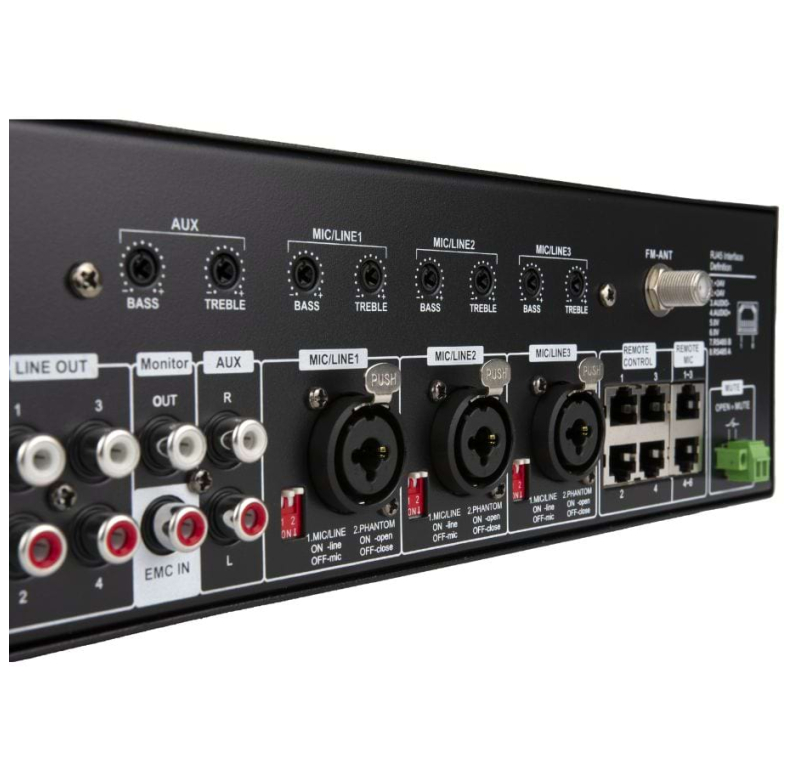

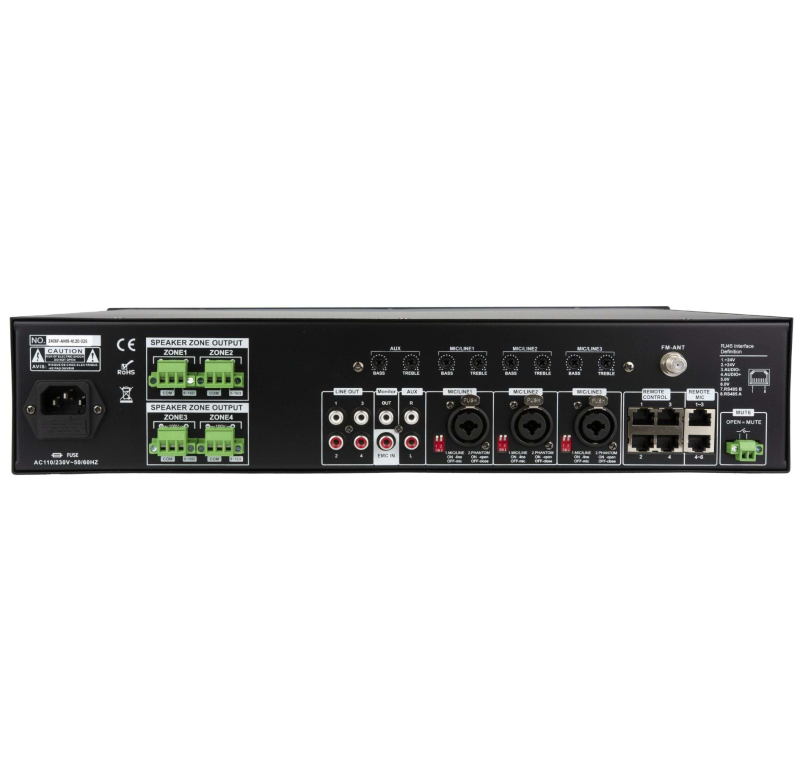

Rear panel: 4 gain settings for each input 1 monitor HP output on euroblock 8-16 Ω / 2-5 W

Dry contact
Thermal, overload and short-circuit protection
Integrated 19’ 2U mounting brackets

Product Details

Brand
Reference

AMX-4500
SKU

02825
EAN13

3701567913235

Data sheet

Type

4 x 500W
Speaker outputs

4 canaux, 100V, 8 - 16 Ω
Power consumption

2400W
Signal-to-noise ratio

+ 80 dB
Audio output level

0 dB / 600 Ω symétrique
Alimentation

AC 230 V – 50 / 60 Hz
Distorsion harmonique totale

0,5 %
Bande passante

70 - 20 000 Hz
Protection et refroidissement

Ventilateur, Protection thermique, surcharge et court-circuit
Entrées / Sensibilité

MIC/LINE 1-3 : 60 dB – 16 dB / 20 KΩ Symétrique LINE 1 : 20 dB + dB / 20 KΩ Symétrique 2 RJ45 : 0 dB / 600 Ω symétrique
Sources intégrées

MP3 / USB / SD / TUNER / BLUETOOTH
Réglage de tonalité Entrée

Aigus : 12 kHz / Med : 2,5 kHz / Graves : 80 Hz (+15 dB)
Réglage de tonalité Sortie

Aigus : 10 kHz / graves : 100 Hz (+15 dB)
Dimensions (W × D × H)

484 x 405 x 88 mm
Weight

6,9 kg
