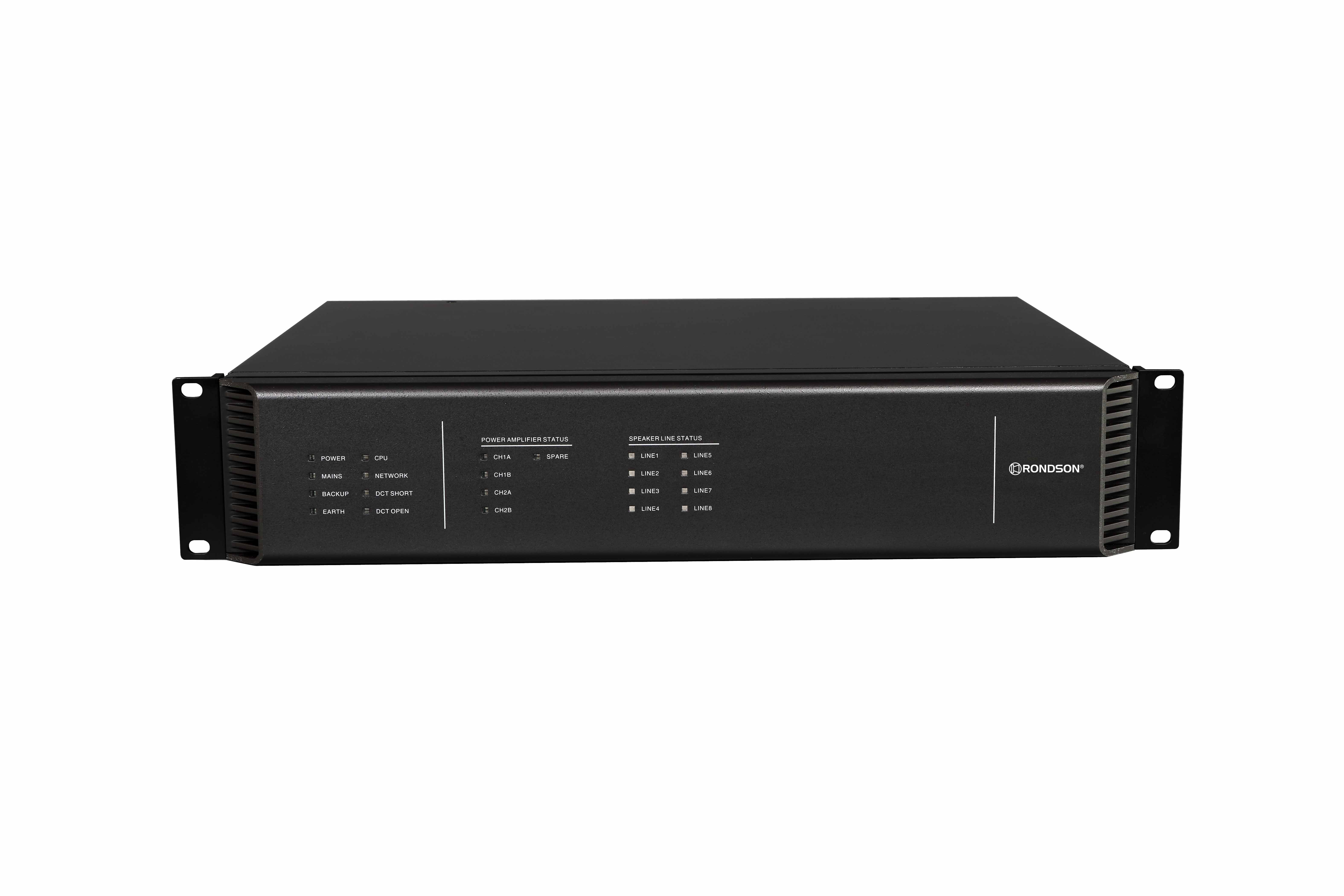

8-zone Expander for EVA-3000 Series

Name: 8-zone Expander for EVA-3000 Series
Brand: RONDSON
SKU: EVA-EXT3100

Reference : EVA-EXT3100

SKU : 02945

EAN13 : 3701567914324

The Rondson EVA-3000 public address and voice alarm system
is the ideal solution for individual buildings.

Price at : contact@rondson.com

Description

Product sheet in PDF

EVA-EXT3100 is a zone expansion device designed to increase the number of speaker lines and interfaces. EVA-EXT3100 can provide interfaces for 16 speaker lines (corresponding to 8 zones), 8 dry contact inputs, and 8 dry contacts. External power amplifiers must be connected to power all speakers.

Features:

PARAMETERS	VALUES
Main power supply	AC 100-240V, 50/60Hz
Backup power supply	21.5V DC - 28.5V DC
Fuse	T2AL 250V
Power consumption	35W
Line input
Input signal	1V(0dBV)
Input impedance	10 KΩ
Frequency response	80Hz-18KHz, ±3dB
SNR	>80dB A-weighted
Audio output
Output channels	CH1, CH2
Output signal	1V (0dBV)
THD	<0.1%
Internal power amplifier
Number	3 (CH1, CH2 and spare amplifier)
Output signal	1.4V
THD	<0.1%
Signal monitoring	Self-test, amplifier fault and energy-saving control signal
Speaker interface
Zone number	8, each zone has 2 speaker lines (A and B).
Max. load power	500W
Input/Output Contact
Dry contact input	8 dry contact inputs with supervision
Contact Output	8 dry contact outputs (NO, NC and COM)
Max output voltage	AC 250V/DC 30V
Max output current	2.5A
Others
DC output power	24V/1A
Operating conditions
Relative humidity	< 95%, non-condensing
Operating temperature	-10°C~+55°C
Storage temperature	-40°C~+70°C
Specification
Dimensions (WxHxD)	482 mm×88 mm ×407 mm
Packing dimensions (WxHxD)	580mm×235mm ×552mm
Net weight	7.9Kg
Gross weight	10.7Kg
