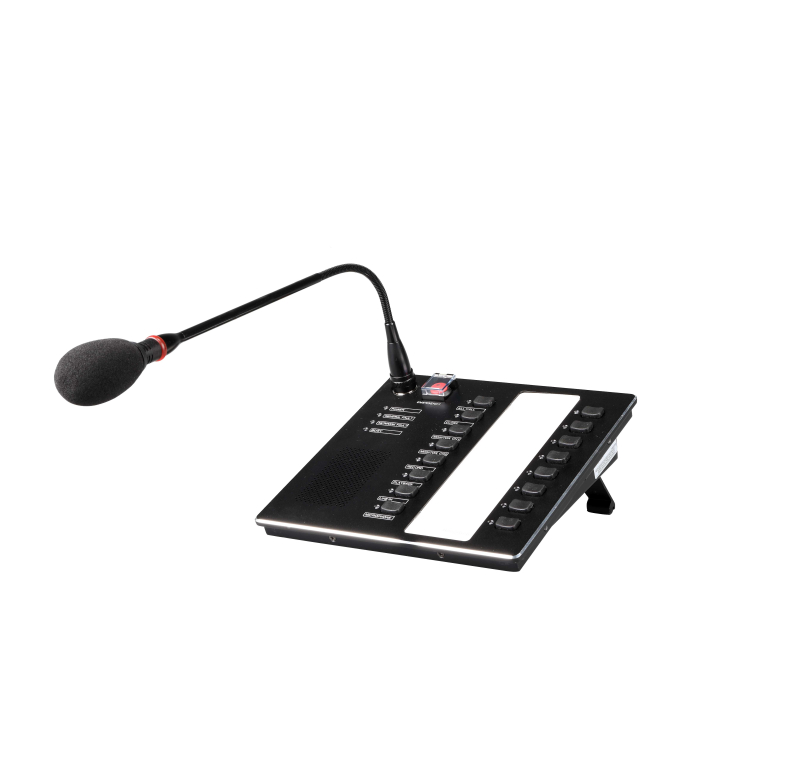

Micro 8-zone SERIE 3000 call station
EVA-MIC3000
3701567914300
02946
The EVA-MIC3000 programmable multi-zone microphone console manages the routing of announcements and background music across Rondson system zones. It strictly handles voice alarm priorities over commercial broadcasting. It features programmable keys, volume control, and integrated recording. For pricing, please contact: contact@rondson.com.
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usProduct Data Sheet (PDF)
The EVA-MIC3000 voice alarm and sound system is the ideal solution for small to medium-sized building managers. It is an integrated and cost-effective system offering a stable, flexible, and easy-to-use PA/VA solution.
Technical Specifications:
| SPECIFICATIONS | EVA-MIC3000 |
| Power Supply | 24VDC |
| Power Consumption | 10 W |
| MICROPHONE | |
| Sensitivity | -50dB±3dB |
| SNR | >60dB, A-weighted |
| Optimal sound pickup distance | 10~20cm |
| LINE INPUT | |
| Input Signal | 1V(0dBV) |
| Input Impedance | 10 KΩ |
| Frequency Response | 80Hz-18KHz, ±3dB |
| SNR | >85dB, A-weighted |
| THD | <0.1% |
| PARAMETERS | |
| Energy Consumption | 0.5W |
| Power Voltage | DC 5V |
| Number of indicators | 4 Red LEDs |
| Number of keys | 4 Configurable buttons |
| Connections | Serial data and power via CAT5 cable |
| Operating Temperature | -10°C ~ +55°C |
| Storage Temperature | -40°C ~ +70°C |
| Humidity | 95%, non-condensing |
| Dimensions (W*H*D) | 100mm × 46.5mm × 200mm |
| Packaging (W*H*D) | 403mm × 133mm × 268mm |
| Net Weight | 0.57 Kg |
| Gross Weight | 1.2 Kg |
| CATEGORY | CERTIFICATION |
| Voice Alarm | EN54-16 Certified |
| Security | CE/CB Certified |
