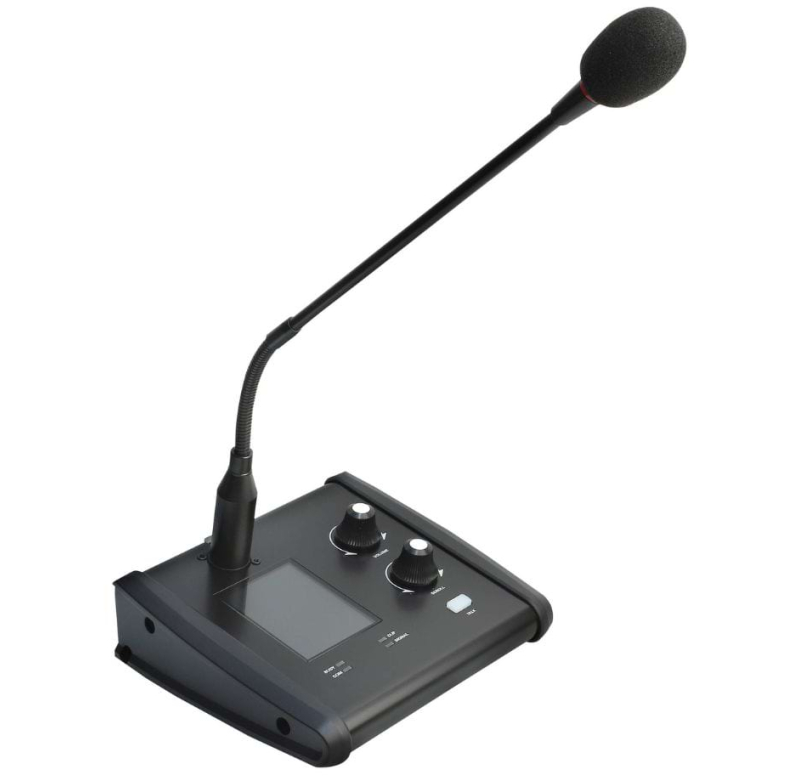

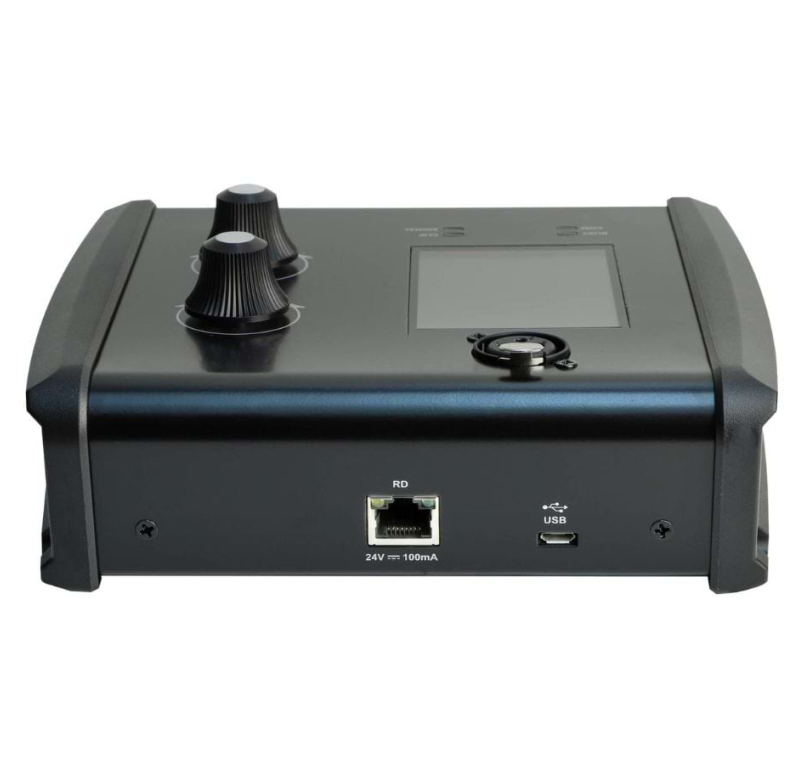

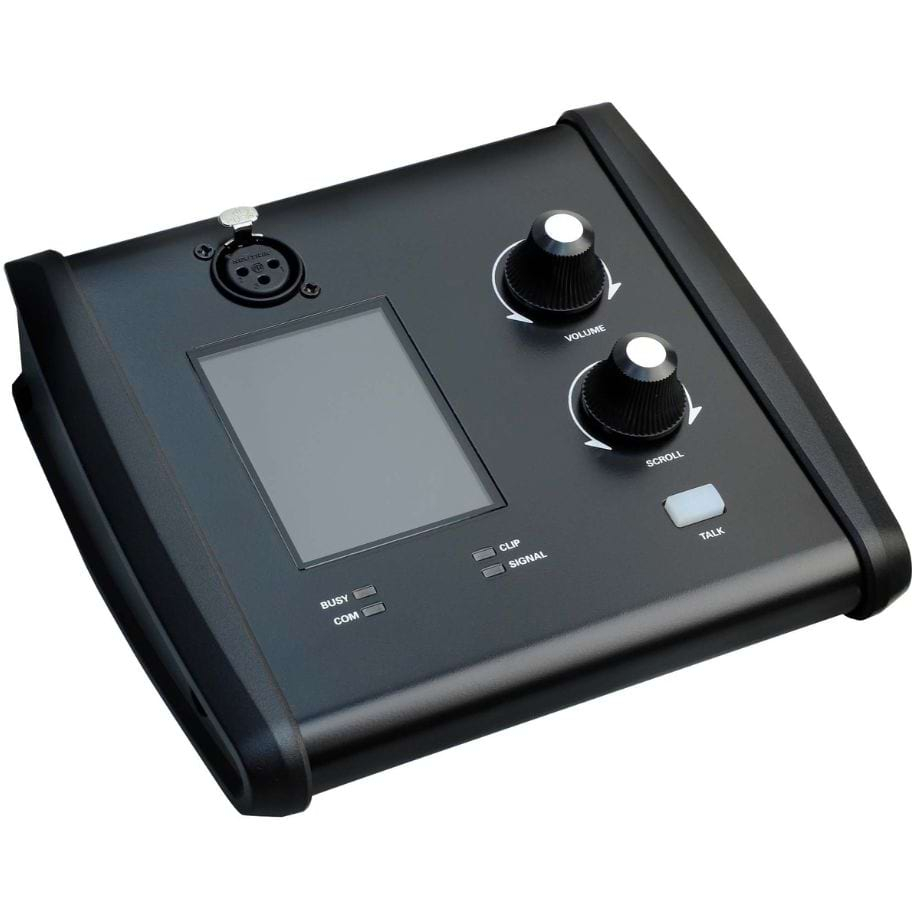

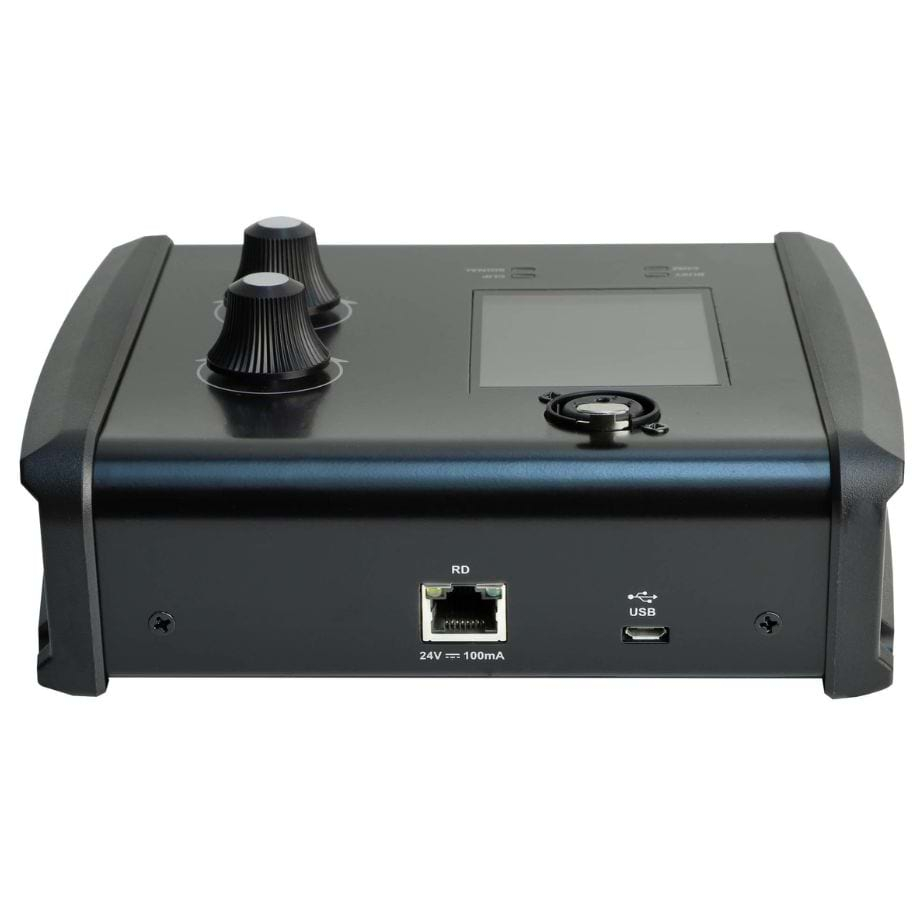

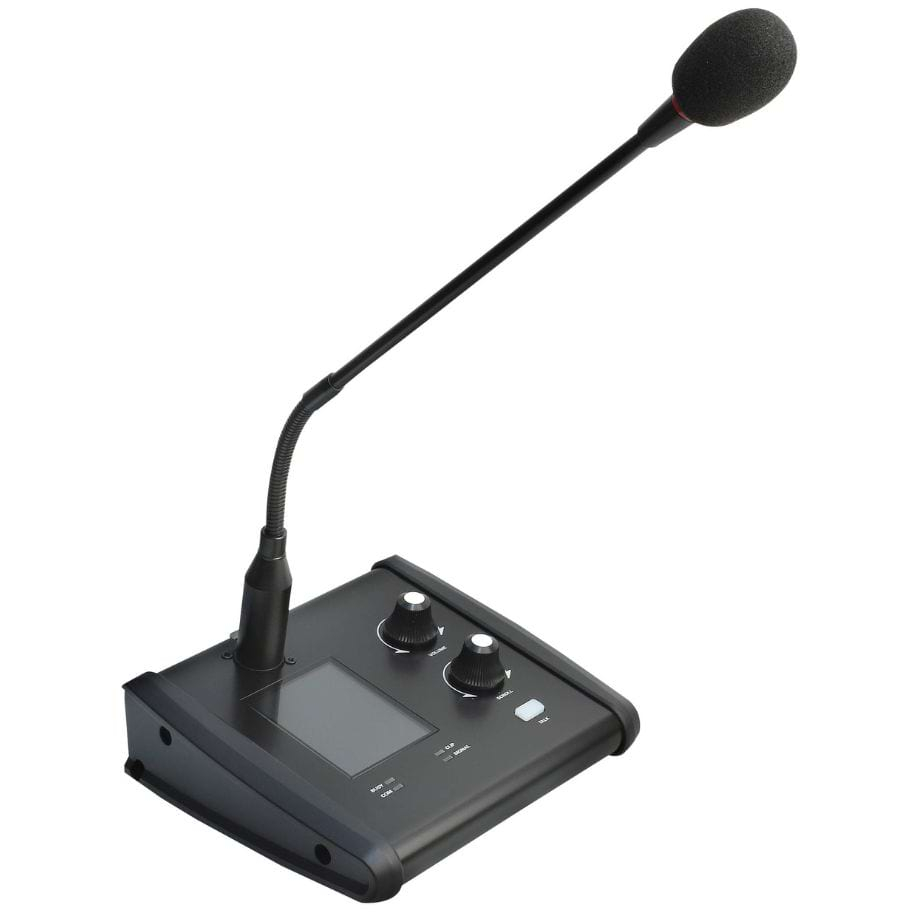

24-zone selective microphone desk (Matrix)

Name: 24-zone selective microphone desk (Matrix)
Brand: SEGON PROFESSIONAL AUDIO
SKU: JS-MATRIXMIC

Reference : JS-MATRIXMIC

SKU : 02734

EAN13 : 3701567912085

24-zone selective microphone desk (Matrix)

24-zone selective microphone desk

JS-MATRIXMIC

Download (570.3KB)

Description

Product sheet in PDF format

Features:

• Up to 64 different zone groups
• Each zone can be named and assigned
• Volume control
• Zone selection
• Push-to-talk button• Emergency mode for broadcasting priority emergency messages• XLR chassis for microphone (supplied) with phantom power• USB port for loading an MP3 chime (max. 4 seconds long) into the internal memory• RD port for connecting to digital channels 9/10 USB port for loading an MP3 chime (max. 4 seconds long) into the internal memory
• RD port for connecting to digital channels 9/10, 11/12 of the matrix
• Use CAT5e or CAT6 cable with a maximum length of 100 m

FEATURES	JS- MATRIXMIC
Type	Selective microphone console for specific areas
Gooseneck microphone	Unidirectional electret condenser microphone
Port RD	Transmits and receives AES3 digital audio data and control data to JS-MATRIX88. RJ45 port.
Total harmonic distortion	0.01%
USB port	Uploading WAV/MP3 files for chime sounds
Volume control	Microphone volume control and all-zone selector
Zone selector	24 VDC (powered by JS-MATRIX88 or JS-MATRIX88EXPAND)
Display	Displays information about the device: ID, volume, zone selector
Indicators	Signal (green), Input peak (red), Busy (red), Comm (green)
Finishes	Steel, black paint
Food	24 VDC (powered by JS-MATRIX88 or JS-MATRIX88EXPAND)
Dimensions (W x D x H)	264 x 60 x 135 mm
weight	0.87 kg
