Source selector board compatible with the T-8000 digital audio matrix

Name: Source selector board compatible with the T-8000 digital audio matrix
Brand: RONDSON
SKU: T-8000C

Reference : T-8000C

SKU : 00945

EAN13 : 3701567901607

T-8000C

Description

Characteristics :

The T-8000C and T-8000D are remote control boards that are connected to the T-8000 Matrix via standard universal CAT 5 cable when there is a need to adjust the volume of sources or make calls from remote locations in the matrix.
Each control matrix has 8 x RJ-45 sockets for remote control from the preamp module.
CAT 5 cabling is used because of cost, ease of installation, but also because it integrates RJ 485 communication, audio transmission and 24 V power supply at the same time.
This family of modules also includes a more complex model the T-8000B

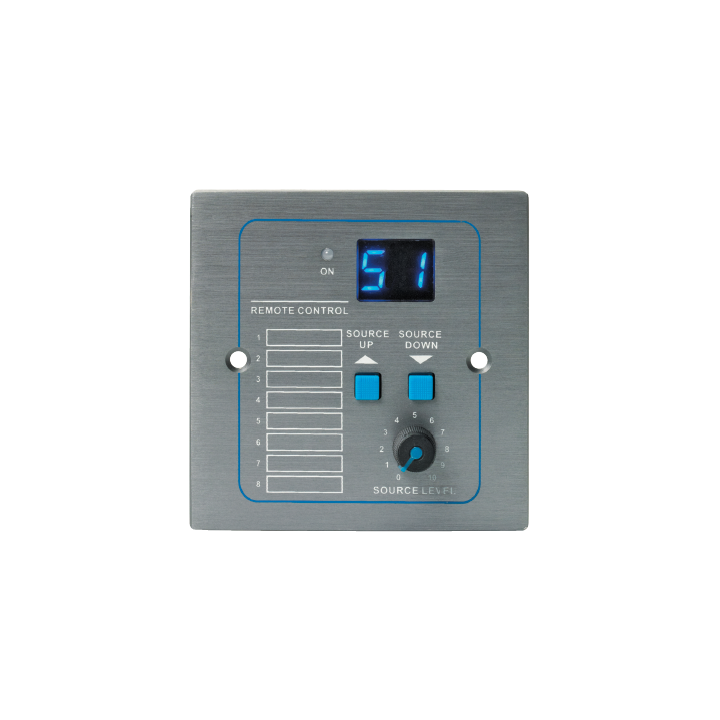

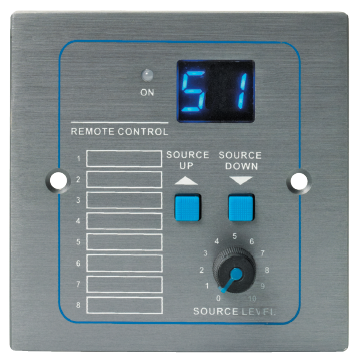

LED area display and up and down buttons, volume potentiometer for adjusting the general output level (T-8000C)
2 XLR microphone remote control inputs with volume and tone control and music priority for calls (T-8000D)
DC 24V power supply provided by the matrix, low power consumption 5 W
Operating principle analogue/digital conversion to adjust the matrix volume

SPECIFICATIONS	T-8000C	T-8000D
Serial communication speed	4800 bps	4800 bps
Serial communication distance	1 Km maximum	1 Km maximum
Microphone input sensitivity		5 mV /600 Ω
Audio output		0 dB / 600 Ω
Frequency Response		100 Hz - 18 000 Hz (± 1 dB)
Signal to Noise Ratio		MIC > 65 dB
Distortion at 1 KHz		< 0.1 %
Settings	Volume	Volume
Power supply	24 V DC	24 V DC
Power consumption	5 W	5 W
Dimensions (W x D x H)	86 x 33 x 86 mm	146 x 33 x 86 mm
Weight	300 g	150 g
