MIC/AUX preamplifier turntable

Name: MIC/AUX preamplifier turntable
Brand: RONDSON
SKU: T-8000B

Reference : T-8000B

SKU : 00944

EAN13 : 3701567901614

T-8000B

Description

Characteristics :

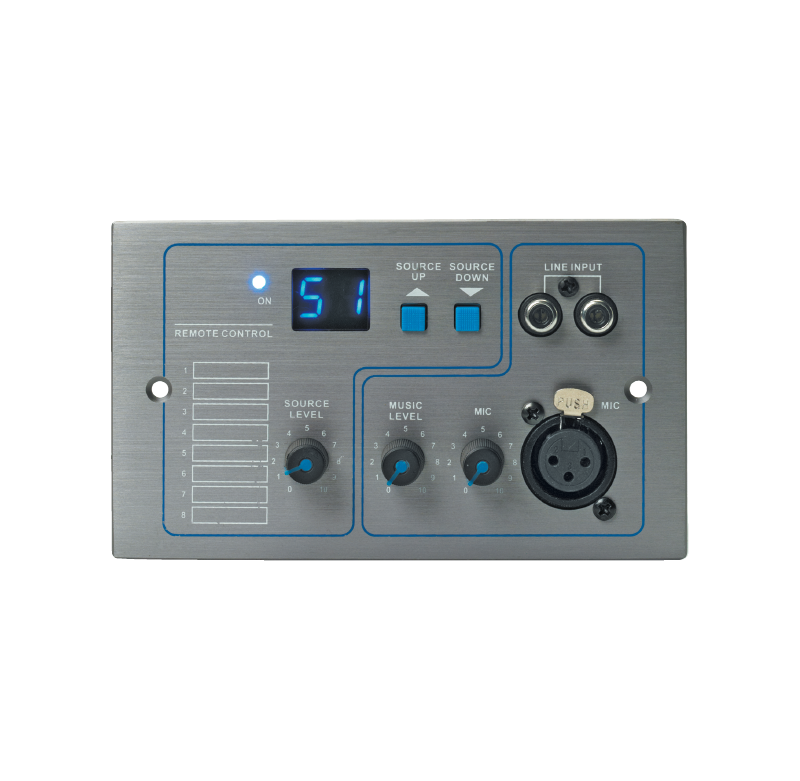

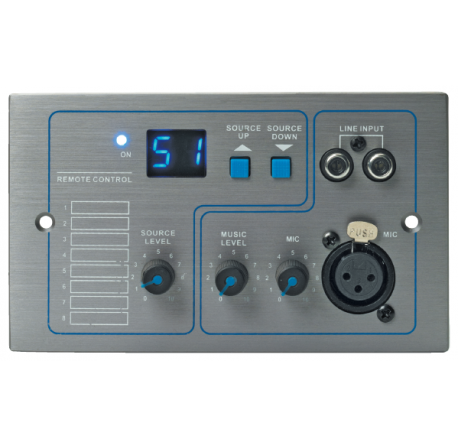

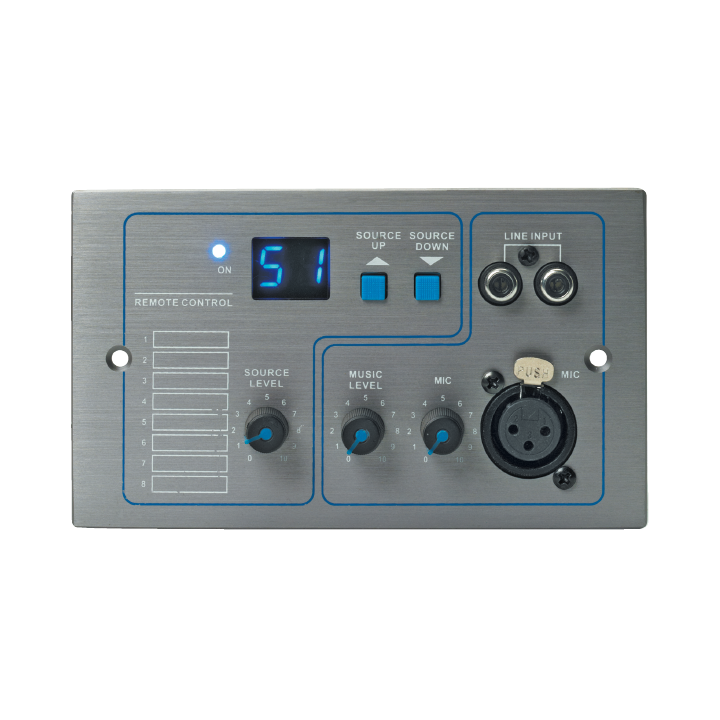

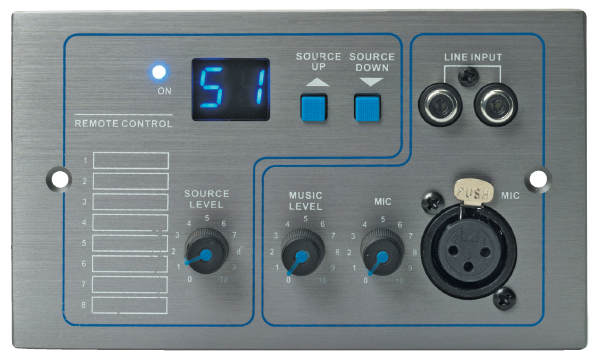

The T-8000B is a remote control board with an audio input module connected to the T-8000 matrix by standard universal CAT 5 cable for volume control of each of the 8 zones or remote control line and microphone input from different locations remote from the control centre.
Each control matrix is equipped with 8 x RJ-45 jacks for remote control with remote input module.
CAT 5 cabling is used for reasons of cost, ease of installation, but also for the integration of RS 485 communication, audio transmission and 24 V power supply at the same time.
This family of modules also includes single models T-8000C and T-8000D.
Line remote control on dual RCA input and Microphone on XLR input with gain controls
LED display of the area and up and down buttons
Volume potentiometer for adjusting the general output level
DC 24V power supply provided by the matrix, low power consumption 5 W
Operating principle analogue/digital conversion to adjust the matrix volume

SPECIFICATIONS	T-8000B
Serial communication speed	4800 bps
Serial communication distance	1 Km maximum
Microphone input sensitivity	500 mV /600 Ω
AUX input sensitivity	350 mV / 10 KΩ
Audio output	0 dB / 600 Ω
Frequency Response	100 Hz - 18 000 Hz (± 1 dB)
Signal to Noise Ratio	MIC > 65 dB AUX > 75 dB
Distortion at 1 KHz	< 0.1 %
Settings	Volume
Power supply	24 V DC
Power consumption	5 W
Dimensions (W x D x H)	146 x 33 x 86 mm
Weight	500 g
