Sound system extension box 2 audio source modules

Reference : ME-2A
SKU : 01012
EAN13 : 8809267793203

Sound system extension box for slots for 2 JD-MEDIA audio source modules

Share

Description

  • 19" Rackable and adaptable case for sound system cabinet or tabletop, size 2U

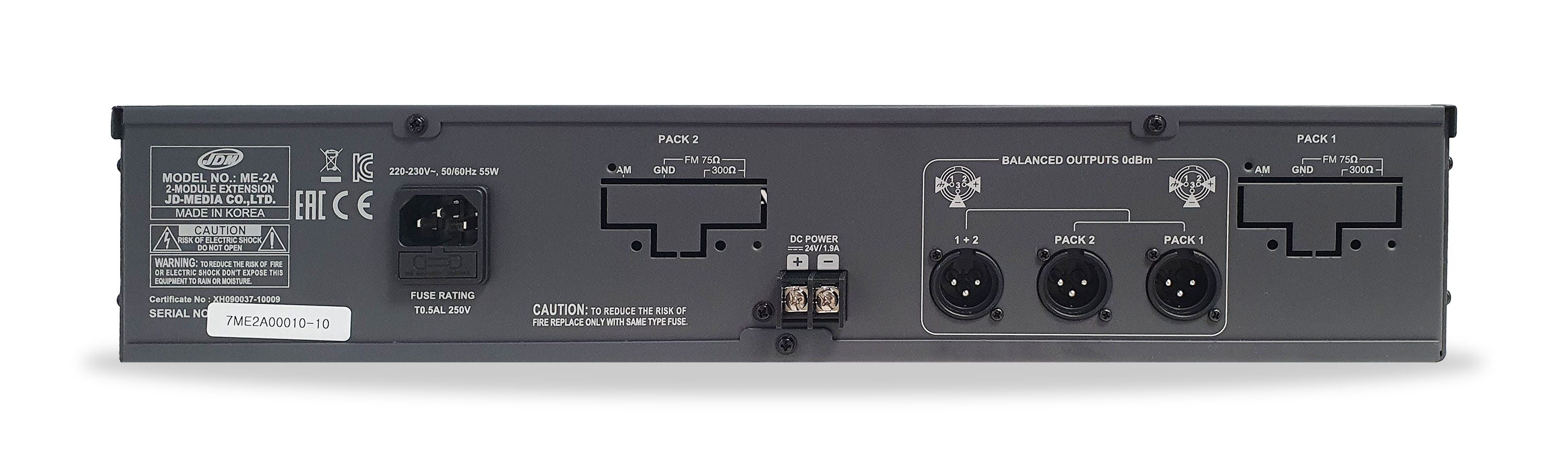

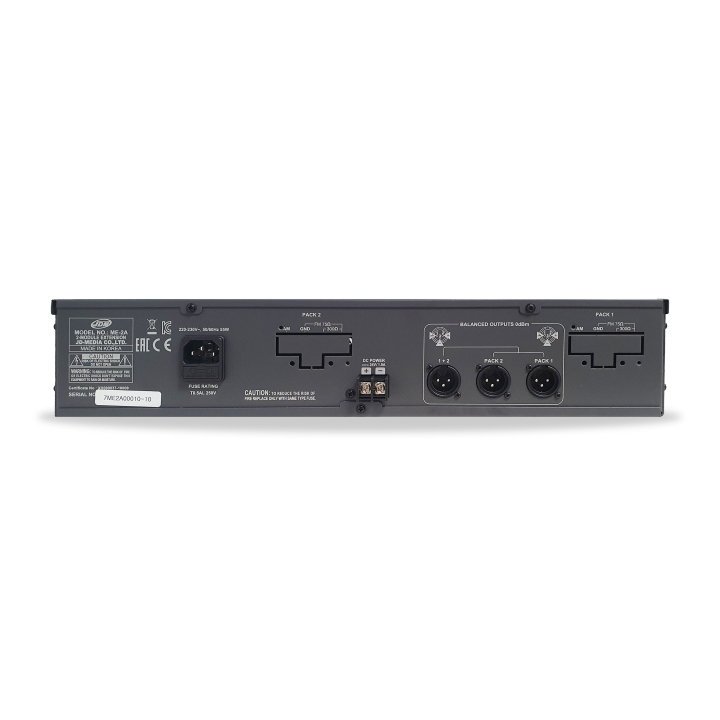

  • Balanced XLR outputs for individual or mixed modules
  • Expansion Soundbox for 2 media modules (DMT-100-2, CDP-100MU, CDR-100RDSU, TP-100RDS, TM-100, EM-600)
  • Power supply AC 230V / DC 24V
SPECIFICATIONS ME-2A (CODE 01012)
Output level / Impedance

pack-Nor module: 0 dBm (0.775 V) 600 Ω symmetrical

1+2 Nor: 0 dBm (0.775 V) 600 Ω symmetrical
Frequency Response 20 Hz – 20 000 Hz ± 0,5 dB
Signal-to-noise ratio > 68 dB
Power consumption 55 W
Power supply AC 230V / 50 Hz / DC 24 V
Dimensions (W x D x H) 483 x 350 x 88 mm (2 U)
Weight 5 kg

Product Details

  • Brand
  • Reference
    ME-2A
  • SKU
    01012
  • EAN13
    8809267793203
