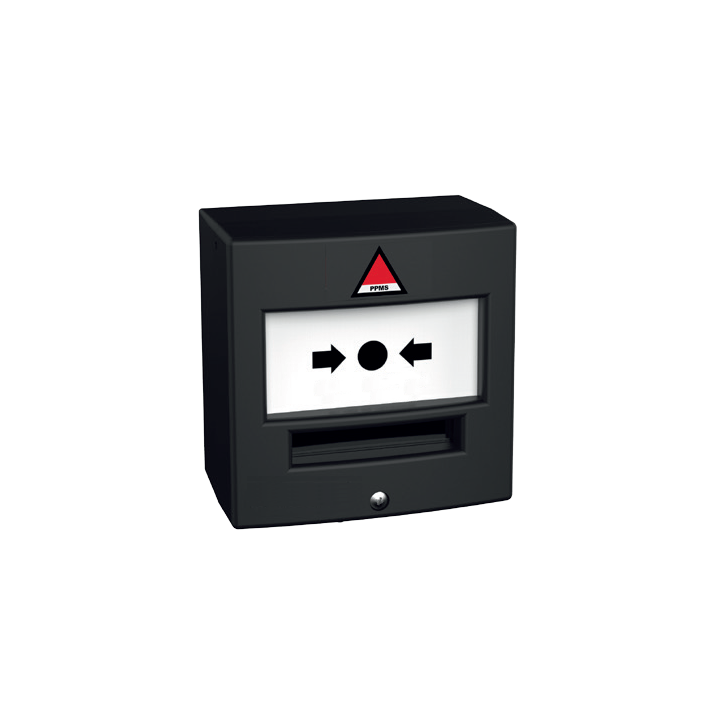

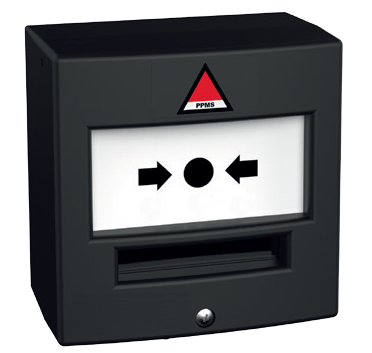

Universal black manual release - single contact
Reference : BP1
SKU : 02356
EAN13 : 3701567909184
Description
Description
Manual triggers for remote alarm management. They are generally used on PPMS (Plan Particulier de Mise en Sûreté) installations, particularly when schools are being brought up to standard.
Features
It is equipped with :
- A black ABS case
- Quick installation, surface or flush mounting
- Easy to use
| CHARACTERISTICS | BP1 |
| Type | Manual triggers |
| Contact | 1 |
| Material | Black ABS |
| Envelope protection | IP 40 / IK 07 |
| Electric shock protection | Class II |
| Storage temperature | -10°C / + 70°C |
| HR operation | -95% |
| Degree of ignition | UL94-VO |
| Operating voltage | 0-24Vcc |
| Switching capacity |
250 vac -3 |
| Resistance | 1 kOhm - 1/2 W |
| Type A | Immediate operation |
| Connection | On wire |
| Dimensions mm (W x D x H) | 87 x 87 x 53 mm |
| Weight | 0,14 Kg |
