Remote control module for PPMS

Name: Remote control module for PPMS
Brand: RONDSON
SKU: TEL-PPMS

Reference : TEL-PPMS

SKU : 02509

EAN13 : 3701567901577

Remote control module for PPMS with remote control to trigger an alarm or evacuation message remotely

Description

Product sheet in PDF format

SEE OUR DOCUMENTATION PPMS

Description :

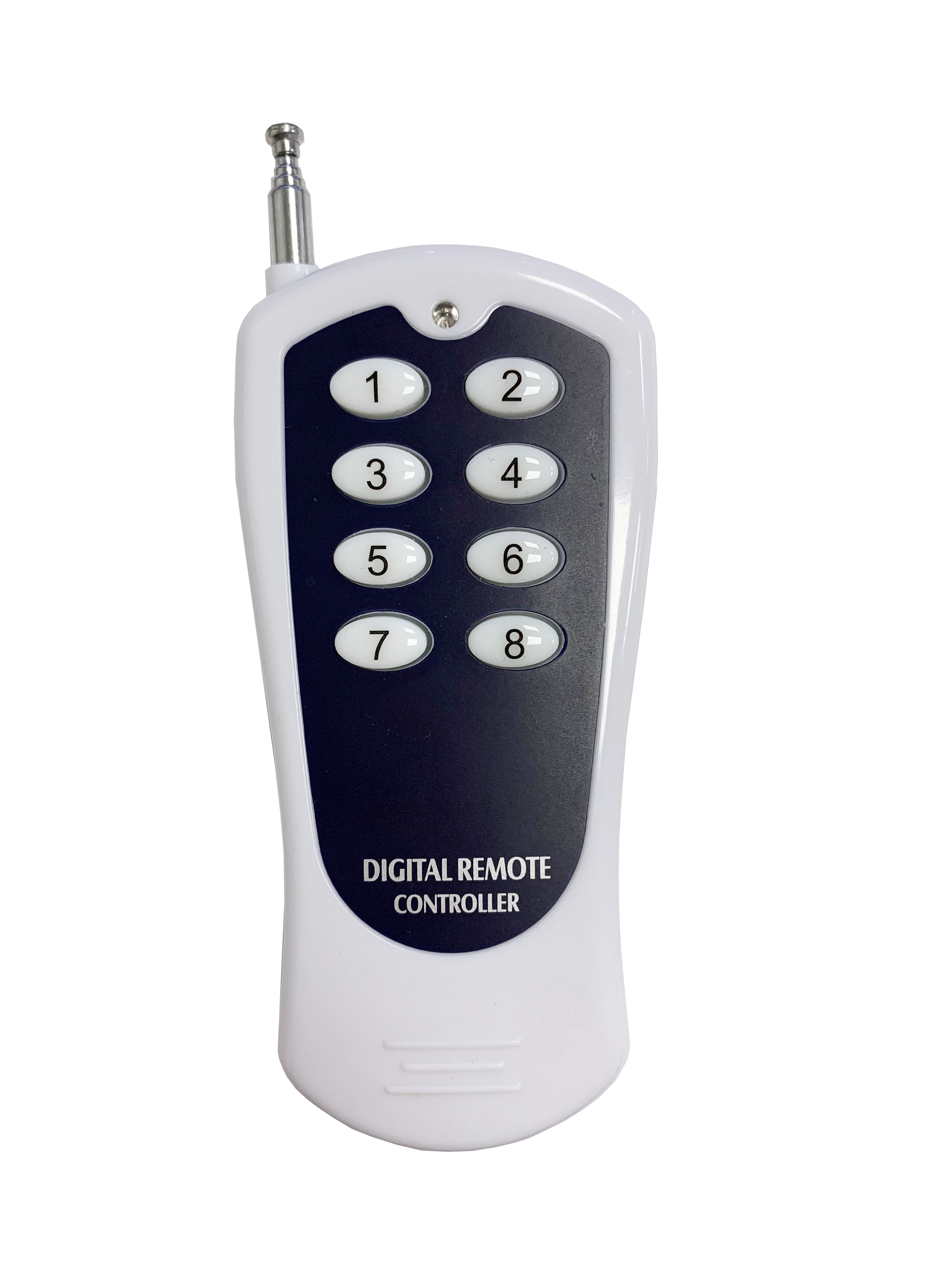

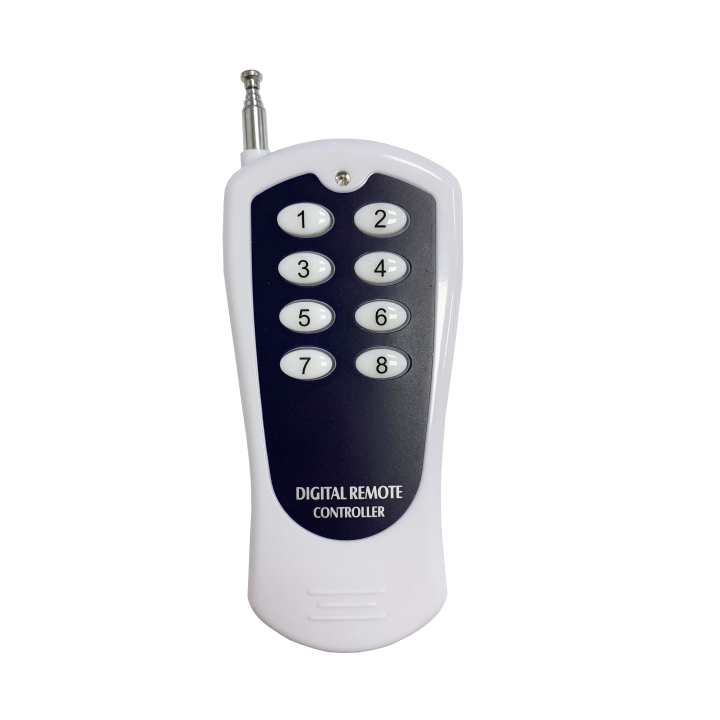

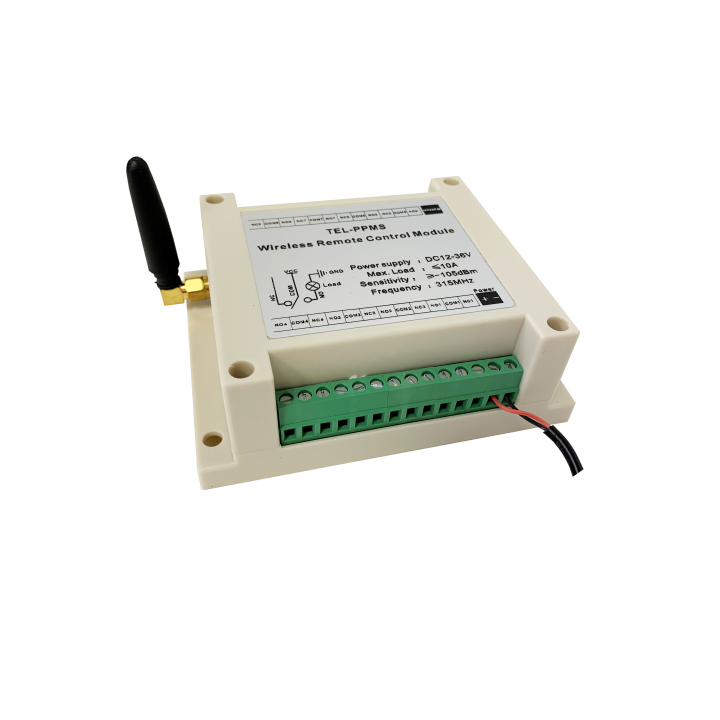

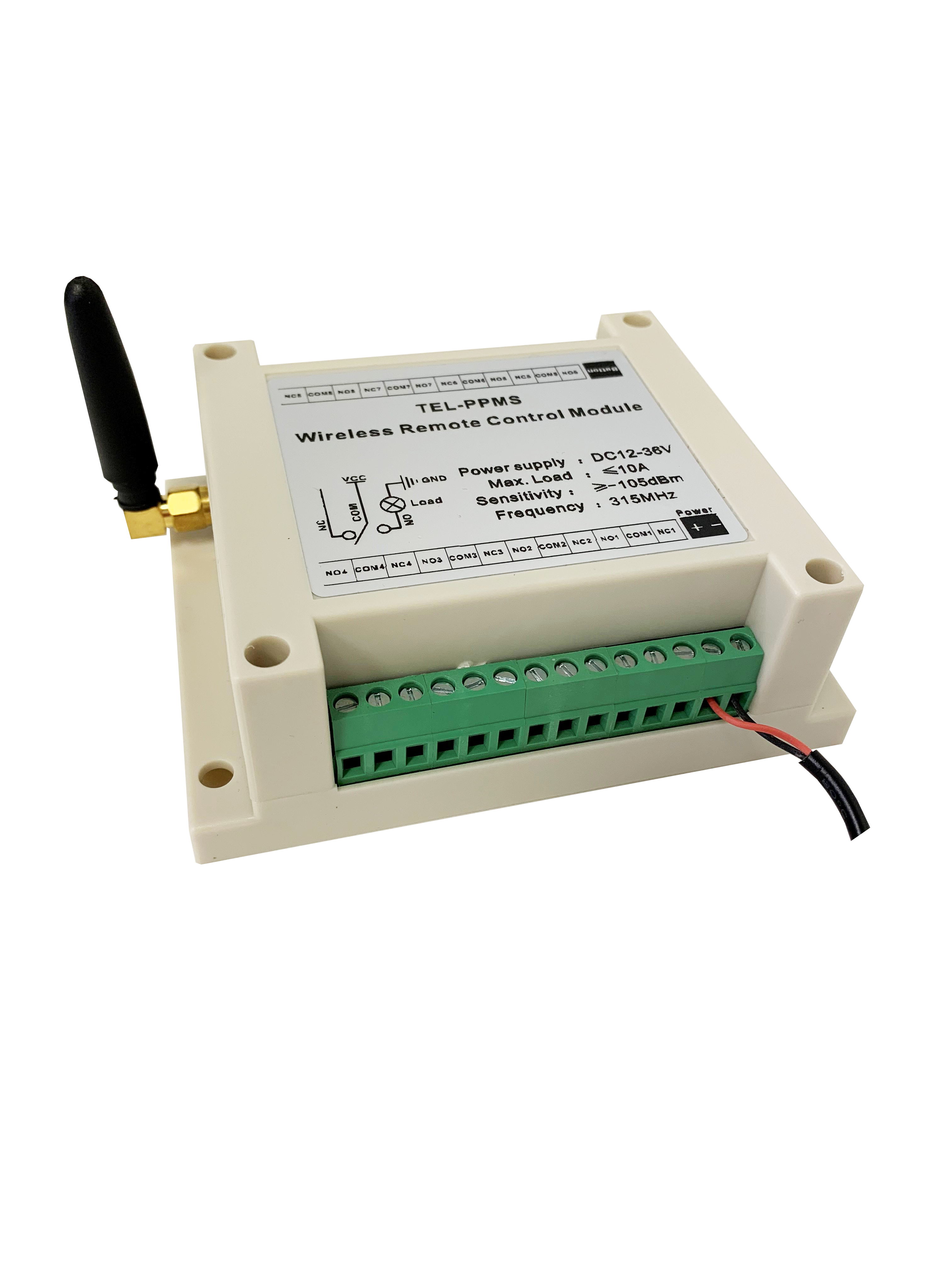

This remote control module and its remote control provide a radio system for a PPMS installation in a public building. It can trigger an alarm or evacuation message to quickly ensure the safety of everyone present in the event of an incident.
The TEL-PPMS must be connected to one of our DMT-PPMS or DMT-100-2 message readers.

Package contents:

• 1 remote control box• 1 remote control• 1 instruction manual

FEATURES	Tel-PPMS
Type	Remote control module for PPMS
Material	ABS
Interior assembly	Sailli
Cable type and cross-section	CR1 - 1.5 mm²
Maximum length:	1000 m
Frequencies:	315 MHz - 433 MHz
RMS current	5 (12V) - 6 (24V) - 4 (48V)
Charge current	10 A
sensitivity	-105 dBm
Storage temperature	-40°C / +80°C
HR operations	-95%
Food	From 12 to 36 V
Dimensions in millimetres (W x D x H)	97 x 77 x 26
weight	0.200 kg
