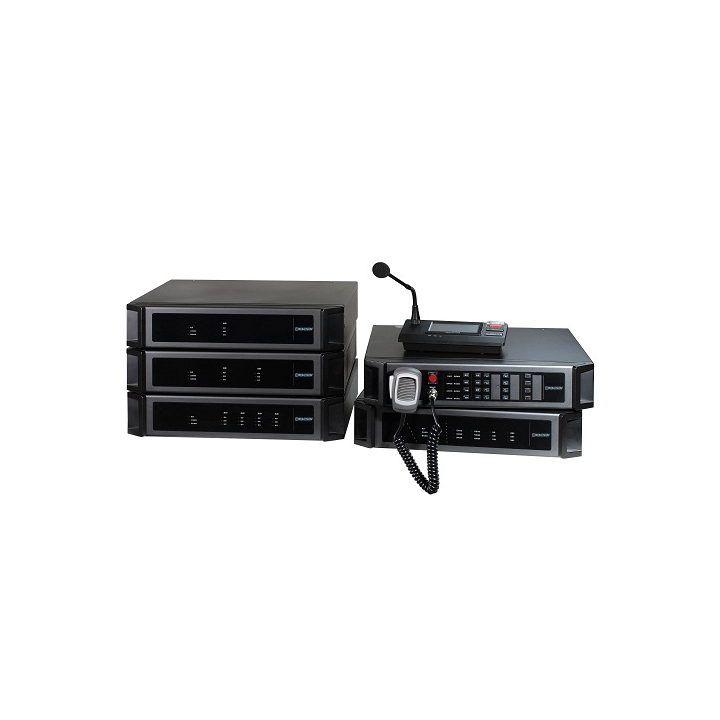

EVA-2000 Complete Alarm and Evacuation System

Name: EVA-2000 Complete Alarm and Evacuation System
Brand: RONDSON
SKU: EVA-2000/EN

Reference : EVA-2000/EN

SKU : 02457

EAN13 : 3701567906725

Management and monitoring station

RATE: consult us on contact@rondson.com

EVA-2000 EN

Download (4.51MB)

Description

Control and monitoring unit / 8 zones
Automatic volume control
Expandable to 2000 zones via IP
Programmable front panel keypad

Description:

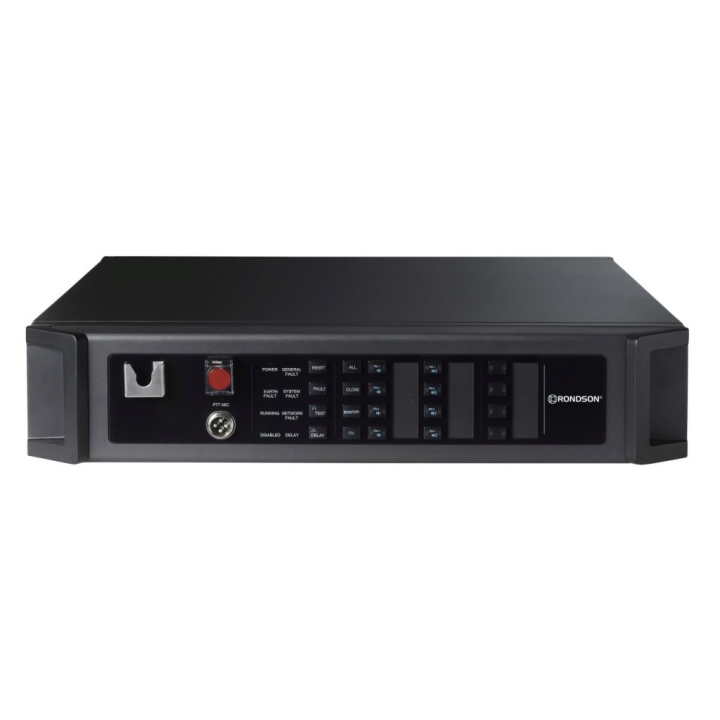

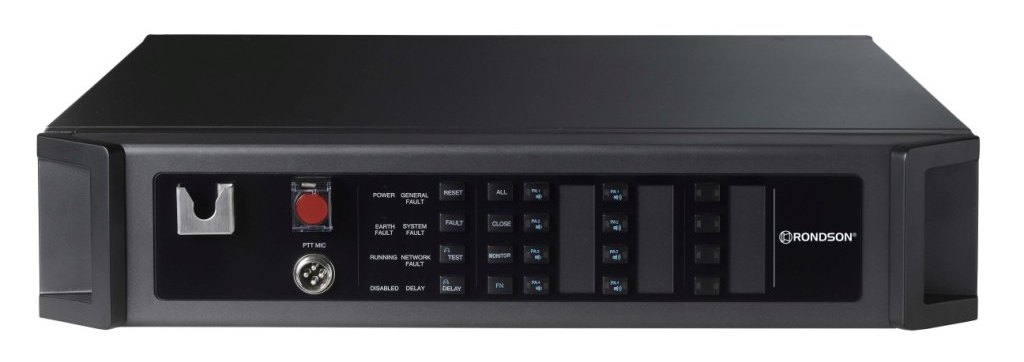

The EVA-2000/EN is the central unit of the EVA-2000 digital public address and evacuation system.

The EVA-2000/EN incorporates a wide range of functions such as zone expansion, multiple audio source connection, audio file storage, net audio, broadcast, zone control, loudspeaker line monitoring, and fault detection. The EVA-IP SOFT system management software allows users to control and monitor the system easily and efficiently.

SPECIFICATIONS	EVA-2000/EN
Type	Control and monitoring unit EN-54/16 8-zone matrix
Power supply
mains supply	100-240 V- 50/60 Hz
Emergency power supply	DC 21,5V – 28,5 V
Maximum input power	120 W
Power rating	50 W
Audio input
Auxiliary input	1V (0dBV)
Input impedance	20 KΩ
Frequency Response	60 Hz – 16000 Hz
Signal to noise ratio	> 85 dB
Audio Output
Output channels	4
Output signal	1,2V (1,6dBV)
Recording output	1V (0dBV)
Input with automatic volume control
Channels	4
Input signal	14mV (-37dBV) ou 330mV (-9,6dBV) Configuration by switch
Input impedance	20 KΩ
Phantom power	24 V DC (Configuration by switch)
Frequency Response	60 Hz – 16000 Hz
Signal to noise ratio	> 65 dB
Loudspeaker circuit
Output channels	8 with fault detection circuit
Maximum loading power	500 W (if the supervision line is used the load power is limited to less than 250 W)
Triggered input/output
Input ports	8
Output ports	8 (NO, NC AND COM)
Maximum operating voltage	AC 250 V / DC 30 V
Maximum operating voltage	2,5 A
Others
Control speaker	10 W / 8 Ω
Ethernet speed	10 M / 100 M
Number of Ethernet interfaces	4
Storage space	1 GB
Operating conditions
Moisture	< 95 %, non-condensing
Operating temperature	-10° C ̴ + 55° C
Storage temperature	- 40° C ̴ +70° C
General characteristics
Dimensions W x D x H	482 x 420 x 88 mm
Weight	9,3 Kg
