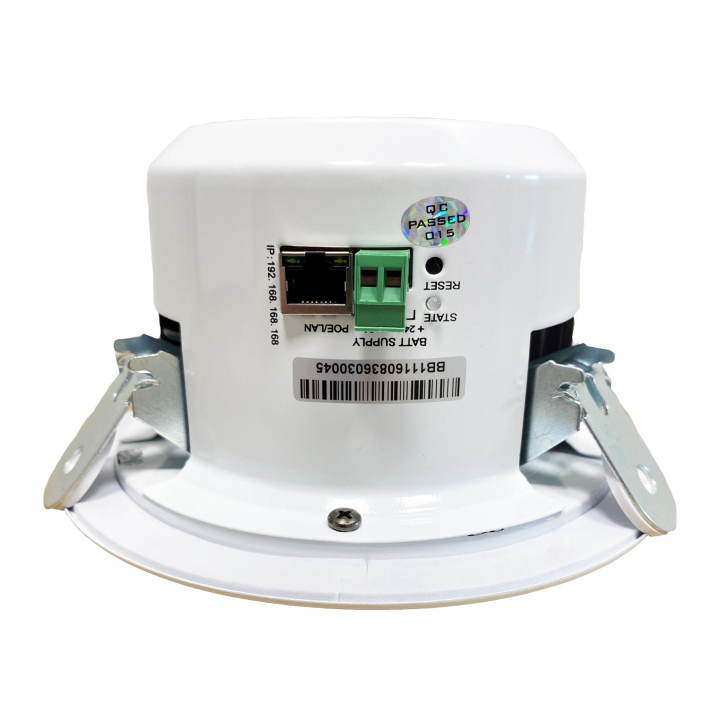

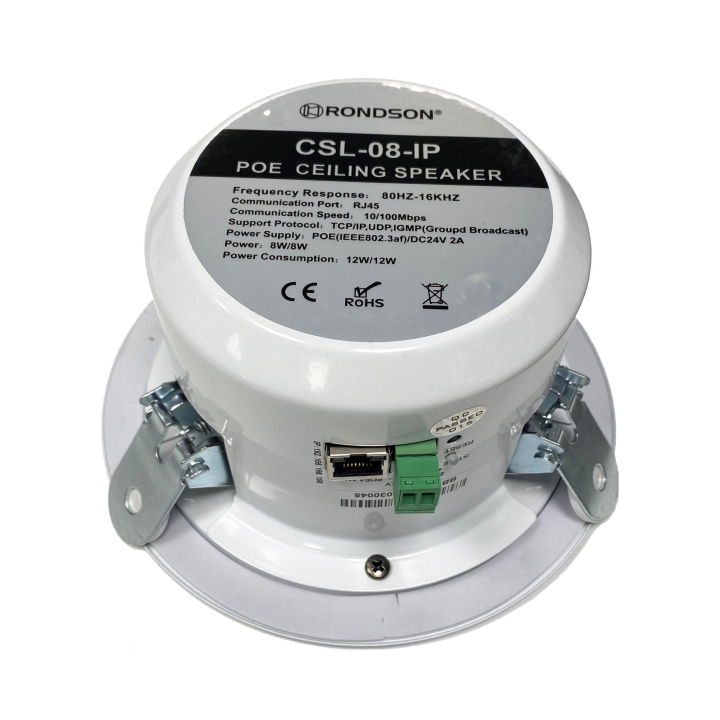

POE 8W IP Ceiling Speaker

Reference : CSL-08-IP
SKU : 02528
EAN13 : 3701567907814

8W POE IP Ceiling Speaker

TCP/IP audio decoding function, RJ45 POE power supply via Cat6-type cable.

Remote management and control through AM IP SOTWARE software

Power output
Sonorisation sur IP
Share

Description

  • 8W POE IP speaker for recessing in all types of false ceilings
  • Quick release fastener

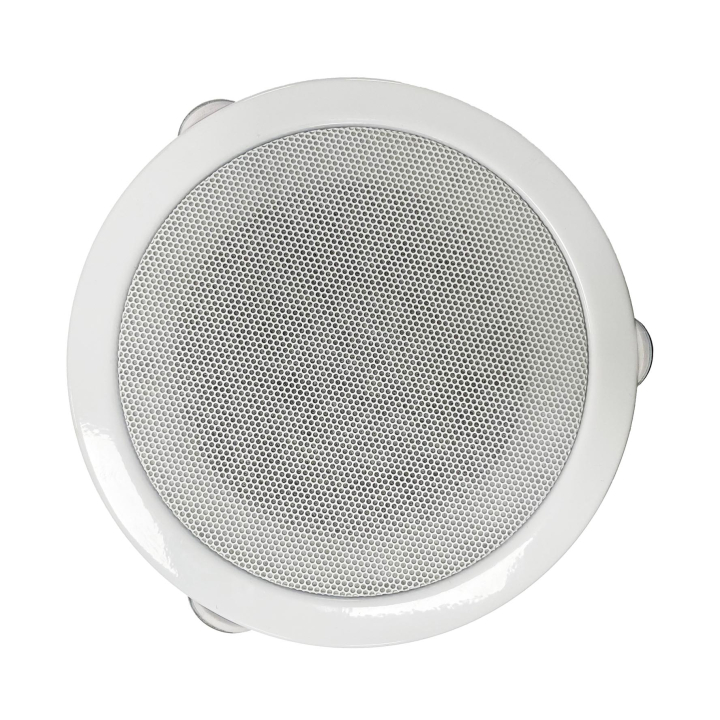

  • Metal with white lacquered grille
SPECIFICATIONS CSL-08-IP
Type Ceiling speaker
Material ABS Metal grille
Colour White
Audio format MP3
Communication protocol TCP/IP, UDP, IGMP (multicast)
Frequency Response  80 – 16 000 Hz
Sampling rate 8k - 48KHz
SN ratio 68 dB
Baud rate 100 Mbps
Directivity 180 °
Covered area at 4 or 5 m high : 65 to 100m²
Power

8W
Impedance

8Ω
Consumption

12W
Connecting interface RJ45
Power supply POE(IEEE 802.3af) / DC 24V 2A
Dimensions (Ø x h) Ø 180 x 98 mm
Weight 0,8 kg
Hole for mounting Ø 160 mm

Product Details

  • Brand
  • Reference
    CSL-08-IP
  • SKU
    02528
  • EAN13
    3701567907814
