240W 6-zone 100 Volt preamp with DC24V
8809267791131
01164
240W Preamplifier Amplifiers
6 zones
100V Line
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usProduct sheet in PDF format
6-zone preamplifier amplifiers with integrated audio source modules and compatible microphone consoles.
Features:
1 – AMPLIFICATION SECTION

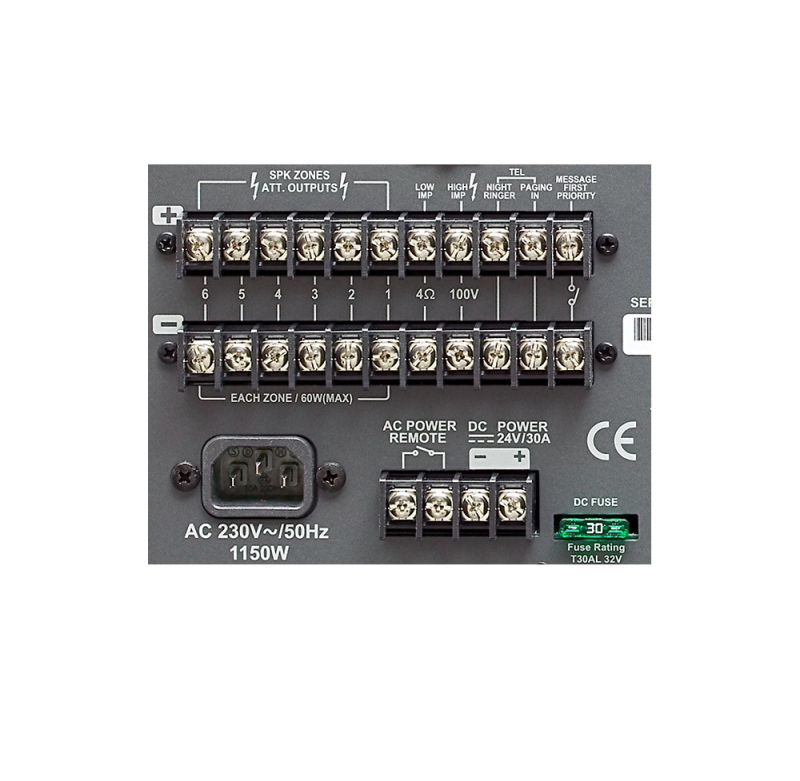

• 6 outputs for 100-volt speaker zones or direct output 4Ω / 100V
• 6-position attenuator per zone
• LED output level indicator
• L.P. Circuit
• Overvoltage, overheating and short circuit protection
• Automatic variable speed cooling fan
2 - OPTIONS
• FR-400 – Feedback reduction module
• FM-300 – Fault control module (MONITOR DC/AC / ventilation)
• RR-600 – Remote control interface for zone console microphones
• FD-200 – Fault detection module
3 – PREAMPLIFICATION AND OTHER FUNCTIONS
• Slot for optional audio source modules (DMT-100-2, CDP-100MU, CDR-100RDSU, TP-100RDSU)
• Entry for telephone calls and night-time ringing
• Equaliser per input or module
• Sortie PRE OUT/AMP IN
• Recording output / RCA
• DIN input for PTT microphone
• Switchable phantom power / microphone input
• Microphone gain volume control
• Terminal block for ON/OFF remote control
• RJ45 socket for remote control via zone microphone consoles: RC 600
1. Digital message
2. Carillon
3. Connection with 3 simultaneous modules (RC-600/610) (MIC 1,2,3, priority selection).
4. Wall-mounted turntable: WP-600U
| FEATURES |
FOR 6120 |
FOR 6240 |
FOR 6360 |
FOR 6480 |
FOR 6600 |
|
| Input sensitivity/impedance |
MIC/LINE 1~3 |
- 50 dBu (2.45 mV) 5 kΩ balanced - 10 dBu (245 mV) 15 kΩ balanced |
||||
|
LINE 4~5 |
- 10 dBu (245 mV) 15 kΩ unbalanced |
|||||
| TEL PAGING | - 10 dBu (245 mV) 5 kΩ balanced | |||||
| MODULE PACK UNIT | - 10 dBu (245 mV) 10 kΩ unbalanced | |||||
| REC OUT | 0 dBu (775 mV) 3 kΩ unbalanced | |||||
| PRE OUT | 0 dBu (775 mV) 200 Ω unbalanced | |||||
| AMP IN | 4 dBu (1.23 V) 10 kΩ unbalanced | |||||
| RMS output power | 120 W | 240 W | 360 W | 480 W | 600 W | |
| MAXI output power | 180 W | 360 W | 540 W | 720 W | 660 W | |
| Direct output | Low impedance: 4 Ω / High impedance: 70 V or 100 V | |||||
| ATT releases | 8.9 V, 12.5 V, 25 V, 50 V, 70 V, 100 V | |||||
| Bandwidth |
LOW: 200 Hz – 19,000 Hz – 3 dB LINE: 35 Hz – 19,000 Hz – 3 dB |
|||||
| Signal-to-noise ratio |
-3 dB (40 Hz – 20,000 Hz) |
|||||
| Harmonic distortion | -0.5% at 1 kHz | |||||
| Tone adjustment |
Bass: ±10 dB at 100 Hz High frequencies: ±10 dB at 10 KHz |
|||||
| Power consumption | 350 W | 740 W | 1150 W | 1420 W | 1690 W | |
| Power consumption 230 V | 1/8 of the power | 0,8A | 1,6A | 2,5A | 3,2A | |
| one-third of the power | 1,2A | 2A | 3,8A | 4,7A | ||
| Rated power | 1,8A | 3,2A | 6A | 7,5A | ||
| Food | AC 230V / 50 Hz / DC 24 V | |||||
| Dimensions (W x D x H) | 483 x 352 x 133 mm (3U) | |||||
| Poids | 13 Kg | 15 Kg | 19 Kg | 21 Kg | 20 Kg | |
