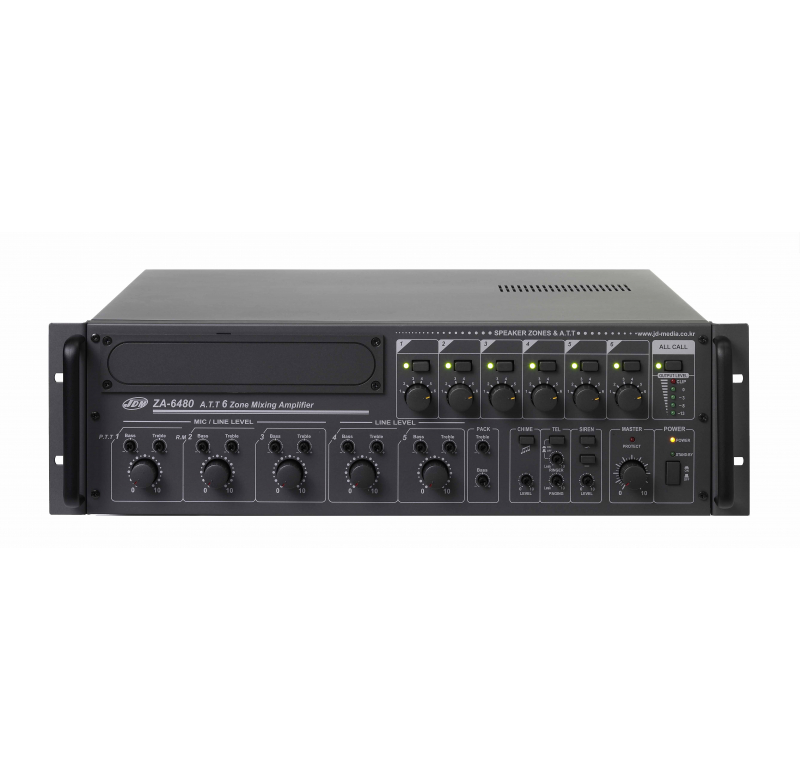

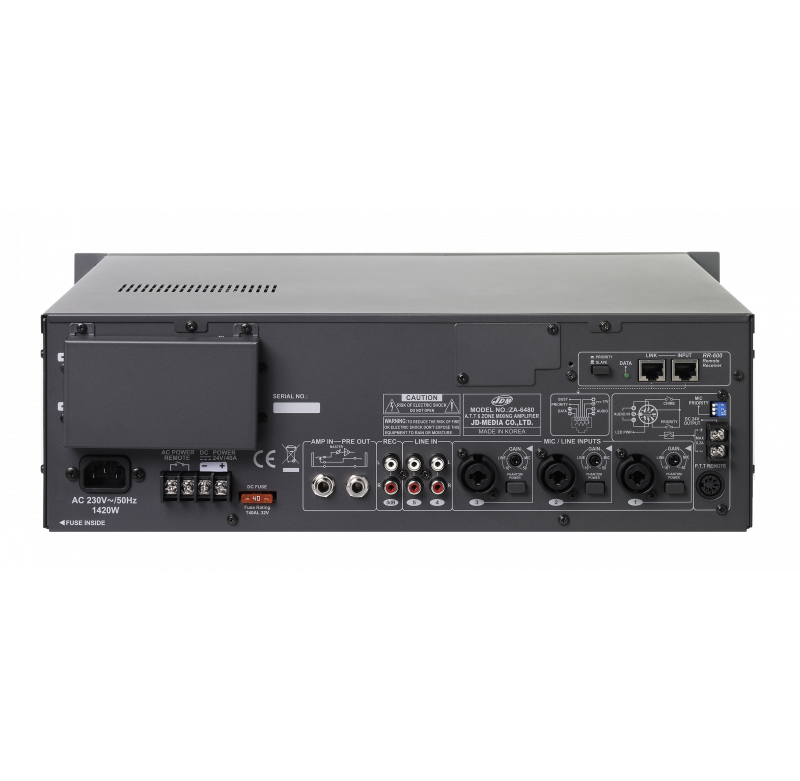

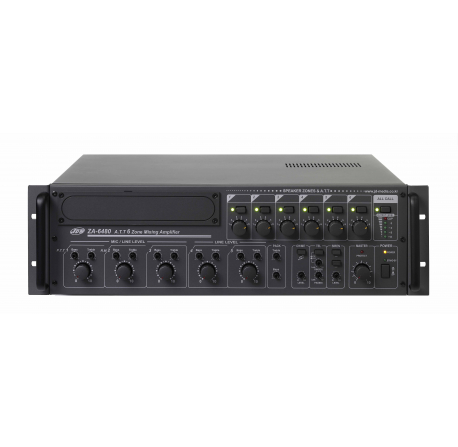

480W 6-zone 100 Volt preamp with DC24V

6-zone preamplifier with integrable audio source modules and compatible microphone consoles.

Features:

1 – Amplification section

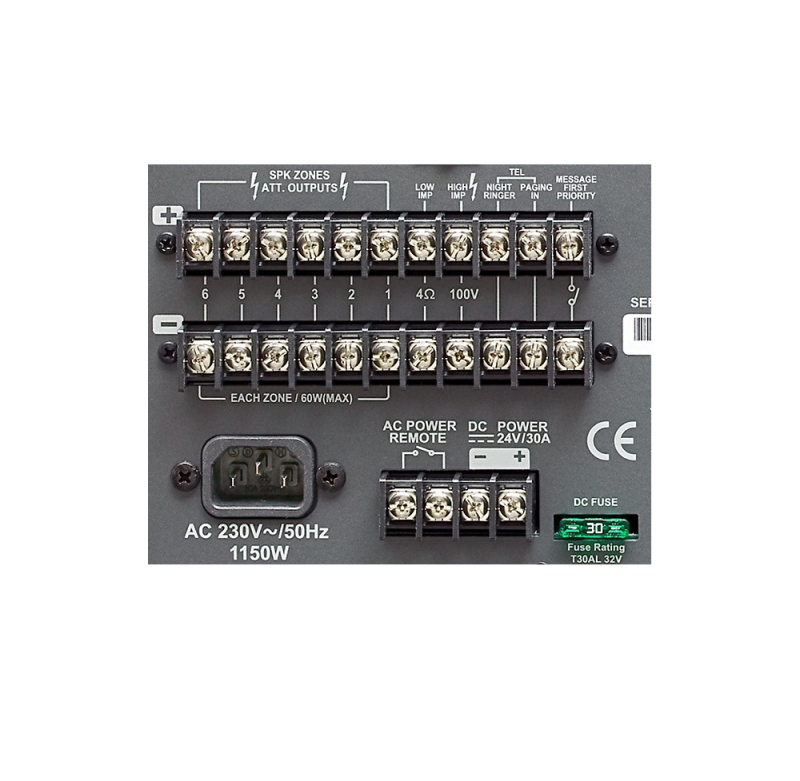

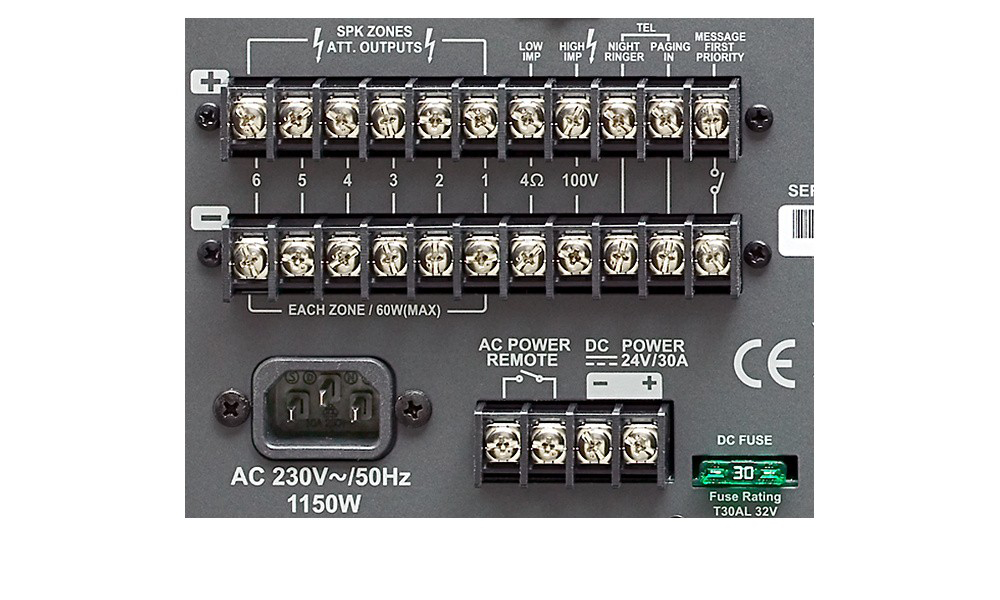

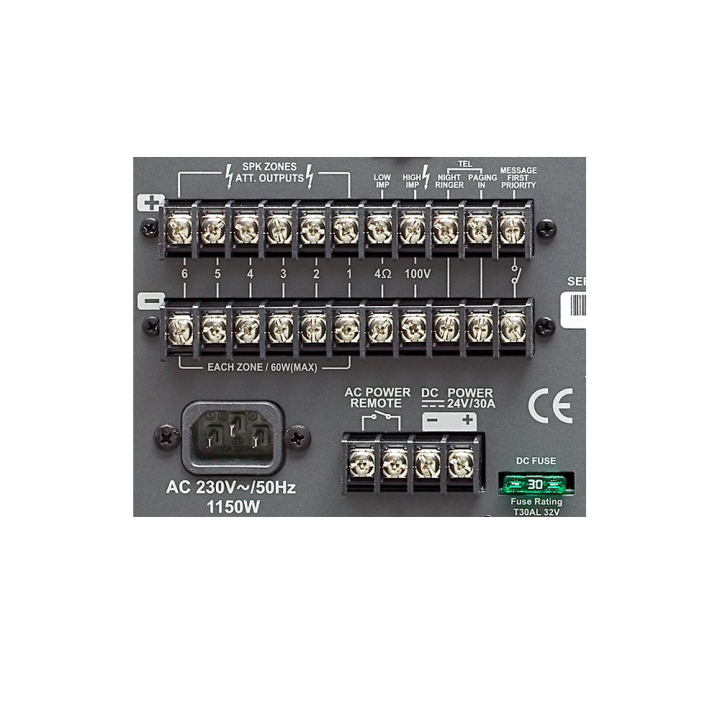

• 6 zone outputs for 100 V loudspeakers or direct 4 Ω / 100 V output
• 6-position attenuator per zone
• LED output level indicator
• L.P. circuit
• Overvoltage, overheating and short-circuit protection
• Automatic variable-speed cooling fan

2 – Options

• FR-400 – Feedback suppression module
• FM-300 – Fault monitoring module (DC/AC monitoring / ventilation)
• RR-600 – Remote control reception interface for zone microphone consoles
• FD-200 – Fault detection module

3 – Pre-amplification and other functions

• Slot for optional audio source modules (DMT-100-2, CDP-100MU, CDR-100RDSU, TP-100RDSU)
• Input for telephone calls and night-time chime
• Equaliser per input or module
• PRE OUT / AMP IN
• RCA recording output
• DIN input for PTT microphone
• Switchable phantom power for microphone input
• Microphone gain control
• Terminal block for ON/OFF remote control
• RJ45 socket for remote control via zone microphone consoles: RC-600
• Digital message function
• Chime function
• Connection of up to 3 simultaneous modules (RC-600/610) with MIC 1, 2 and 3 priority selection
• Wall-mounted unit: WP-600U
