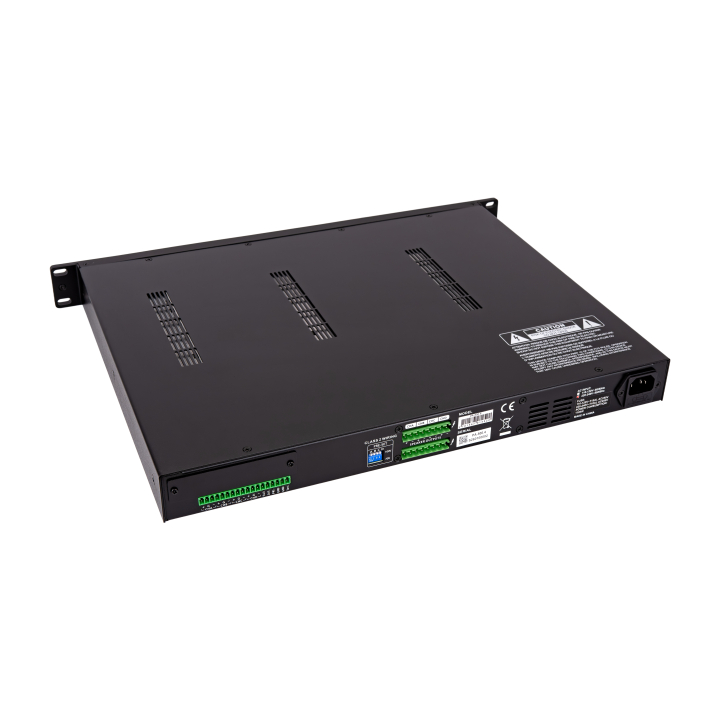

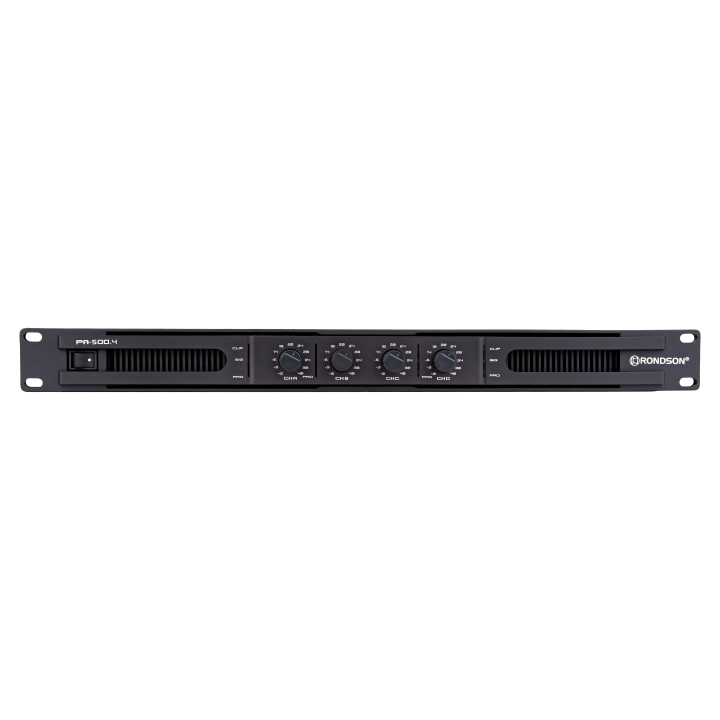

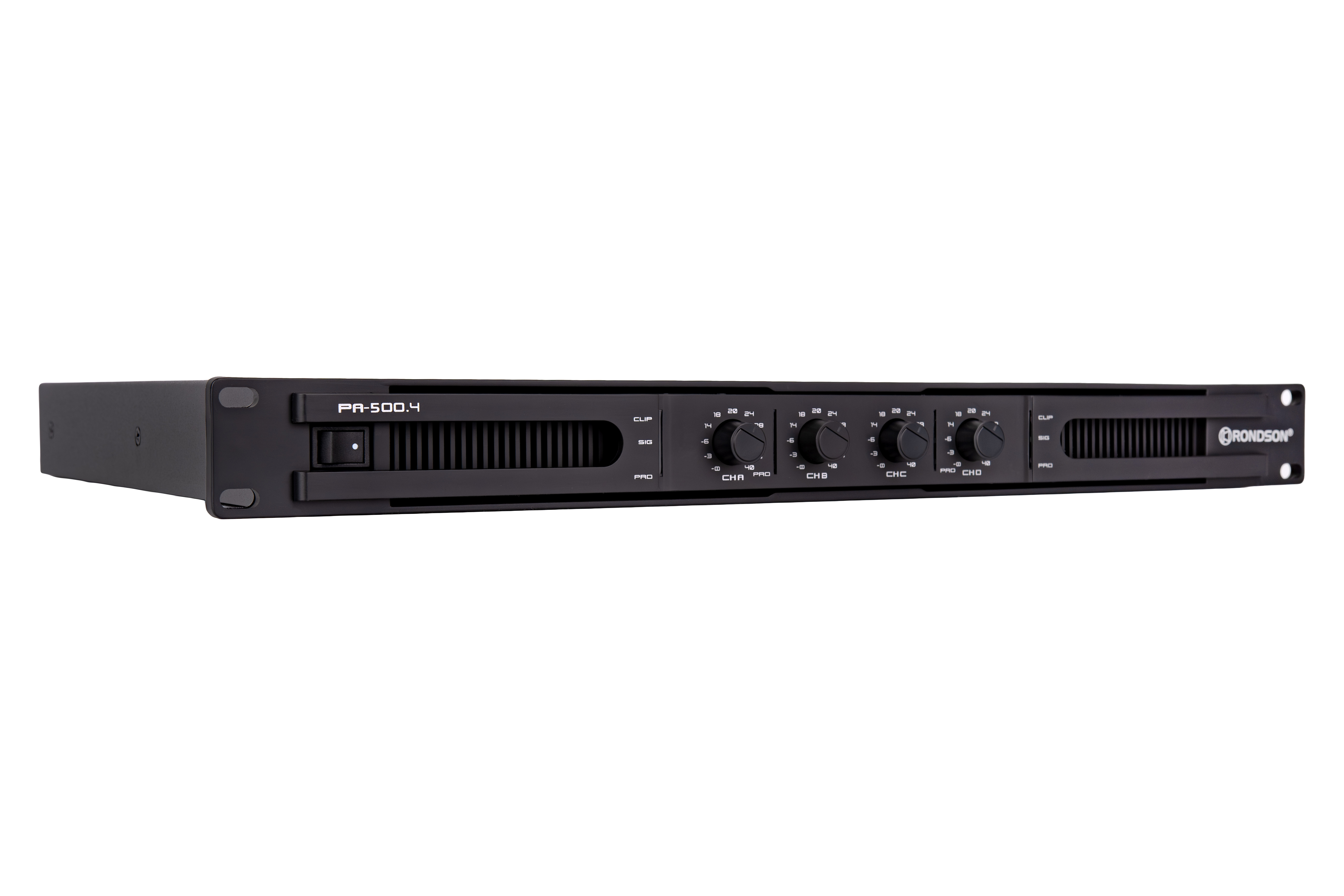

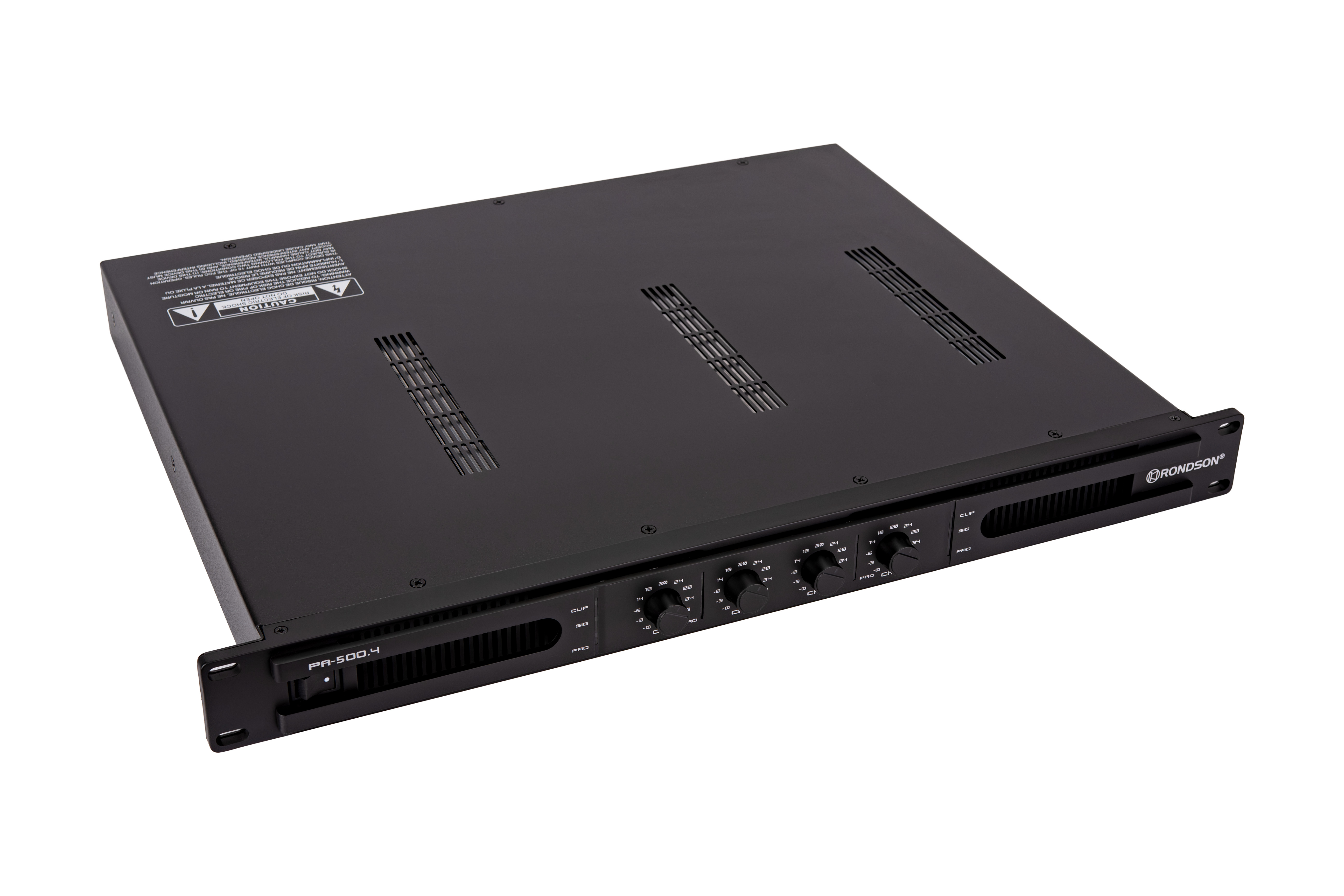

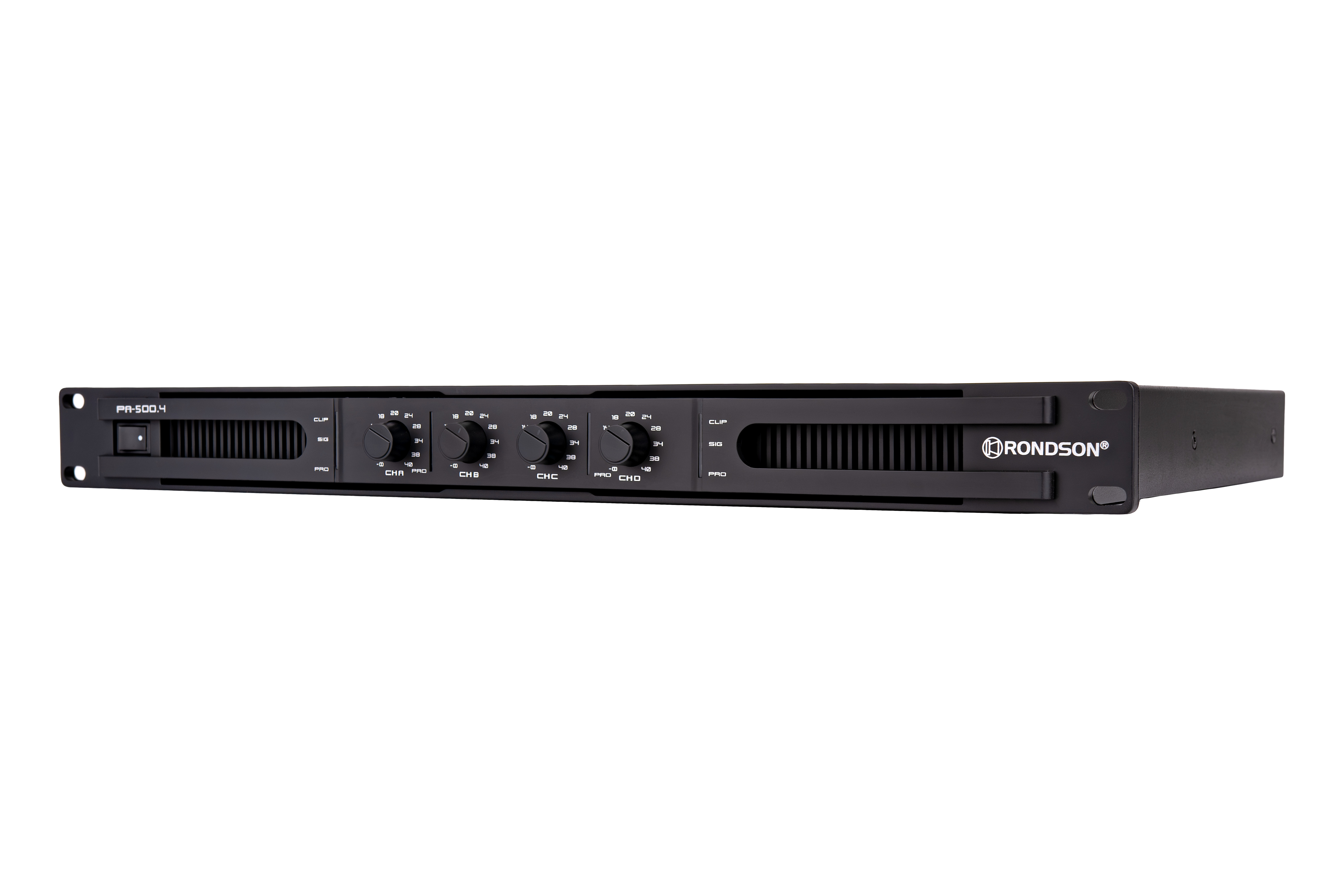

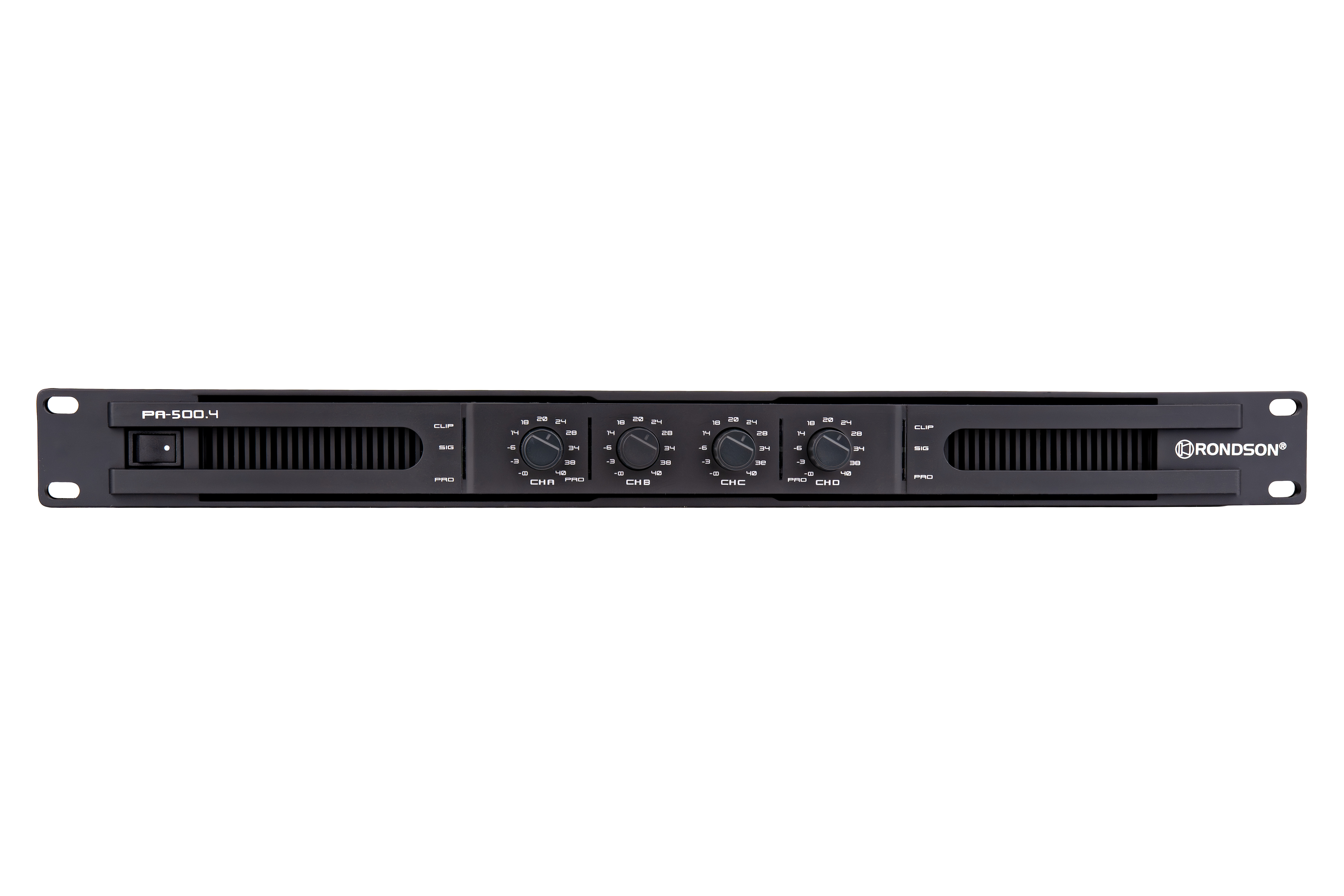

Power amplifier 4 x 500W in 1U class D

Name: Power amplifier 4 x 500W in 1U class D
Brand: RONDSON
SKU: PA-500.4

Reference : PA-500.4

SKU : 02936

EAN13 : 3701567914522

Multichannel Class D power amplifier for 100V lines. Designed for optimized integration in a technical rack (1U chassis), it guarantees high thermal efficiency and incorporates advanced protection circuits for demanding PA systems. Secure connection on Euroblock terminals.

Impédance

100V

Zones

Fiche technique PA-500.4

Download (5.58MB)

PA-500.4

Download (1.75MB)

Description

Product datasheet in PDF

PDF PA-500.4

Features:

High power and sound quality in a single rack
4 audio channels
High-efficiency Class D amplifier
Euroblock connectors

SPECIFICATIONS	PA-500.4
Power	4 x 500W (4 channels)
Frequency response	20-20,000 Hz
Gain	40 dB
Distortion	THD+N: <0.04% (1 kHz)
Signal-to-noise ratio	>95 dB
Crosstalk	>85 dB
Damping factor	>200 (1 kHz, 8 Ω)
Inputs	4 balanced/unbalanced auxiliary lines, Euroblock, 20,000 Ω/10,000 Ω, 0.9-1.1 V RMS 1 emergency/test, Euroblock, 1 V RMS (0 dBV)

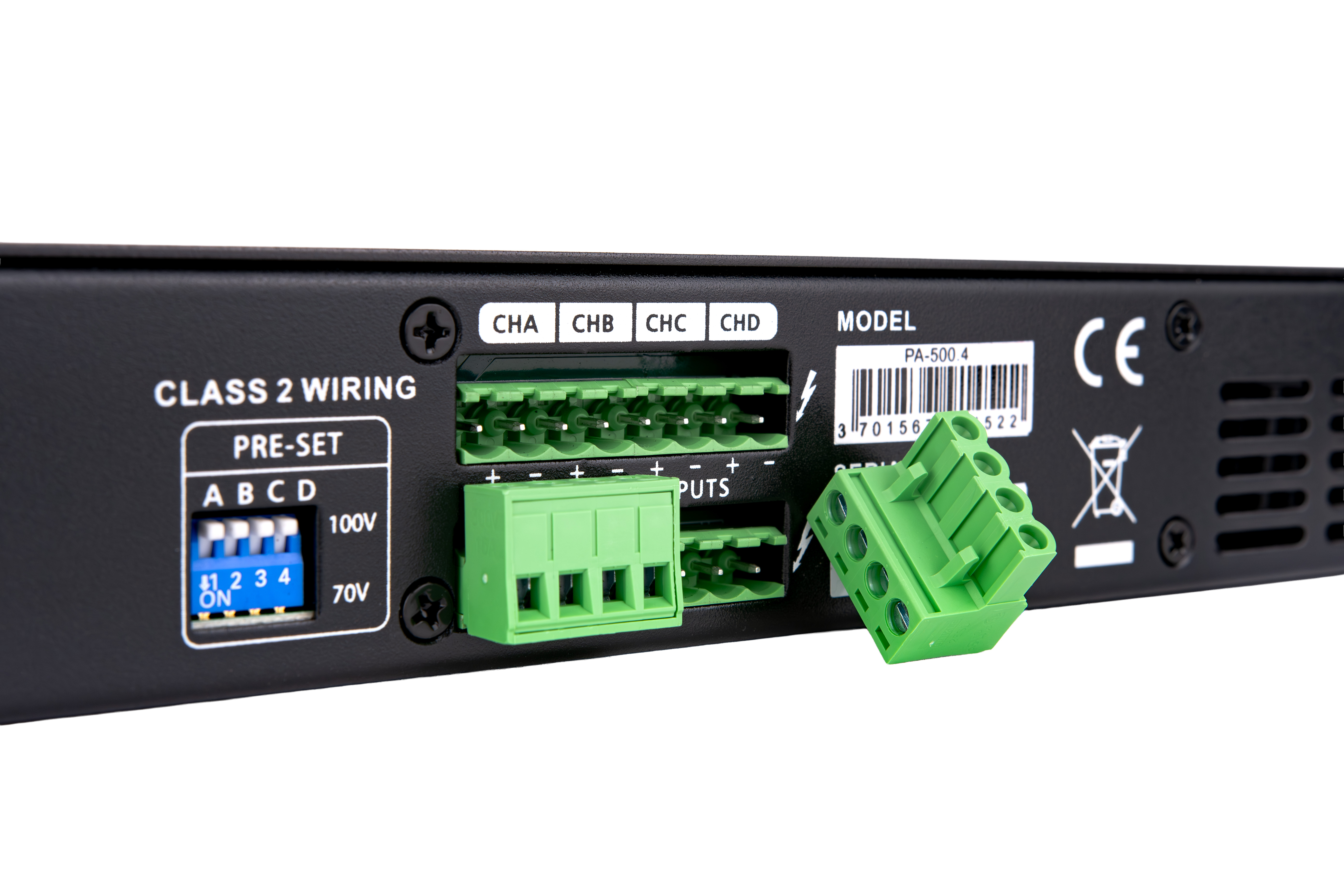

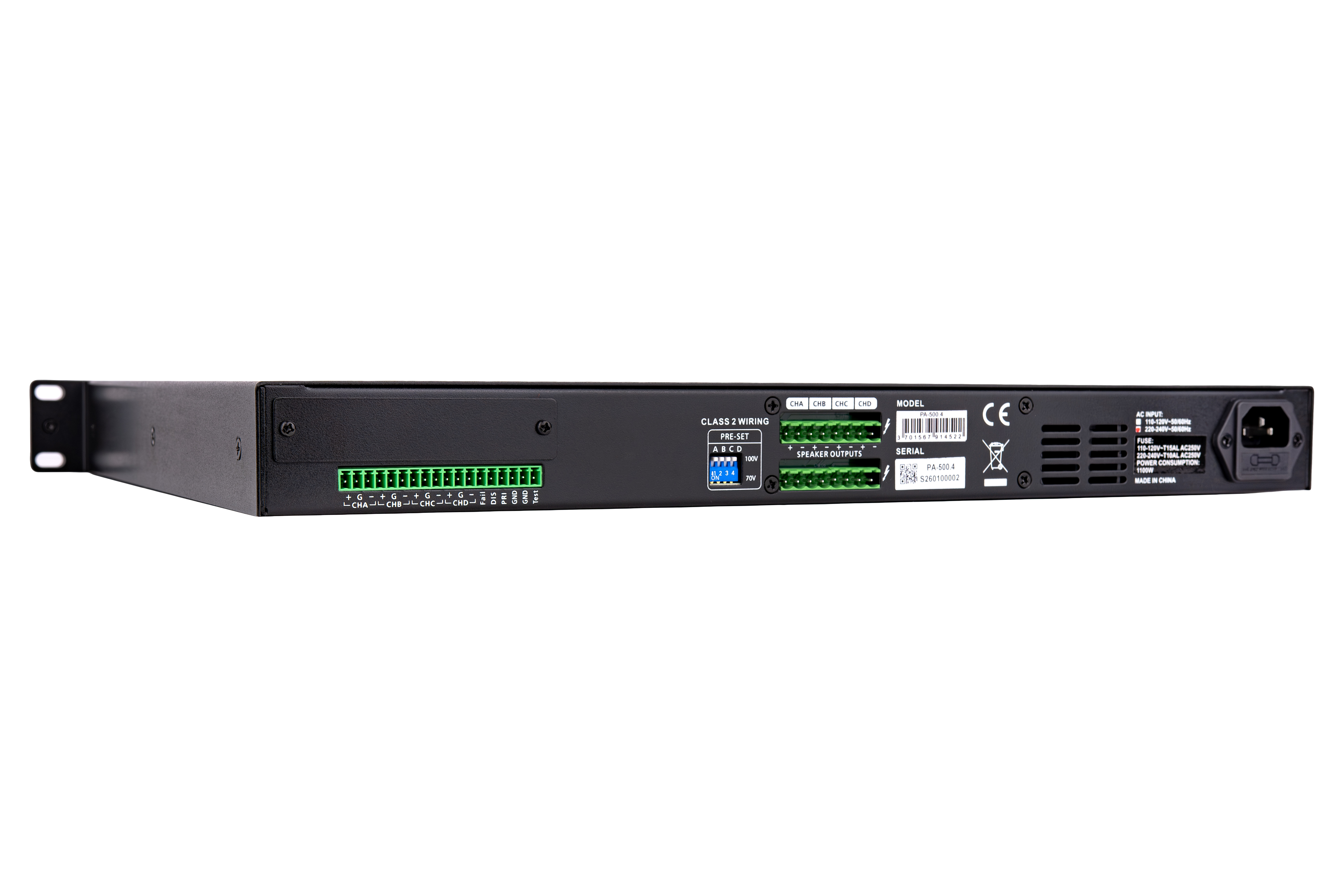

Output	100 V and 70 V speaker output, Euroblock 1 GPIO error signaling output, 5 V DC, Euroblock
Functions	Forced ventilation with temperature-variable speed. Power, protection, priority, and signal peak indicator lights. Emergency/test input priority via contact closure, Euroblock. Mute via contact closure, Euroblock.
Protection	Overload, short circuit, open circuit, temperature, ultrasound, radio frequency

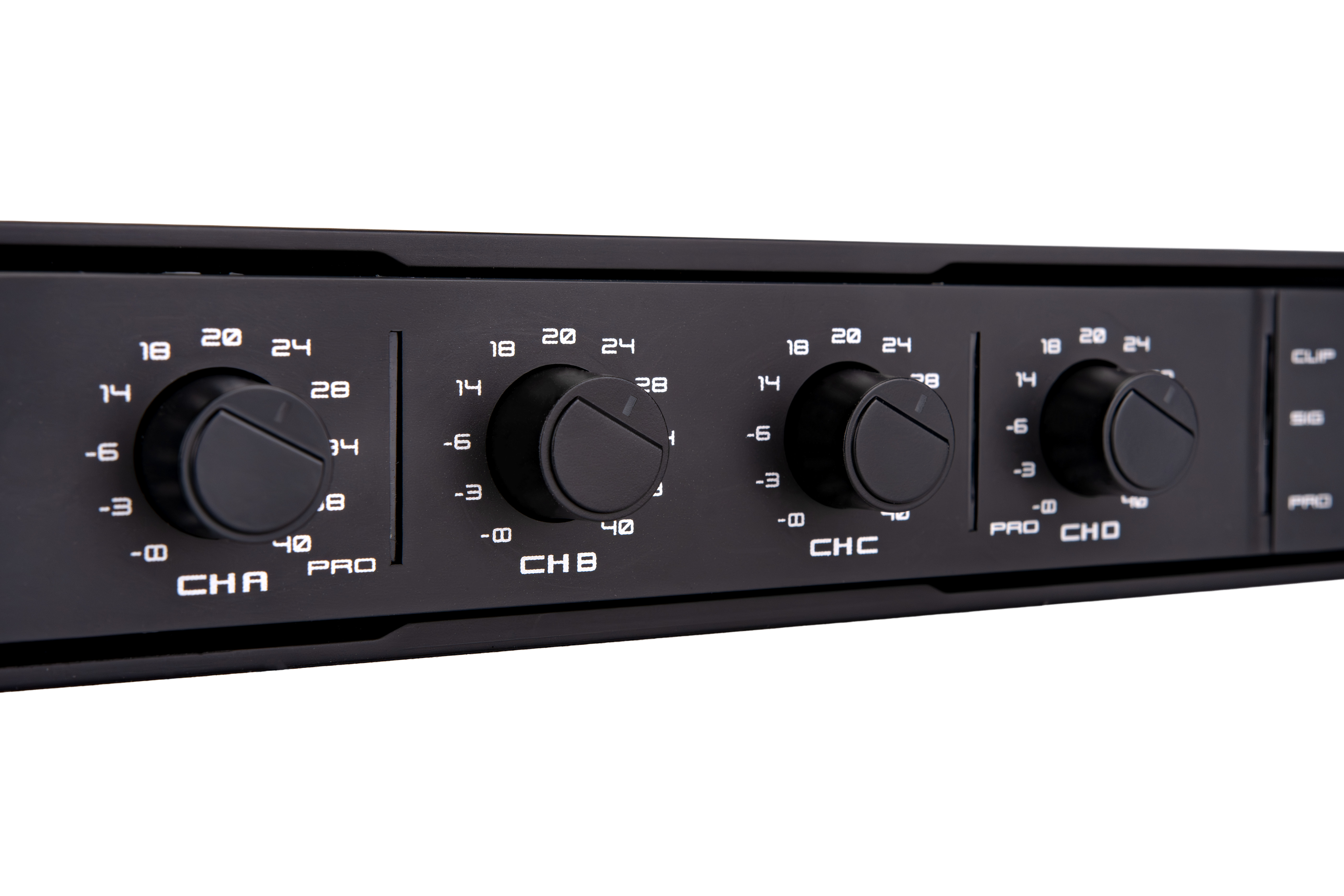

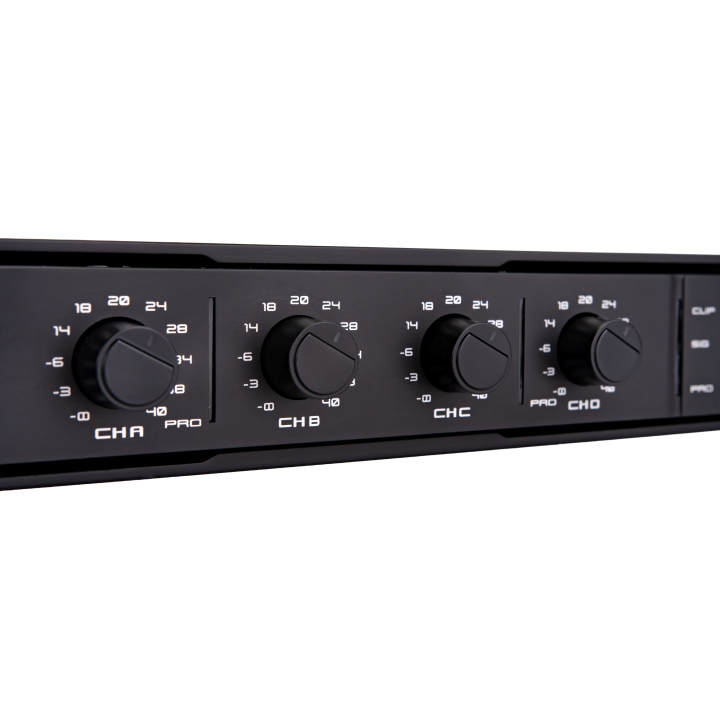

Controls	Volume for each channel 100/70 V selector on rear panel
Operating temperature	0ºC ~ 50ºC
Power supply	230 V AC, 2,700 W maximum 115 V AC on request

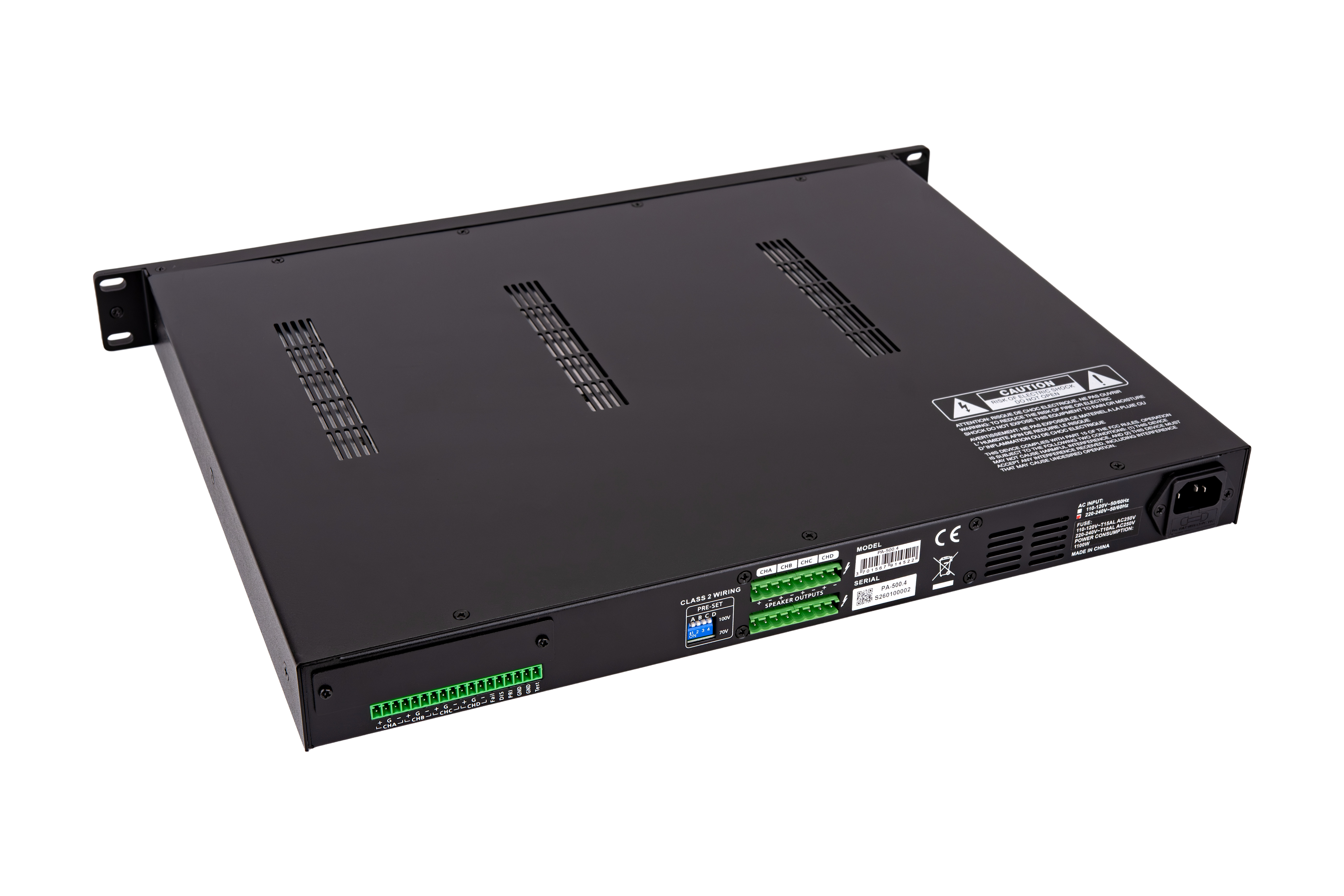

Installation	19'' 1U modular chassis
Dimensions	483 x 44 x 360 mm (depth)
Weight	6.3 kg
