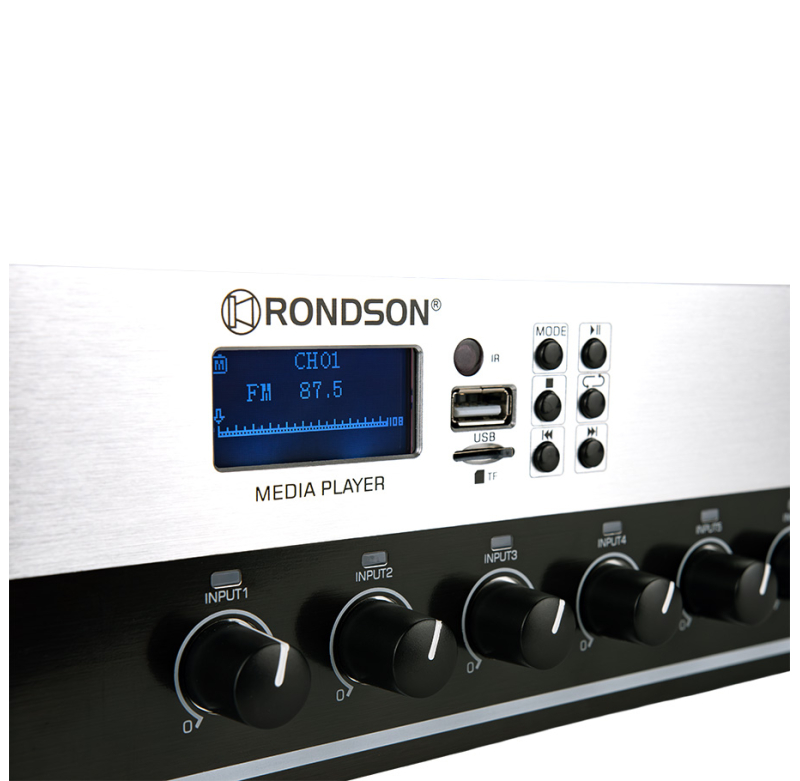

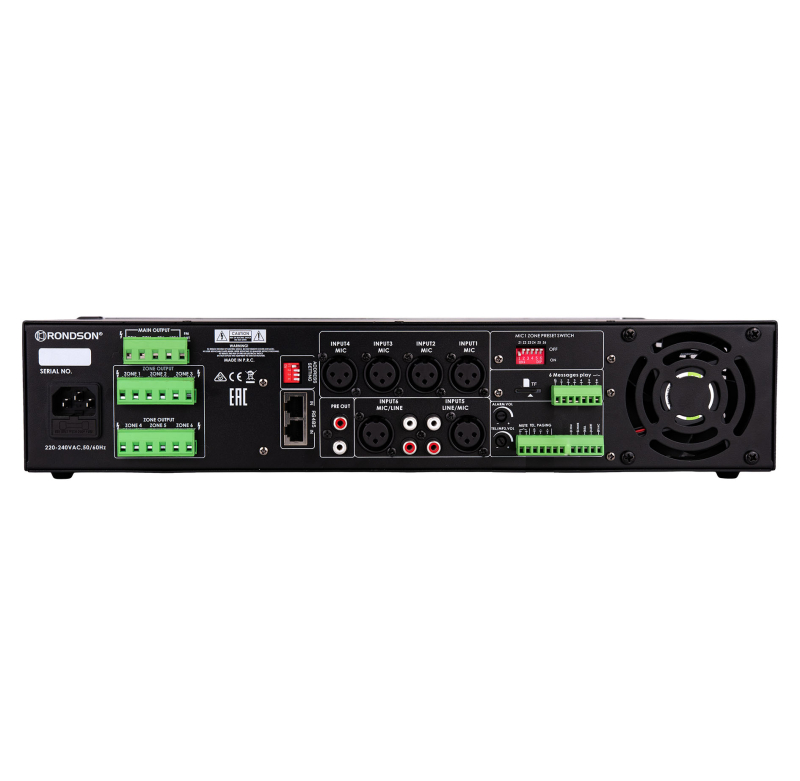

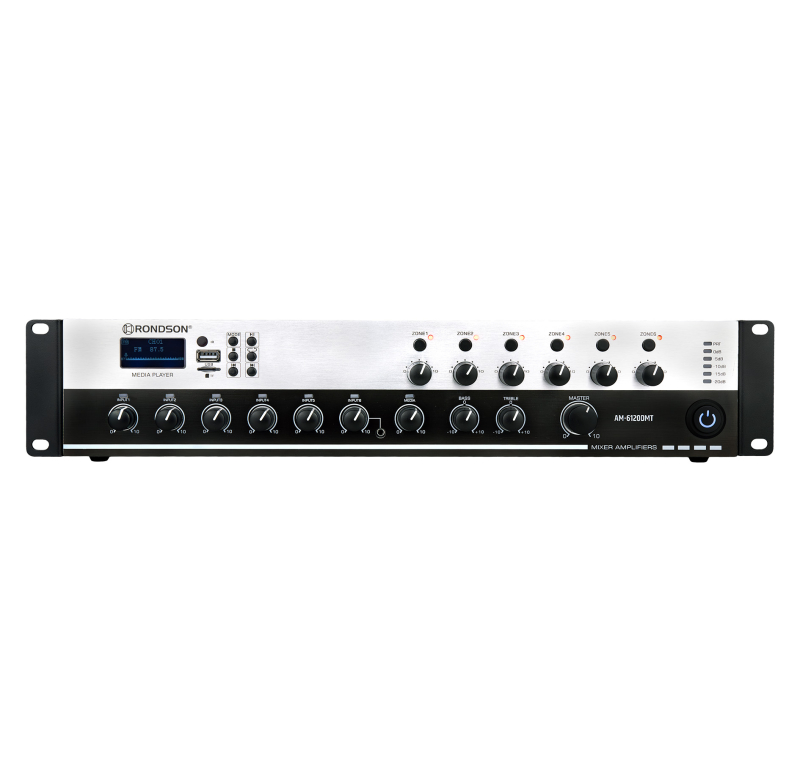

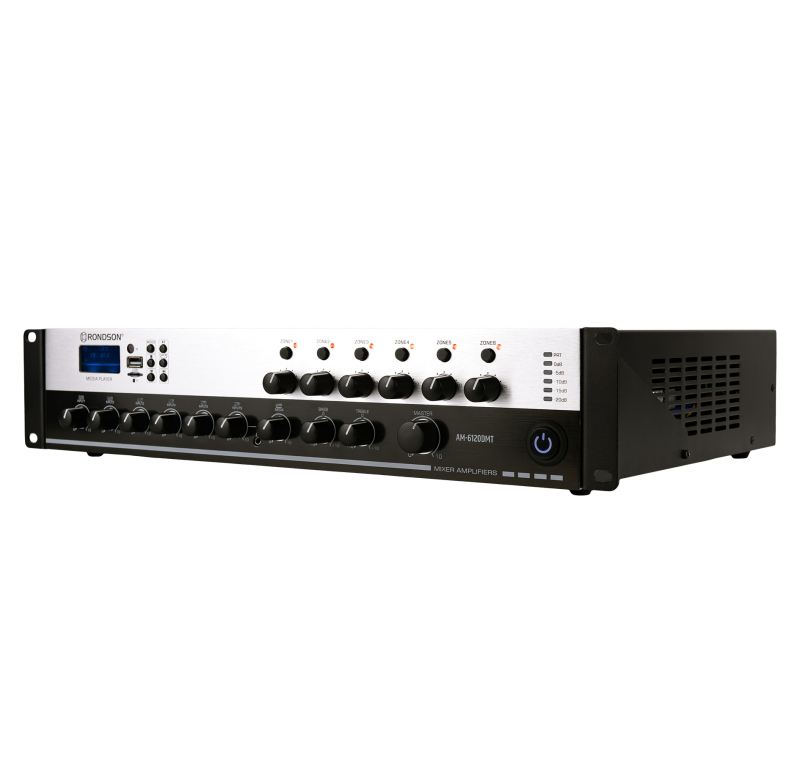

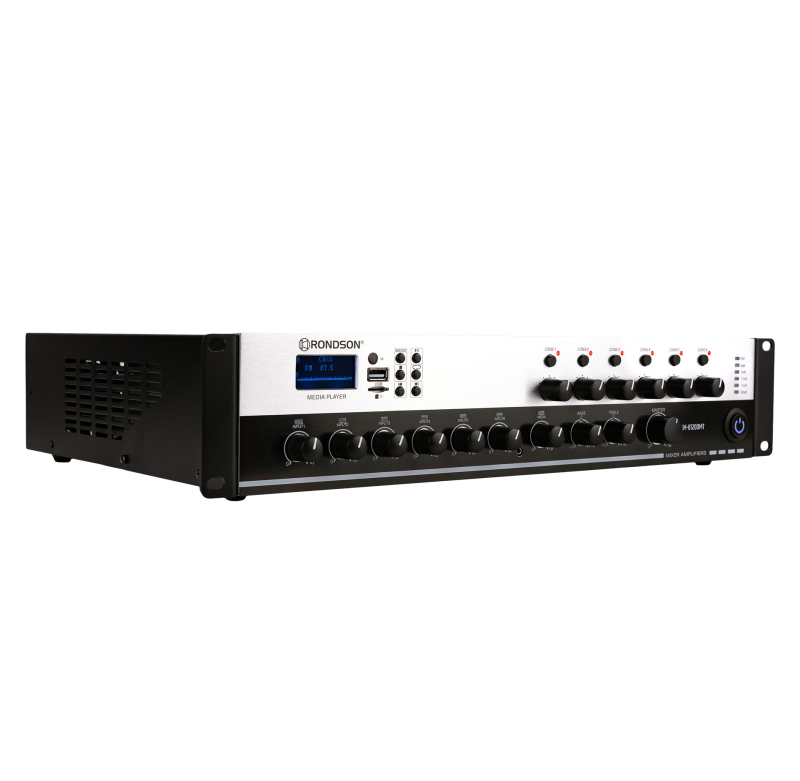

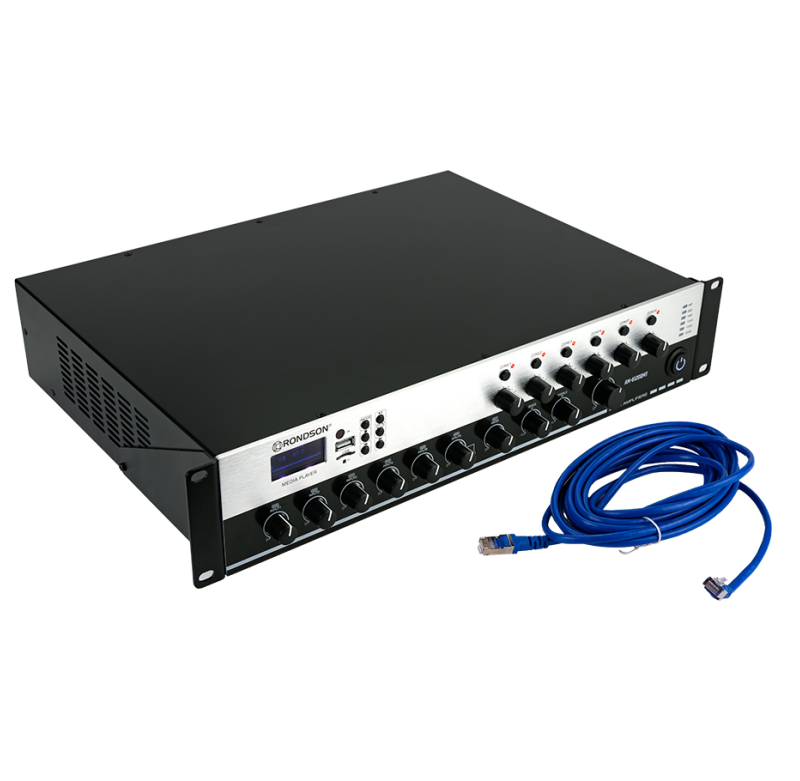

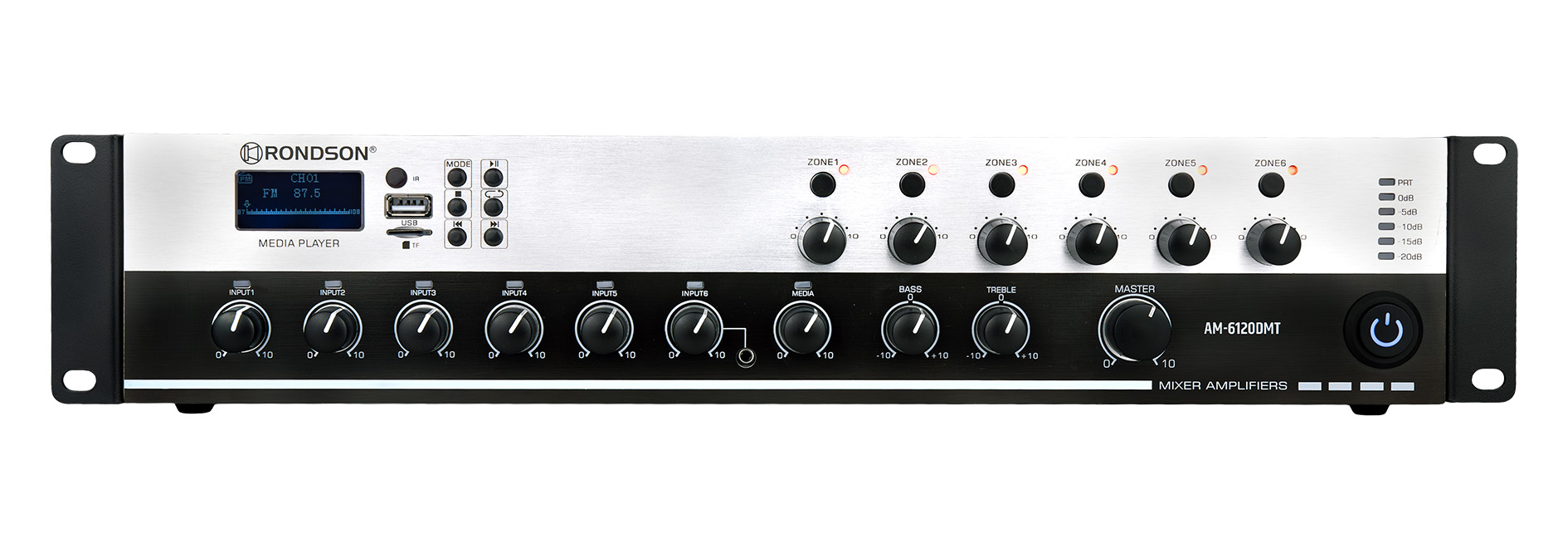

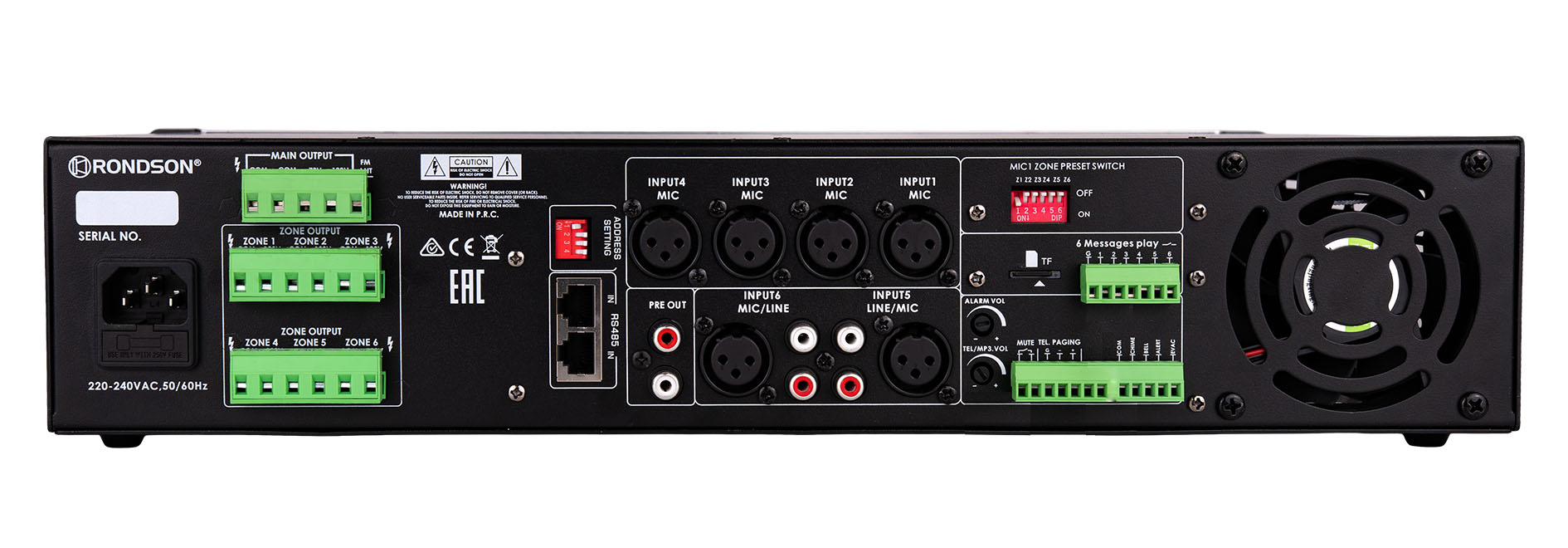

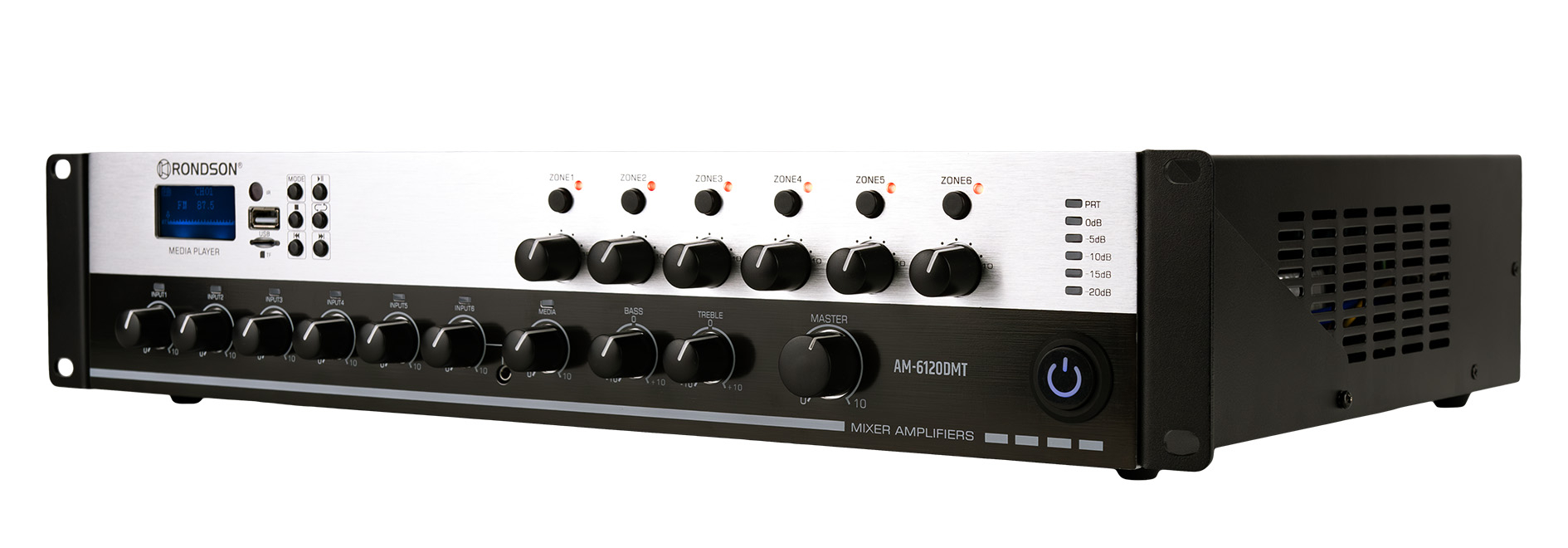

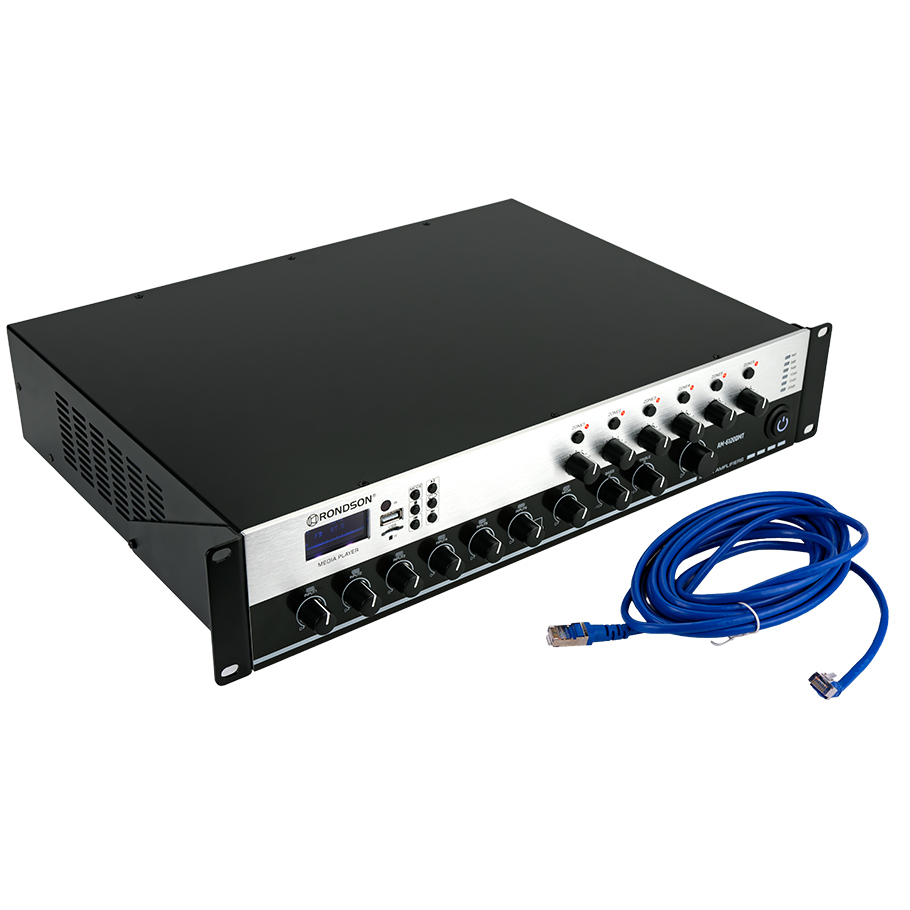

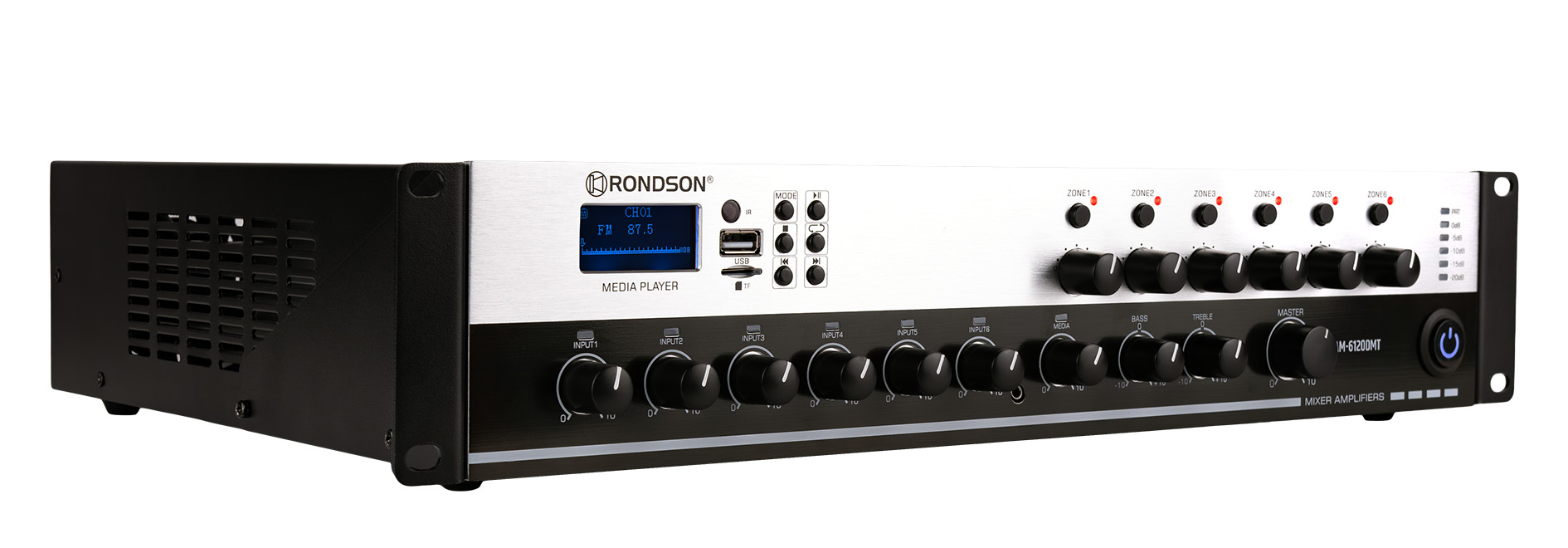

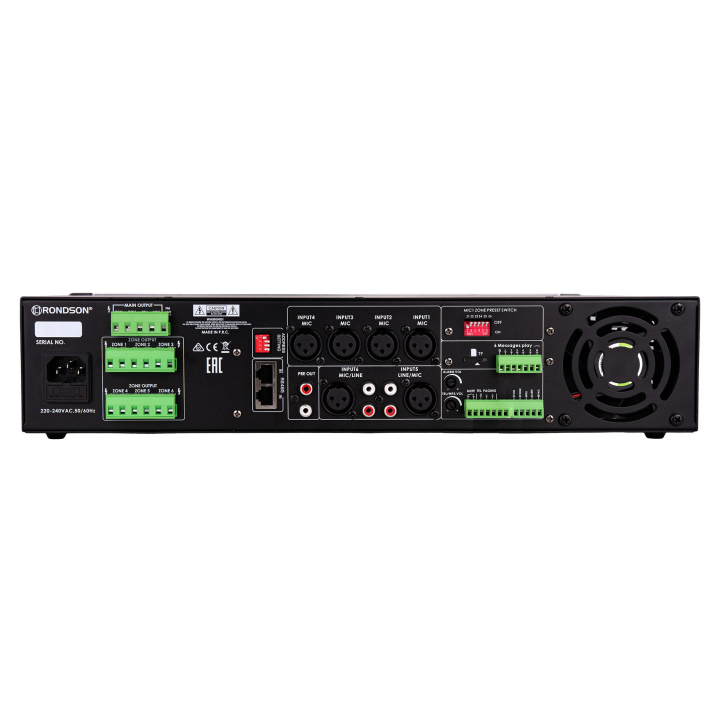

6-zone 250W mixer amplifier in 100V with message reader
3701567914089
02938
- 250W amplifier preamplifier
- 6 zones
- 100V line
- Multimedia player
This product is no longer in stock
For professionals
To log inFor individuals
Contact usProduct Sheet in PDF
Description:
- 6-zone mixer amplifier
- 70/100V line operation
- Power: 120 W RMS / 250 / 550

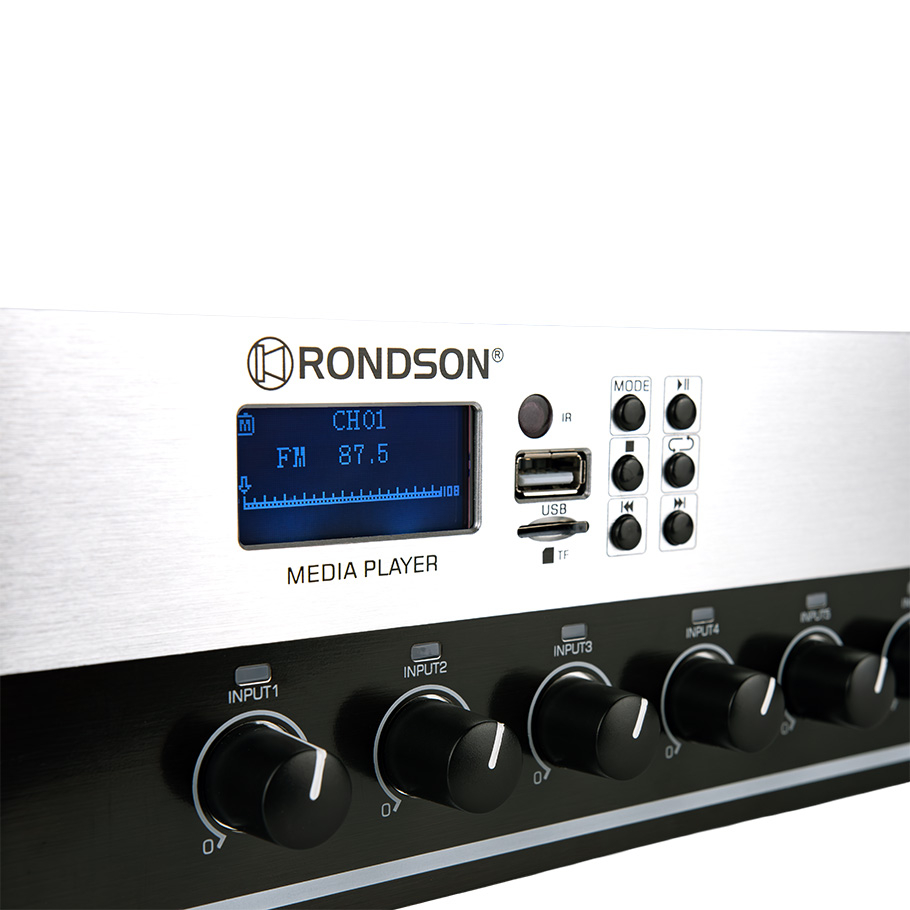

- Built-in message player
- Mic 1 input with zone selection output 1 to 6
| SPECIFICATIONS | AM-6120DMT | AM-6250DMT | AM-6550DMT |
| Rated power consumption | 215W | 550W | 1350W |
| A/C Fuse | 4A | 5A | 12A |
| Output power | 120 W | 250 W | 550 W |
| 70V Output impedance | 33.5Ω | 20Ω | 8.5Ω |
| 100V Output impedance | 67Ω | 40Ω | 17Ω |
| Frequency response | 20 Hz - 20 kHz | 20 Hz - 20 kHz | 20 Hz - 20 kHz |
| THD | 100V out <-3dB> 0.5% | 100V out <-3dB> 0.5% | 100V out <-3dB> 0.5% |
| Auxiliary input | 300mV | 300mV | 300mV |
| Microphone input | 4mV | 4mV | 4mV |
| Signal-to-noise ratio | >80dB | >80dB | >80dB |
| Pec out | 650mV - 750mV | 650mV - 750mV | 650mV - 750mV |
| Dimensions (W x D x H) | 483 x 88 x 320 mm | 483 x 88 x 320 mm | 483 x 88 x 320 mm |
| Weight | 10 kg | 12 kg | 15.5 kg |
