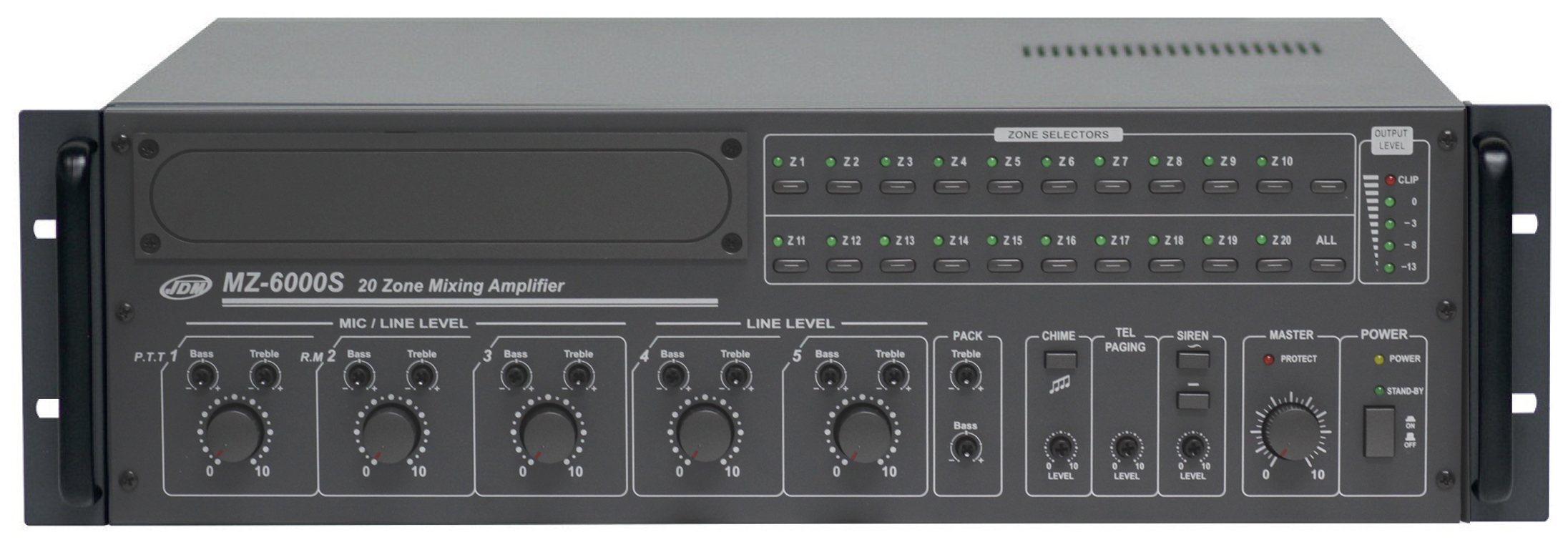

Amplifier-preamplifier 20 zones 600W rackable 19" in 3U

Name: Amplifier-preamplifier 20 zones 600W rackable 19" in 3U
Brand: JD-MEDIA
SKU: MZ-6000S

Reference : MZ-6000S

SKU : 02372

EAN13 : 8809267791391

20 zone preamplifier amplifier 600W in 19" 3U

Power output

600 W

Coupure sono

DC 24V

Zones

MZ-6000S

Description

Characteristics :

Digital mixing amplifier 600 W, 20 zones
Automatic speed control with integrated ventilation
Vumeter for output
Output selection for each or all zones (20)
MIC / LINE gain volume for inputs 1 to 3
Phantom power (+15 V) for each MIC input
Push to Talk connection for Mic PTT 200 (RJ45)
Chime 2 tones, 4 tones
Siren function
Source module slot (options) CDP 100MU / CDR 100RDSU / DMT-100-2 / EM 600 / TP 100RDS
Contact for power supply control
Remote control :

RM-2000: 20 zone (RJ45) micro desk (up to 3 mic)

DMT-100-2: Digital message reader

Chime diffusion and microphone

Recording output REC OUT
PRE OUT output
Super priority message terminal block message control
The PTT entrance has priority over the siren.
In the event of a power failure, when the power is restored, the amplifier will restart according to the initial conditions.
Input circuit protection, overload, overvoltage
Two power supply levels to limit energy consumption

If DMT-100-2 integrated, E/M priority input, E/M emergency message

SPECIFICATIONS	MZ-6000S
Type	Digital mixing amplifier
Output power	600 W
Output impedance	100 V - 4 Ω
Consumption	1 W
Output area	20 zones
Inputs 1-5	5 (MIC/LINE x 3, LINE x 2), CH-1 : PTT
Priority	1) PTT/MIC-1 2) Digital Message 3) TEL, CH-2 4) CH-3-CH-5
Signal to Noise Ratio	MIC > 70 dB LINE > 80 dB
Distortion Rate	≤ 0,5 % (1 kHz)
Frequency Response	55 – 16 000 Hz
Input sensitivity	MIC :-50 dBu 5 K Ω BAL, LINE :-10 dBu 15 K Ω BAL
Power supply	AC 230 V 50 Hz – DC 24 V
Dimensions (W x D x H)	430 x 352 x 133 mm (3U)
