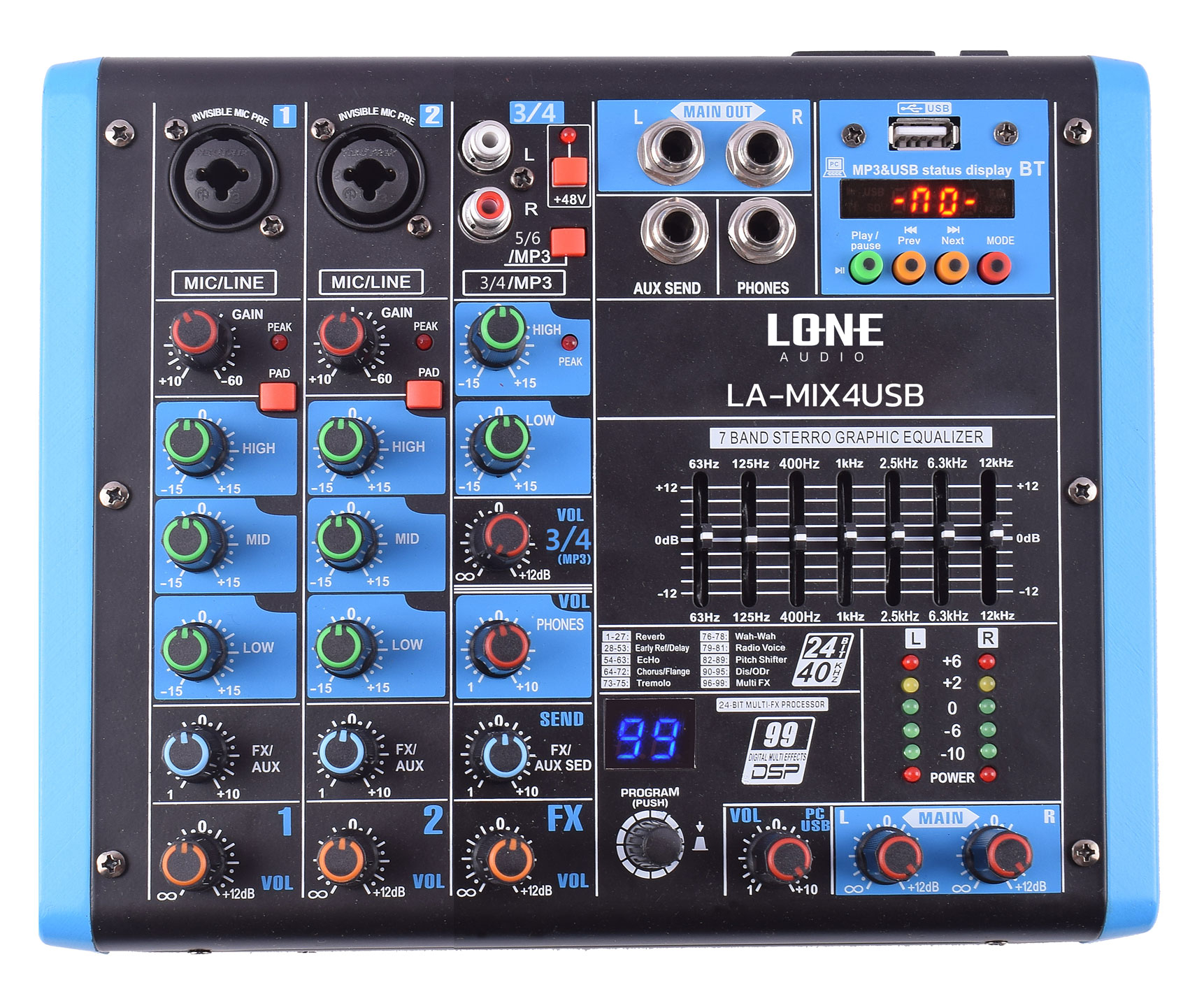

4 channel mixer console
LA-MIX4USB
3701567911255
02706
4 channel mixer console
Multimedia USB, Bluetooth
DSP mode
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usDATA SHEET IN PDF
Description :
This audio mixer is equipped with 4 channels, DSP mode.
It works on mains with 8V AC adapter.
Features and specifications :
It is equipped with :
- 2 balanced MIC/LINE XLR inputs
- 2 stereo Jacks 6.35mm stereo and XLR mono inputs
- 1 stereo RCA and balanced 6.35mm jack stereo input
- 1 compressor inlet 1 and 2
- 48V phantom power supply with ON/OFF switch at the rear of the console
- Insert inputs 1 and 2
- Low-pass filter on inputs 1 to 6 on MIC inputs
- 3-band equalizer, PEAK indicator on each MIC channel
- 2-band EQ, PEAK indicator on stereo channels
- 1 Aux/Send per channel for external effects and monitoring
- 2 routable input channels on the main MIX or control room output / headphone output
- balanced Jacks outputs for control and headphones
- 24-bit DSP effect generator with pre-recorded effects
| SPECIFICATIONS | LA-MIX4USB |
| Type | Mixer console |
| Power supply |
8V AC adapter |
| Mono inputs |
MIC: 1.5 KΩ Symmetrical XLR Gain Adjustment: -10 dB to -60 dB +48 V Power supply. Configurable phantom |
| Stereo inputs |
LINE: XLR symmetrical / Jack 6.35 mm Gain Adjustment: -10 dB to -50 dB Max: +22 dB Other entries: 10 KΩ Other outings: 120 Ω |
| Main Mix section |
Max: +22 dBu unbalanced Aux : Off to + 10 dB Hum & Noise: < -90 dB @ 20 to 22 000 Hz Ch1 and main level: 0 dB Crosstalk channel: < -80 dB @ 0 dB 20 to 22,000 Hz, main level: 0 dB |
| Frequency Response |
10 – 55 000 Hz ±3 dB |
| Sensitivity range | +20 à -20 dB |
| Signal to Noise Ratio | > 90 dB |
| Total harmonic distortion | < 0,01 % |
| DSP mode |
pre-recorded effects Hall, vocal, hall... À / D and D / A convectors: 24 bit |
| Sampling frequency | 8, 16, 32, 11.023, 22.05, 44.1 and 48 kHz |
| Dimensions (W x D x H) | 270 x 240 x 110 mm |
| Weight | 1,5 kg |
