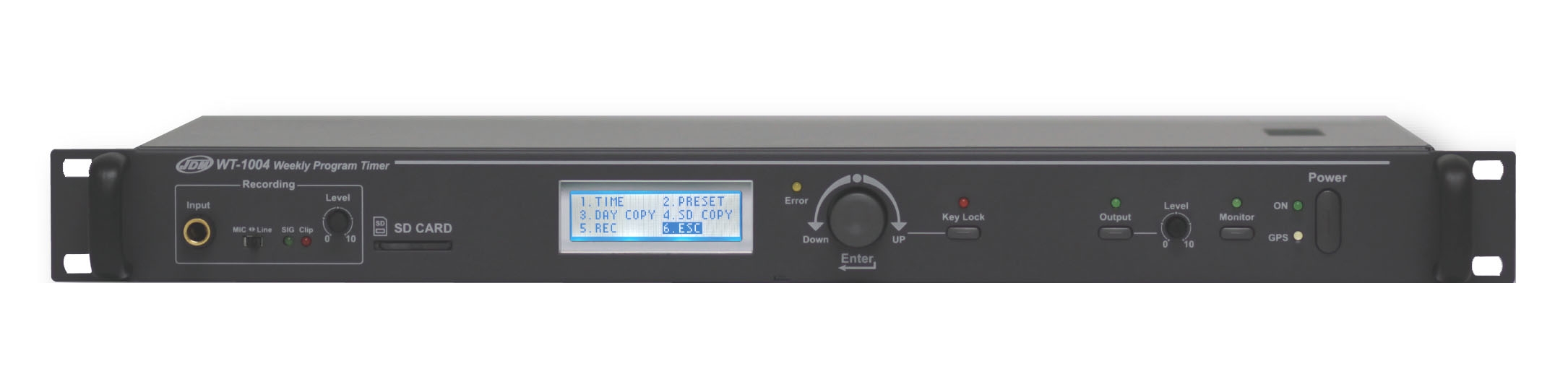

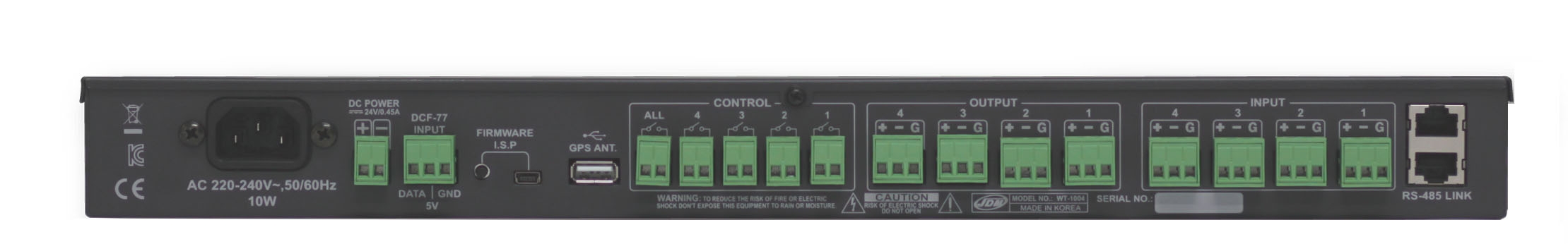

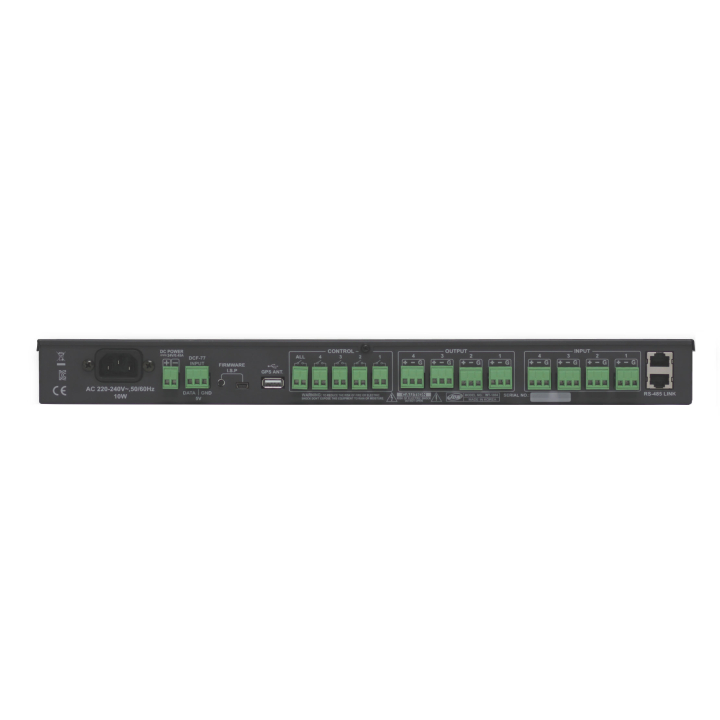

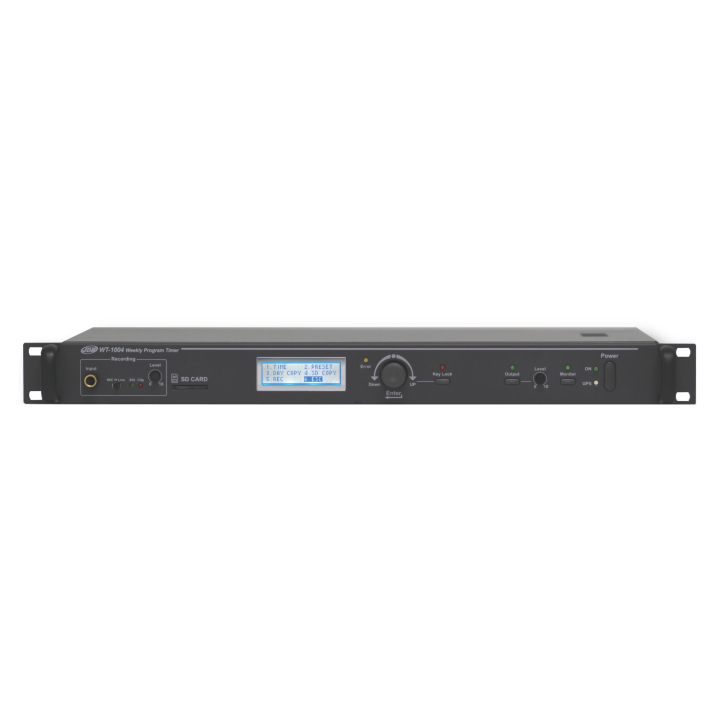

Digital message player, recorder and programmer (1U rack)

Name: Digital message player, recorder and programmer (1U rack)
Brand: JD-MEDIA
SKU: WT-1004

Reference : WT-1004

SKU : 01171

EAN13 : 8809267797454

Digital player, recorder, message programmer for automated playback of melodies, voice messages, audio in public buildings, schools, department stores, shopping centres, restaurants...

Types d'applications

Ecoles

WT-1004

Download (1.2MB)

WT-1004

Download (1.1MB)

Description

Digital message player, recorder and programmer
Simplified control via the LCD display and encoder switch
Automatic time setting via GPS and DCF-77, programmable timer
Lock function
ON/OFF switch
Internal monitoring loudspeaker and ON/OFF switch
Recording: microphone input
Output: 4 channels (contact for each channel and relay for all channels)
Memory programme: flexible memory
Daily copy function
4 balanced audio inputs and outputs, allowing 4 independent zones to be served with announcements or jingles; connections via 3-pin Euroblock
80 storage slots of up to 270 seconds each, giving a total storage capacity of 360 minutes (6 hours). Up to 99 playback times per day, with copy and repeat functions
Memory bank: 80 individually recordable internal memory slots (Melody: M01–40 / Voice: V01–40)
SD card reader, with copy function and playback directly from the SD card. Supports SD cards up to 16 GB and built-in memory
Recording input with signal LED, switchable for microphones (-50 dBm) or line signals (10 dBm)
5 control connections for zones (1 / 2 / 3 / 4 / All) with a potential-free NO contact
RJ45-RS-485 interface port and LinkOut
Power supply: 230 V AC / 50 Hz, IEC socket
Connection for backup power supply / battery: DC 24 V, 2-pin Euroblock
Power consumption: 7 W
Dimensions: W 483 mm x H 44 mm x D 200 mm – 19" / 1U
Weight: 2.5 kg
Ideal for installations such as: between-lesson bells in schools and public buildings
