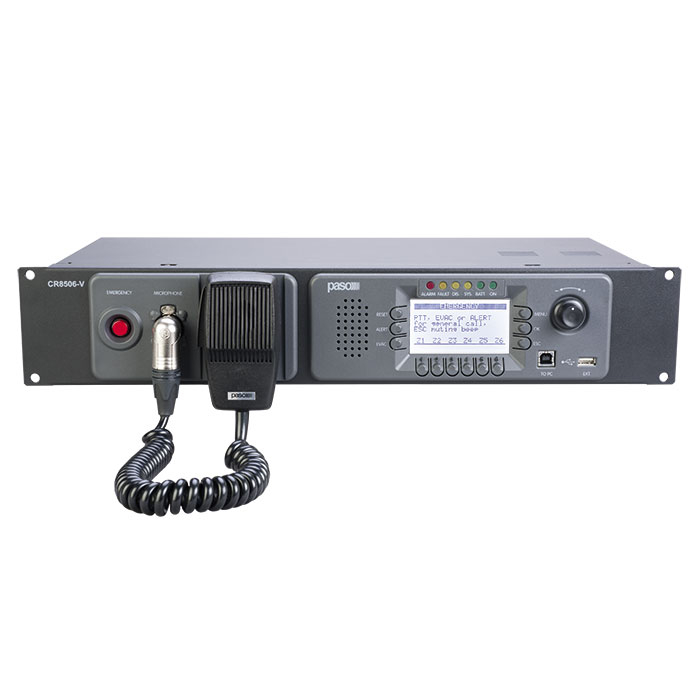

Management and monitoring station EN54-16

Reference : CR8506-V
SKU : 02444
EAN13 : 8033874120958

PASO management and monitoring centre

RATE: consult us on contact@rondson.com

Share

Description

Description

Designed to perform all monitoring tasks within the system, the CR8506-V controller manages and controls all audio signals (evacuation, alarm, service messages and background music).

The CAT5/RJ45 network connection ensures easy and flexible installation of all units in the system:

  • 6 control lines for PMD digital amplifiers and/or RT8506-V routers and/or PA8506-V integrated systems.
  • 2 lines with redundancy possibility for connection between CR8506-V controllers (max 6).
  • 2 double lines for PMB132 and TSB8500-V series emergency bases (max 7 in total).
  • 1 double line for PMB call stations (max 16).

Features

  • Monitored front emergency microphone.
  • 2-channel sound broadcasting system.
  • Message generator for dual channel voice alarm broadcasting (EVAC and ALERT).
  • USB input as background music source.
  • Automatic management of the emergency amplifier.
  • Secondary power supply input (24 Vdc).
  • 7 programmable and controlled input contacts.
  • 3 relay outputs.
  • 128x64 pixel monochrome graphic display.
  • Diagnosis and signalling of various faults.
  • Standard 19" rack mounting (2 units high).

Product Details

  • Brand
  • Reference
    CR8506-V
  • SKU
    02444
  • EAN13
    8033874120958
