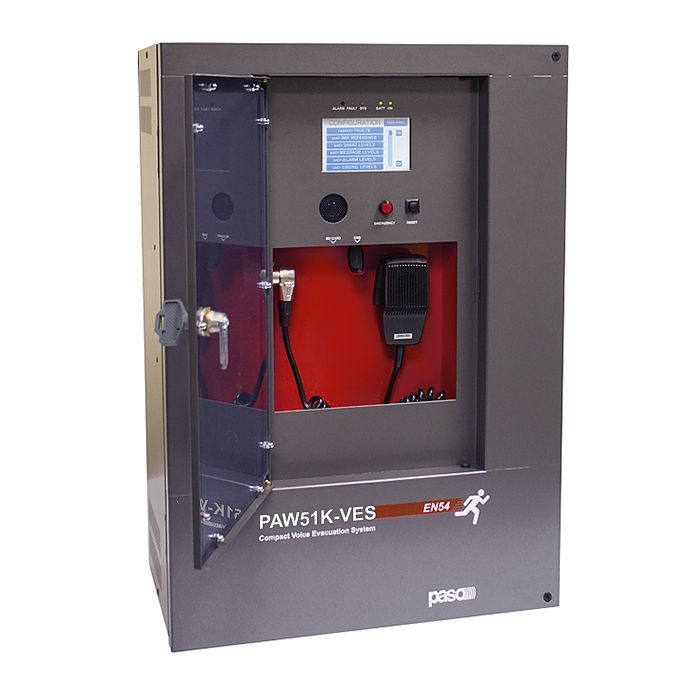

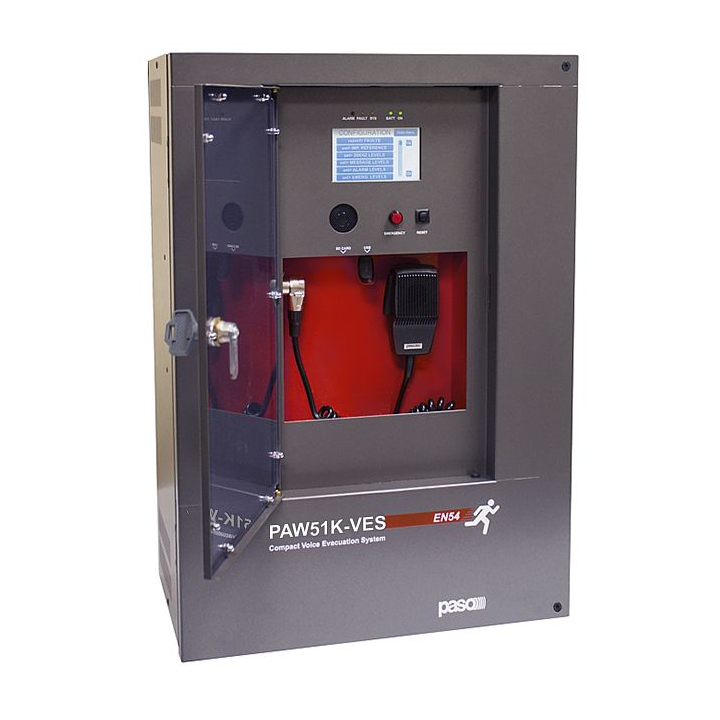

PAW51K-VES system

Description :

all-in-one compact exhaust system for wall mounting

The PAW51K-VES - Compact System with EN54-16 and EN54-4 certified control unit has been designed for easy installation in a wide range of applications.

The system is capable of managing up to 4 or 6 alarm zones via local controls, microphone desk and controlled inputs.

It is also equipped with a front panel PTT firefighter microphone with a monitored capsule.

Ideal for applications such as shopping centres, sports complexes, hospitals, nursing homes and schools.

Features :

• Audio power rating: 1000 W total, freely assignable to zones with a maximum limit of 250 W per zone.
• 4.3" backlit display with touchscreen for selecting alert and evacuation zones and for navigation to adjust volume levels, configure equipment and view faults.
• Portable firefighter microphone.
• Sends pre-recorded EVACUATION and ALERT messages.
• Sending of pre-recorded BROADCAST messages (i.e. spots, announcements, ring tones).
• Playback of pre-recorded messages via the monitor speaker.
• 7 controlled input contacts, configurable to play evacuation and/or alert messages in programmed areas or to reset messages.
• 1 music input disabled for sound sources.
• 1 auxiliary input configurable as music source, call with priority activation or call with automatic activation (VOX).
• 3 configurable relay outputs.
• Double output A + B for each zone.
• Event log (list of faults and/or alarms occurred in the system).
• Dual LINK line for connecting other PAW51K-VES / PAW5500-VES (up to 6 units in total).
• Multilingual management.
• Protected local button to place the system in emergency state, equipped with its own LED.
• Local reset button.
• 3-band equalisation for each zone output.
• 3-band equalisation for each music input.
• Optional internal expansion card ACPAW-2IN for two additional music inputs (EXT 1 and EXT 2).
• Optional internal expansion card ACPAW-6IN with DSP for six additional music inputs.
• Integrated SD / USB input for MP3 background music player.
• Independent selection of different audio sources (MUSIC IN, AUX IN, MP3 player and EXT) in each zone.
• Up to 8 pre-recorded messages can be retrieved from outside via input contacts (including 2 fixed emergency messages - plus 6 that can be classified as emergency / evacuation / broadcast messages).
• Up to 16 timers can be configured for programmed playback of broadcast messages with possible activation of signalling relays.
• Up to 16 broadcast microphone stations PMB106-G and/or PMB112-G can be connected.
• Up to 4 of the above mentioned stations can be configured for local calls only (card cage zones to which they are connected).
• Up to 4 remote emergency units PMB132-V and PMB132 / 12-V (or alternatively up to 2 TSB8500-V touch screen units) can be connected.
• EN54-4 certified battery charging unit for 24VDC secondary supply (batteries not included).
• 19" rack mounting (optional with ACPAW-RCK accessory kit).
