150W Bluetooth wall preamplifier amp
3701567910074
02427

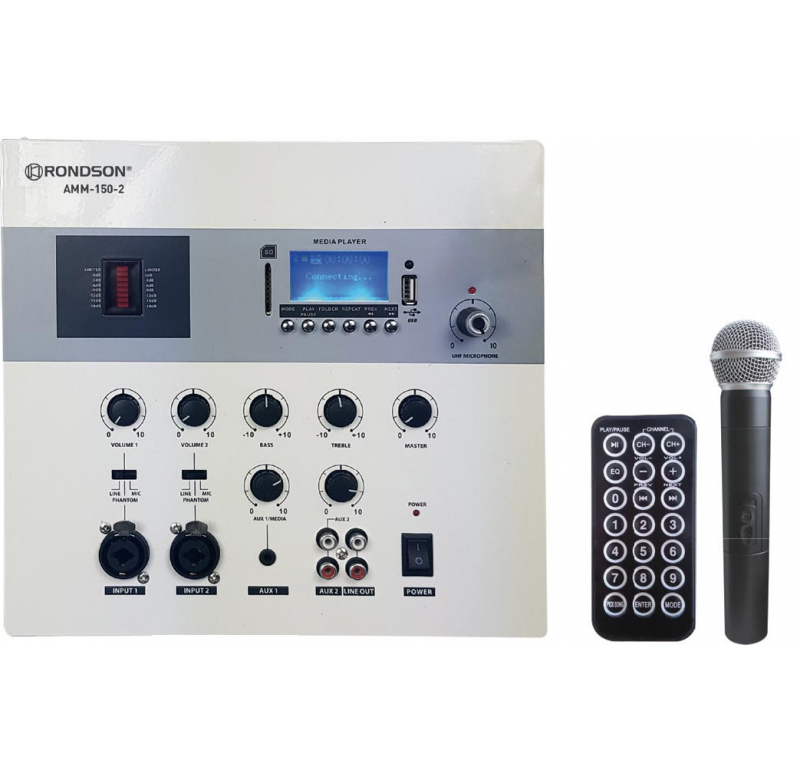

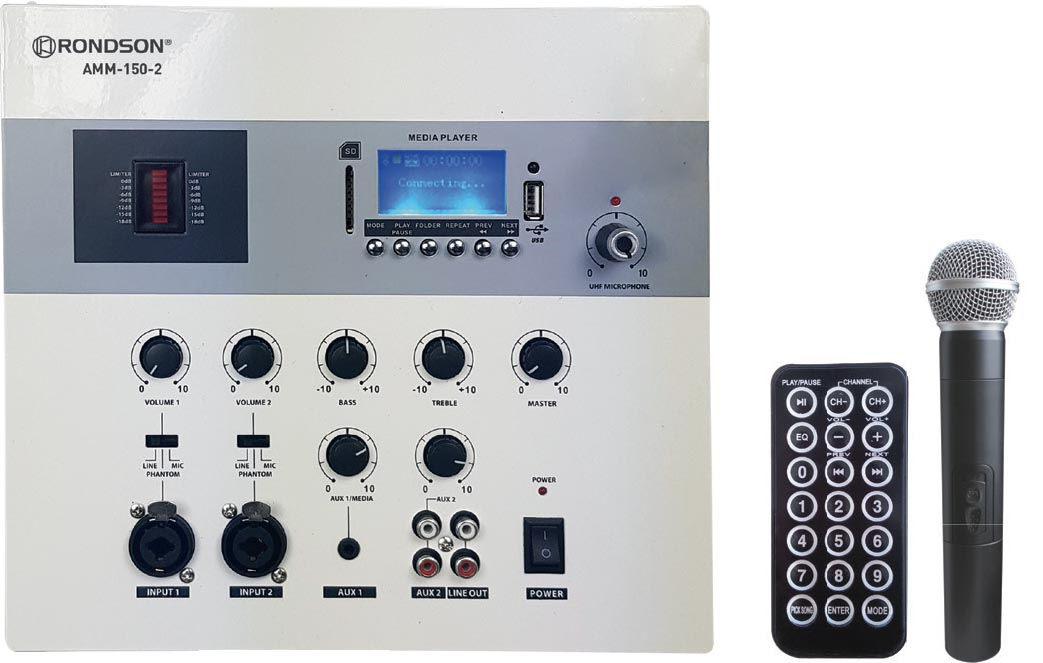

150 W ampli-preamplifier with hand-held microphone, remote control, SD card and wall-mounted case
In Stock
Delivered within 48/72h
For professionals
To log inFor individuals
Contact usDATA SHEET IN PDF
Description
- 1 USB / SD MP3 player
- 1 Bluetooth receiver module for broadcasting from your mobile, tablet or laptop PC
- 2 switchable MIC/LINE/phantom inputs, one of which is input 1 with Talk Over.
- 1 AUX input (RCA) and 1 AUX mini jack 3.5" input.
- 1 Line Out (RCA)
- Phantom power 15 V
- Individual volume control per input, MASTER volume control
- Outputs HP 70 V, 100 V as well as 4 and 16 Ω on screw terminal block
- Thermal protection, overload and short-circuit protection
- Output level meter

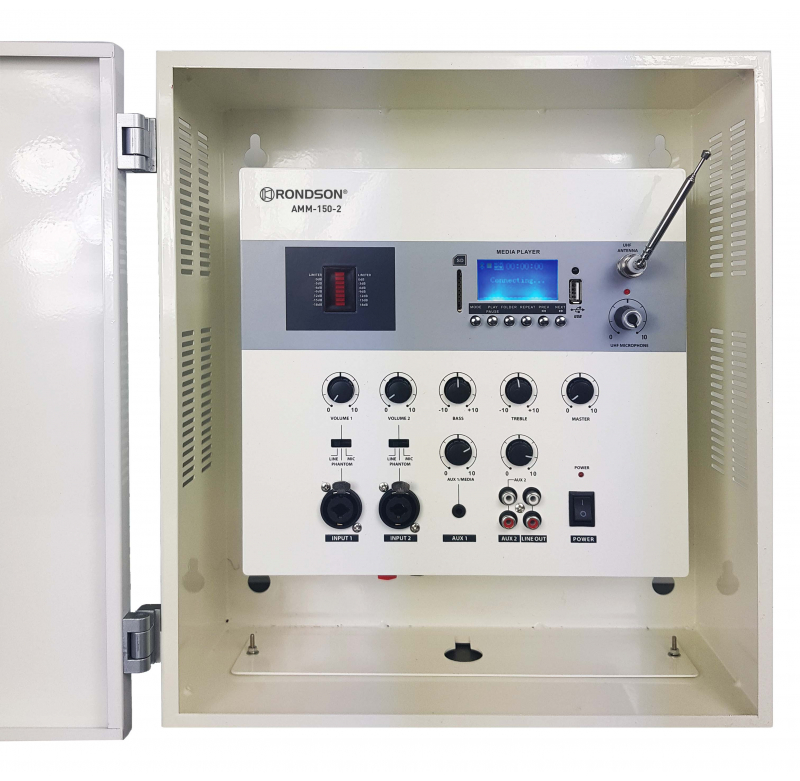

- Supplied with wall bracket for simple fixing
Features
- It is equipped with :

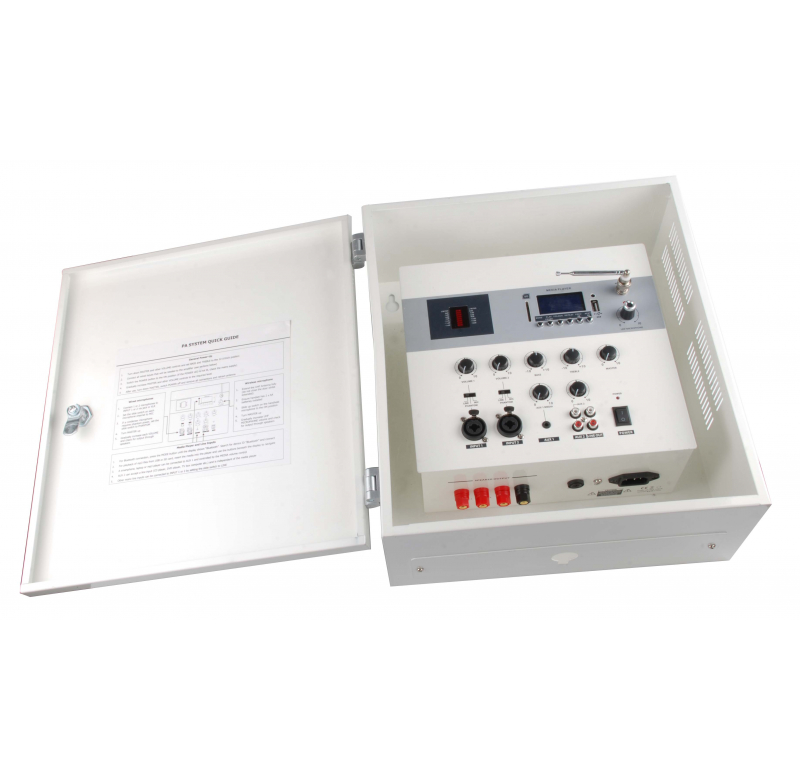

- 1 Wall box with key included
- The size of the AMM-150-2 box is 375 (h) x 335 (w) x 160 (d) cm, please note that you can remove it and keep only the amplifier box (also wall-mounted).
- 1 antenna for hf microphone
- 1 hand microphone with HF antenna,
- 1 remote control
- 1 SD card 8 GB
| SPECIFICATIONS | AMM-150-2 |
| Type |
Wall-mounted amplifier-preamplifier |
|
Power supply |
AC 115 V/230 V – 50/60 Hz |
|
Output power |
150 W RMS |
|
Speaker outputs |
On-line 70 V and 100 V In low impedance 4 Ω |
|
Inputs/Sensitivity |
MIC : -40 dBV AUX : -10 dBV LINE : -10 dB |
|
Frequency Response |
MIC/LINE : 80 Hz – 20 000 Hz (± 3 dB) Input 4/TEL : 50 Hz – 18 000 Hz (± 3 dB) |
|
Signal to Noise Ratio |
MIC : > 70 dB AUX/LINE : > 80 dB |
|
Total harmonic distortion |
< 1 % |
|
Tone settings |
Bass : ± 10 dB at 100 Hz Treble : ± 10 dB at 10 000 Hz |
|
Phantom power supply |
15 V |
|
Protection |
Thermal protection, overload and short circuit |
|
Consumption |
120 W |
|
Others |
Line Out : 0.5 V |
| Dimensions (W x D x H) |
265 x 102 x 267 mm |
| Weight | 10 kg |
