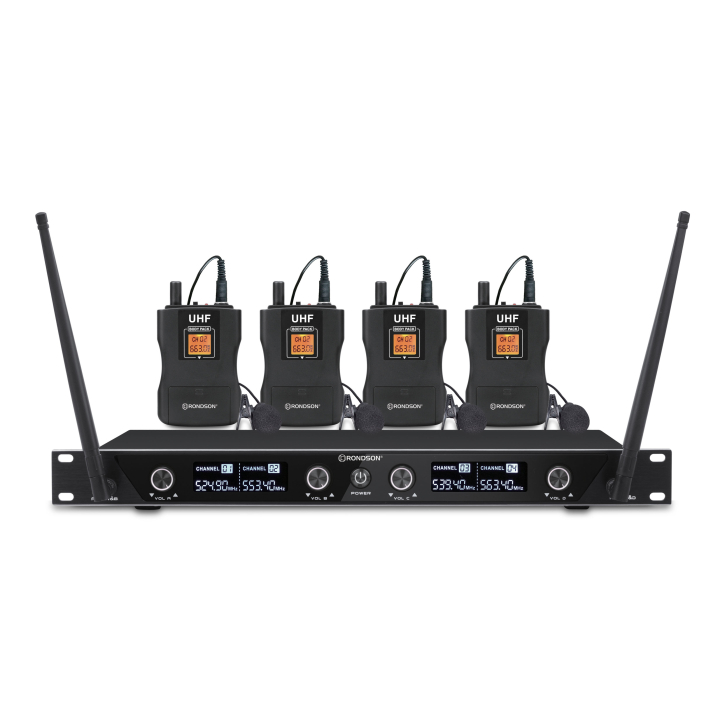

UHF receiver set with 4 lapel microphone

Reference : BE-1040/4BP
SKU : 02525
EAN13 : 3701567909481

UHF Receiver Microphone Set

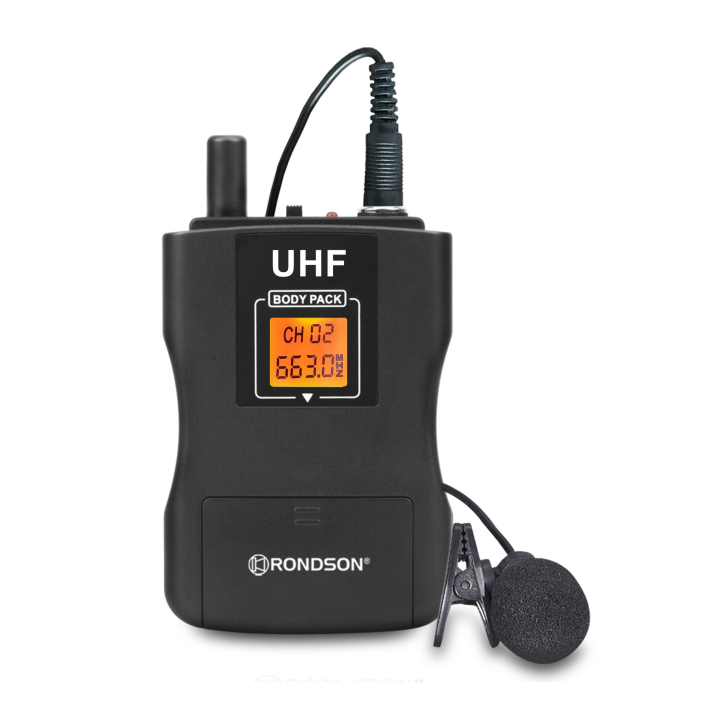

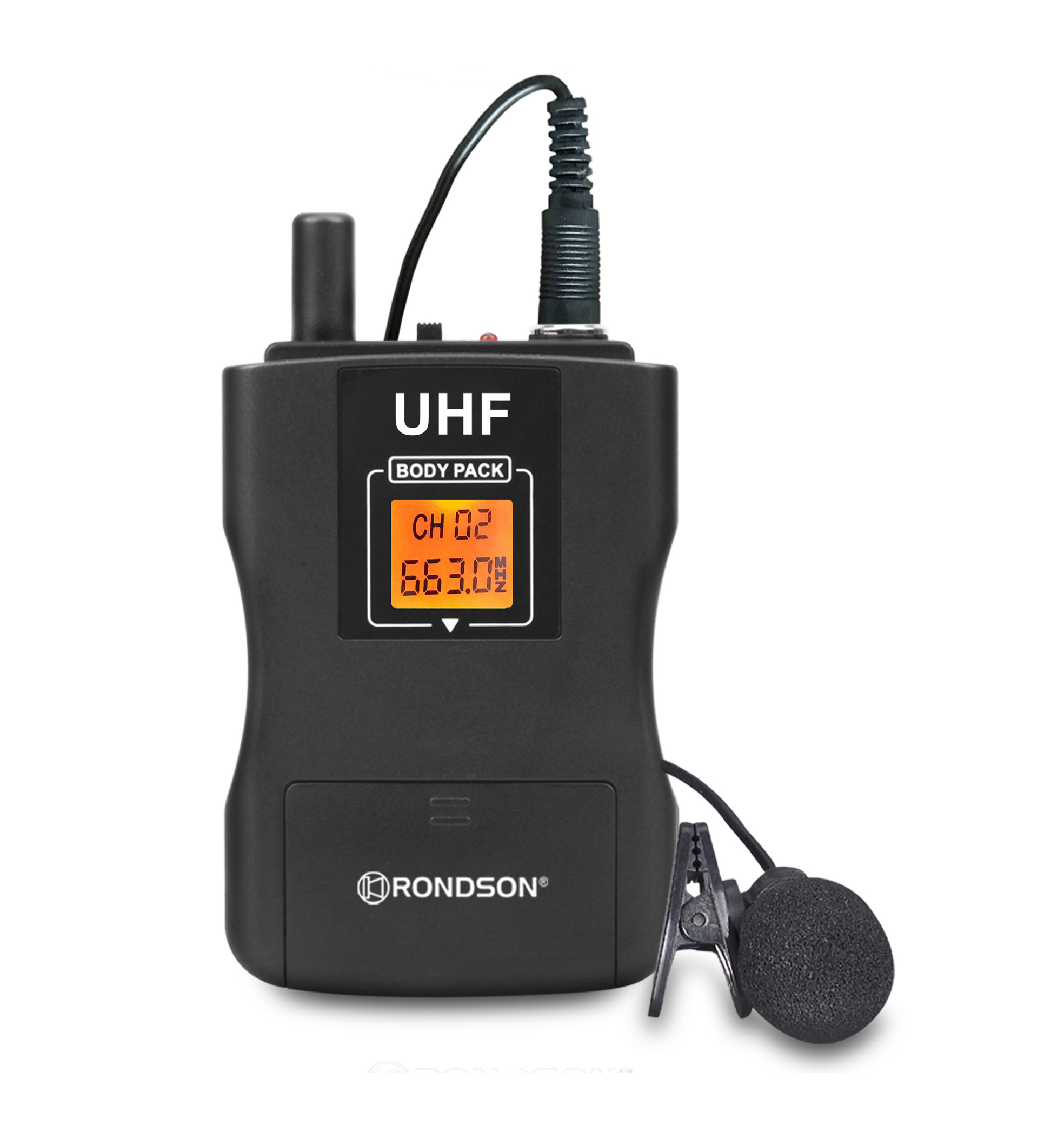

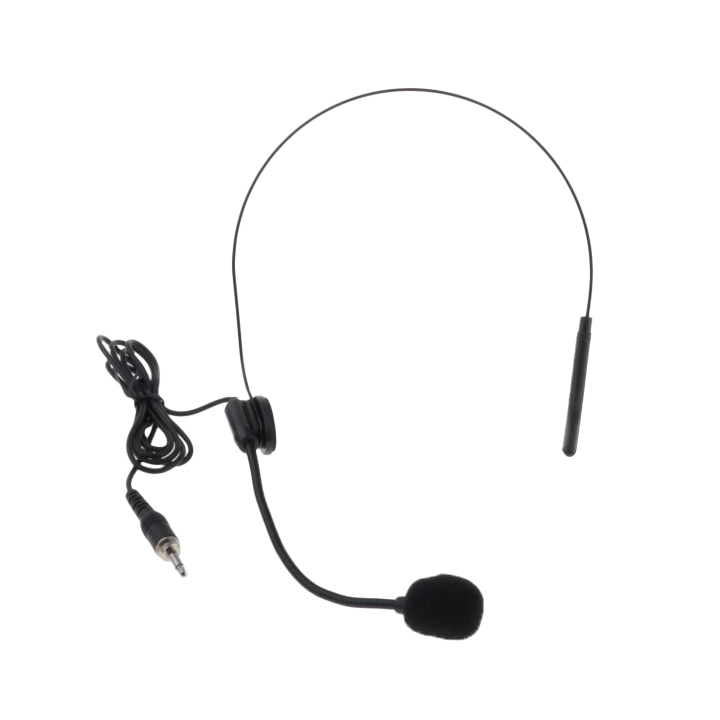

4 lavalier microphones and 4 head-worn microphones

4 sets available with 4 fixed frequency ranges

10 mW

Fréquences Mhz
Canaux
Type de Micro
Share

BE-1020 et BE-1040

Download (1.55MB)

BE-1040/4BP

Download (2.29MB)

BE-1040/2MIC/2BP

Download (2.29MB)

Description

Professional quality 4 channel UHF microphone set!

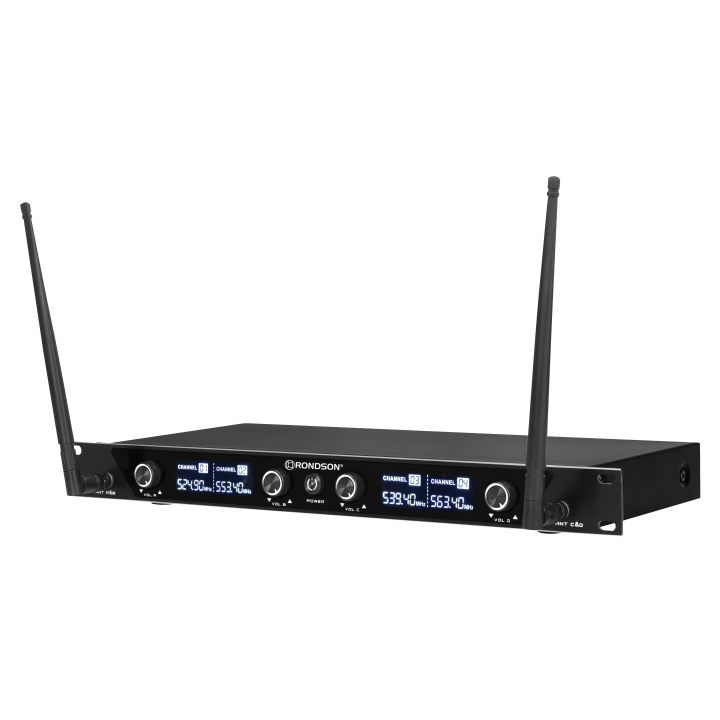

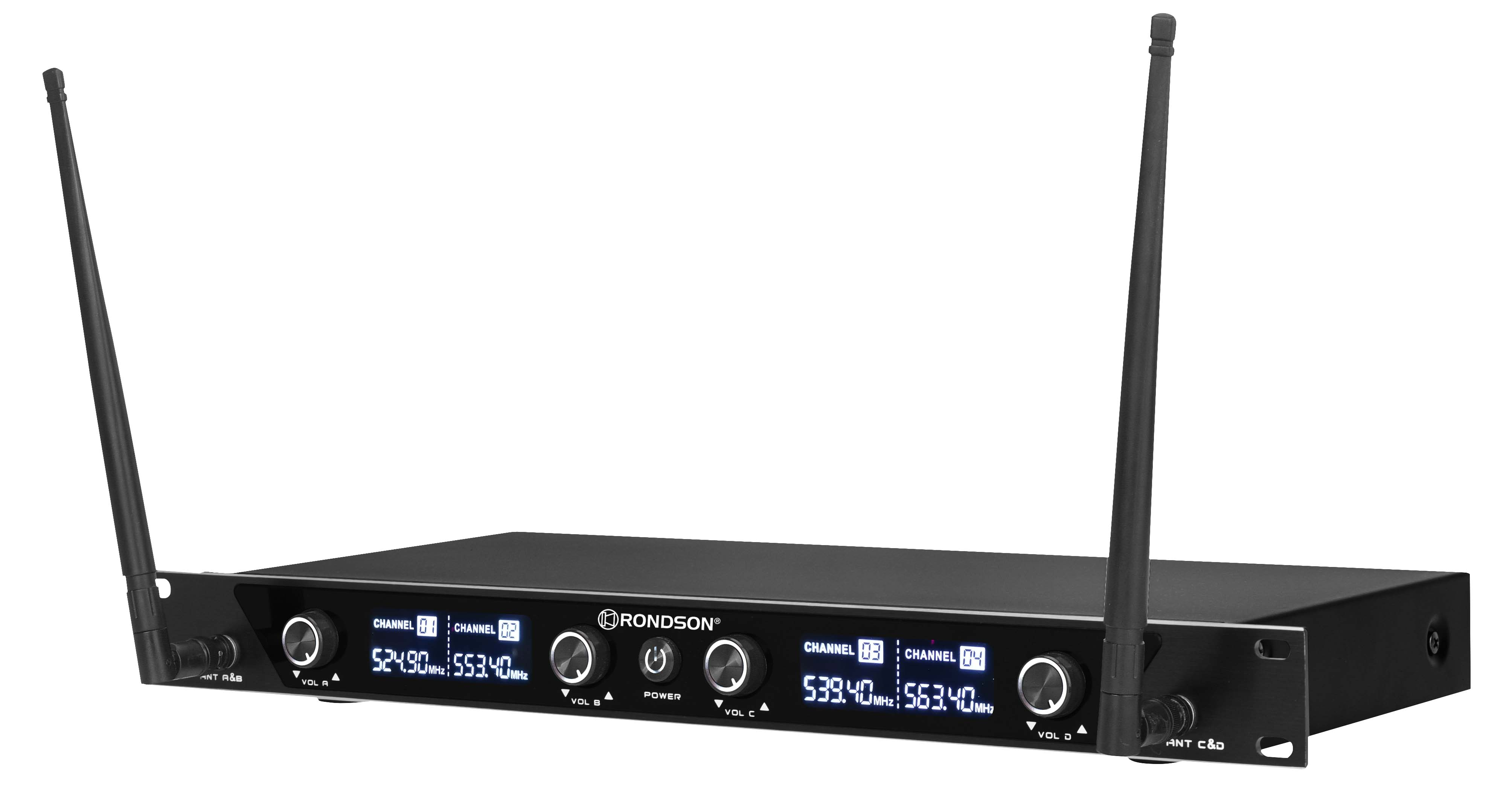

  • 4-channel UHF receiver equipped with selectable PLL synthesised receiver modules
  • Automatic reception system
  • Anti-interference system for simultaneous operation of several units
  • Reception distance of 50 metres
  • Transmitter power: 10 mW
  • Function display on LCD screen
  • Infrared "sync" function to transmit the frequency to the transmitters.
  • Ideal for professional vocal or audio applications, speeches, animations, etc.
  • 1 jack cord (mix output) and 2 XLR cords
  • Integrated brackets

Product Details

  • Brand
  • Reference
    BE-1040/4BP
  • SKU
    02525
  • EAN13
    3701567909481

Data sheet

  • Output impedance
    600 Ω
  • Power consumption
    5 W
  • Reception method
    Récepteur UHF 4 canaux
  • System
    Synthétisé PLL
  • Frequency stability
    ± 10 ppm
  • Image rejection ratio
    50 dB
  • Signal-to-noise ratio
    90 dB
  • Audio output level
    400 mV, Symétrique/Asymétrique
  • Prises d’antenne
    4 x BNC
  • Alimentation
    DC 12V - 1000 ma
  • Affichage
    LCD
  • Distorsion harmonique totale
    0,5 %
  • Bande passante
    50 - 15 000 Hz
  • Prises sortie audio
    4 XLR symétrique, 1 Jack asymétrique
  • Sensibilité
    - 80 dBuV
  • Batteries or rechargeable batteries
    2 x AA / 1,5 V (non livrées)
  • Dimensions (W × D × H)
    480 x 180 x 46 mm (rackable)
  • Weight
    2,75 Kg (récepteur + micro main)
  • Boîtier micro cravate / Micro main
    BE-1040BP / BE-1040MIC
