JS-MATRIX wall-mounted turntable with expandable volume control

Reference : JS-MATRIXLINK
SKU : 02732
EAN13 : 3701567912061

Wall-mounted turntable with JS-MATRIX expandable volume control

Share

Description

Product sheet in PDF

JS-MATRIXLINK Datasheet

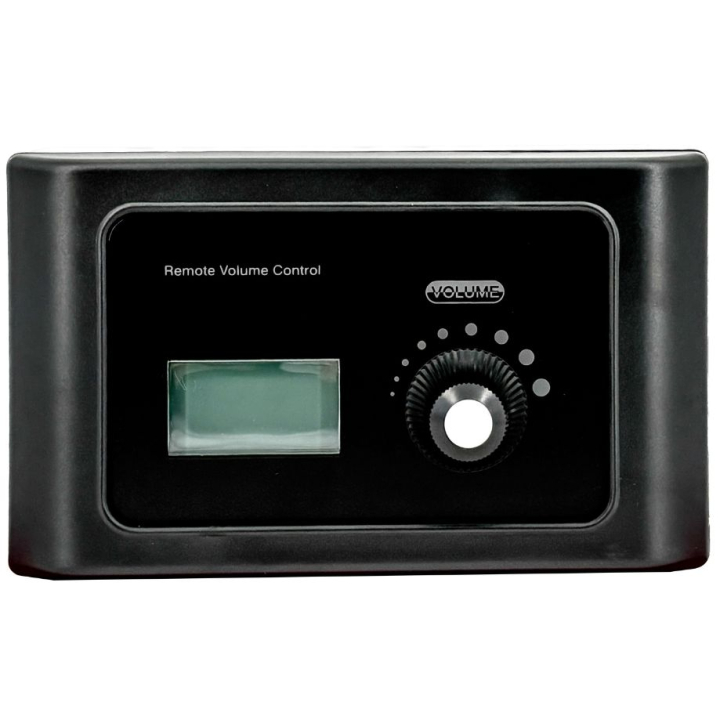

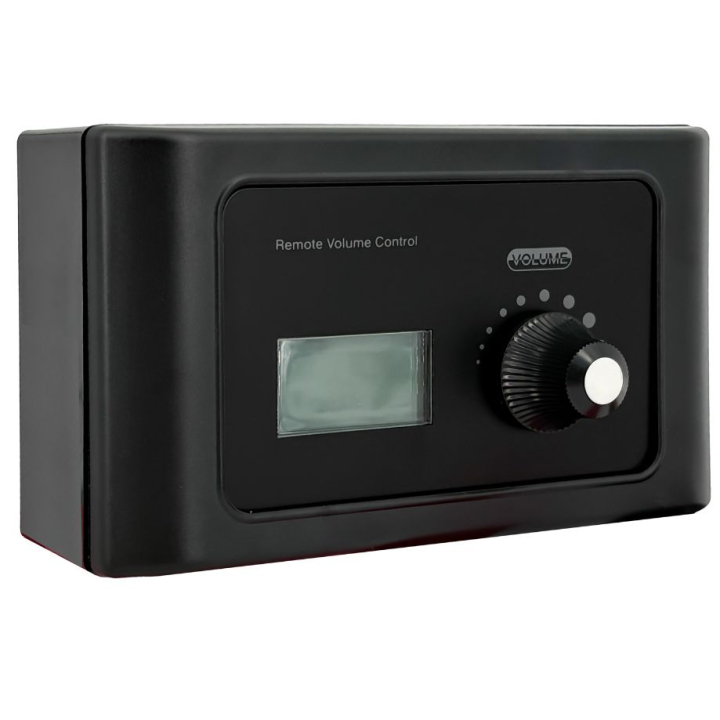

The JS-MATRIXLINK is a control box for the input and output volumes of the JS-MATRIX88.

This panel can be duplicated up to 4 times via RJ45 (IN / OUT).

LCD screen to view levels and routing.

  • 2 balanced analog outputs
  • Connectors: 2 x 3-pin terminal blocks, 5 mm pitch
  • Impedance: 240 Ohms
  • Maximum output power: + 20 dBu
  • Frequency response at 0 dB: 20 Hz ~ 20 kHz +/- 1.5 dB
  • Dynamic range: -107 dB max., A-weighted
  • Crossover distortion: -87 dB max. A-weighted, LCD display
  • Volume control: -∞ ~ +15 dB Ports
  • RD network to JS-MATRIX88, RJ45, maximum 100 m of CAT 5E cable (or higher)
  • Dimensions (W x H x D): 147 x 86 x 47 mm

Product Details

  • Brand
  • Reference
    JS-MATRIXLINK
  • SKU
    02732
  • EAN13
    3701567912061
